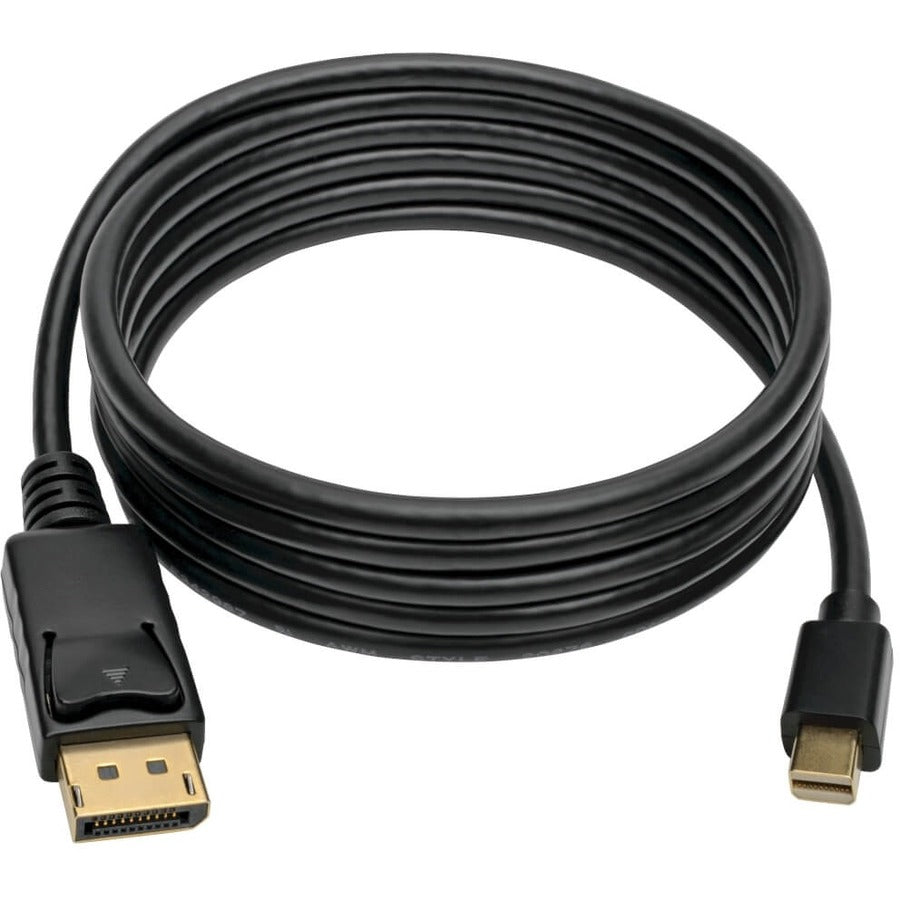

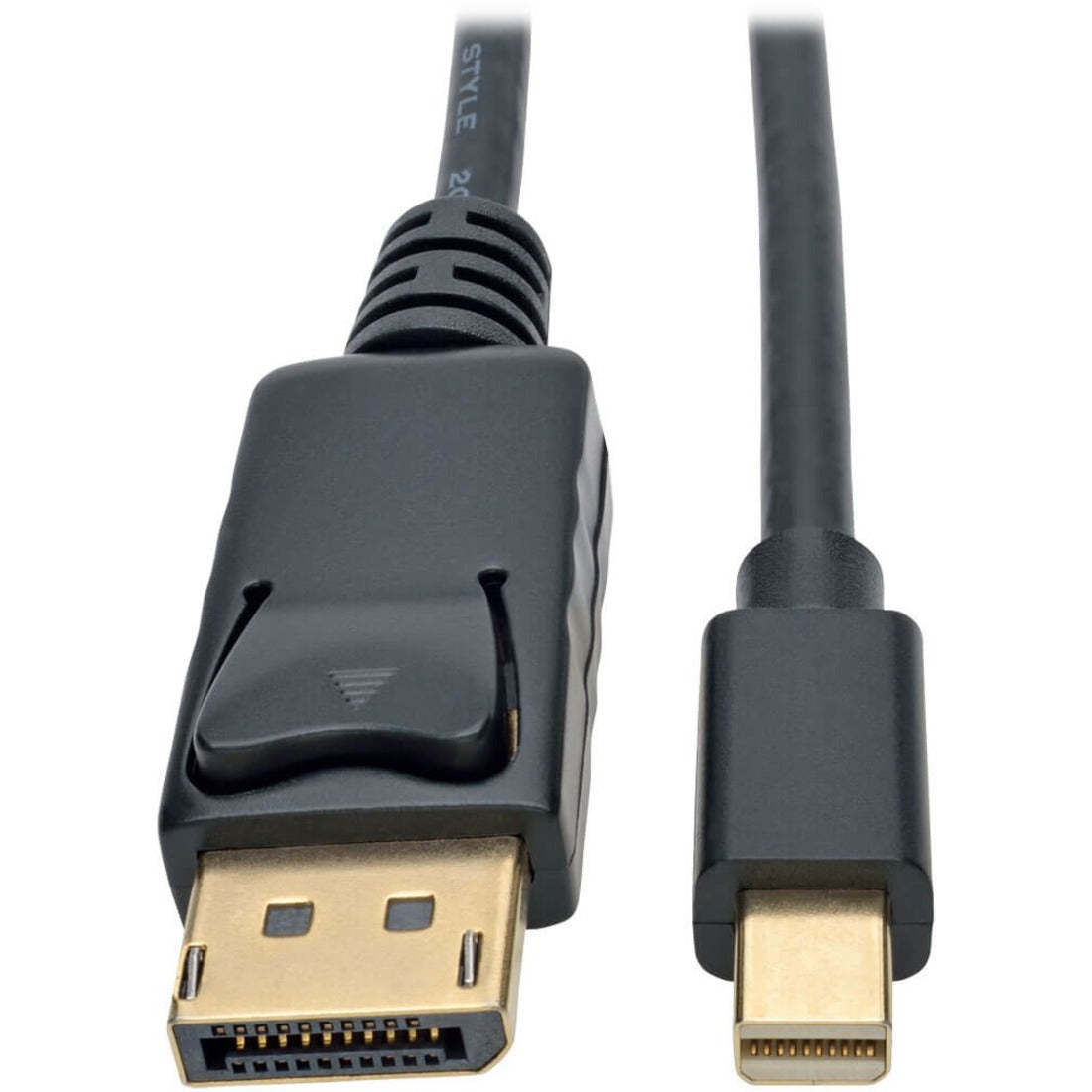

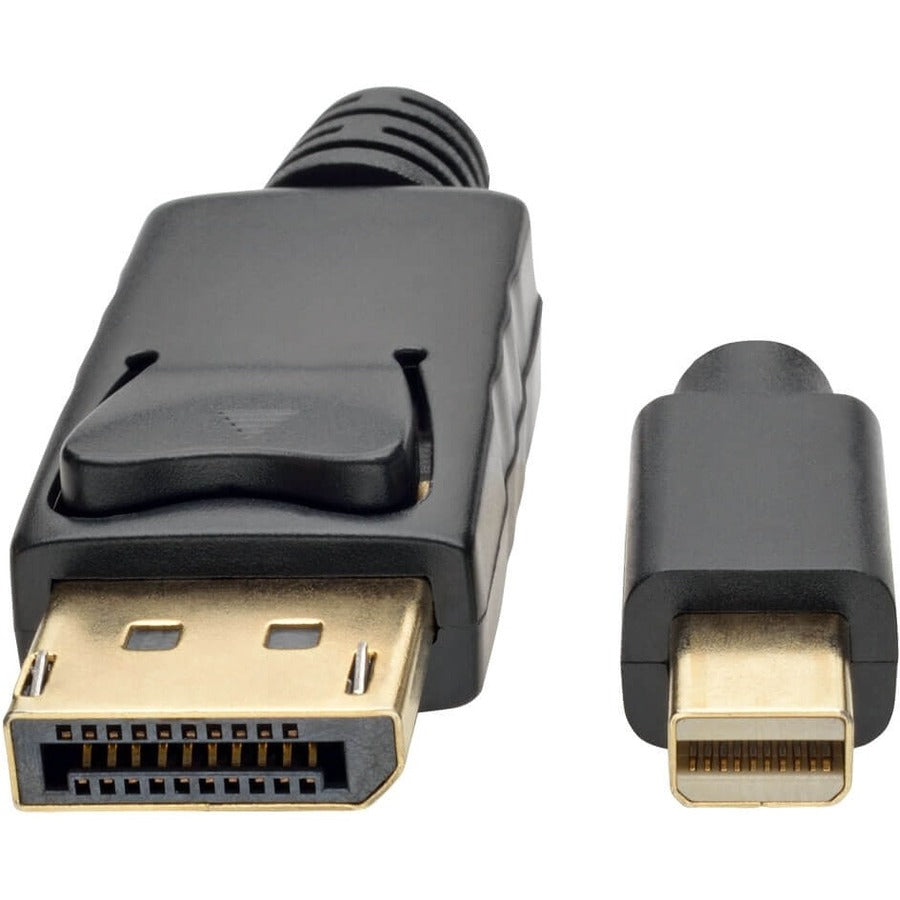

Eaton Tripp Lite Series Mini DisplayPort to DisplayPort Adapter Cable, 4K 60 Hz (M/M), DP Latching Connector, Black, 6 ft. (1.8 m) - P583-006-BK
Key Features
- Allows connection between a DisplayPort device and a device with Mini DisplayPort (mDP) or Thunderbolt ports.
- Gold-plated connectors and contacts for maximum conductivity
- Locking DisplayPort connector prevents accidental disconnection
- Meets DisplayPort 1.2 standards
- Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- This product is covered by a Lifetime Limited Warranty
Product Overview
Sends Ultra High Definition Mini DisplayPort Audio/Video to DisplayPort Monitor or DisplayPort Audio/Video to Mini DisplayPort Monitor
- Connects mDP or Thunderbolt computer or laptop to DisplayPort monitor, TV or projector or connects the DisplayPort output on your computer or laptop to the Mini DisplayPort (mDP) or Thunderbolt input on your monitor, television or projector
- Recommended for displaying video on large monitor or digital sign
- No separate power adapter required
Vibrant Video Quality
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- Meets DisplayPort 1.2 standards
- Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
- Backward compatible with previous DisplayPort versions
Superior Materials for Superior Performance

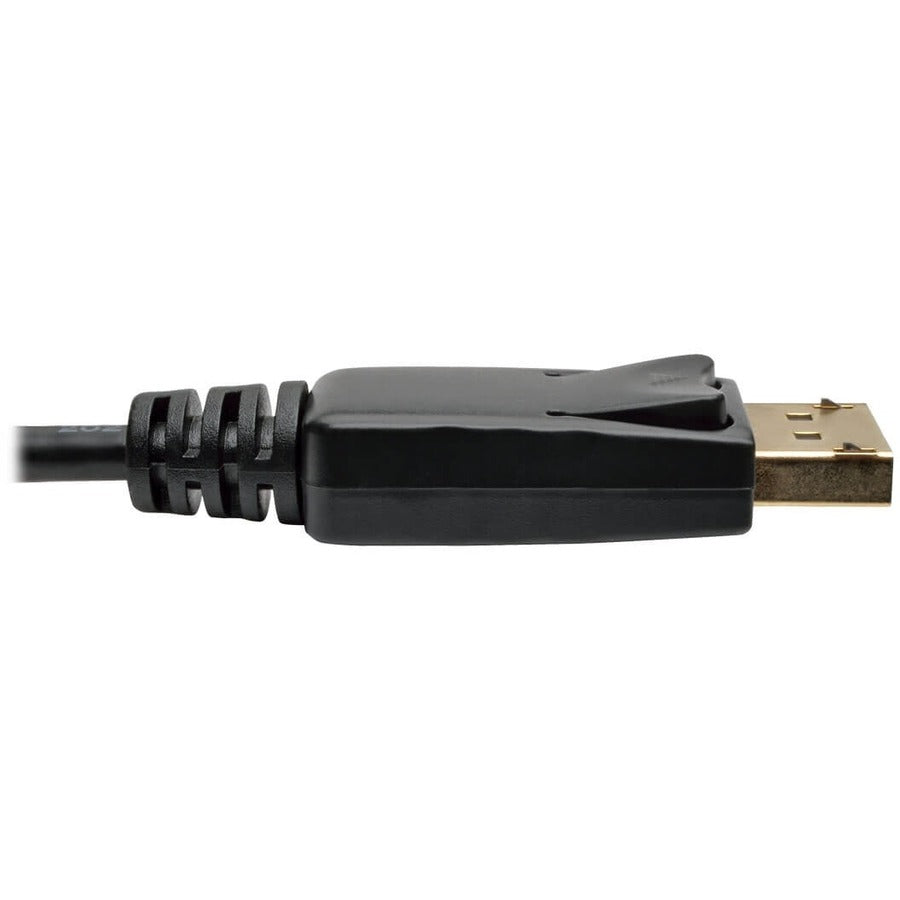

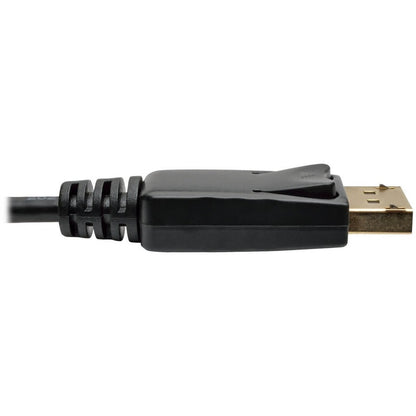

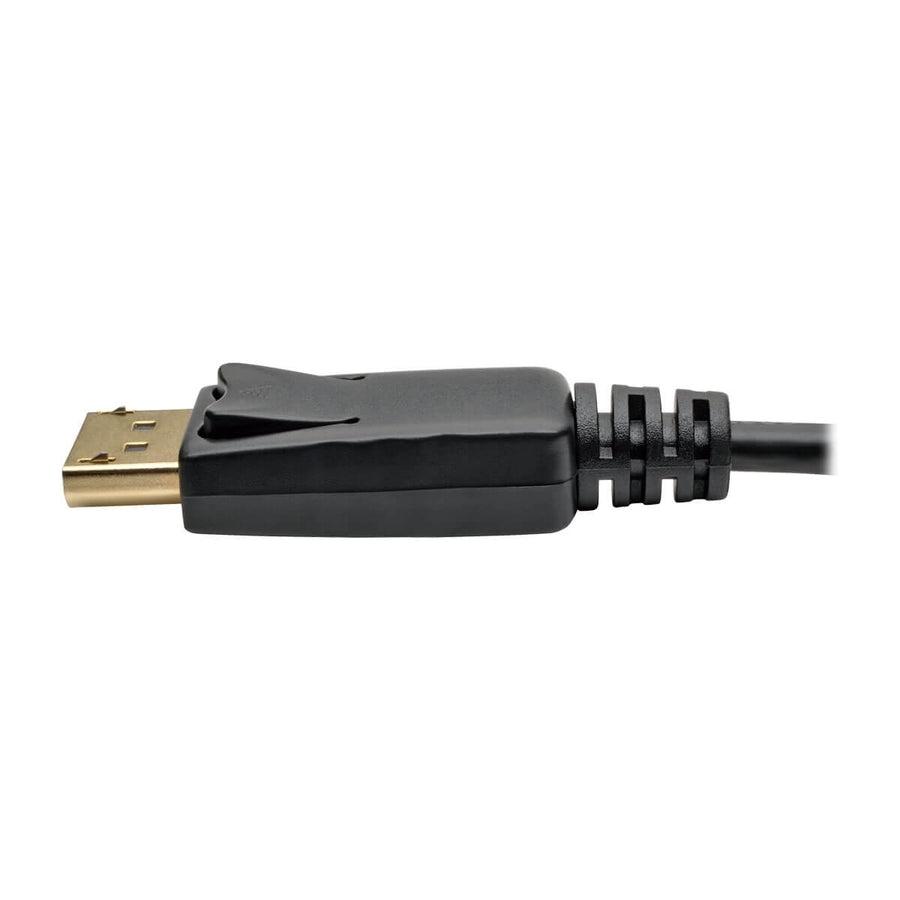

- Locking DisplayPort connector prevents accidental disconnection
- Gold-plated connectors and contacts for maximum conductivity and minimum data loss
- Integral strain relief reduces stress and adds flexibility
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: P583-006-BK
- Brand Name: Tripp Lite series
- Product Model: P583-006-BK
- Product Name: P583-006-BK DisplayPort/Mini-DisplayPort Audio/Video Cable
- Product Type: A/V Cable
Technical Information
- Cable Type: DisplayPort/Mini DisplayPort
- Cable Length: 6 ft
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector on First End Details: 1 x DisplayPort 1.2 Digital Audio/Video - Male

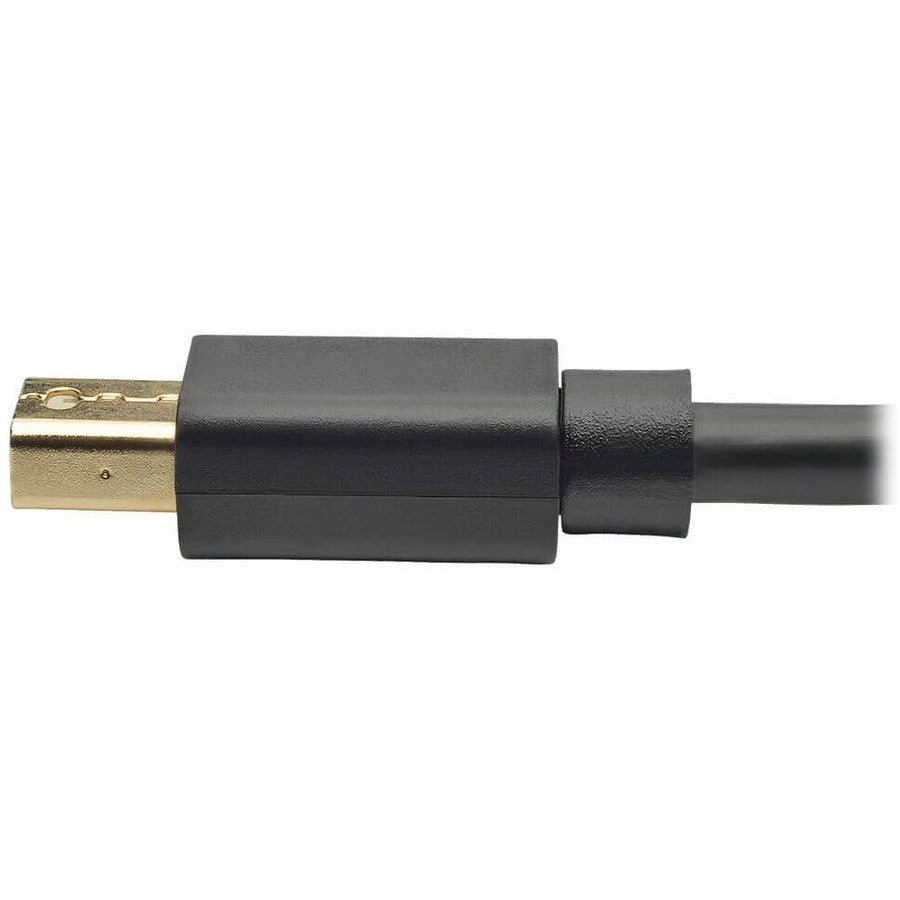

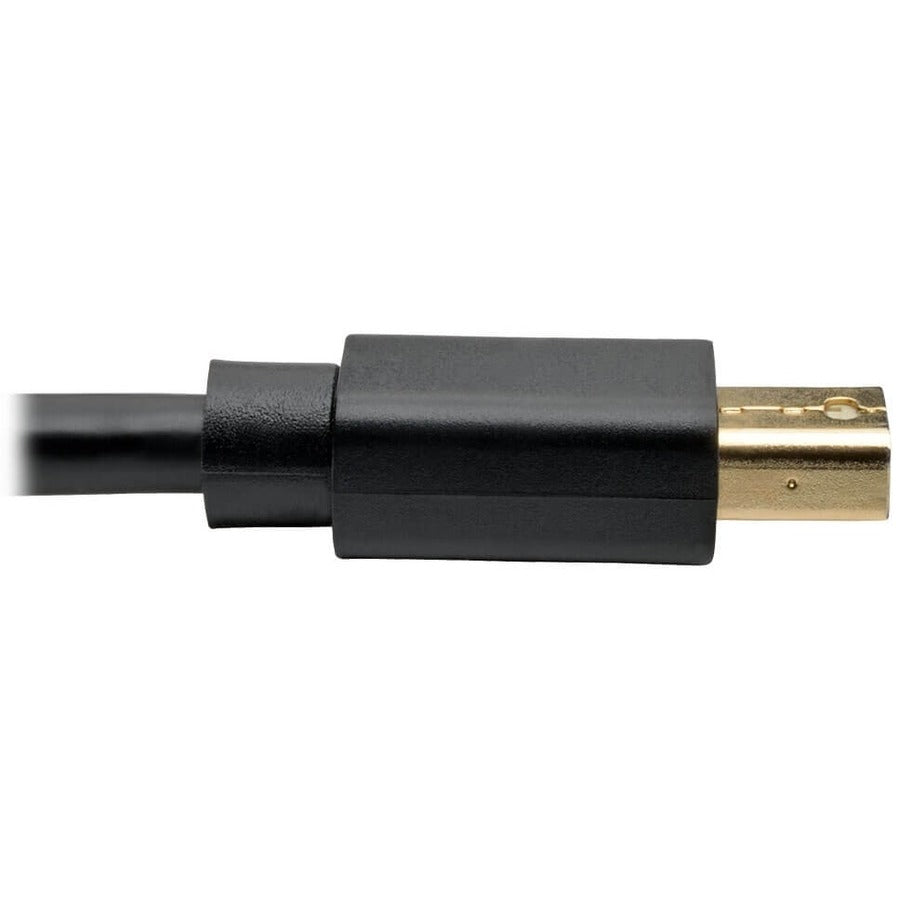

- Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector on Second End Details: 1 x Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Plating: Gold
- Contact Plating: Gold
- Device Supported:
- Audio/Video Device
- Notebook
- Monitor
- TV
- Projector
- Data Transfer Rate: 21.6 Gbit/s
- Supported Resolution: 4096 x 2160
- Features:
- Corrosion Resistant
- Strain Relief
- Flexible
Physical Characteristics
- Color Family: Black
- Product Color: Black
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: Lifetime
