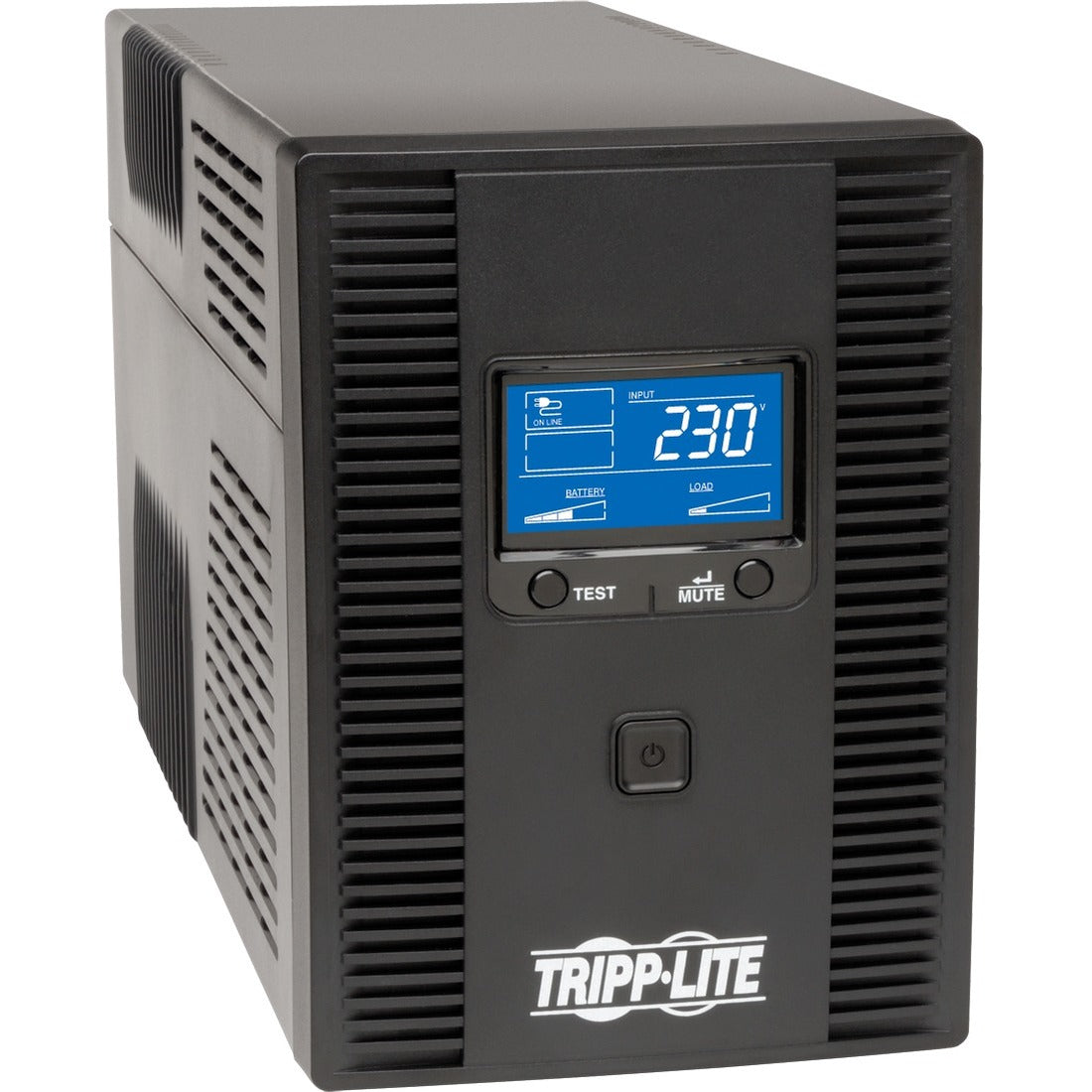

Eaton Tripp Lite Series SmartPro 230V 1.5kVA 900W Line-Interactive UPS, Tower, LCD, USB, 8 Outlets - SMX1500LCDT
Key Features
- 10 min. runtime at half load
- 8 C13 outlets-2 surge-only
- Corrects under- and overvoltages from 170V to 280V
- Interactive LCD monitoring screen
- Monitoring of power conditions via POWERALERT12
Product Overview
The SMX1500LCDT SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1500LCDT switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

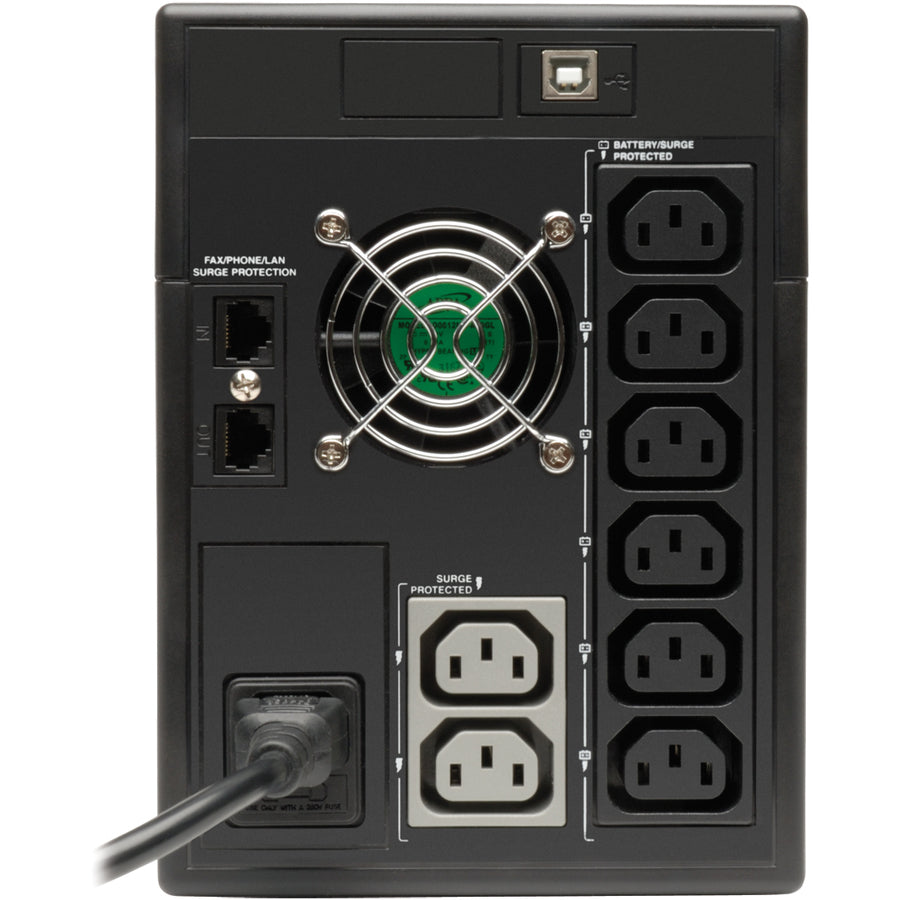

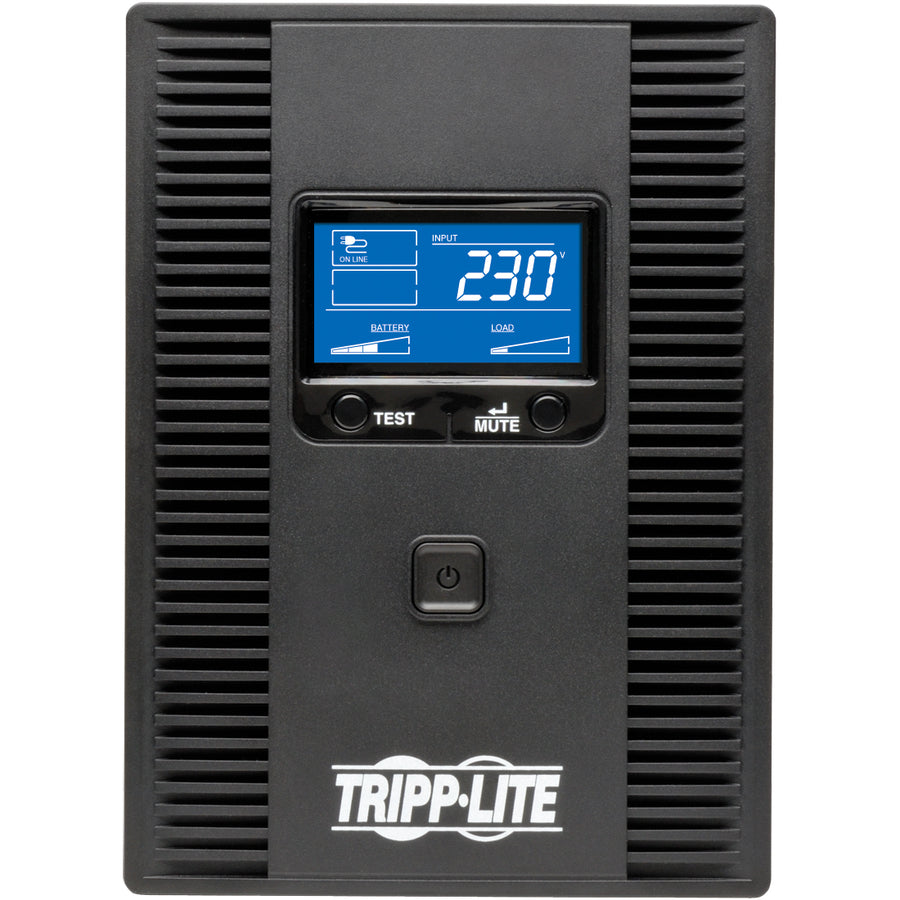

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCDT has an internal battery that provides 10 minutes of support at half load. It can also power an entry-level PC up to 90 minutes. Two of the eight outlets provide surge protection only for printers and other non-essential devices A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 170V to 280V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 455-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's free downloadable PowerAlert software, SMX1500LCDT enables safe unattended system shutdown and file saves in case of a prolonged power failure.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMX1500LCDT
- Brand Name: Tripp Lite series
- Product Model: SMX1500LCDT
- Product Name: Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: IEC 60320 C14
- Receptacle Type: IEC 60320 C13
- Receptacle Detail: 8 x IEC 60320 C13
- Dataline Protection:
- RJ-11
- RJ-45
- Cord Length: 6 ft
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 900 W
- Input Voltage: 230 V DC
- Input Current: 9 A
- Output Voltage: 230 V AC
- Waveform Type:
- Sine Wave
- Pulse-width Modulated Sine Wave
- Surge Energy Rating: 455 J
- Circuit Breaker: Yes
Management
- Alarm:
- Low Battery
- Power Failure
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Number of Batteries: 2
- Backup/Run Time (Half Load): 10 Minute
- Typical Battery Recharge Time: 8 Hour
Physical Characteristics
- Height: 8"
- Width: 5.75"
- Depth: 15.50"
- Form Factor: Tower
- Weight (Approximate): 24.69 lb
Miscellaneous

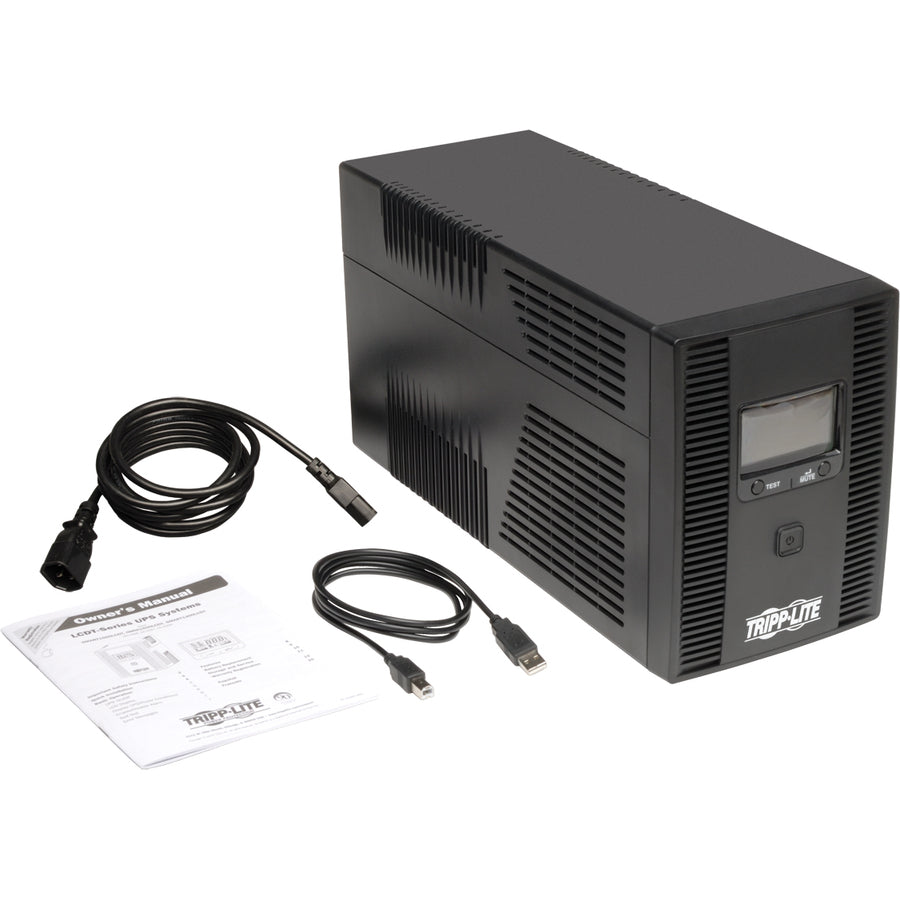

- Package Contents:
- Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port
- USB Cabling

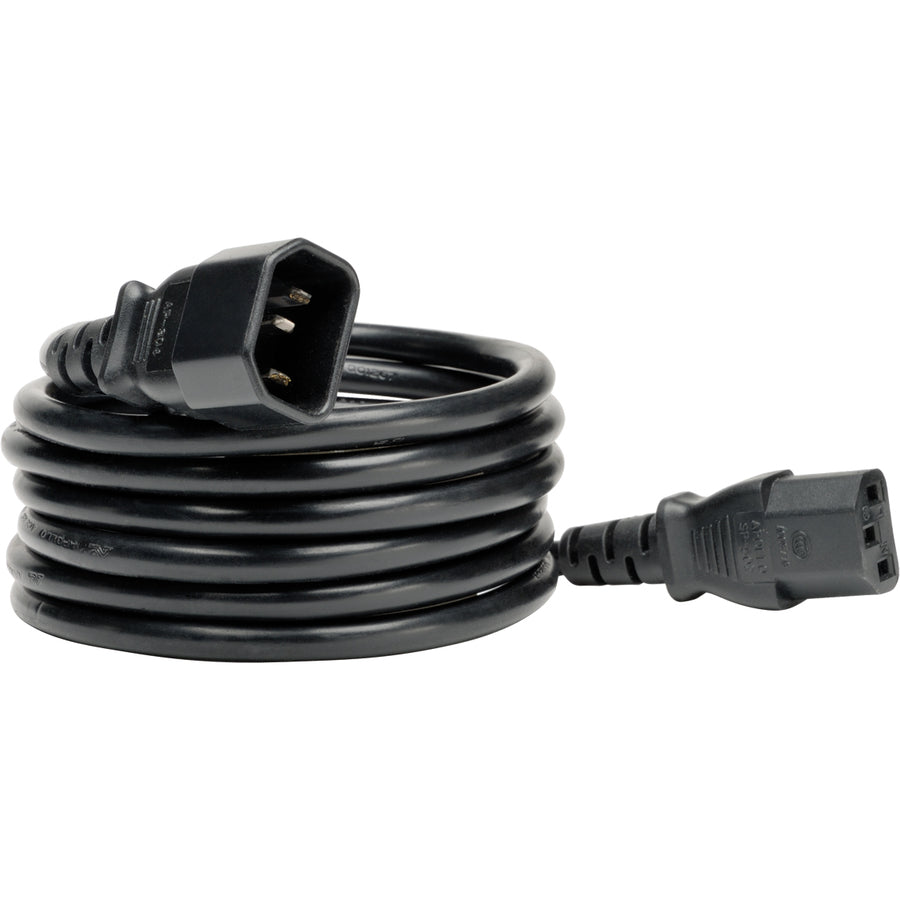

- 1.8m C13 to C14 Power Cable
- Manual with Warranty Information
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
