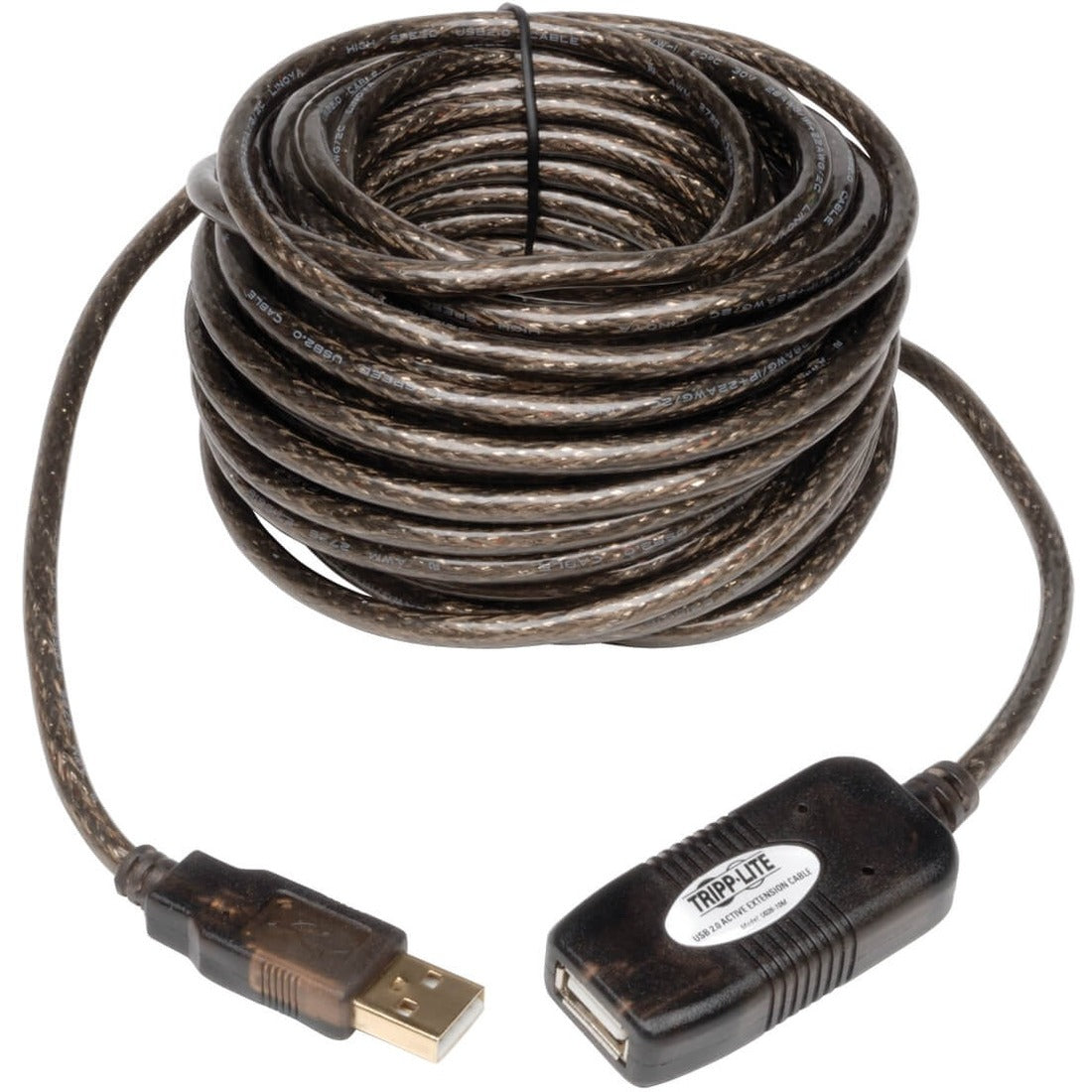

Eaton Tripp Lite Series USB 2.0 Active Extension Repeater Cable (A M/F), 10M (32.8 ft.) - U026-10M
Key Features
- Built in Repeater maintains Hi-Speed USB signal quality, and electrical / timing specifications
- Extends and Boosts the signal to any USB device
- Plug and Play....Compatible with all major operating systems
- Supports data transfer speeds up to 480Mbps
Product Overview
Tripp Lite's 10-meter ( 33 ft. ) USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 131ft by daisy chaining up to 4 of these active cables. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard 6' 10' or 15' USB A-B cable to reach the desired distance. The U026-10M provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-10M.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: U026-10M
- Brand Name: Tripp Lite series
- Product Model: U026-10M
- Product Name: 10-meter ( 3.28 ft. ) USB2.0 A/A Hi-Speed Active Extension / Repeater Cable
- Product Type: Signal Amplifier
Interfaces/Ports
- Network (RJ-45): Yes
Media & Performance
- Maximum Operating Distance: 32.81 ft
Physical Characteristics
- Length: 32.8 ft
Miscellaneous
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
