Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI/DisplayPort, VGA, USB 3.x (5Gbps), USB-A/C Hub Ports, GbE, 100W PD Charging - Thunderbolt 3, Silver - U442-DOCK4-S
Key Features
- Connects you to a wired Ethernet network when no Wi-Fi is available
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Easy installation with plug-and-play operation-no software required
- Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- USB-C docking station with power adds HDMI, VGA, DP, USB, PD Charging and other ports to your Chromebook, MacBook or PC.
Product Overview
This docking station with power expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD charging-compliant mobile device, connecting to a Gigabit Ethernet network and more. With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort TV, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (sold separately). The HDMI and DisplayPort ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: U442-DOCK4-S
- Brand Name: Tripp Lite series
- Product Model: U442-DOCK4-S
- Product Name: U442-DOCK4-S Docking Station
- Packaged Quantity: 1 Each
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Device Supported:
- Notebook
- Tablet PC
- Desktop PC
- Smartphone
Interfaces/Ports
- Host Interface: USB Type C
- Audio Line Out: Yes
- Total Number of USB Ports: 6
- Number of USB 3.0 Ports: 4
- Network (RJ-45): Yes
- VGA: Yes
- DisplayPort: Yes
- Microphone: Yes
- HDMI: Yes
- Thunderbolt: Yes
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Height: 0.87"
- Width: 7.80"
- Depth: 3.30"
- Weight (Approximate): 15.17 oz
Miscellaneous

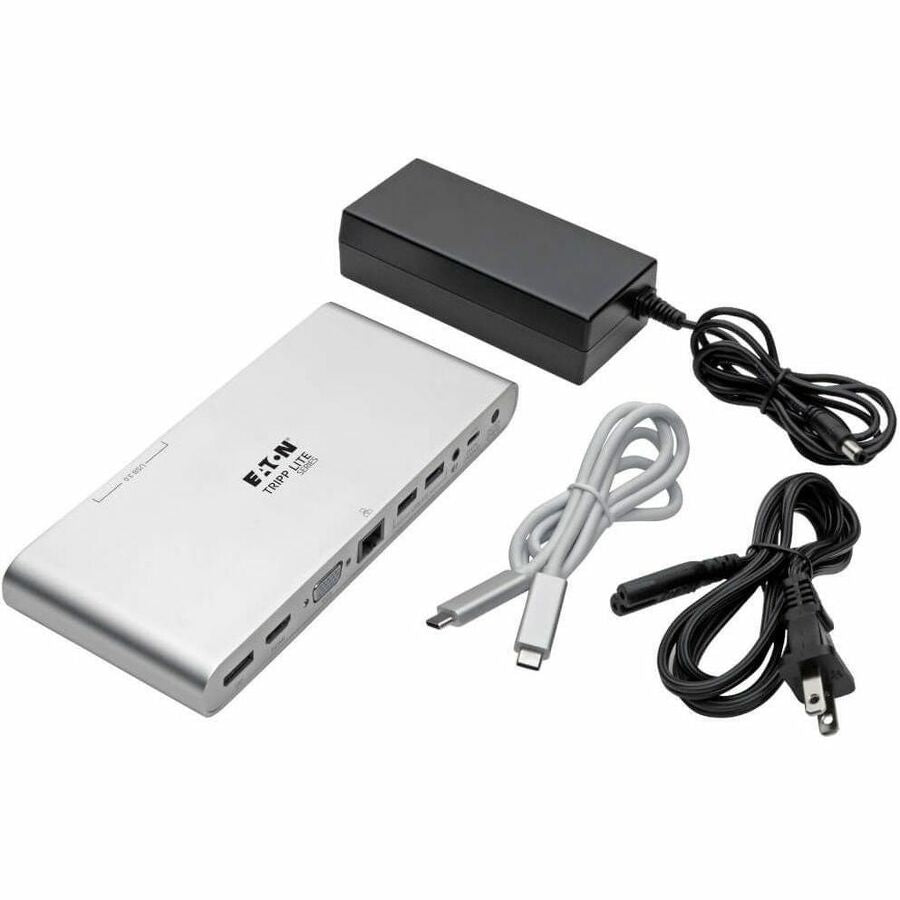

- Package Contents:
- U442-DOCK4-S Docking Station
- USB-C cable (M/M), 1 ft.
- External power supply (Input: 100-240V, 50/60 Hz, 1.8A; Max Output: 20V 3.6A)
- Owner's manual
- Compatibility:
Apple Notebook:
- MacBook
Google Notebook:
- Chromebook
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
3 year limited warranty
