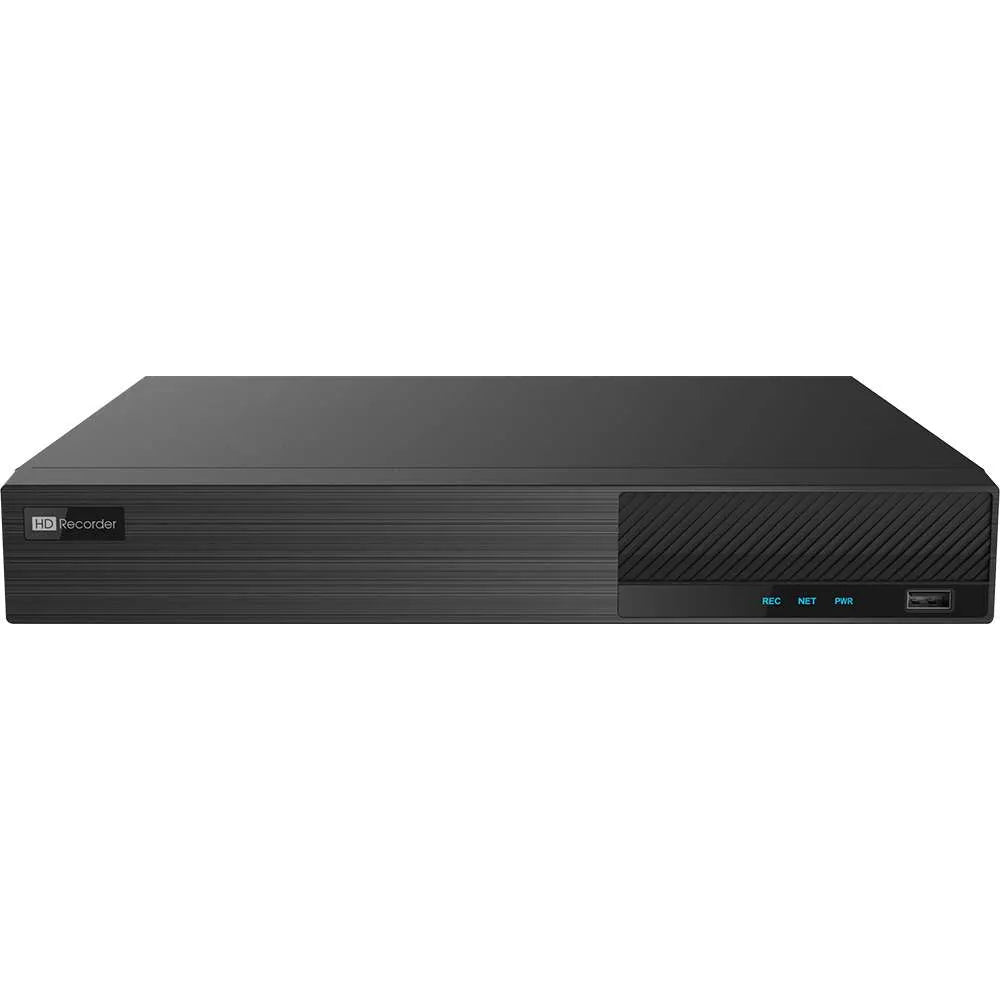

The ENS Titanium ED9308H5NV-8P-3NB is an 8-channel network video recorder with eight built-in PoE ports, supporting recording resolutions up to 8MP (4K). NDAA compliant.
At a Glance
- Max Recording Resolution: 8MP
- Channels: 8CH
- Built-in PoE: 8 Port PoE
- Storage: 1x SATA port
- Video Outputs: HDMI / VGA
- Compliance: NDAA
- VCA Features: Basic VCA
- Audio: Audio in, Audio out
Features
- Supports 8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP video input
- Standard H.265 and H.264 high profile compression for high-quality video at a lower bit rate
- Intuitive graphic user interface (GUI) with Windows-style mouse operation
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- 8/16 CH simultaneous playback
- Search by time slice, time, event, tag, and smart search
- Multiple VCA events including object abandoned/missing, region intrusion, tripwire, and video exception
- POS information overlay on live view and playback
- Flexible backup via USB, network, and more
- Pentaplex operation: preview, record, playback, backup, and remote access
- DHCP, DDNS, and PPPoE network protocols
- Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
- 8/16 PoE network ports — IP cameras connect directly to the NVR with PoE power supplied
- Dual stream technology for high-definition local storage plus remote network transmission and mobile surveillance
- Multiple users online simultaneously
- Authorization management, log view, and device status view
- 4K output for true high-resolution display
- Supports NAT and QR code scanning from mobile phones
- Mobile surveillance via iOS and Android apps
