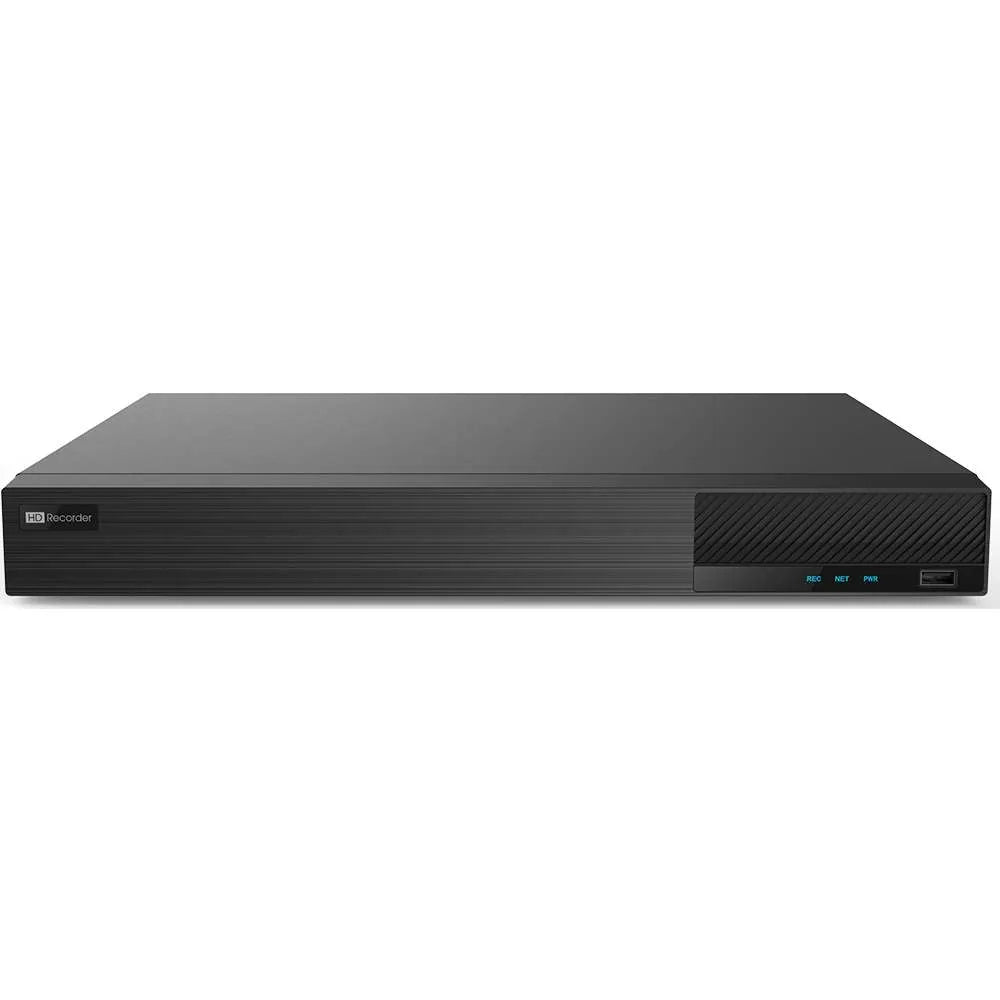

The ENS Titanium ED9532H5NV-AN is a 32-channel network video recorder that records IP cameras at up to 12MP, with two SATA bays that hold up to 10TB each (drives not included). Two HDMI outputs, one at 4K, run separate main and auxiliary displays. Face detection and face comparison against a database of up to 10,000 face pictures, license plate recognition with AI cameras, two Gigabit network ports, 8 alarm inputs and RS485 PTZ control round out the feature set. NDAA compliant.
At a Glance
- Max Recording Resolution: 12MP
- Channels: 32CH
- Built-in PoE: None
- Storage: 2x SATA ports, up to 10TB each (drives not included)
- Video Outputs: HDMI 1 (up to 4K), HDMI 2, VGA
- Network: 2x Gigabit RJ45
- Compliance: NDAA
- VCA Features: Basic VCA, Face Detection, Facial Recognition, Human / Vehicle Classification, LPR, POS
- Audio: Audio in, Audio out
- Alarm: 8 inputs, 4 outputs
Features
- IP Video Input: 32 channels at 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 x 1024, 960P, 720P, 960H, D1, CIF
- Recording Frame Rate: 20fps at 12MP; 30fps (NTSC) or 25fps (PAL) at 8MP and below
- Video Compression: H.265S, H.265+, H.265 and H.264
- Network Bandwidth: 192Mbps incoming and 192Mbps outgoing over two Gigabit ports
- Dual Display: HDMI 1 up to 3840 x 2160 as the main output and HDMI 2 up to 1920 x 1080 as an auxiliary output, for up to 32+9 channels of local live view (VGA mirrors HDMI 1)
- Face Recognition: face detection on 32 channels with AI cameras (2 channels processed by the NVR), face matching on 6 channels at 18 pictures per second, 32 libraries with up to 10,000 face pictures, allow list, block list and stranger match alarms, and track display on a map
- Smart Detection: human and vehicle classification, and license plate recognition with AI cameras
- Video Analytics: object abandoned and missing, region intrusion, tripwire and video exception events
- Recording Modes: manual, timed, motion, sensor, POS and AI recording
- POS Overlay: POS information shown on live view and playback
- Playback and Search: up to 16 channels of simultaneous playback, with search by time slice, time, event, tag, smart search and face picture
- PTZ Control: RS485 port for PTZ cameras or a keyboard, with up to 255 presets and 8 cruises
- Alarms: 8 local alarm inputs and 4 alarm outputs that can trigger recording, snapshots, presets and email
- Two-Way Audio: one RCA audio input and one RCA audio output, plus audio from all 32 camera channels
- Third-Party Cameras: compatible with ONVIF cameras
- Remote Access: web client, CMS software and iOS and Android apps for live view, playback, backup, PTZ control and configuration, with up to 128 users connected
- Backup: USB 3.0 and USB 2.0 ports for flash drives or USB hard drives, plus network backup
- Fisheye Dewarping: through the web client and mobile app
Application Scenarios
- Retail Stores and Restaurants: cover sales floors, registers, entrances and parking areas, with POS information on the video
- Office Buildings: face recognition at entrances and lobbies, with alerts for faces on your lists and for strangers
- Warehouses and Light Industrial Sites: up to 32 cameras across docks, yards and perimeters, with alarm inputs for door and gate sensors
Specifications
- Power Supply: DC 12V / 4A
- Power Consumption: 20W or less (without HDD)
- Dimensions: 380 x 268 x 48.1 mm (14.96 x 10.55 x 1.89 in)
