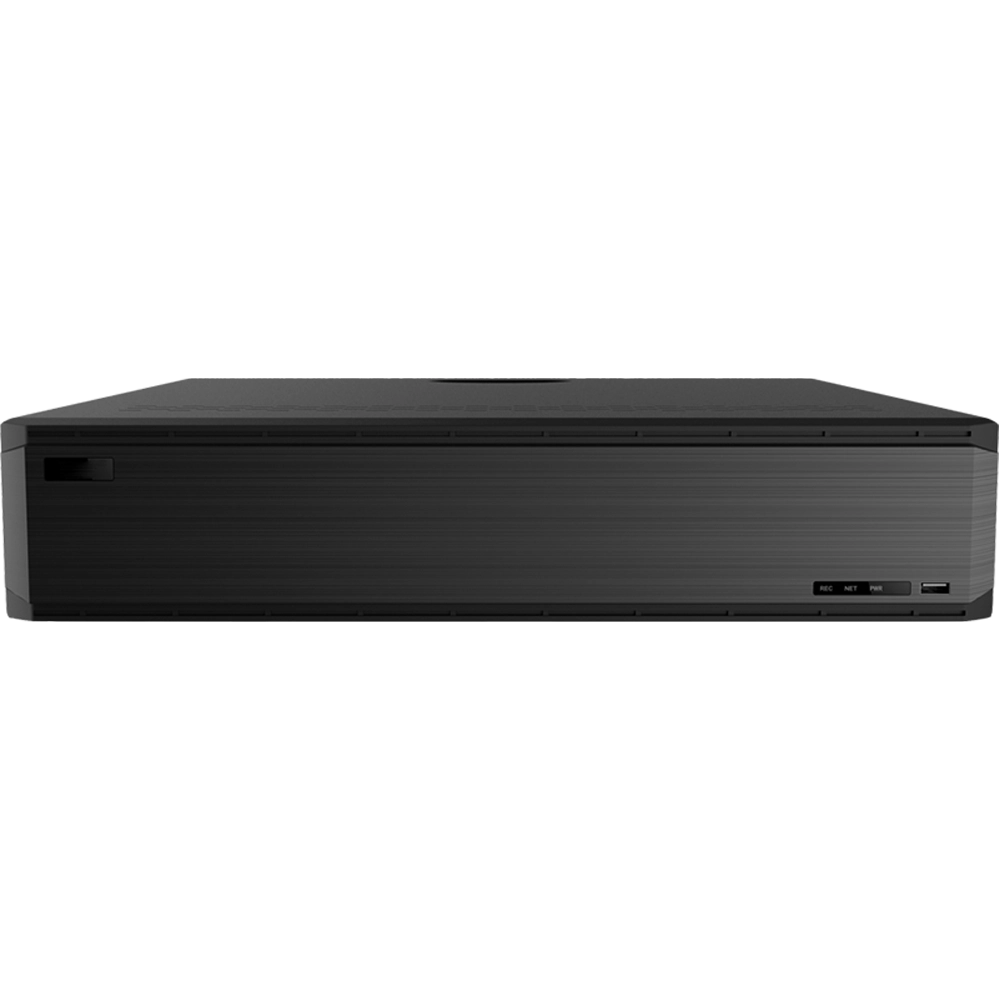

The ENS Titanium ED9764H5NV-A3H is a 64-channel network video recorder that records IP cameras at up to 16MP and drives an 8K display. Eight SATA bays take up to 10TB per drive (drives not included) with RAID 0, 1, 5, 6 and 10 support, and two eSATA ports connect external storage. Four HDMI outputs plus VGA show up to 132 live view windows across the main and auxiliary displays. Face recognition, human and vehicle classification and license plate recognition with AI cameras let you search footage by target. NDAA compliant.
At a Glance
- Max Recording Resolution: 16MP
- Channels: 64CH
- Built-in PoE: None
- Storage: 8x SATA ports, up to 10TB each, RAID 0/1/5/6/10, 2x eSATA (drives not included)
- Video Outputs: 4x HDMI (HDMI 1 up to 8K), 1x VGA
- Network: 2x Gigabit RJ45
- Compliance: NDAA
- VCA Features: Basic VCA, Face Detection, Facial Recognition, Human / Vehicle Classification, LPR
- Audio: Audio in, Audio out, HDMI audio
- Alarm: 16 inputs, 4 outputs
Features
- IP Video Input: 64 channels at 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 x 1024, 960P, 720P, 960H, D1, CIF
- Video Compression: H.265S, H.265+, H.265 and H.264
- Network Bandwidth: 640Mbps incoming and 640Mbps outgoing over two Gigabit ports
- 8K Display: HDMI 1 up to 7680 x 4320, HDMI 2 and HDMI 3 up to 3840 x 2160, HDMI 4 up to 1920 x 1080, and VGA up to 1920 x 1080 (VGA mirrors HDMI 1; when HDMI 1 outputs 8K, HDMI 2 is unavailable)
- Multi-Screen Live View: up to 64 windows on the main output, 36 on AUX 1 and 16 each on AUX 2 and AUX 3, for 132 windows in total
- Decoding: live view of 1 channel at 16MP or 4 channels at 12MP, and playback of 1 channel at 16MP or 4 channels at 8MP on the main output
- RAID Storage: RAID 0, 1, 5, 6 and 10 across 8 SATA bays, up to 10TB per drive, plus two eSATA ports
- Face Recognition: face detection on 64 channels with AI cameras (4CH processed by the NVR), face matching on 16 channels at 36 pictures per second, 32 libraries with up to 10,000 face pictures, recognition and stranger match alarms, and track display on a map
- Human and Vehicle Detection: classification on 64 channels with AI cameras (8CH processed by the NVR), plus human and vehicle attribute analysis
- License Plate Recognition: with AI cameras
- Video Analytics: region intrusion and tripwire events
- Recording Modes: manual, timed, motion, sensor, POS and AI recording
- Playback and Search: up to 16 channels of simultaneous playback with frame by frame stepping, and search by time slice, time, event, tag, smart search and target database
- PTZ Control: RS485 port for PTZ cameras or a keyboard, with up to 255 presets and 8 cruises
- Alarms: 16 alarm inputs and 4 alarm outputs that can trigger recording, snapshots, presets and email
- Audio: RCA input and output for two-way talk, plus audio over HDMI
- Third-Party Cameras: compatible with ONVIF cameras
- Remote Access: web client, CMS software and iOS and Android apps for live view, playback, backup, PTZ control and configuration, with up to 128 users connected
- Fisheye: fisheye camera access
Application Scenarios
- Corporate Campuses and Office Parks: up to 64 cameras across buildings, lobbies and parking lots on one recorder
- Schools and Public Buildings: face recognition at entrances with alerts for strangers, and RAID 1, 5, 6 or 10 to protect recordings against a drive failure
- Shopping Centers and Distribution Centers: a central recorder with four HDMI outputs for a security desk video wall
Specifications
- Power Supply: ATX 200W internal
- Power Consumption: 50W or less (without HDD)
- Dimensions: 445 x 436 x 90 mm (17.52 x 17.17 x 3.54 in)
