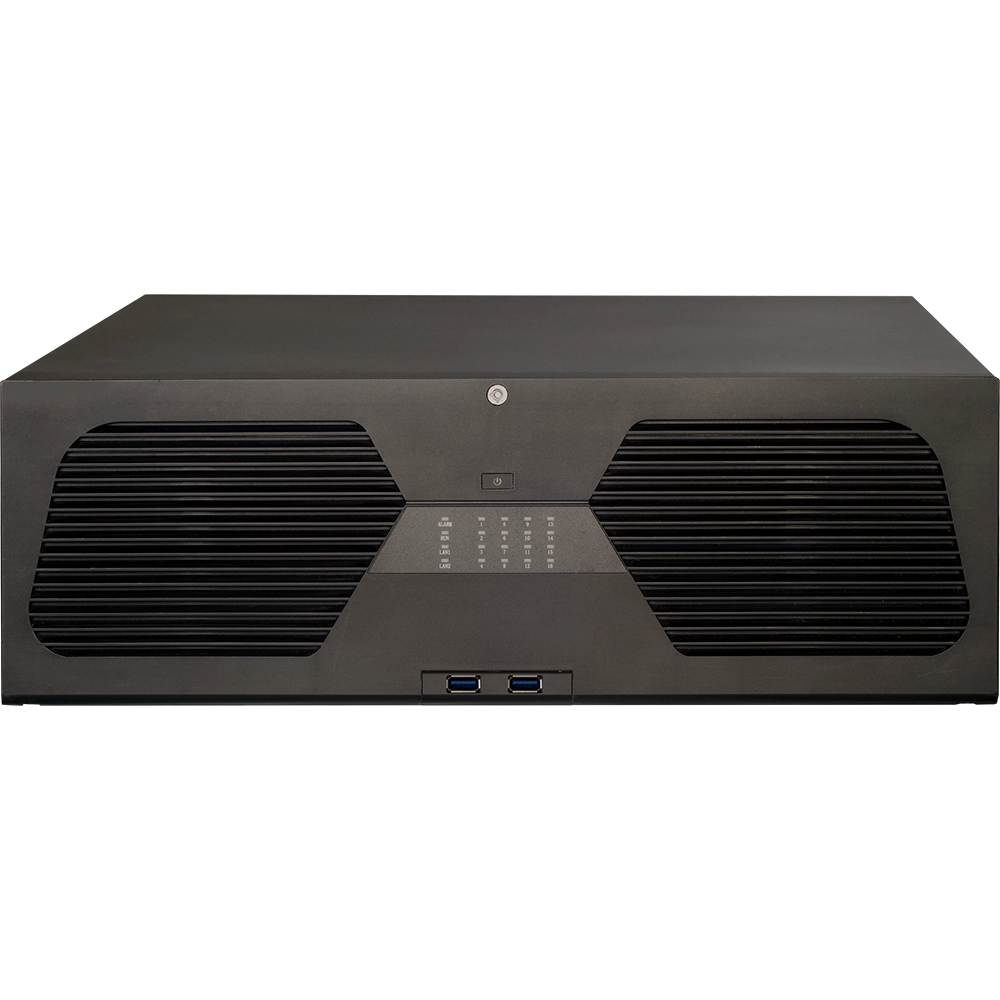

The ENS Titanium ED98128H5NV-A3H is a 128-channel network video recorder that records IP cameras at up to 16MP and drives an 8K display. Sixteen SATA bays take up to 10TB per drive (drives not included) with RAID 0, 1, 5, 6 and 10 support, and two eSATA ports connect external storage. Four HDMI outputs plus VGA show up to 132 live view windows across the main and auxiliary displays. Face recognition, human and vehicle classification and license plate recognition with AI cameras let you search footage by target. NDAA compliant.
At a Glance
- Max Recording Resolution: 16MP
- Channels: 128CH
- Built-in PoE: None
- Storage: 16x SATA ports, up to 10TB each, RAID 0/1/5/6/10, 2x eSATA (drives not included)
- Video Outputs: 4x HDMI (HDMI 1 up to 8K), 1x VGA
- Network: 2x Gigabit RJ45
- Compliance: NDAA
- VCA Features: Basic VCA, Face Detection, Facial Recognition, Human / Vehicle Classification, LPR
- Audio: Audio in, Audio out, HDMI audio
- Alarm: 24 inputs, 8 outputs
Features
- IP Video Input: 128 channels at 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 x 1024, 960P, 720P, 960H, D1, CIF
- Video Compression: H.265S, H.265+, H.265 and H.264
- Network Bandwidth: 768Mbps incoming and 768Mbps outgoing over two Gigabit ports
- 8K Display: HDMI 1 up to 7680 x 4320, HDMI 2 and HDMI 3 up to 3840 x 2160, HDMI 4 up to 1920 x 1080, and VGA up to 1920 x 1080 (VGA mirrors HDMI 1; when HDMI 1 outputs 8K, HDMI 2 is unavailable and HDMI 3 is limited to 1920 x 1080)
- Multi-Screen Live View: up to 64 windows on the main output, 36 on AUX 1 and 16 each on AUX 2 and AUX 3, for 132 windows in total
- Decoding: live view of 1 channel at 16MP or 4 channels at 12MP, and playback of 1 channel at 16MP or 4 channels at 8MP on the main output
- RAID Storage: RAID 0, 1, 5, 6 and 10 across 16 SATA bays, up to 10TB per drive, plus two eSATA ports
- Face Recognition: face detection on 128 channels with AI cameras (4 channels at 4MP processed by the NVR), face matching on 16 channels at 36 pictures per second, 32 libraries with up to 10,000 face pictures, recognition and stranger match alarms, and track display on a map
- Human and Vehicle Detection: classification on 128 channels with AI cameras (8 channels at 2MP processed by the NVR), plus human and vehicle attribute analysis with AI cameras
- License Plate Recognition: with AI cameras
- Video Analytics: region intrusion and tripwire events
- Recording Modes: manual, timed, motion, sensor, POS and AI recording
- Playback and Search: up to 16 channels of simultaneous playback with frame by frame stepping, and search by time slice, time, event, tag, smart search and target database
- PTZ Control: RS485 port for PTZ cameras or a keyboard, with up to 255 presets and 8 cruises
- Alarms: 24 alarm inputs and 8 alarm outputs that can trigger recording, snapshots, presets and email
- Audio: RCA input and output for two-way talk, plus audio over HDMI
- Third-Party Cameras: compatible with ONVIF cameras
- Remote Access: web client, CMS software and iOS and Android apps for live view, playback, backup, PTZ control and configuration, with up to 128 users connected
- Fisheye: fisheye dewarping through the NVR, web client and mobile app
Application Scenarios
- Large Campuses and Corporate Headquarters: up to 128 cameras across several buildings, recorded on one RAID protected unit
- Transportation Facilities: terminals, platforms and parking structures with license plate recognition from AI cameras
- Government and Municipal Sites: face recognition at controlled entrances, with alarm inputs tied into doors and gates
Specifications
- Power Supply: ATX 275W internal
- Power Consumption: 50W or less (without HDD)
- Dimensions: 437 x 483 x 143 mm (17.20 x 19.02 x 5.63 in)
