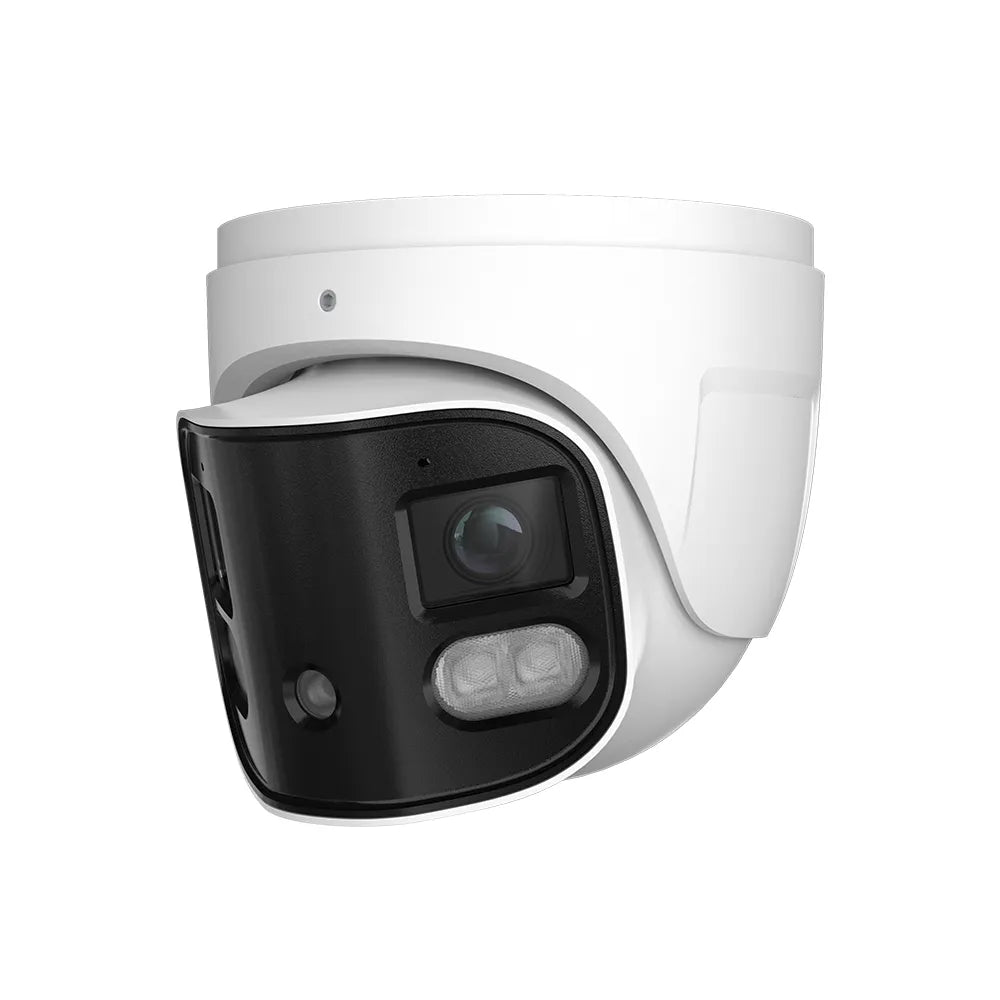

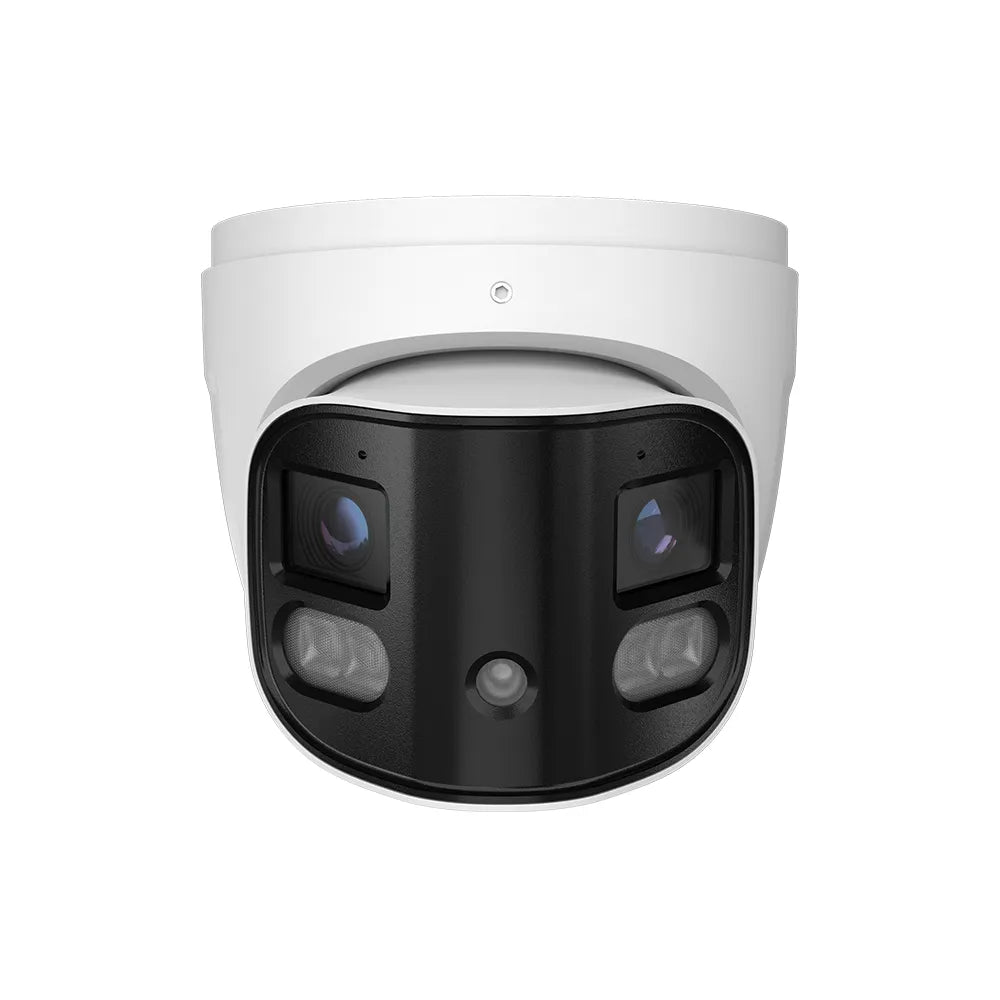

The ENS Titanium IP-5DT8E3B-28 is a 4K 8MP panoramic IP camera that splices the images from two 2.8mm lenses into a single 180 degree view at 4640 x 1760. Red and blue warning lights flash alternately and a built-in speaker plays a warning message you can import yourself, so the camera can warn people off as well as record them. Two built-in microphones and the speaker give you two-way audio, and Smart Motion Detection (SMD) with human and vehicle classification cuts false alarms. IP66 rated and NDAA compliant.
At a Glance
- Housing: Panoramic (Dual-Lens Turret)
- Resolution: 4K 8MP (4640 x 1760)
- Lens: Dual 2.8mm Fixed, 180 degree horizontal view
- Night Vision: Infrared / IR, Smart Supplement Light (white light)
- WDR: Digital WDR
- Water Resistance: IP66
- Compliance: NDAA
- VCA Features: Active Deterrence, Basic VCA, Face Detection, Human / Vehicle Classification
- Hardware Features: Two-Way Audio, Built-in Mics, Built-in Speaker, Audio In, Audio Out, Alarm In, Alarm Out, PoE, SD Card
180 Degree Panoramic View
Two 1/2.7" sensors behind 2.8mm lenses are spliced into one 4640 x 1760 image with a 180 degree horizontal and 66 degree vertical field of view. You record and review a single wide image instead of separate camera feeds.
Active Deterrence
Alarm events can trigger the camera's red and blue warning lights, which flash alternately, along with an audio warning from the built-in speaker. You can import your own warning message, so the camera tells people exactly what you want them to hear when they cross into a protected area.
Smart Motion Detection (SMD)
SMD filters motion alarms triggered by unessential targets, recognizing humans and vehicles, sending alarm notifications, and reducing false alarms.
Perimeter Protection
Line crossing and region intrusion, entrance and exit detection classify humans and vehicles, while loitering, illegal parking and abandoned or missing object detection cover other events you want flagged. Several smart events can run at the same time.
Advanced Features
- Smart Supplement Light: up to 30m IR and up to 20m white light view distance, with automatic day and night switching
- Face Detection: detects and captures faces in the scene
- Video Metadata: captures human bodies, motor vehicles and non-motor vehicles at the same time, extracting 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature
- Counting and Heat Map: target counting by line or area, plus heat map statistics
- Two-Way Audio: 2 built-in microphones and a built-in speaker to listen in and talk back, plus an audio input and output for external devices
- Image Processing: digital WDR, 3D DNR, HLC, BLC, defog and ROI encoding for clean footage in difficult lighting
- Flexible Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with three-stream support
- Onboard Storage: microSD card slot up to 256GB for local recording
- Dual-System Backup: a backup firmware system keeps the camera recoverable if an update fails
- Remote Viewing: P2P support for smartphones on iOS and Android
Application Scenarios
- Building Sides and Storefronts: one 180 degree view along a full wall or entrance area, with lights and voice to warn off intruders
- Parking Lots and Driveways: wide coverage with illegal parking detection and human and vehicle classification
- Lobbies, Warehouses and Large Rooms: target counting and heat maps show how people move through the space
Specifications
- Power: DC12V / PoE (IEEE 802.3af)
- Power Consumption: PoE: max. 10.2W; DC12V: max. 9W
- Weight: Approx. 0.72 kg (1.6 lbs)
