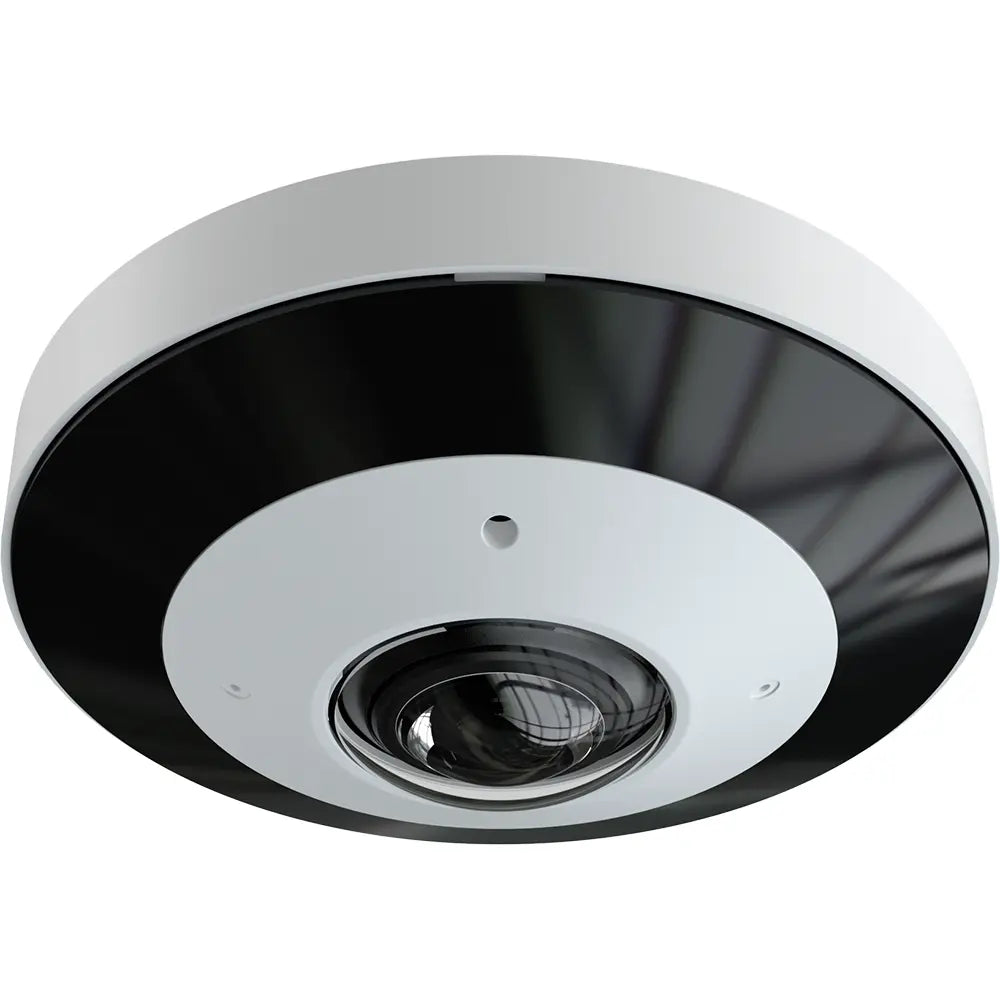

The ENS Titanium IP-5FS6006N-A is a 6MP fisheye IP camera with a 1.65mm lens that covers a 360 degree view when mounted on a ceiling or desktop and 180 degrees when mounted on a wall. Built-in fisheye dewarping turns the round image into panoramic and virtual PTZ views, with five display modes that pair the fisheye view with up to four PTZ windows. Two built-in microphones capture audio, and line counting, crowd density detection and heat maps show how people move through a space. IP67 rated and NDAA compliant.
At a Glance
- Housing: Fisheye
- Resolution: 6MP (2160 x 2160 fisheye, up to 3200 x 1800 panoramic)
- Lens: 1.65mm Fixed
- Field of View: 360 degrees (ceiling or desktop), 180 degrees (wall)
- Night Vision: Infrared / IR, 10 to 20m
- WDR: WDR (120dB)
- Water Resistance: IP67
- Compliance: NDAA
- VCA Features: Basic VCA, Human / Vehicle Classification, Crowd Density, Heat Map
- Hardware Features: Built-in Mics, Audio In, Audio Out, Alarm In, Alarm Out, RS485, CVBS Output, PoE, SD Card
Fisheye Dewarping and View Modes
- Mode 1, Fisheye: the full circular image at up to 2160 x 2160
- Mode 2, Panoramic: a dewarped panoramic view at up to 3200 x 1800
- Mode 3, Fisheye + Panoramic + 3 PTZ: fisheye and panoramic views plus three 1280 x 720 PTZ windows
- Mode 4, Fisheye + 4 PTZ: the fisheye view plus four 1280 x 720 PTZ windows
- Mode 5, Fisheye + 4 PTZ Fusion: the fisheye view plus a 4 PTZ fusion view at 2560 x 1440
Intelligent Analytics
On a ceiling, the camera runs human region intrusion, region entrance and exit, line crossing and counting by line, along with crowd density detection and heat maps. On a wall or desktop, region and line detection and counting classify humans, motor vehicles and non-motor vehicles, with crowd density detection.
Advanced Features
- IR Night Vision: 10 to 20m IR view distance with smart IR and ICR auto switch for true day and night
- Built-in Mics: 2 built-in microphones, plus an audio input and output for external devices
- Image Processing: 120dB WDR, 3D DNR, BLC, HLC, defog and up to 8 ROI areas for clean footage in difficult lighting
- Flexible Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with three-stream support
- Onboard Storage: microSD card slot up to 256GB for local recording
- Alarm and Wiring: 1 alarm input and 1 alarm output, half-duplex RS485 and a CVBS video output
- Flexible Mounting: wall, ceiling or desktop installation
- Remote Viewing: P2P support for smartphones on iOS and Android
Application Scenarios
- Retail Stores: one ceiling camera over the sales floor, with heat maps that show where shoppers spend time
- Lobbies and Open Offices: 360 degree coverage with crowd density detection and line counting
- Warehouses and Back Rooms: dewarped panoramic and PTZ views of a whole room from a single camera
Specifications
- Power: DC12V / PoE (IEEE 802.3af)
- Power Consumption: Less than 10W
- Weight: Approx. 0.52 kg (1.1 lbs)
