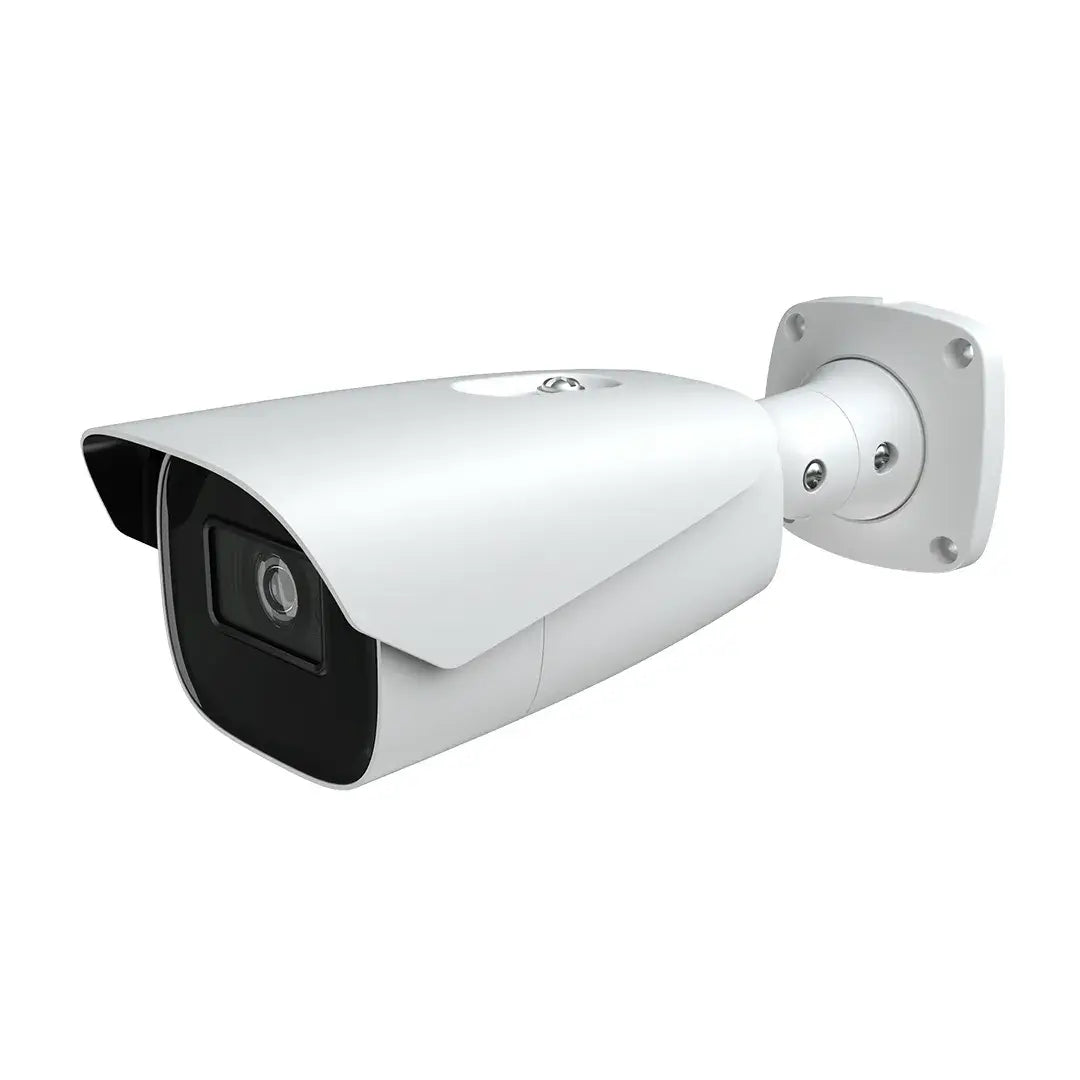

The ENS Titanium IP-5IR4A3H4-MZ-LR is a 4MP license plate recognition (LPR) bullet IP camera with a motorized lens and a 1/1.8" sensor. It detects and reads license plates, saves the full 4MP image together with a plate snapshot, and compares plates against a vehicle database of up to 10,000 entries stored on the SD card. A relay output opens, closes or holds a barrier gate, an RS485 port drives a screen that shows captured plates, and a 26-bit Wiegand output is built in. IP67 rated and NDAA compliant.
At a Glance
- Housing: Bullet
- Resolution: 4MP (2688 x 1520)
- Lens: Motorized
- Night Vision: Infrared / IR
- WDR: True WDR (120dB)
- Water Resistance: IP67
- Compliance: NDAA
- VCA Features: LPR, License Plate Detection, Vehicle Feature Extraction
- Hardware Features: Alarm In, Alarm Out, Audio In, Audio Out, Relay Output, RS485, Wiegand, CVBS Output, PoE, SD Card
License Plate Recognition
The camera captures vehicles with and without license plates, saving the original 4MP image along with a license plate image. Plate exposure, travel direction recognition, plate character fault tolerance, plate comparison and snapshot time display are built in, and the camera extracts vehicle details including vehicle color, plate color, vehicle type and vehicle brand or model.
Entrance and Exit Control
- Barrier Gate Control: the gate can be controlled by the camera or by a management platform
- Relay Output: 1 channel relay output for opening, closing or holding a barrier gate
- Plate Display: connect a screen through the RS485 interface to show captured license plates
- Wiegand: 26-bit Wiegand output
- Plate Database: up to 10,000 vehicles, available when an SD card is installed
Advanced Features
- Motorized Lens: lens adjusted through software, so you can frame the capture area after the camera is mounted
- High Frame Rate Mode: 1080P at up to 60fps
- Image Processing: 120dB WDR, 3D DNR, HLC, BLC, defog and ROI encoding for clean footage in difficult lighting
- Day and Night: ICR auto switch for true day and night operation
- Flexible Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with three-stream support
- Onboard Storage: microSD card slot up to 256GB for local recording
- Power Options: DC12V, AC24V or PoE
- Dual-System Backup: a backup firmware system keeps the camera recoverable if an update fails
- Remote Viewing: P2P support for smartphones on iOS and Android
- Integration: ONVIF, API and SDK support
Application Scenarios
- Parking Garages and Lots: record plates at entrances and exits and control the barrier gate
- Gated Communities and Facilities: compare arriving plates against a stored list of vehicles at the gate
- Access Roads and Drives: capture plates, vehicle details and travel direction of passing vehicles
Specifications
- Power: DC12V / AC24V / PoE (IEEE 802.3af)
- Power Consumption: DC12V: less than 12W; AC24V: less than 10W; PoE: less than 10W
- Weight: Approx. 1.18 kg (2.6 lbs)
