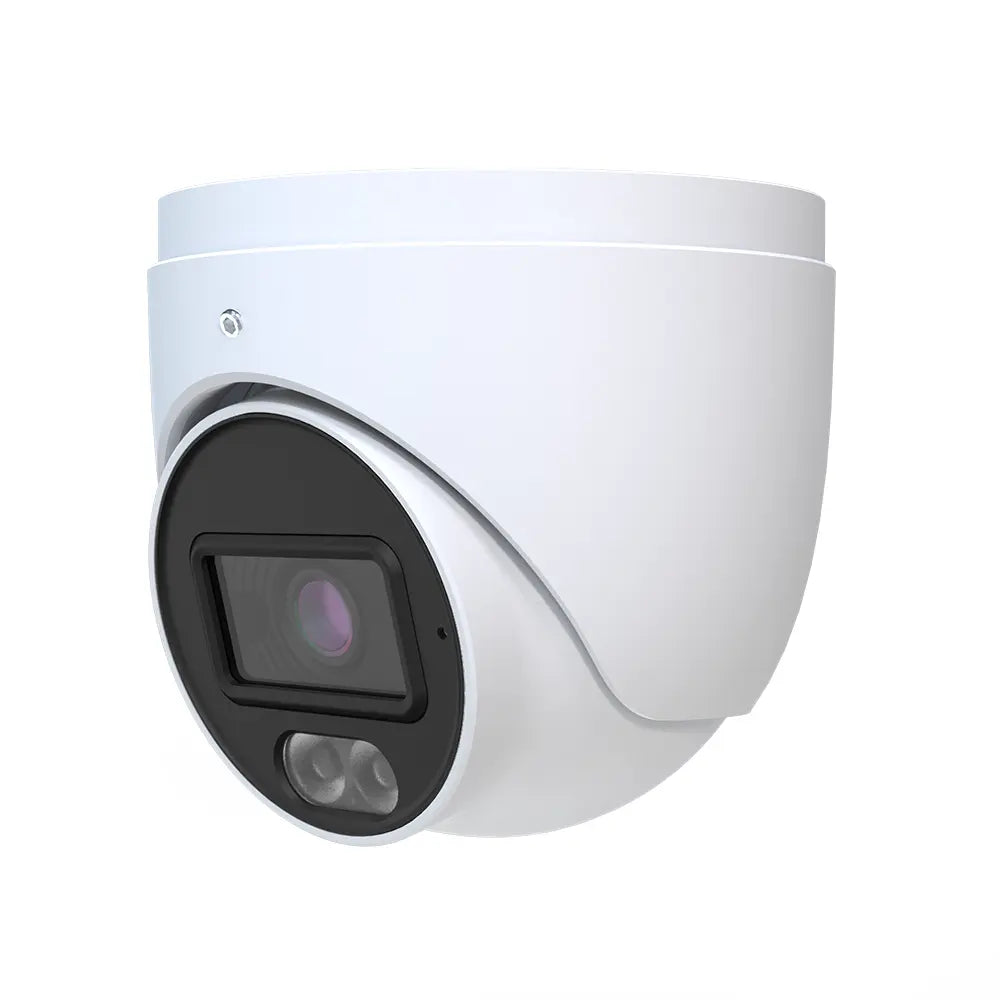

The ENS Titanium IP-5IRD4C44-28 is a 4MP Dark X turret IP camera with a 2.8mm fixed lens and 24/7 full-color imaging. Its F1.0 aperture and 0.0005 lux minimum illumination keep video in color after dark, and a built-in white light reaches 10 to 20m when there is no light at all. Face detection, Smart Motion Detection (SMD) with human and vehicle classification, and electronic image stabilization are built in. IP67 rated and NDAA compliant.
At a Glance
- Housing: Turret
- Resolution: 4MP (2688 x 1520)
- Lens: 2.8mm Fixed, F1.0
- Night Vision: Full Time Color, AI-ISP, LED, Starlight
- Water Resistance: IP67
- Compliance: NDAA
- VCA Features: Basic VCA, Face Detection, Human / Vehicle Classification
- Hardware Features: Built-in Mic, Audio In, PoE, SD Card
Dark X Full-Color Night Vision
Dark X is the color-at-night image processing of the ENS Titanium Dark X Series. The lens opens to F1.0 and the camera is rated down to 0.0005 lux with AGC on, so it records color video day and night. When a scene goes fully dark, the built-in white light covers 10 to 20m.
Face Detection
The camera detects faces in its view and captures face images, so you have snapshots of the people who passed by to review alongside the recorded video.
Smart Motion Detection (SMD)
SMD filters motion alarms triggered by unessential targets, recognizing humans and vehicles, sending alarm notifications, and reducing false alarms.
Perimeter Protection
Line crossing, region intrusion, and region entrance and exit detection classify humans and vehicles, so alerts in restricted areas come from the targets you care about rather than shadows, animals or swaying trees.
Advanced Features
- White Light: 10 to 20m white light view distance for color images in no-light scenes
- Intelligent Detection: line crossing, region intrusion, region entrance and exit, abandoned and missing object detection, and line crossing counting of people and vehicles
- Exception Detection: scene change, video blur, abnormal color and audio exception alerts
- Electronic Image Stabilization: EIS reduces shake in the video when the mounting point vibrates
- Image Distortion Correction: straightens the curved edges that a wide-angle lens produces
- Built-in Mic: one-way audio to hear what is happening on camera, plus an audio input for an external microphone
- Image Processing: 3D DNR, HLC, BLC, defog, and ROI encoding for clean footage in difficult lighting
- Flexible Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with three-stream support
- Onboard Storage: microSD card slot up to 512GB for local recording
- Dual-System Backup: a backup firmware system keeps the camera recoverable if an update fails
- Remote Viewing: P2P support for smartphones and tablets on iOS and Android
Application Scenarios
- Entrances, Driveways and Backyards: color video of the areas around a home after dark, with face capture at the door
- Retail and Restaurants: face detection and people counting at the entrance, with color footage after closing
- Commercial Property and Parking Areas: human and vehicle detection with real-time alerts for after-hours intrusion
Specifications
- Power: DC12V / PoE (IEEE 802.3af)
- Power Consumption: Less than 7W
- Weight: Approx. 0.456 kg (1.0 lb)
