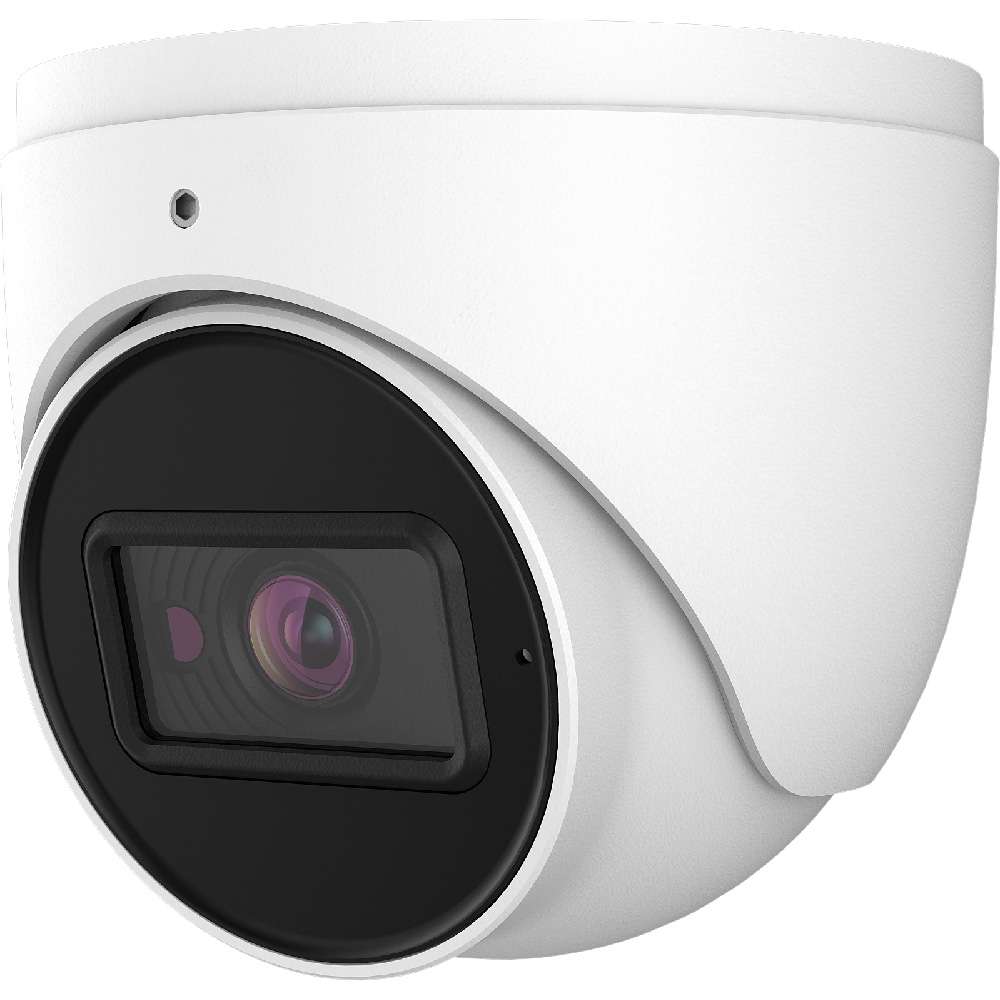

The ENS Titanium IP-5IRD8E3B4-28 is a 4K 8MP turret IP camera with a 2.8mm fixed lens, infrared night vision up to 30m (98ft), and a built-in microphone. Its analytics include face detection with face capture, line crossing counting for people and vehicles, and intrusion detection with human and vehicle classification. IP67 rated and NDAA compliant.
At a Glance
- Housing: Turret
- Resolution: 4K 8MP (3840 x 2160)
- Lens: 2.8mm Fixed
- Night Vision: Infrared / IR, up to 30m (98ft)
- WDR: True WDR (120dB)
- Water Resistance: IP67
- Compliance: NDAA
- VCA Features: Basic VCA, Face Detection, Human / Vehicle Classification, People Counting
- Hardware Features: Built-in Mic, Audio In, PoE, SD Card
Face Detection
The camera detects faces in its view and captures face images, so you have snapshots of the people who passed by to review alongside the recorded video.
Perimeter Protection
Line crossing and intrusion detection classify humans, motor vehicles and non-motor vehicles, so alerts in restricted areas come from the targets you care about rather than shadows, animals or swaying trees.
Target Counting
Line crossing counting tallies humans, motor vehicles and non-motor vehicles as they cross a line you set, which helps you track foot traffic at an entrance or vehicles at a gate.
Advanced Features
- IR Night Vision: up to 30m (98ft) IR view distance with ICR automatic day and night switching
- Intelligent Detection: face detection, line crossing, intrusion, target counting, and exception detection for scene change, video blur and color cast
- Built-in Mic: one-way audio to hear what is happening on camera, plus an audio input for an external microphone
- Image Processing: True WDR, 3D DNR, HLC, BLC, defog, and ROI encoding for clean footage in difficult lighting
- Flexible Streaming: H.265+ / H.264+ / H.265 / H.264 / MJPEG compression with three-stream support
- High Frame Rate Mode: 1080P and 720P at up to 60fps for smoother motion
- Onboard Storage: microSD card slot up to 256GB for local recording
- Mobile Viewing: live view on smartphones with iOS and Android
Application Scenarios
- Store Entrances: count visitors as they walk in and capture faces at the door
- Offices and Lobbies: 4K video and face capture of everyone who comes through reception
- Gates and Parking Entrances: count vehicles crossing a line and get intrusion alerts for people and vehicles in restricted areas
Specifications
- Power: DC12V / PoE (IEEE 802.3af)
- Power Consumption: Less than 9W
- Weight: Approx. 0.46 kg (1.0 lb)
