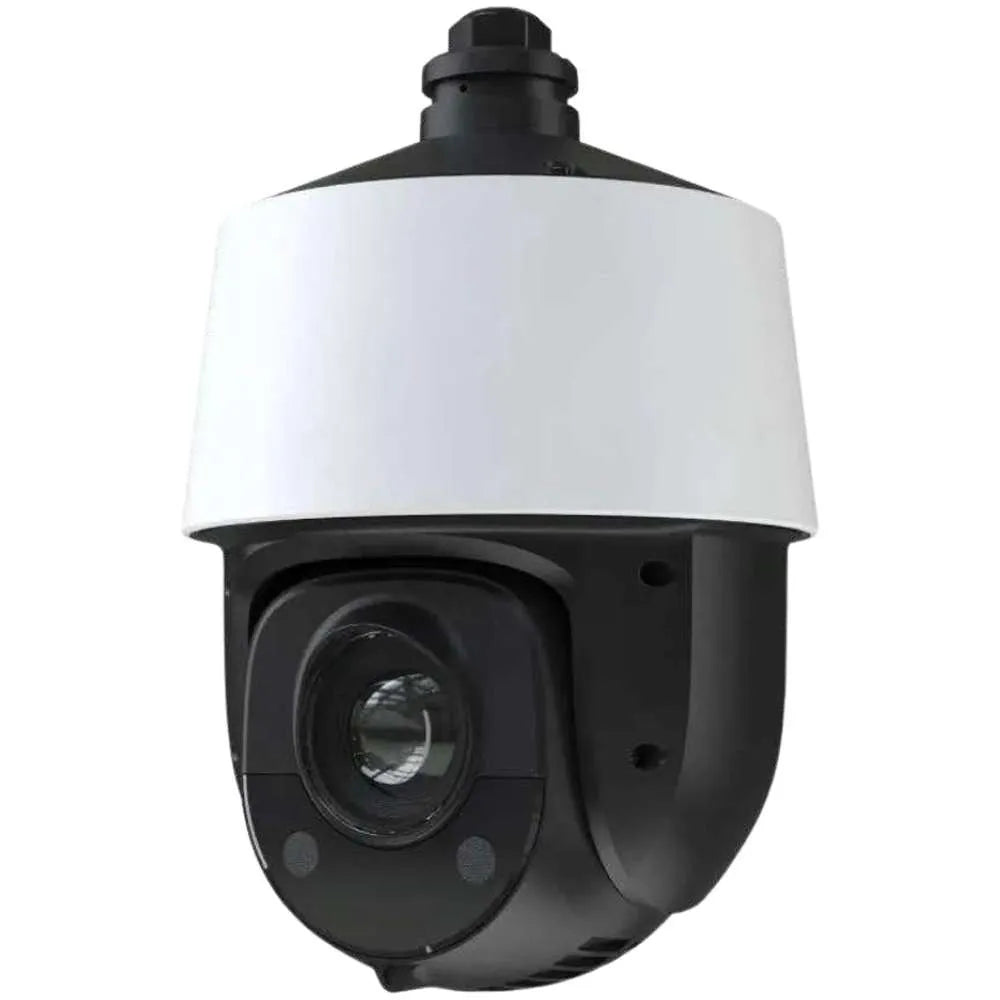

The ENS Titanium IP-5PT4ISN27-25X is a 4MP PTZ IP camera with a 4.8 to 120mm lens and 25X optical zoom. It pans 360 degrees without end, tilts from -5 to 90 degrees, and its smart IR reaches up to 150m at night. A built-in 1.5 TOPS AI engine detects and classifies up to 15 objects per scene, and when a person or vehicle enters a restricted area the camera follows it, zooms to keep it centered on screen, then snaps, records and sends an alert. A built-in heater and fan keep it working outdoors around the clock. IP66 rated and NDAA compliant.
At a Glance
- Housing: PTZ
- Resolution: 4MP (2560 x 1440)
- Lens: 4.8 to 120mm, 25X Optical Zoom
- Pan / Tilt: 360 degrees endless pan, -5 to 90 degrees tilt
- Night Vision: Infrared / IR, Smart IR up to 150m
- WDR: True WDR
- Water Resistance: IP66
- Compliance: NDAA
- VCA Features: Basic VCA, Face Detection, Human / Vehicle Classification, Smart Tracking
- Hardware Features: Alarm In, Alarm Out, Audio In, Audio Out, PoE+, SD Card, Heater, Fan
Smart Tracking
When a person or vehicle crosses into a restricted area, the camera follows it on its own, zooming so the target stays in the center of the screen while it takes snapshots, records and triggers an alert. Tracking runs automatically or can be started by hand, and the faster gimbal keeps up with quick moving targets.
25X Optical Zoom and PTZ Control
- Optical Zoom: 4.8 to 120mm lens that goes from wide to tele in about 3.6 seconds, with proportional zoom
- Pan and Tilt: 360 degrees endless pan and -5 to 90 degrees tilt with auto flip, configurable from 0.1 to 200 degrees per second and 240 degrees per second when moving to a preset
- Presets: up to 360 preset positions
- Cruise and Trace: 8 cruises with up to 16 presets each, and 4 recorded traces of over 3 minutes each
- Scan Modes: auto scan, random scan and boundary scanning, with scheduled tasks for presets, cruises, traces and scans
- Positioning: 3D positioning, on-screen PTZ position display and power-off memory
Perimeter Protection
Tripwire, bi-directional tripwire, intrusion detection and region entrance and exit detection guard the edges of a site, while unattended baggage and object removal detection flag items left behind or taken away. An alarm can send the camera to a preset, start a cruise or tracking, record to the SD card, upload to FTP or send an email.
Advanced Features
- Smart IR: up to 150m (492ft) of infrared night vision
- Face Detection: detects, tracks and captures up to 15 faces in the same scene
- Vehicle Detection: detects and tracks vehicles for road traffic coverage
- Image Processing: WDR, 3D DNR, BLC and HLC for clean footage in difficult lighting
- Flexible Streaming: H.265 / H.264+ / H.264 / MJPEG compression with three-stream support
- All-Weather Build: built-in heater and fan, quick spinning to clear water drops, and 4000V lightning, surge and voltage transient protection
- Alarm and Audio: 1 alarm input and 1 alarm output, plus an audio input and output for external devices
- Onboard Storage: microSD card slot up to 256GB for local recording
- Integration: ONVIF, SDK and third-party management platform support
Application Scenarios
- Parks, Campuses and Industrial Sites: wide area perimeter protection that tracks intruders across open ground
- Stations and Venues: zoom in on people and vehicles at a distance from a single mounting point
- Parking Lots and Roadways: vehicle detection and tracking, with 150m IR for coverage after dark
Specifications
- Power: DC12V / PoE+ (IEEE 802.3at)
- Power Consumption: Max. 23W with IR on and PTZ working
- Weight: Approx. 2.1 kg (4.6 lbs)
