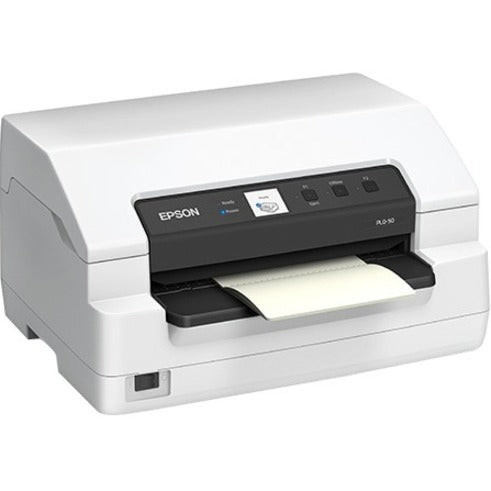

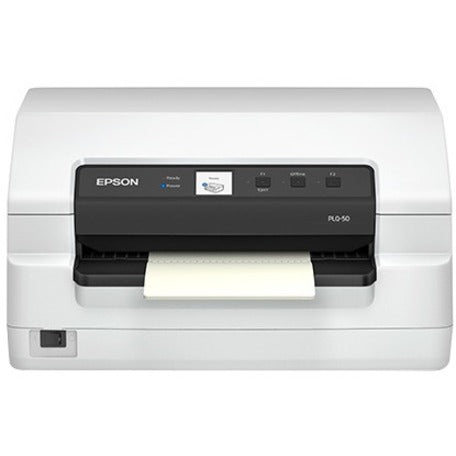

Epson PLQ-50 24-pin Dot Matrix Printer - Monochrome - Energy Star - C11CJ10201
Key Features
- Compact passbook printer - 24-pin impact printer that accommodates passbooks up to 2.6 mm thick; easily fits on counters with limited space

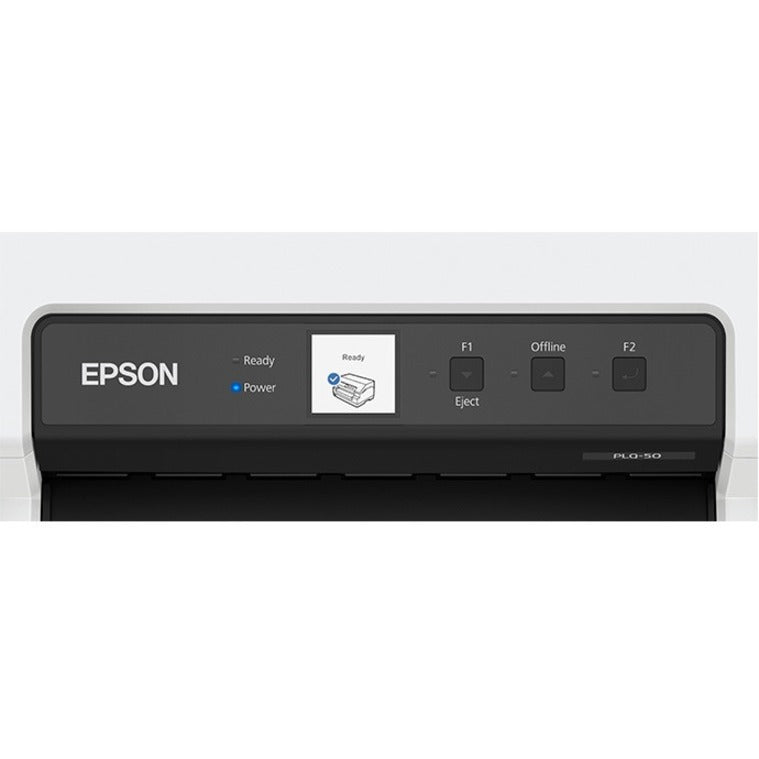

- Convenient display - color LCD for easy navigation and control
- Convenient paper handling features - automatic sheet and printhead alignment
- Easy setup and integration - Parallel, Serial and USB interfaces
- Fast, easy printing - speeds through prints at up to 630 cps
- Industry-leading service and support - 1-year limited warranty
- Long ribbon life - 5 million characters
- Multipart printing - prints the original + 6 copies4
- Remarkable reliability - MCBF of 24 million lines; MTBF of 35,000 power-on hours; printhead life of 600 million strokes per wire
Product Overview
Fast, reliable 24-pin printer for printing passbooks and more.
A fast, reliable, 24-pin impact printer that makes printing passbooks and multipart documents quick and easy, the Epson PLQ-50 speeds through documents at up to 630 cps. Accommodating passbooks up to 2.6 mm thick, this compact printer also features a wide range of standard features, such as automatic sheet and printhead alignment, plus a color LCD for easy operation. With Parallel, Serial and USB interfaces built in, it ensures simple system integration. And, it offers remarkable reliability with a ribbon life of 5 million characters, a printhead life of 600 million strokes per wire3 and industry-leading service and support.
General Information
- Manufacturer: Epson Corporation
- Manufacturer Part Number: C11CJ10201
- Brand Name: Epson
- Product Series: PLQ
- Product Model: PLQ-50
- Product Name: PLQ-50 Passbook Dot Matrix Printer
- Product Type: Dot Matrix Printer
Technical Information
- Print Color Capability: Monochrome
- Maximum Mono Print Speed (cps): 630
- Number of Pins: 24-pin
- Number of Columns: 94
Memory
- Standard Memory: 128 KB
Interfaces/Ports
- Parallel Port: Yes
- Serial Port: Yes
- USB: Yes
Media Types & Handling
- Media Type: Passbook
- Media Size: Custom Size
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- Height: 8"
- Width: 14"
- Depth: 11"
- Weight (Approximate): 17.20 lb
Miscellaneous
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 1 Year
