Fractal Design Define 7 Black Solid - FD-C-DEF7A-01
Key Features

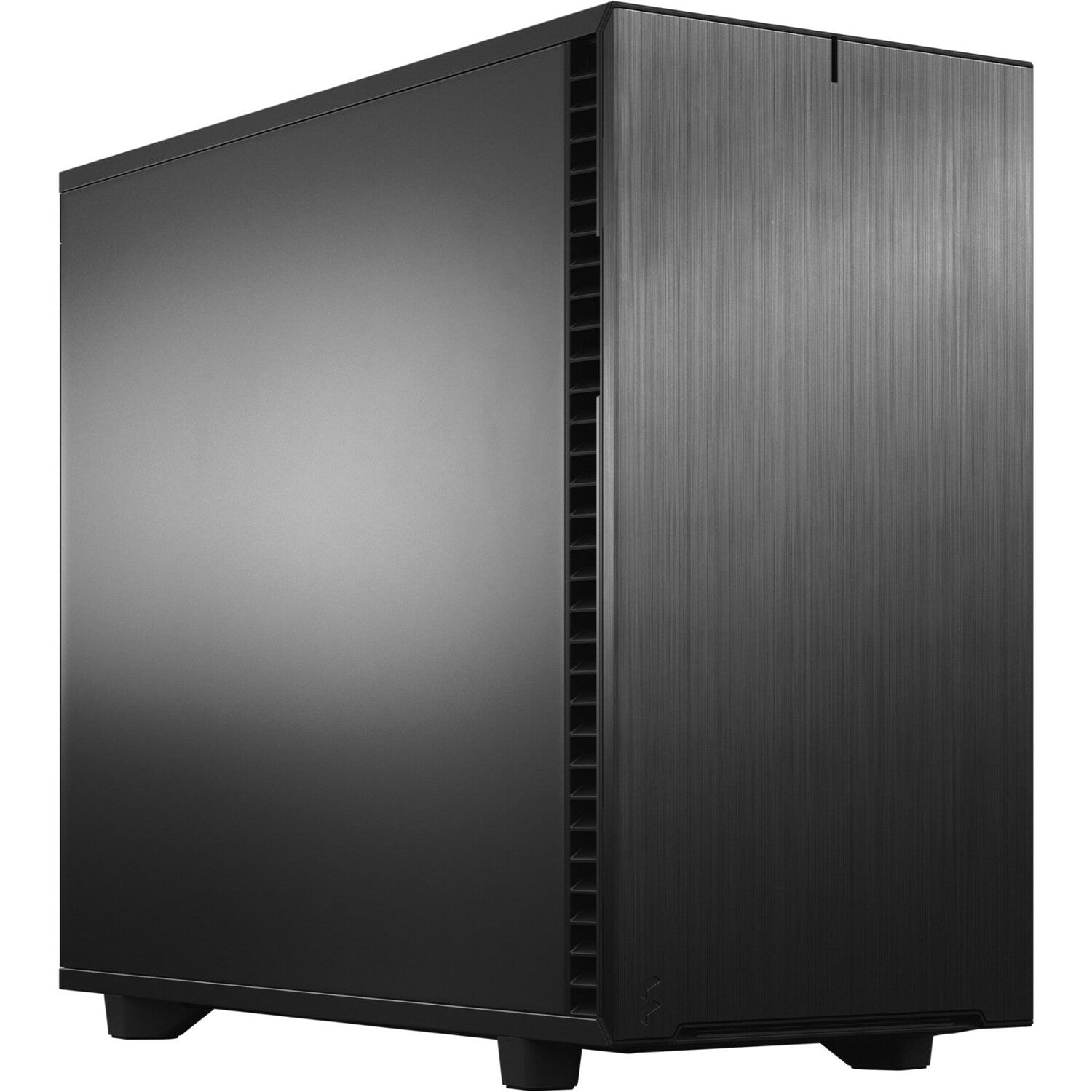

- Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
- Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)

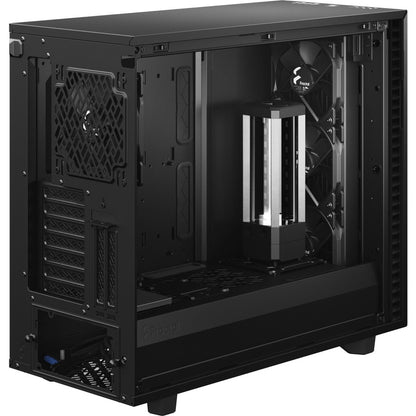

- New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing
- Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
- The single 5.25" ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

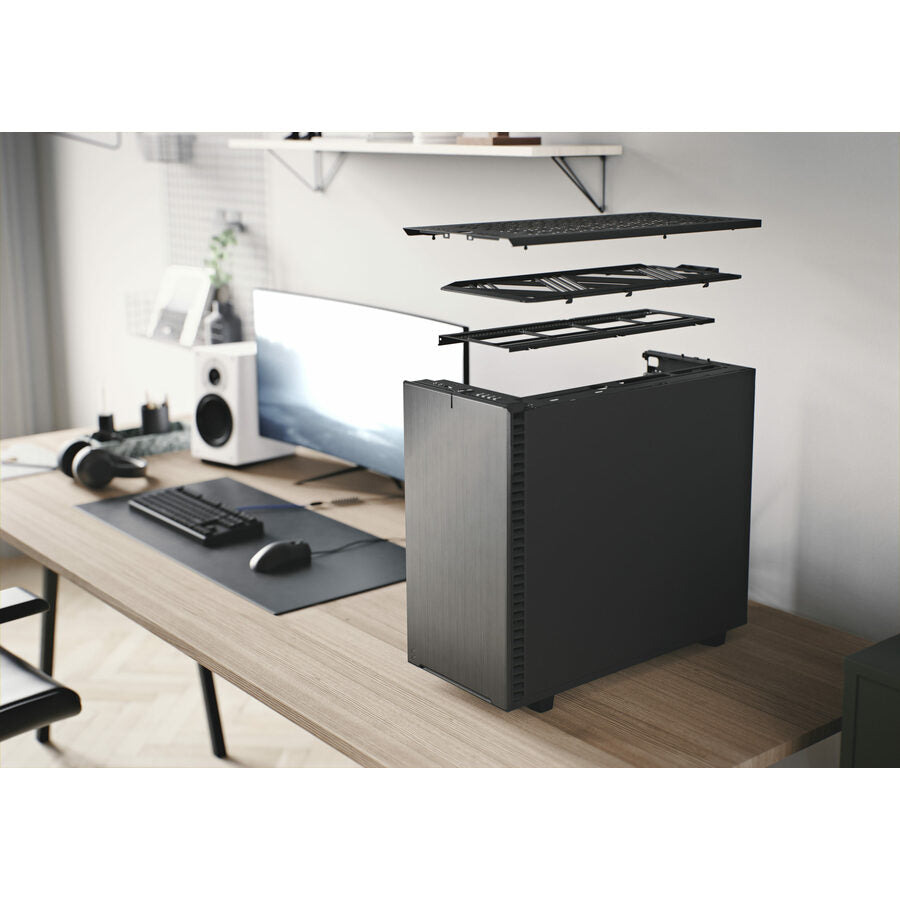

- Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation
- Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
Product Overview
Define 7Re-defining versatility.
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves you room to grow.
General Information
- Manufacturer: Fractal Design
- Manufacturer Part Number: FD-C-DEF7A-01
- Brand Name: Fractal Design
- Product Line: Define 7
- Product Name: Define 7 Black Solid
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- ATX
- EATX
- Micro ATX
- Mini ITX
- Number of Fans Supported: 9
- Number of Fans Installed: 4
- Installed Fan Size: 5.51"
Bays
- Number of Internal 5.25" Bays: 1
- Number of Internal 2.5" Bays: 2
- Number of Internal 2.5"/3.5" Bays: 6
- Number of Total Expansion Bays: 9
I/O Expansions
- Total Number of Expansion Slots: 9
Interfaces/Ports
- Total Number of USB Ports: 5
- Total Number of Audio In Ports: 1
- Total Number of Audio Out Ports: 1
Power Description
- Power Supply Installed: No
- Number of Power Supplies Supported: 1
- Number of Power Supplies Installed: 0
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Anodized Aluminum
- Form Factor: Mid-tower
- Height: 18.7"
- Width: 9.4"
- Depth: 21.5"
- Weight (Approximate): 29.74 lb
Miscellaneous
- Package Contents:
- Define 7 Black Solid
- Accessory Box
- User Manual
- Ventilated Top
- 4 x HDD/SSD Trays
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
