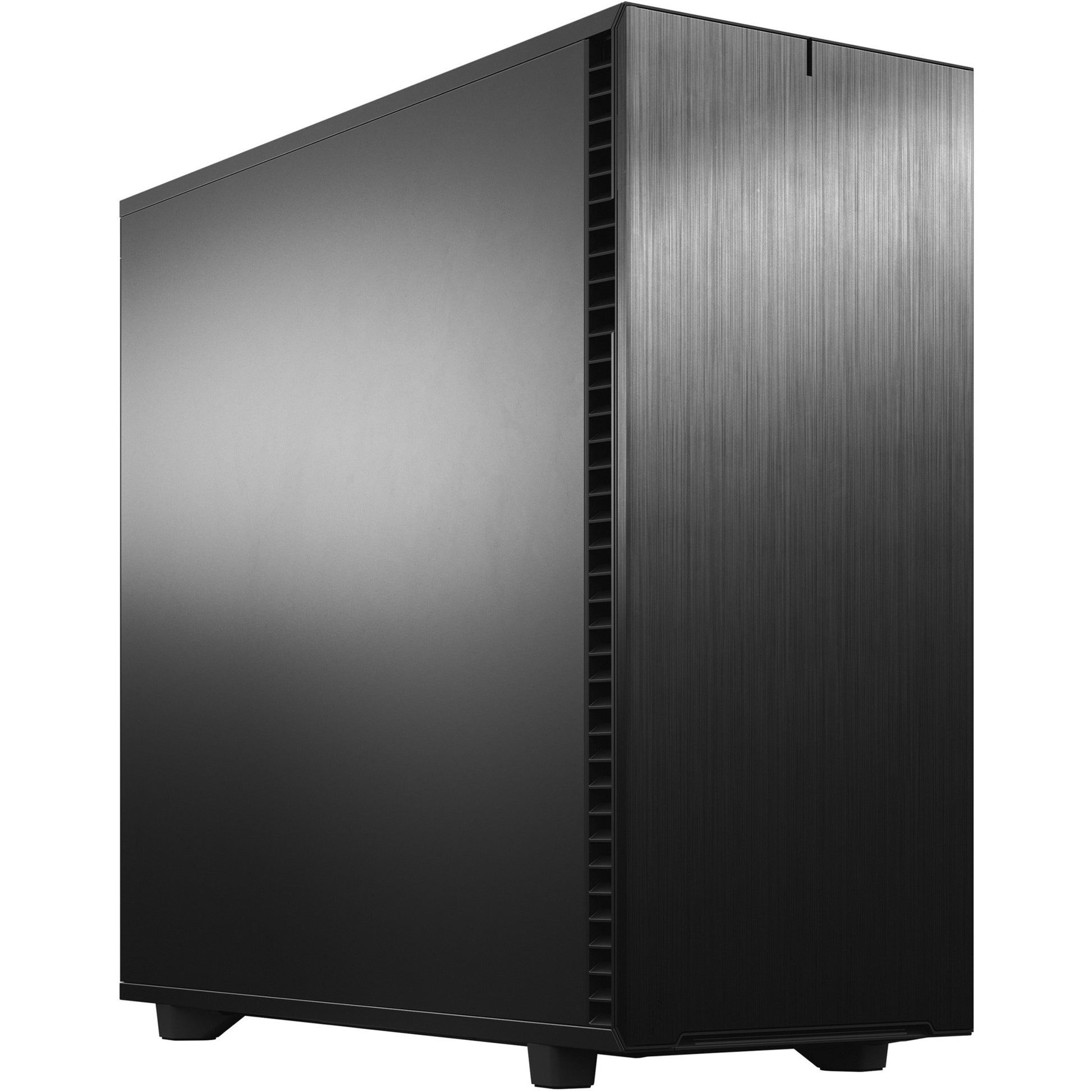

Fractal Design Define 7 XL Black Solid - FD-C-DEF7X-01
Key Features

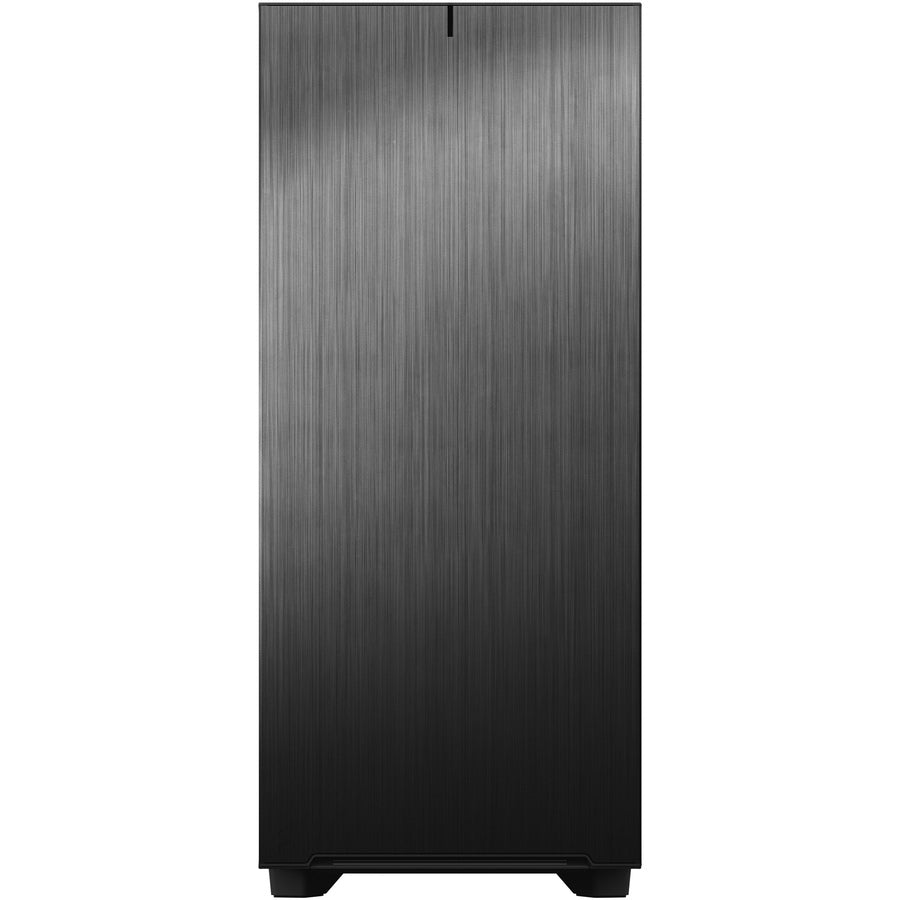

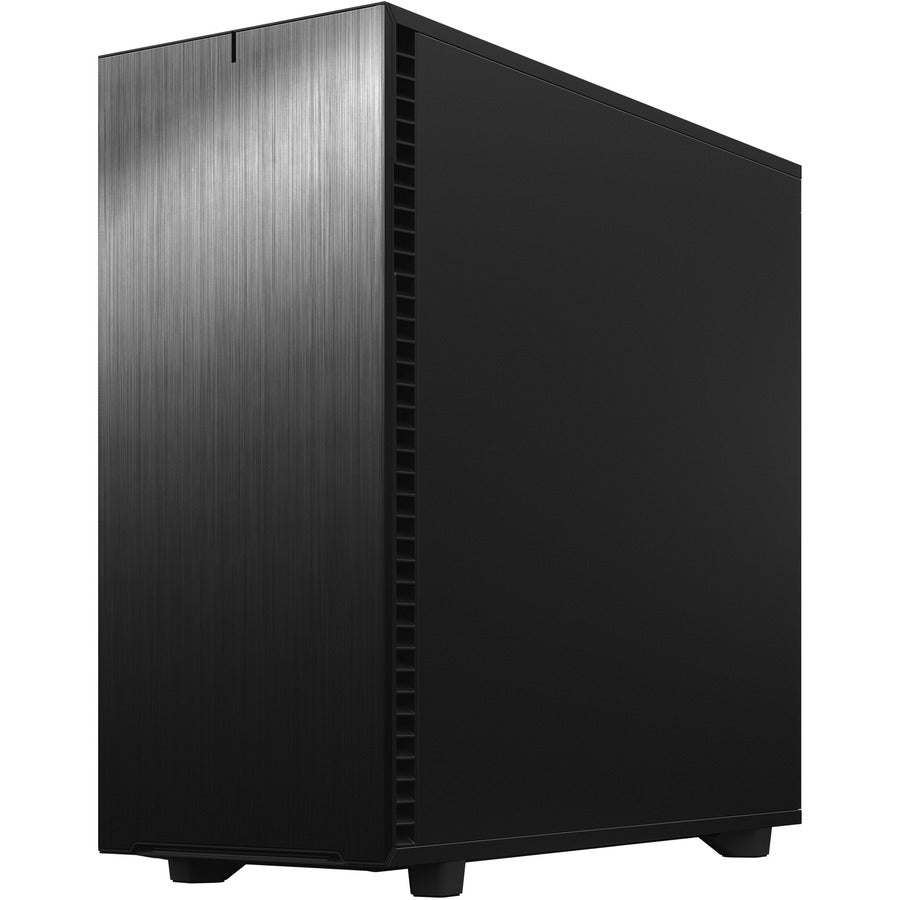

- Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)

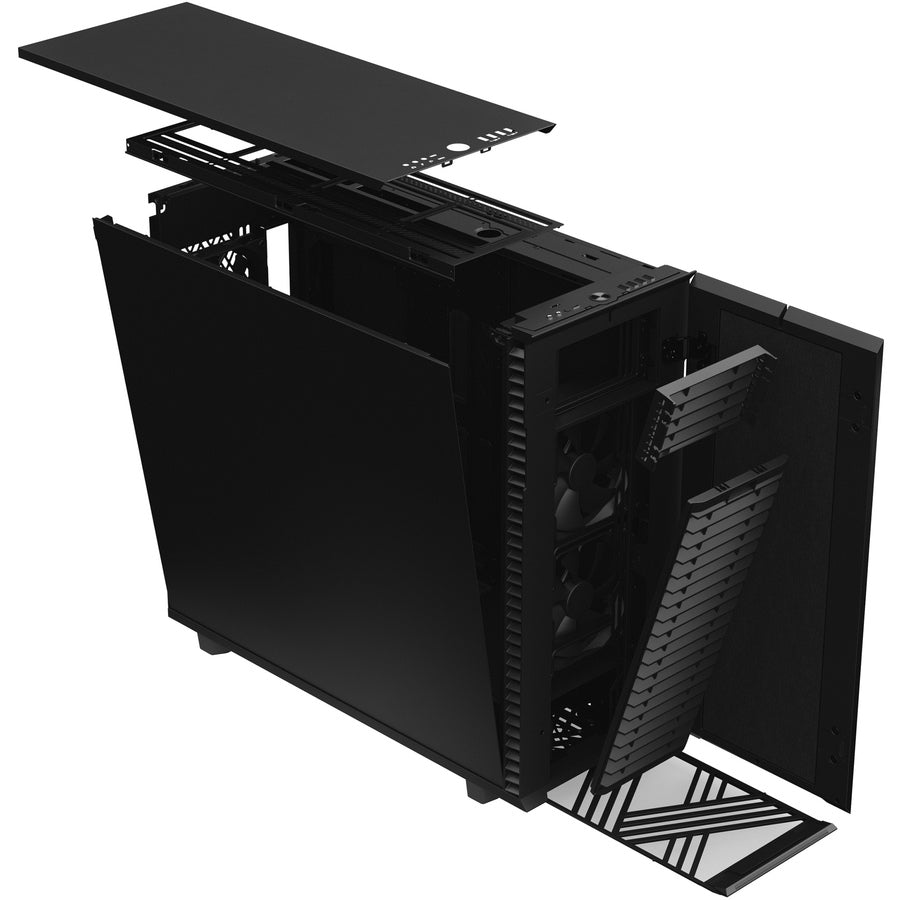

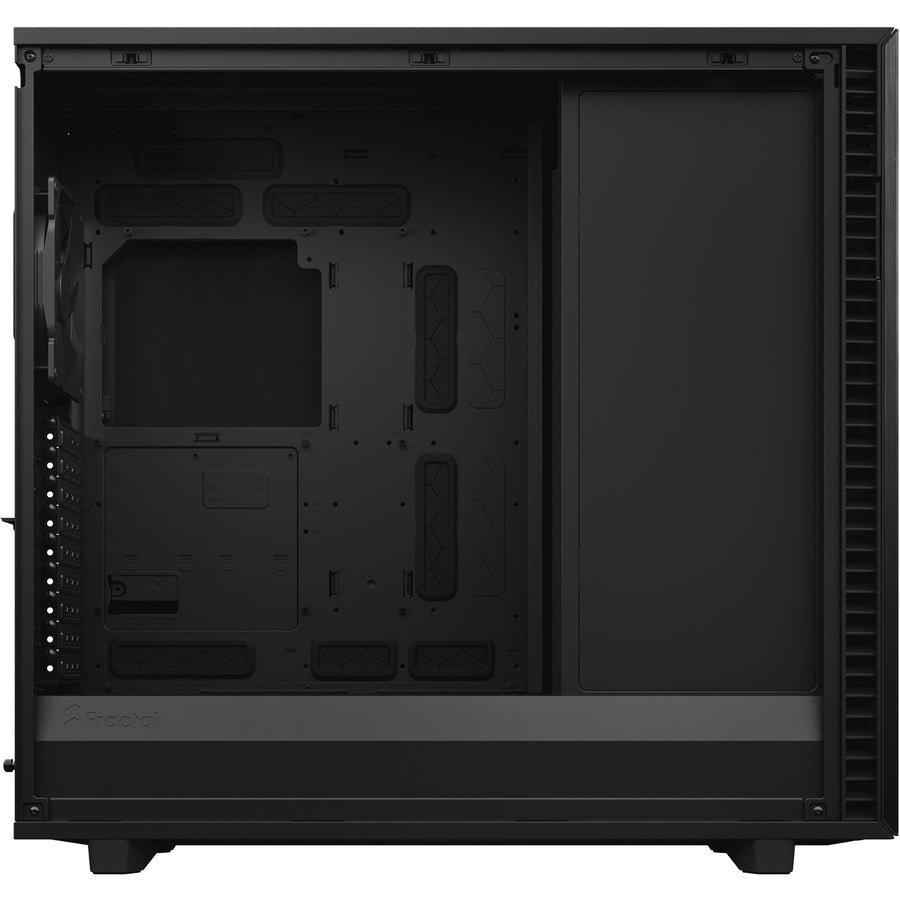

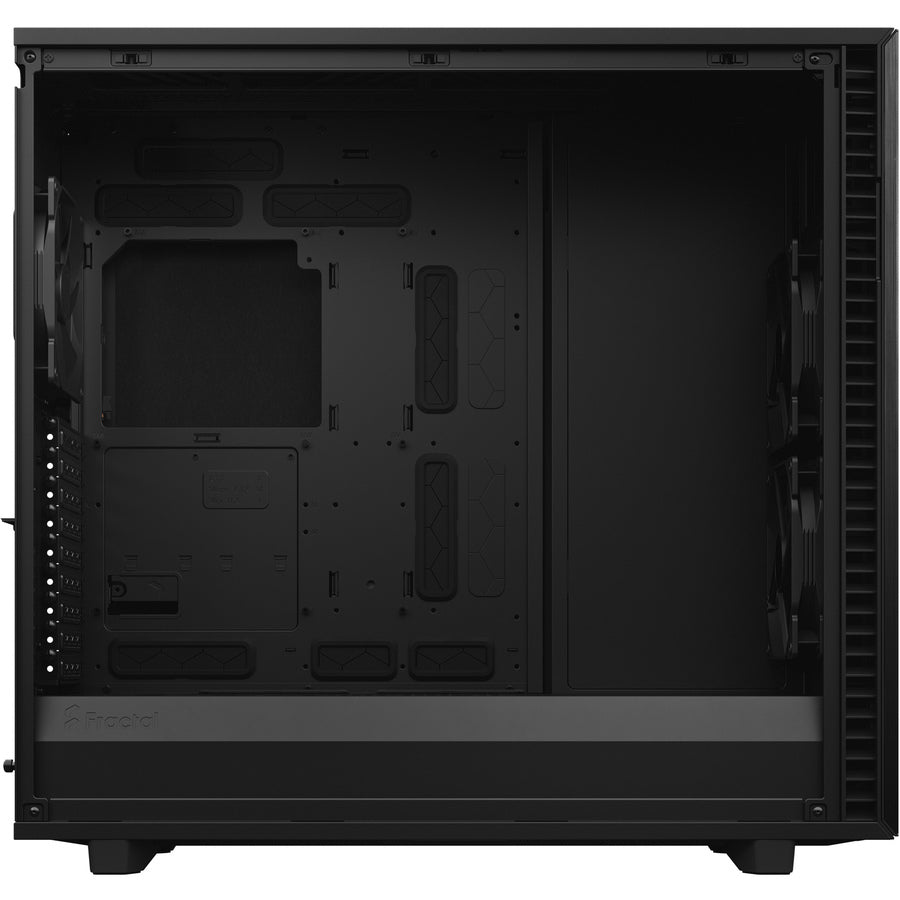

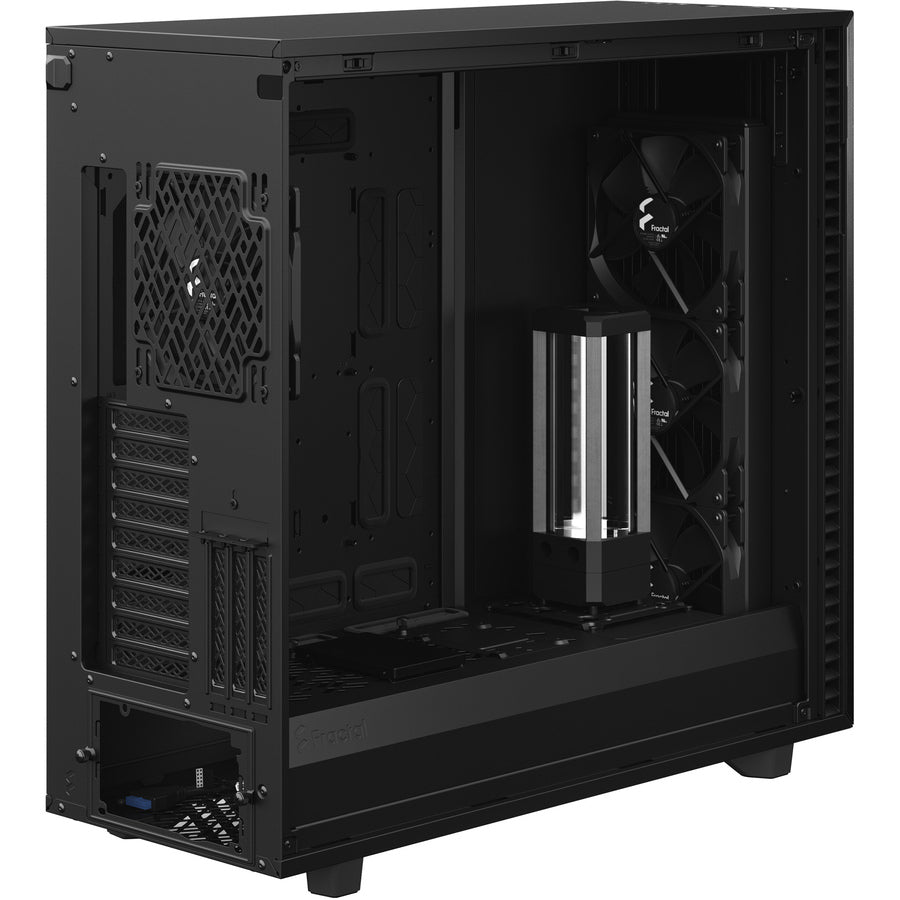

- New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB

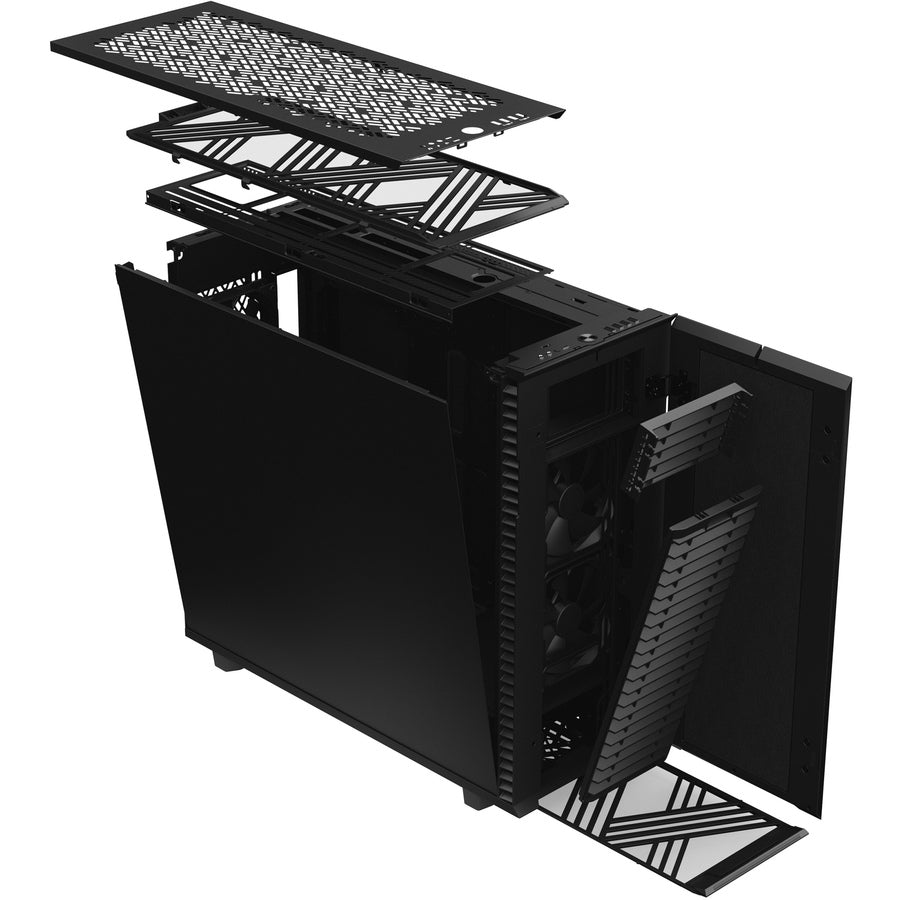

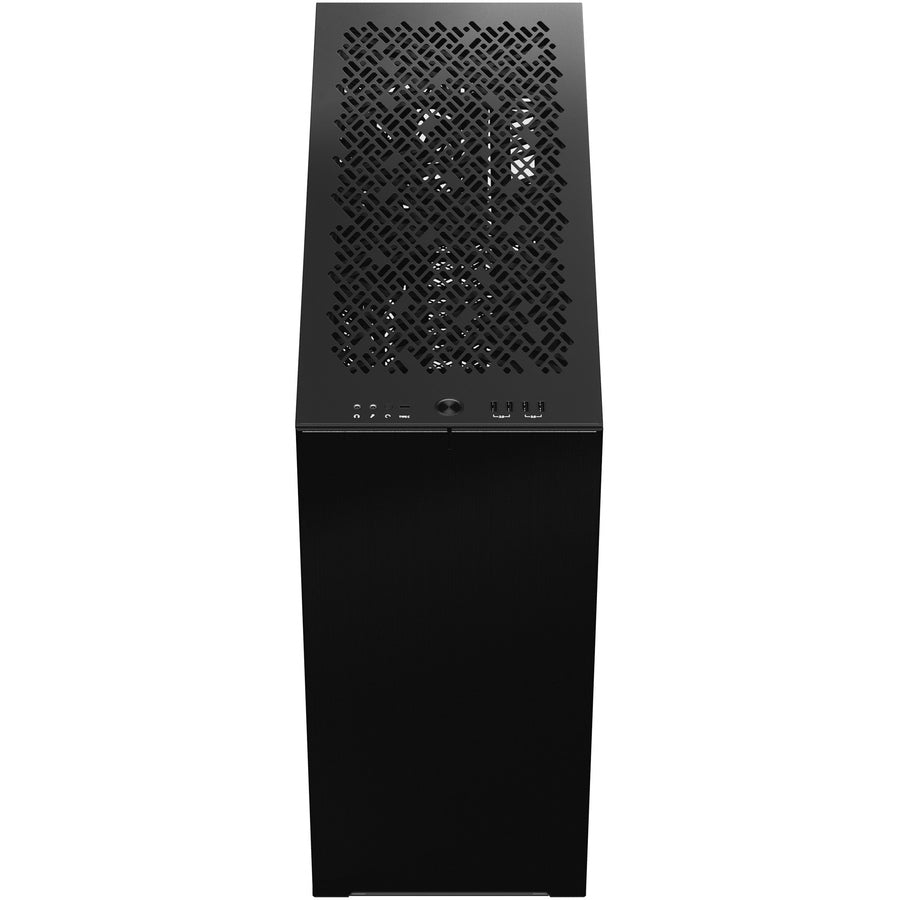

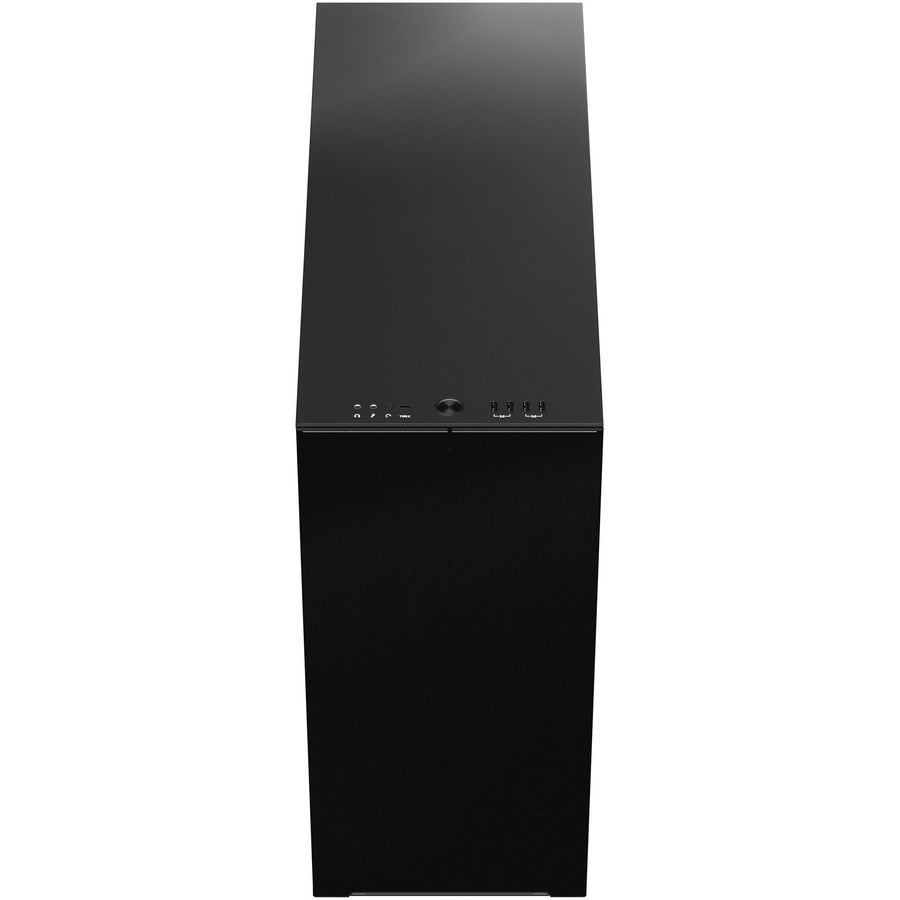

- Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
- Two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
Product Overview
Re-defining capacity.The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use. With its dual-layout interior, industrial sound damping and massively versatile layout supporting the largest E-ATX and enterprise boards, multi-GPU setups, outlandish water loops, and almost two dozen storage devices (in Storage layout), you'll be hard pressed to find a limit to what you can do with your build in the Define 7 XL.
General Information
- Manufacturer: Fractal Design
- Manufacturer Part Number: FD-C-DEF7X-01
- Brand Name: Fractal Design
- Product Line: Define 7 XL
- Product Name: Define 7 XL Black Solid
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- ATX
- EATX
- Micro ATX
- Mini ITX
- EE-ATX
- SSI CEB
- SSI EEB
- Number of Fans Supported: 11
- Number of Fans Installed: 3
- Installed Fan Size: 5.51"
Bays
- Number of External 5.25" Bays: 2
- Number of Internal 2.5" Bays: 2
- Number of Internal 2.5"/3.5" Bays: 6
- Number of Total Expansion Bays: 10
I/O Expansions
- Total Number of Expansion Slots: 12
Interfaces/Ports
- Total Number of USB Ports: 5
- Total Number of Audio In Ports: 1
- Total Number of Audio Out Ports: 1
Power Description
- Power Supply Installed: No
- Number of Power Supplies Supported: 1
- Number of Power Supplies Installed: 0
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Anodized Aluminum
- Form Factor: Full-tower
- Height: 22.3"
- Width: 9.4"
- Depth: 23.8"
- Weight (Approximate): 36.44 lb
Miscellaneous
- Package Contents:
- Define 7 XL Black Solid
- Accessory Box
- User Manual
- Ventilated Top Panel
- ODD Bracket
- ODD Bay Cover
- 2 x HDD/SSD Trays
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
