Send One 4K Source to Eight Displays at Once
One HDMI input, eight matched outputs, and full HDMI 2.0 bandwidth at 600 MHz put the Gefen EXT-UHD600-18 at the center of a serious 4K distribution system. It sends a single source to eight displays at 4K 60Hz with 4:4:4 color, HDR, and HDCP 2.2, up to 4096 x 2160 DCI-Cinema resolution, while passing 7.1-channel LPCM and object-based audio like Dolby Atmos and DTS:X through untouched. EDID management and audio-mode selectors make the handshakes between the source and every display quick to set up. Browse more audio and video gear or other cables and connectivity.
Where It Fits
This splitter is built for large video distribution and digital signage, where one 4K source has to reach many screens at once, think retail and hospitality displays, corporate lobbies, houses of worship, and command centers. It cascades in multiple layers, so several EXT-UHD600-18 units chain together to drive up to hundreds of displays from a single feed. Gefen's Long Reach Power supplies extra current on two of the outputs, letting select HDMI extenders draw power over the cable instead of needing their own supply, which cuts down on hardware at the far end of a long run.
Key Capabilities
- One in, eight out: full HDMI 2.0 at 600 MHz distributes a source to eight displays with matched output.
- 4K 60Hz 4:4:4 with HDR: up to 4096 x 2160 DCI-Cinema resolution, 10-bit HDR, and 12-bit Deep Color at 1080p, with HDCP 2.2 and 1.4 and 3D pass-through.
- Full audio pass-through: 7.1-channel LPCM plus high-bit-rate Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.
- EDID and audio management through the Gefen Syner-G software suite for fast setup, status monitoring, and firmware updates.

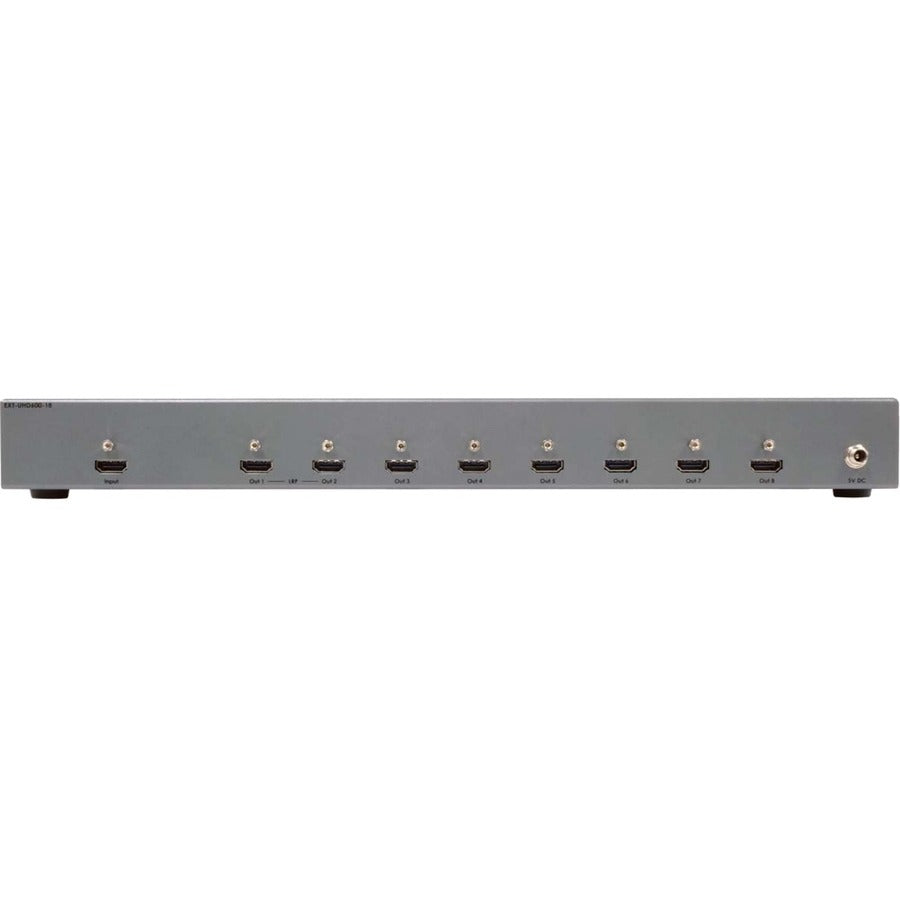

- A 1U rack-mountable enclosure with locking HDMI cable support, plus a shelf-mount option and included rack ears.
