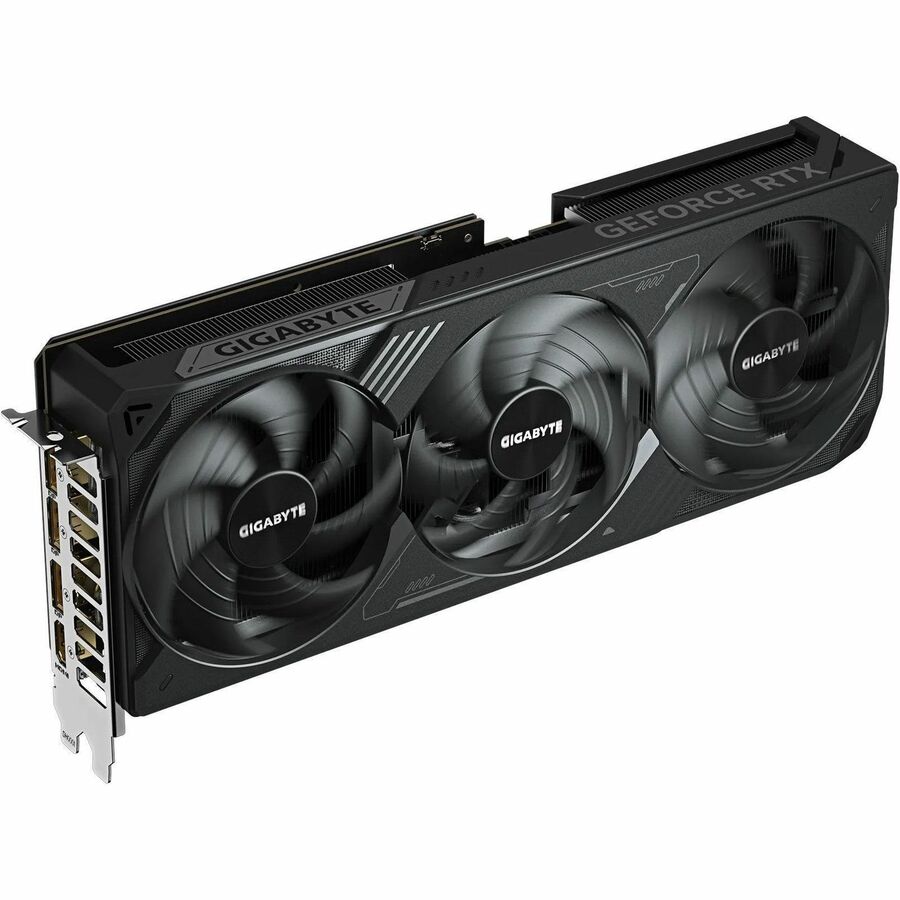

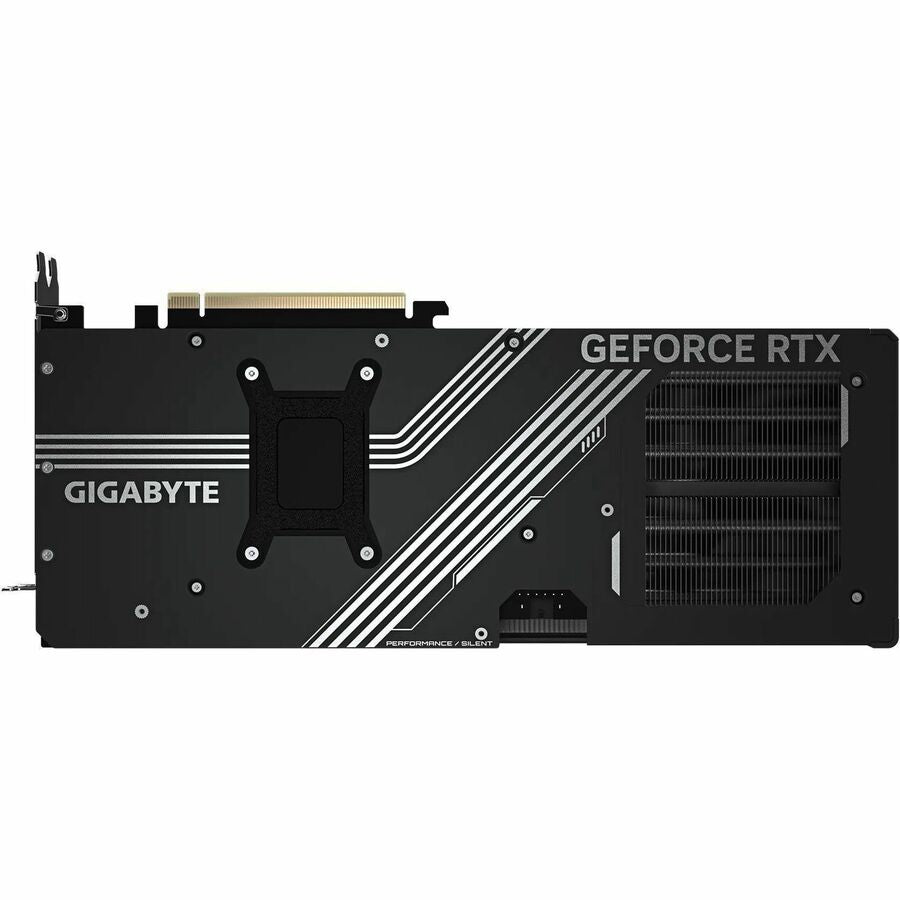

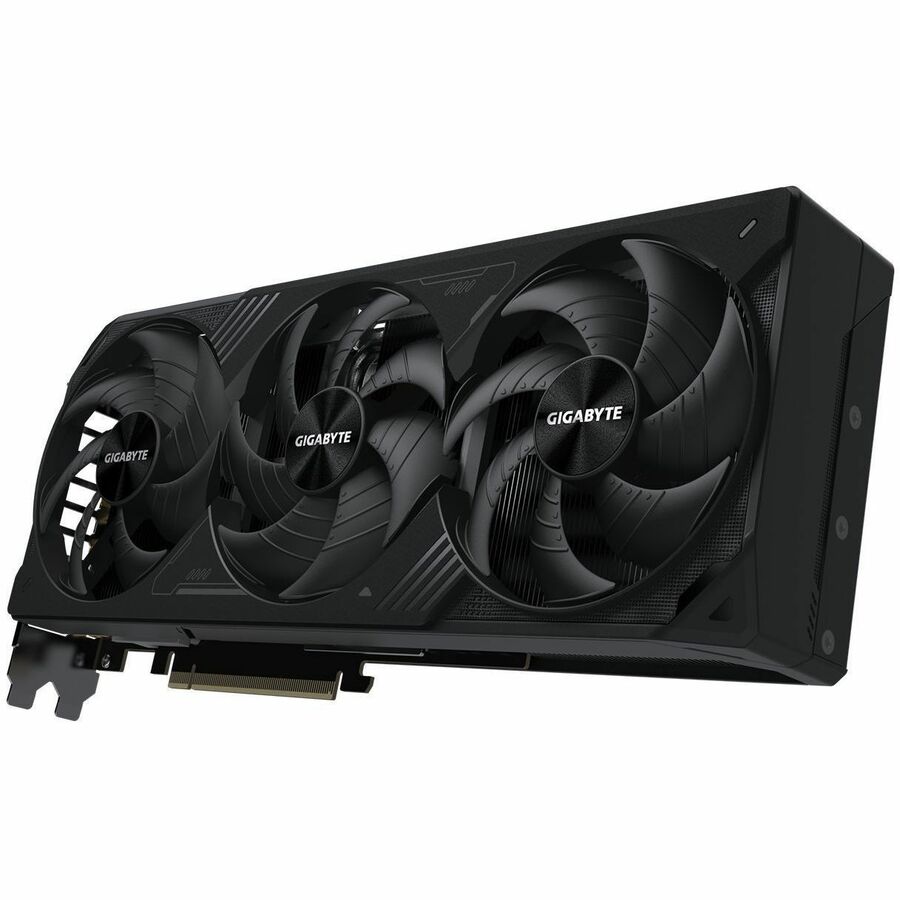

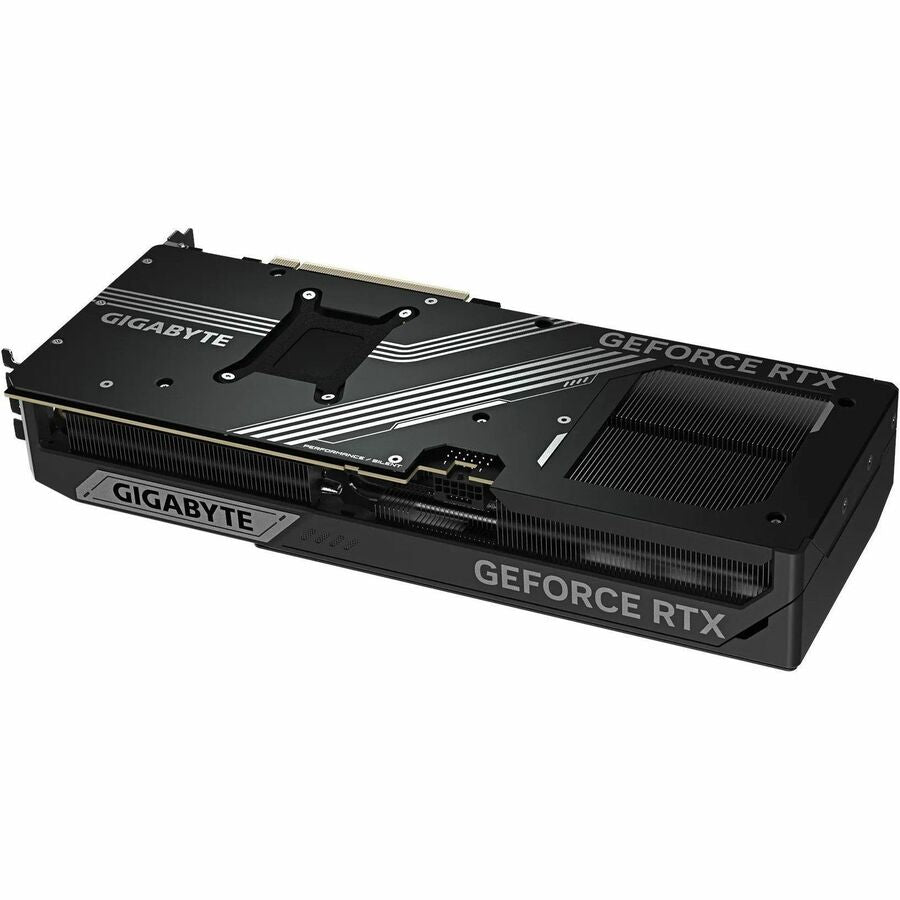

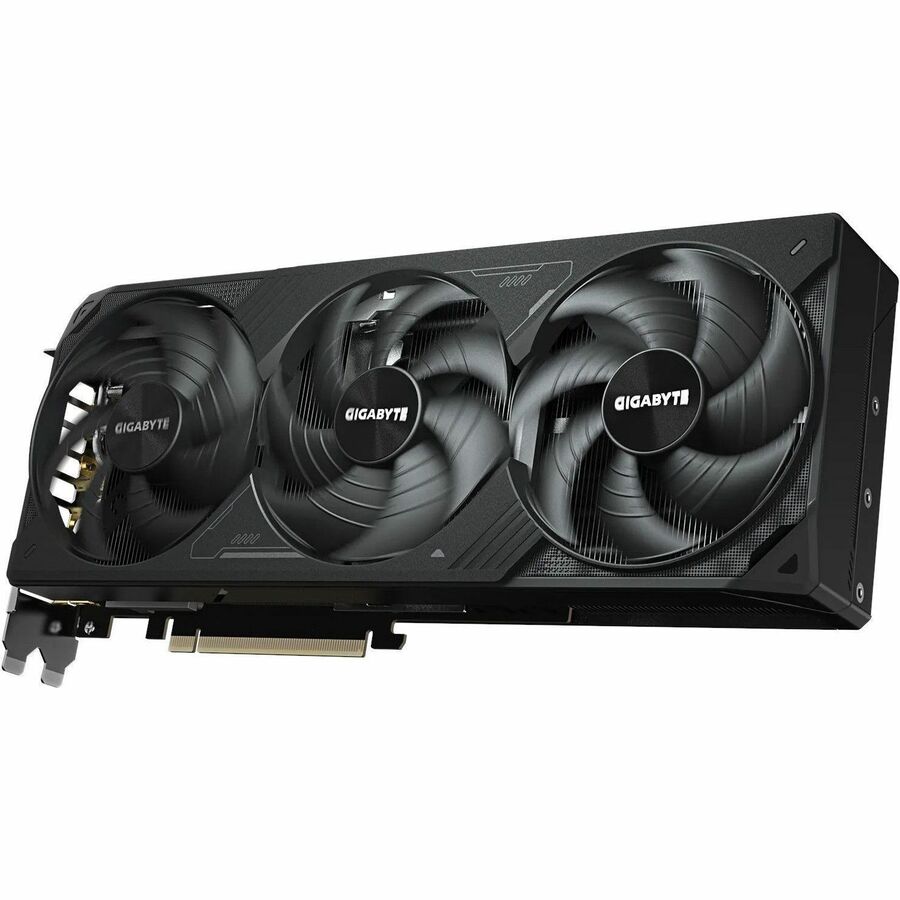

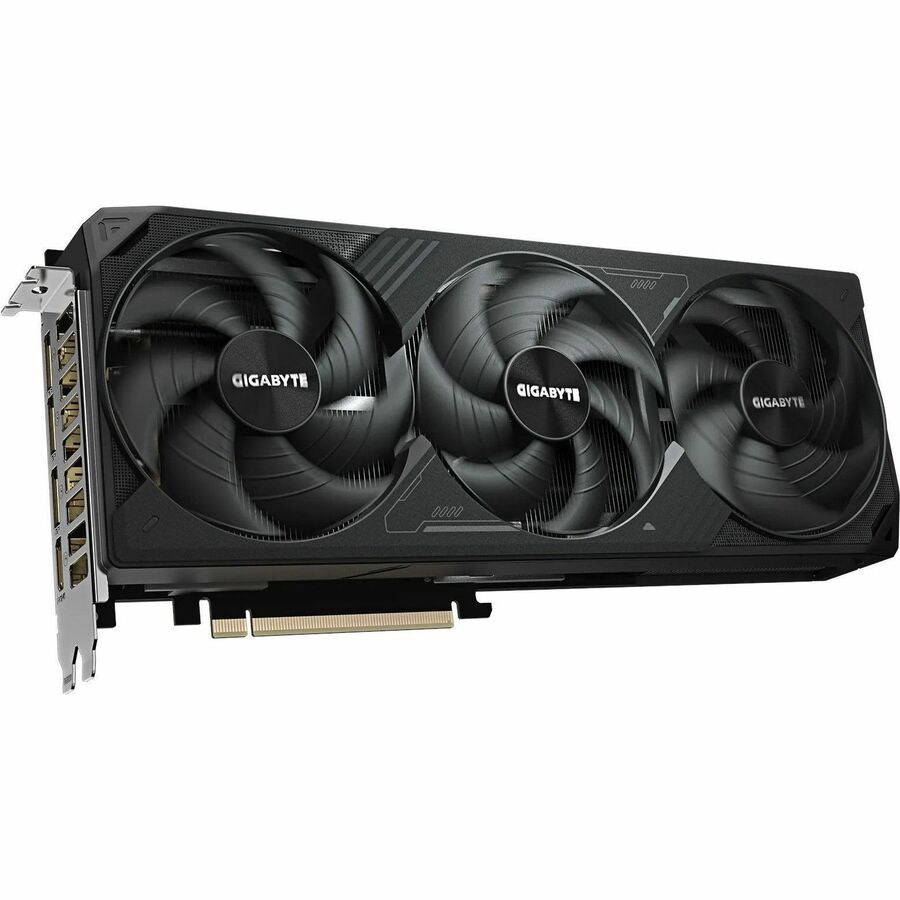

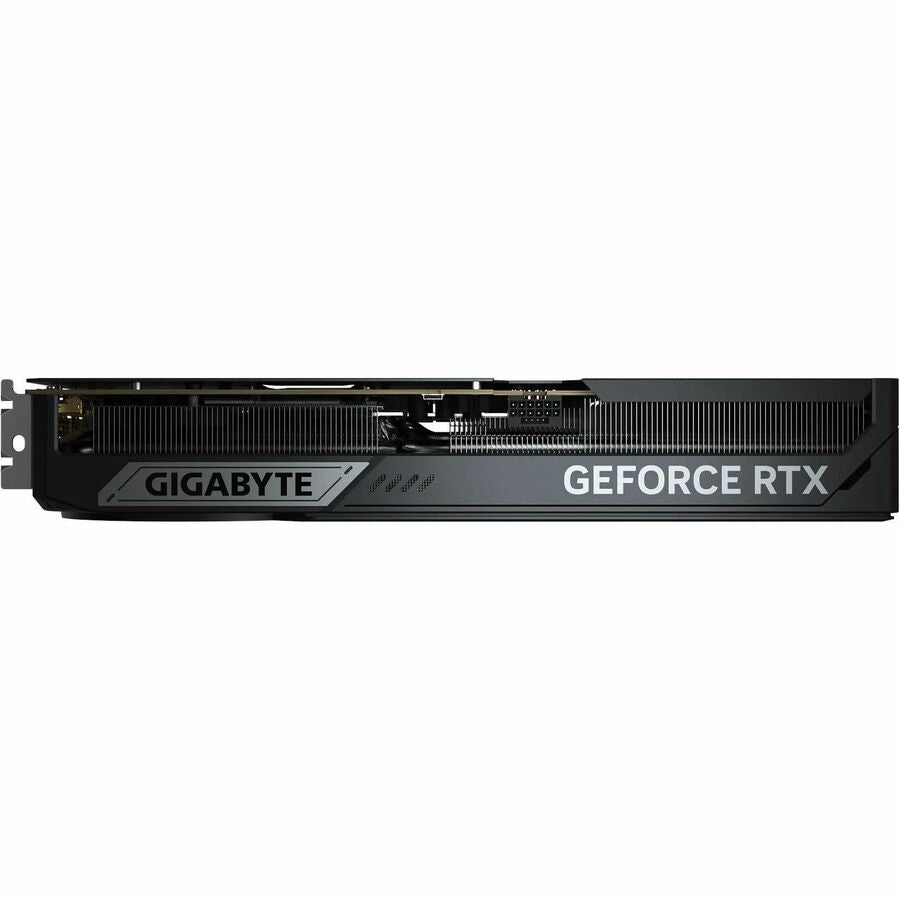

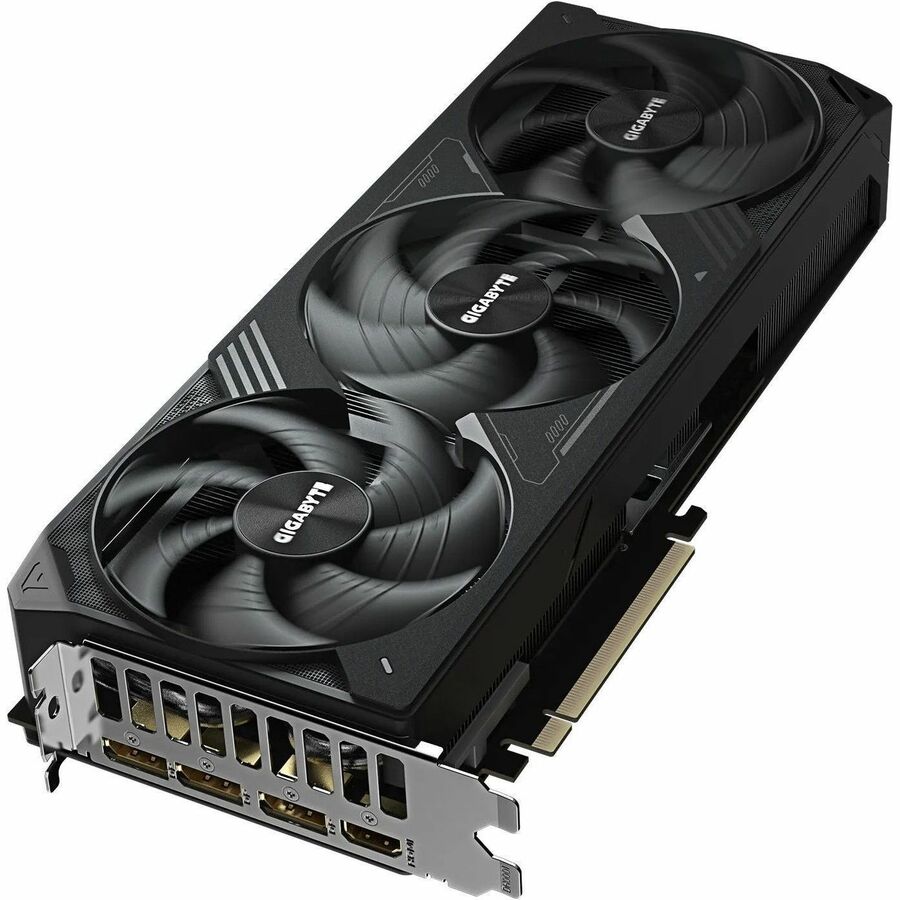

GIGABYTE NVIDIA GeForce RTX 5070 Ti Graphic Card - 16 GB GDDR7 - GV-N507TWF3OC-16GD
Key Features
- Dual BIOS (Performance / Silent)
- Hawk fan
- Integrated with 16GB GDDR7 256bit memory interface
- NVIDIA SFF-ready
- Powered by GeForce RTX 5070 Ti
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Reinforced structure
- Server-grade thermal conductive gel
- Versatile VGA holder
- WINDFORCE cooling system
Product Overview
CORE CLOCK
2497 MHz (Reference: 2452 MHz)
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
- Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
- Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
- Built for Mega Geometry
AI-Enhanced Graphics and Performance
- NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
- NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
- Full ray tracing with neural rendering
Digital Humans and AI Assistants
- NVIDIA ACE
Accelerate Your Creativity
- NVIDIA Studio creator tools and technology
Enhance Any Video with AI
- NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
- NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
- NVIDIA G-SYNC

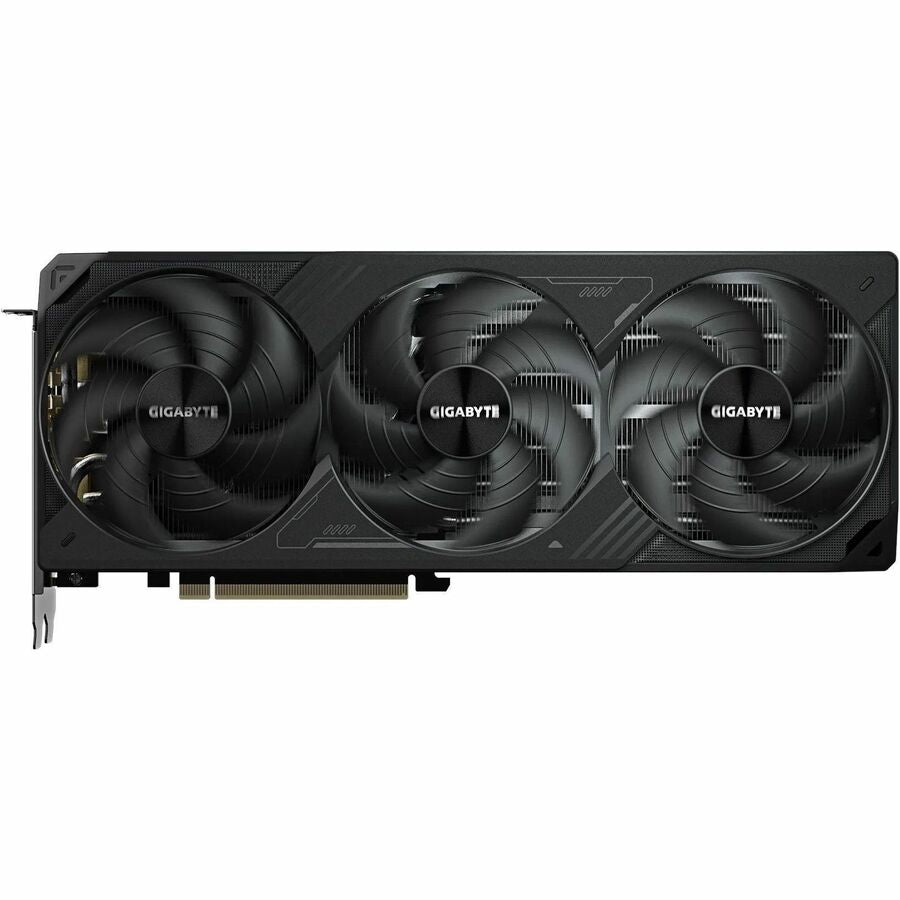

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
General Information
- Manufacturer: GIGABYTE Technology, Inc
- Manufacturer Part Number: GV-N507TWF3OC-16GD
- Brand Name: GIGABYTE
- Product Model: GV-N507TWF3OC-16GD
- Product Name: GeForce RTX 5070 Ti WINDFORCE OC SFF 16G Graphic Card
- Product Type: Graphic Card
Technical Information
- API Supported:
- DirectX 12
- OpenGL 4.6
- Number of Monitors Supported: 4
- Maximum Digital Display Resolution: 7680 x 4320
- CUDA Cores: 8960
- Features: Triple-fan Cooler
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: NVIDIA
- Chipset Line: GeForce
- Chipset Series: RTX
- Chipset Model: RTX 5070 Ti
- GPU Clock: 2.50 GHz
Memory
- Standard Memory: 16 GB
- Memory Technology: GDDR7
- Bus Width: 256 bit

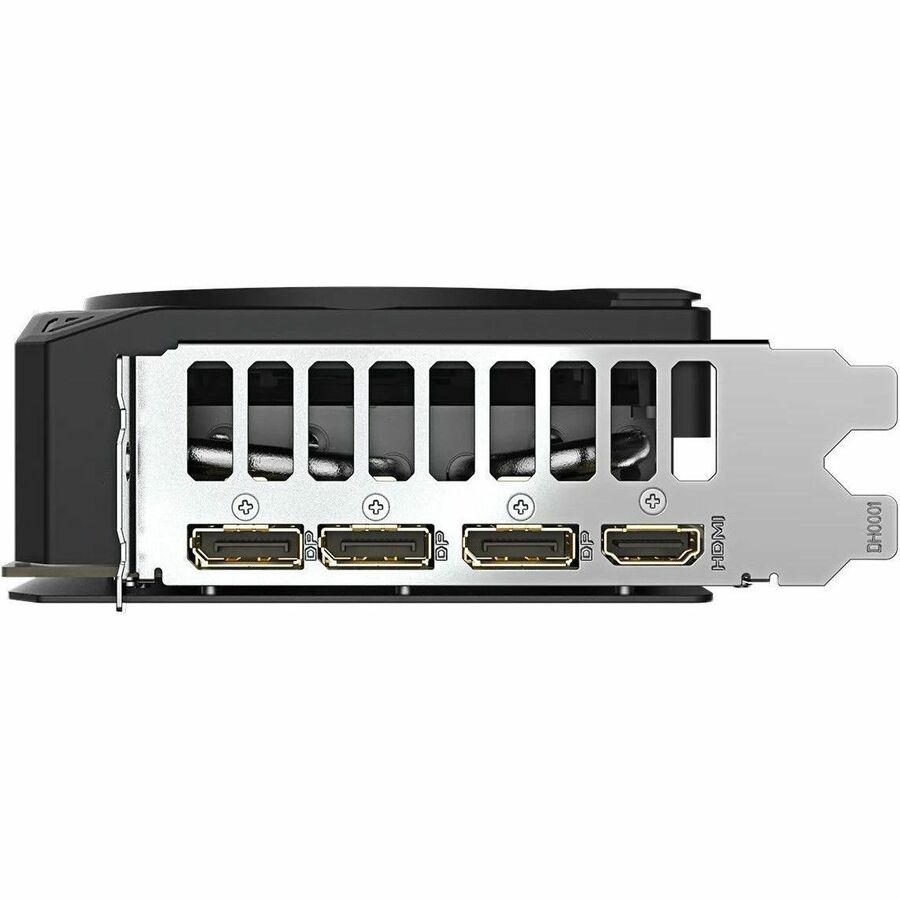

Interfaces/Ports
- Host Interface: PCI Express 5.0
- DisplayPort: Yes
- Number of DisplayPort Outputs: 3
- HDMI: Yes
- Number of HDMI Outputs: 1
- VGA: Yes
Power Description
- Power Supply Wattage: 750 W
- Power Connector:
- 1x 16-pin
- 2x 8-pin
Physical Characteristics
- Form Factor: Plug-in Card
- Cooler Type: Active Cooler
- Height: 2"
- Width: 5"
- Length: 12"
Miscellaneous

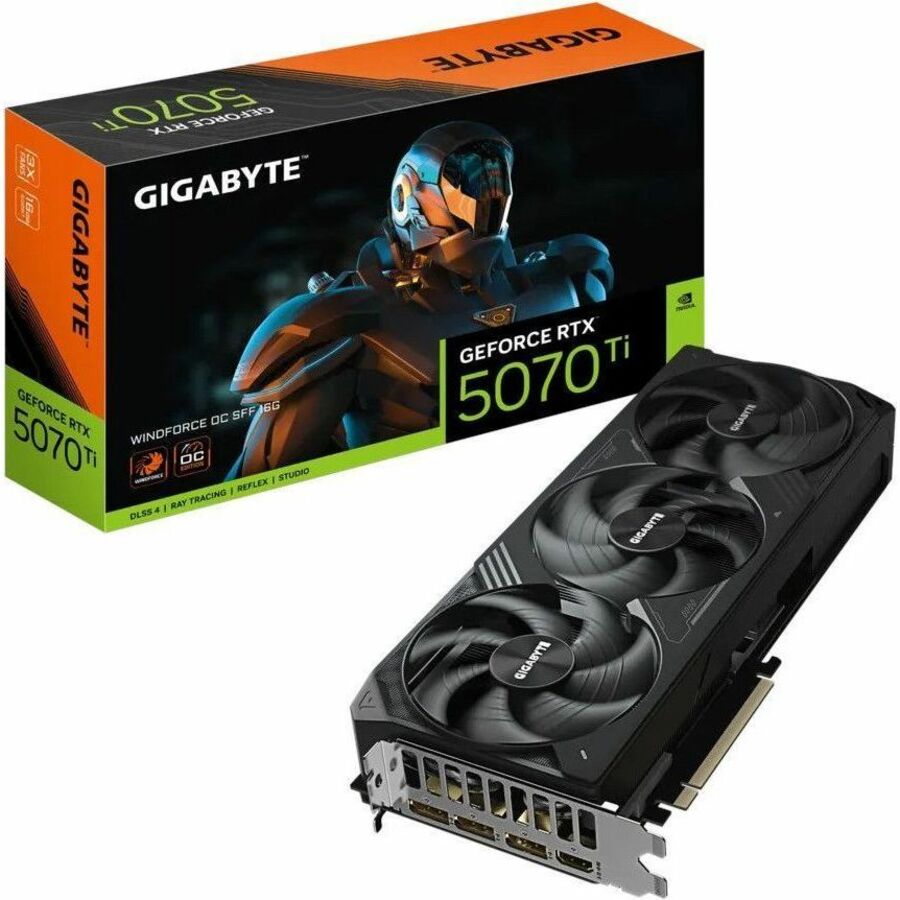

- Package Contents:
- GeForce RTX 5070 Ti WINDFORCE OC SFF 16G Graphic Card
- VGA manual
- 1x 12V-2x6 to 2x PCIe 8pin adapter
- Versatile VGA holder
- Versatile VGA holder manual
- Platform Supported: PC
