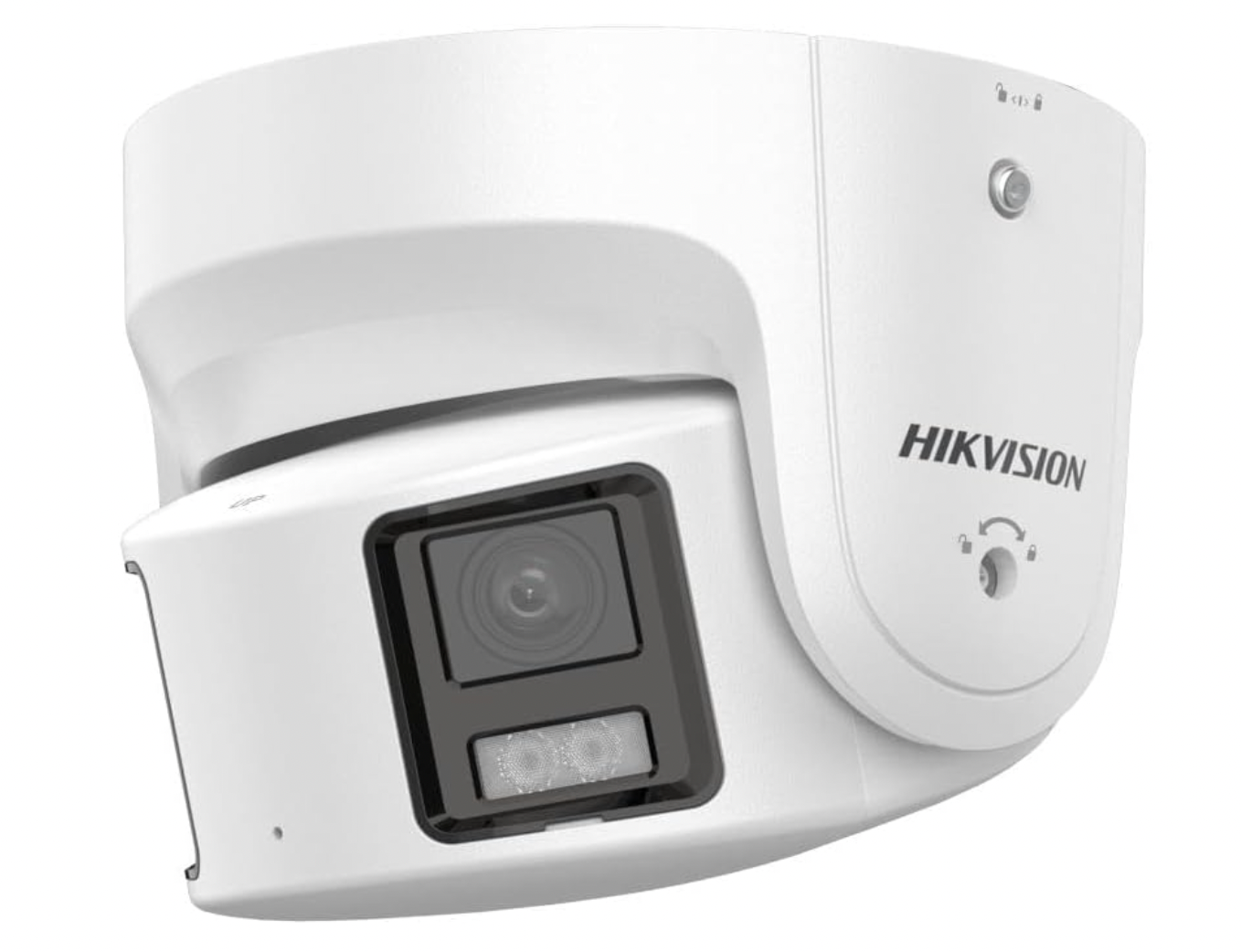

Hikvision 180-Degree Panoramic Turret Camera with Dual 1/1.8-Inch Sensors, 8MP ColorVu Full-Color Imaging, F1.0 Aperture, Built-In Microphone and Speaker, 130 dB WDR, H.265+, Strobe Light and Audible Warning, IP67, PoE (DS-2CD2387G2P-LSU/SL)
The Hikvision DS-2CD2387G2P-LSU/SL is a 180-degree panoramic turret security camera that uses two 1/1.8-inch progressive scan CMOS sensors with dual 4 mm lenses to capture a 5120 x 1440 stitched image across the full 180-degree horizontal field of view. ColorVu technology with an F1.0 aperture delivers full-color footage at illumination levels as low as 0.0005 lux, replacing the grayscale night vision of conventional IR cameras with vivid color detail that captures clothing, vehicle colors, and signage around the clock. The built-in microphone and 1.2W speaker provide two-way audio, and the integrated strobe light and audible warning system deliver active deterrence when triggered by intrusion events.
The dual-sensor design covers the same area that would otherwise require two or three fixed-lens cameras, reducing hardware, cabling, and NVR channel count for wide-area monitoring. Onboard deep learning analytics classify detected motion as human or vehicle targets for perimeter protection, and 130 dB WDR preserves detail in scenes where direct sunlight, headlights, or overhead lighting creates extreme contrast. H.265+ compression handles the high-resolution panoramic stream efficiently, and the MicroSD slot supports up to 512 GB of onboard storage for edge recording. The all-metal IP67-rated housing operates from -30 to 60 degrees Celsius. Powered by 802.3af PoE at a maximum draw of 12.5W.
Where the DS-2CD2387G2P-LSU/SL Fits
- Building entrances, storefronts, and lobby areas where a single 180-degree camera replaces two or three fixed-lens units to cover the entire approach in one panoramic view, the ColorVu full-color imaging captures face and clothing details at night without supplemental lighting, and the built-in speaker delivers live voice warnings or pre-recorded deterrence messages to approaching individuals
- Parking lots, loading docks, and perimeter fences where the dual-sensor panoramic view monitors the full width of the coverage area with no blind spots between cameras, the strobe light and audible alarm provide active deterrence for intrusion events, and the 130 dB WDR handles headlights and security floodlights without washing out surrounding detail
- Hallways, corridors, and narrow site perimeters where the 180-degree field of view captures traffic in both directions from a single mounting point, deep learning human and vehicle classification filters false alerts from animals and foliage movement, and H.265+ compression keeps bandwidth manageable for the high-resolution panoramic stream over standard 100 Mbps Ethernet
What the DS-2CD2387G2P-LSU/SL Delivers
- 180-Degree Panoramic Coverage with Dual 8MP Sensors: Two 1/1.8-inch CMOS sensors with dual 4 mm lenses produce a stitched 5120 x 1440 panoramic image covering a full 180-degree horizontal field of view. Replaces multiple fixed-lens cameras with a single unit for wide-area monitoring.
- ColorVu Full-Color Night Vision with Active Deterrence: F1.0 aperture with 0.0005 lux minimum illumination and 30-meter white light range delivers full-color footage 24/7. Integrated strobe light and 1.2W speaker (95 dB) provide active deterrence with visual and audible warnings triggered by intrusion events.
- Built-In Two-Way Audio and 130 dB WDR: The built-in microphone and speaker support live two-way communication and pre-recorded audio alerts. 130 dB true wide dynamic range handles extreme lighting contrasts from headlights, sunlight, and overhead fixtures in the same panoramic frame.
- Deep Learning Analytics with IP67 PoE Construction: Onboard AI provides perimeter protection with human and vehicle classification. H.265+ compression with up to 512 GB MicroSD edge storage. All-metal IP67 housing rated from -30 to 60 C. Powered by 802.3af PoE (12.5W max). ONVIF Profile S/G/T compatible.
