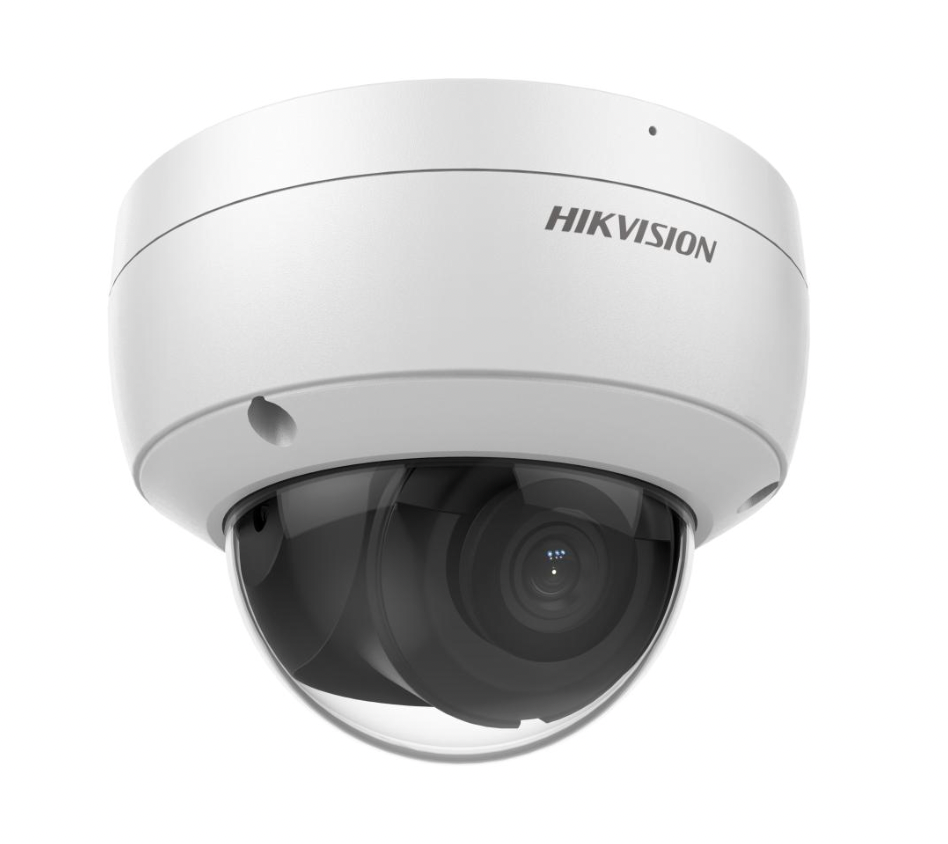

Hikvision AcuSense DS-2CD2143G2-IU 4MP Outdoor Network Dome Camera (White)
The Hikvision AcuSense DS-2CD2143G2-IU is a 4MP network dome camera designed for indoor or outdoor video monitoring. It uses a 1/3" progressive scan CMOS sensor to capture video at a maximum resolution of 2688 × 1520 at up to 30 frames per second. Integrated IR LEDs provide night vision with a range of up to 98 feet.
This camera features a fixed 2.8mm lens that delivers a 103° horizontal field of view. A built-in microphone allows the camera to capture audio with environmental noise filtering. Local storage is supported through a microSD/SDHC/SDXC card slot accepting cards up to 256GB (card not included). Integrated Power over Ethernet (PoE) enables power and data transmission through a single network cable.
The DS-2CD2143G2-IU complies with ONVIF Profiles G and S, supporting compatibility with a wide range of surveillance devices. The camera housing is rated IP67 for protection against dust and water and IK10 for impact resistance, making it suitable for outdoor installations and areas exposed to vandalism.
Key Features
4MP resolution (2688 × 1520) at up to 30 fps
AcuSense technology to reduce false alarms from non-human and non-vehicle targets
IR night vision with up to 98 ft range
Fixed 2.8mm lens with 103° horizontal field of view
Built-in microphone with environmental noise filtering
microSD/SDHC/SDXC card slot supporting up to 256GB (sold separately)
Power over Ethernet (PoE) support
IP67 weather resistance and IK10 impact resistance
Video & Imaging
H.265+, H.265, H.264+, H.264, and MJPEG video compression formats
120 dB wide dynamic range (WDR)
3D digital noise reduction (3D-DNR)
Backlight compensation and highlight compensation
Slow shutter support
Image settings including rotate, mirror, privacy mask, brightness, contrast, saturation, sharpness, gain, and white balance
Region of interest support for main stream and sub-stream
Analytics & System Functions
Motion detection
Video tampering alarm
Exception detection
Face detection
Perimeter protection
Anti-flicker and heartbeat functions
Password reset via email
Pixel counter
Hardware reset
Network & User Management
100M self-adaptive RJ45 Ethernet port
Up to 32 users with three permission levels (admin, operator, and user)
Up to six channels of simultaneous live view
Network-attached storage support
Compatibility
Internet Explorer 10 and 11 (plug-in required)
Chrome 57 or higher
Firefox 52 or higher
Supported platforms include iOS, Android, iVMS-4200, Hik-Connect, and Hik-Central
DORI Ranges
Detection: 220 ft
Observation: 85 ft
Recognition: 43 ft
Identification: 20 ft
Frequently Asked Questions
What is the maximum video resolution supported by this camera?
The Hikvision AcuSense DS-2CD2143G2-IU captures video at a maximum resolution of 2688 × 1520 at up to 30 frames per second.
Does this camera support night vision?
Yes. The camera includes integrated IR LEDs that provide night vision with a range of up to 98 feet.
Is this camera compatible with ONVIF?
Yes. This camera complies with ONVIF Profiles G and S.
