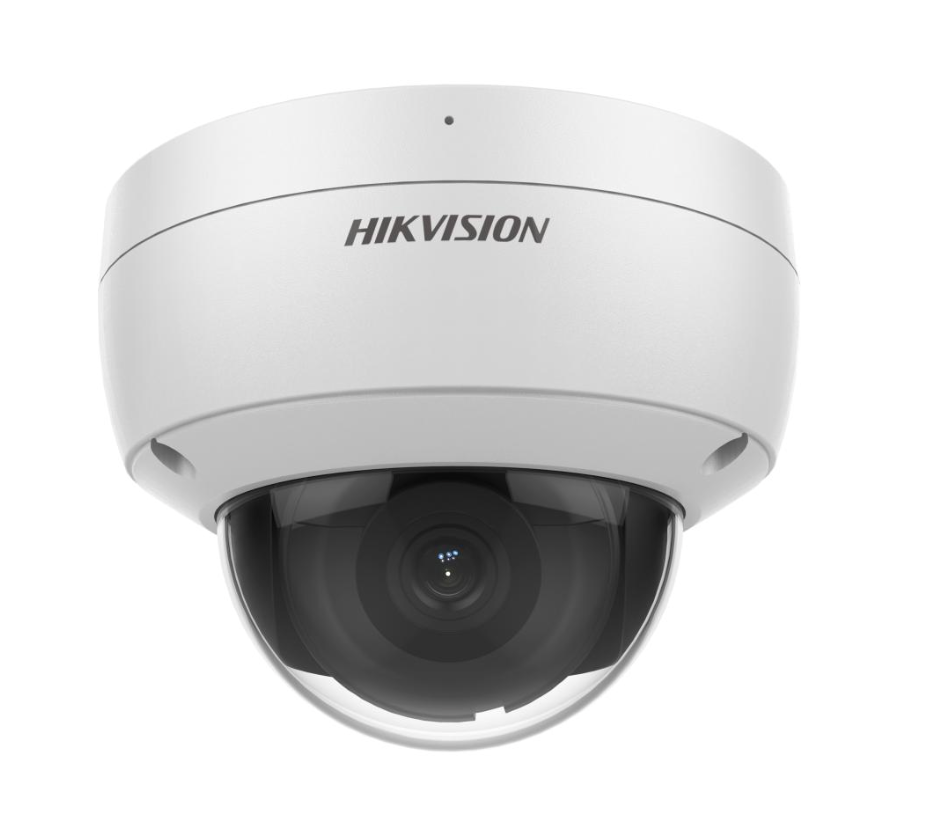

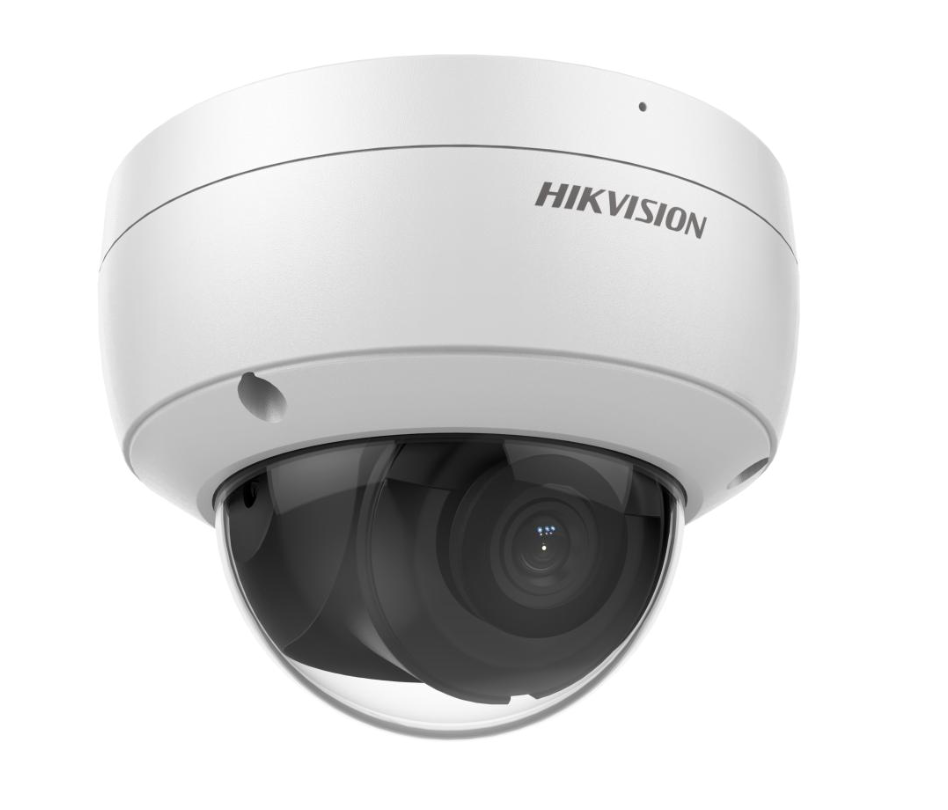

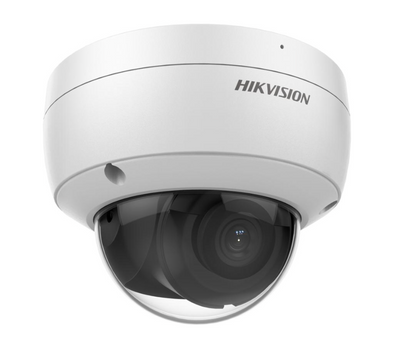

Hikvision AcuSense DS-2CD2183G2-IU 8MP IP Dome Camera (White)
The Hikvision AcuSense DS-2CD2183G2-IU is an 8MP IP dome camera designed for indoor and outdoor monitoring. It delivers a sharp 3840 × 2160 image using a 1/1.8" progressive scan CMOS image sensor. The camera supports wide dynamic range to maintain image detail in scenes with both bright and dark areas.
This model features a fixed 2.8mm lens and infrared illumination that provides visibility in complete darkness. A built-in microphone enables audio capture, while Power over Ethernet (PoE) allows power and data to be transmitted through a single Ethernet cable.
AcuSense smart detection supports human and vehicle identification to reduce false alerts. The dome housing is constructed with an aluminum alloy body and plastic bubble and is rated IP67 for dust and water resistance and IK10 for impact resistance.
Key Features
8MP resolution (3840 × 2160)
AcuSense smart detection for people and vehicles
Fixed 2.8mm lens
Infrared illumination up to 30 m
120 dB wide dynamic range (WDR)
Built-in microphone
Power over Ethernet (PoE, IEEE 802.3af Class 3)
IP67 weather resistance and IK10 impact resistance
Video & Imaging
Main stream: up to 20 fps at 3840 × 2160 (50 Hz) or 60 Hz
Supports multiple resolutions including 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720
Sub-stream supports up to 25 fps
H.265+, H.265, H.264+, H.264, and MJPEG compression
Bitrate: 32 Kbps to 16 Mbps
Scalable video coding (SVC) support
Region of interest support for main stream and sub-stream
Lens & Field of View
Focal length: 2.8mm
Angular field of view: Horizontal 107°, Vertical 57°, Diagonal 128°
Maximum aperture: f/1.6
Analytics & AI Capabilities
Motion detection
People detection
Vehicle detection
Intrusion detection
Virtual line crossing detection
Camera sabotage / tampering alarm
Video tampering alarm
Exception detection
Audio
Built-in microphone
One-way audio
Networking & Security
IPv4 and IPv6 support
Supported protocols include TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, IGMP, UPnP, SNMP, SSL/TLS, PPPoE, and ONVIF Profiles S and G
Security features include password protection, HTTPS encryption, IP address filtering, security audit log, and digest authentication
Storage
Built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512GB
Network-attached storage support (NAS with NFS and SMB/CIFS)
Power
12 VDC ±25% power input
PoE supported (802.3af)
Power consumption: maximum 6 W, PoE maximum 7.5 W
Environmental & Physical
Operating temperature: -30°C to 60°C (-22°F to 140°F)
Operating humidity: up to 95% (non-condensing)
IR wavelength: 850 nm
Camera dimensions: 4.4 × 3.3 in
Camera weight: 1.1 lb
Frequently Asked Questions
What is the maximum resolution supported by this camera?
The Hikvision DS-2CD2183G2-IU supports a maximum resolution of 8 megapixels (3840 × 2160).
Does this camera support Power over Ethernet (PoE)?
Yes. The camera supports PoE (IEEE 802.3af, Class 3), allowing power and data to be transmitted through a single Ethernet cable.
Is this camera rated for outdoor use?
Yes. The camera is rated IP67 for dust and water resistance and IK10 for impact resistance.
