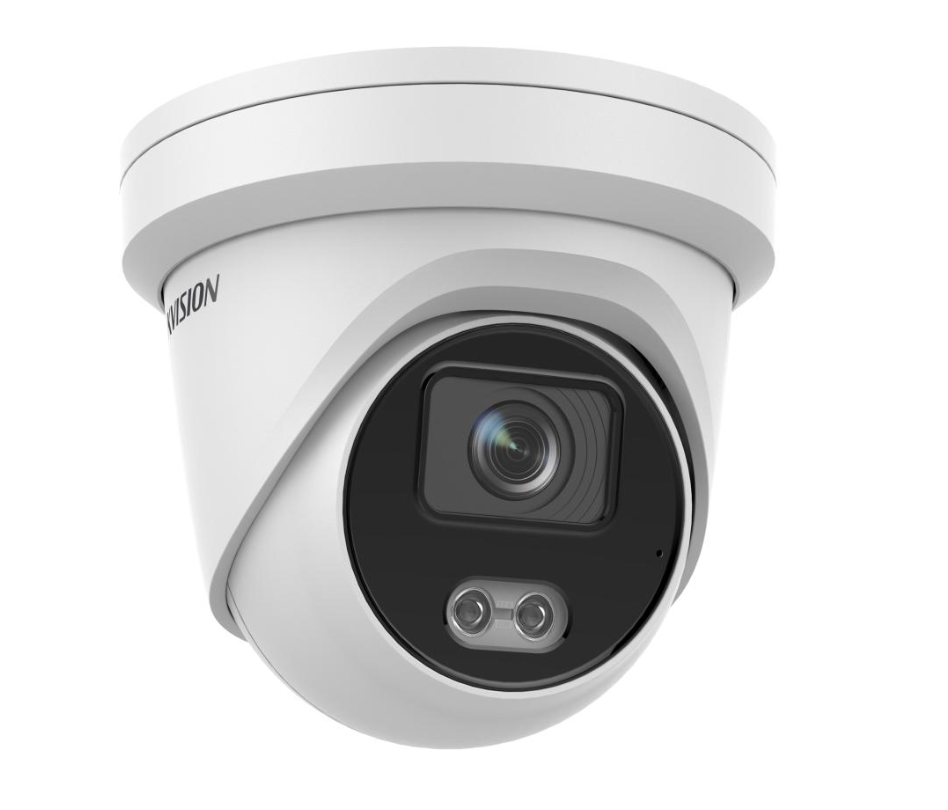

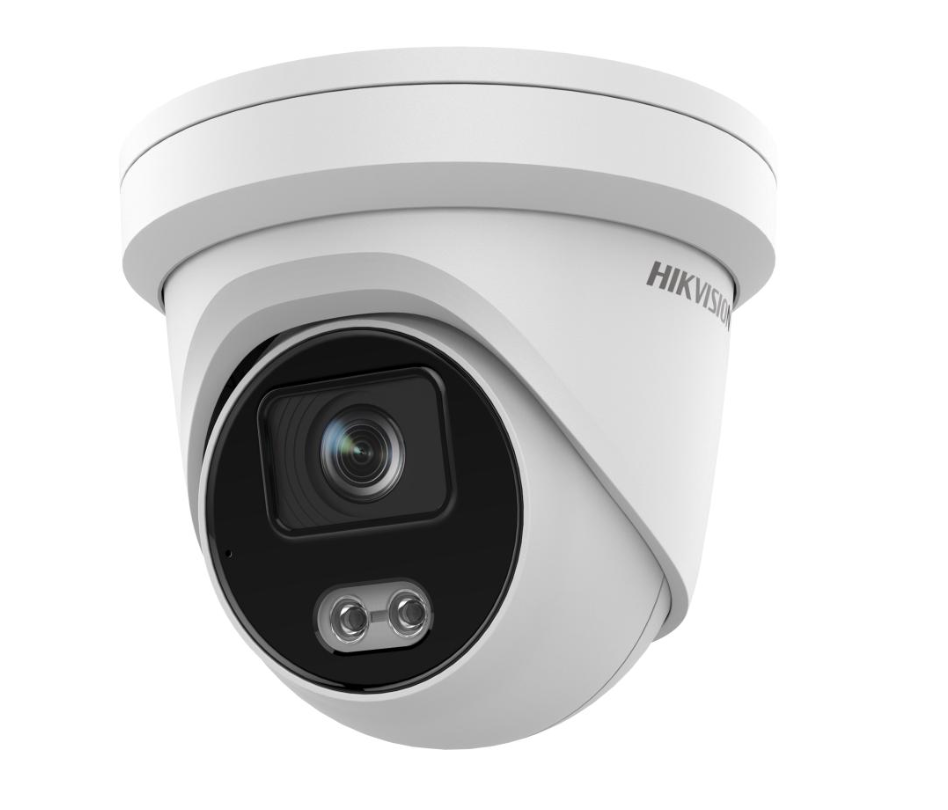

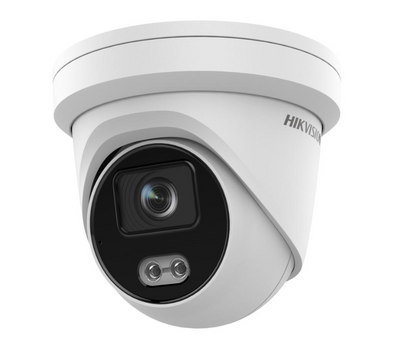

Hikvision ColorVu DS-2CD2347G2-LU 4MP IP Turret Camera (White)
The Hikvision ColorVu DS-2CD2347G2-LU is a 4 MP IP turret camera designed for outdoor surveillance. It delivers high-resolution video at 2688 × 1520 using a 1/1.8" progressive scan CMOS image sensor and maintains strong low-light performance through dual illumination using infrared and white light.
This camera features a fixed 2.8mm lens and supports wide dynamic range rated at 130 dB, along with digital noise reduction, backlight compensation, smart exposure controls, and privacy masking. These features help maintain consistent image clarity in challenging lighting conditions.
Smart analytics support human and vehicle detection to improve accuracy and reduce false alerts. A built-in microphone enables audio capture, while efficient video compression helps optimize bandwidth and storage. The camera is housed in an IP67-rated aluminum alloy enclosure and supports Power over Ethernet (PoE) for simplified installation.
Key Features
4 MP resolution (2688 × 1520)
ColorVu technology with dual illumination (IR and white light)
Fixed 2.8mm lens
130 dB wide dynamic range (WDR)
Built-in microphone
Human and vehicle detection analytics
Power over Ethernet (PoE, IEEE 802.3af Class 3)
IP67 weather-resistant housing
Video & Imaging
Main stream (50 Hz): 25 fps at 2688 × 1520, 1920 × 1080, 1280 × 720
Main stream (60 Hz): 30 fps at 2688 × 1520, 1920 × 1080, 1280 × 720
Sub-stream (50 Hz): 25 fps at 1280 × 720, 640 × 480, 640 × 360
Sub-stream (60 Hz): 30 fps at 1280 × 720, 640 × 480, 640 × 360
Video bitrate: 32 Kbps to 8 Mbps
H.265, H.264, H.265+, and H.264+ compression
Lens & Field of View
Focal length: 2.8mm
Angular field of view: Horizontal 112°, Vertical 61°, Diagonal 134°
Maximum aperture: f/1.0
Analytics & AI Capabilities
Motion detection
Human and vehicle detection
Intrusion detection
Line crossing detection
Region entrance detection
Region exiting detection
Scene change detection
Video tampering alarm
Exception detection
Audio
Built-in microphone
Audio compression formats: G.711Ulaw, G.711Alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Networking & Security
IPv4 and IPv6 support
Supported protocols include TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, IGMP, UPnP, SNMP, SSL/TLS, PPPoE, ARP, WebSocket, and ONVIF Profiles S, G, and T
Security features include password protection, HTTPS encryption, IP address filtering, security audit logs, and digest authentication
Storage
Built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512GB
Network-attached storage support (NAS with NFS and SMB/CIFS)
Power
12 VDC ±25% power input
PoE supported (802.3af Class 3)
Power consumption: maximum 6.6 W, PoE maximum 7.6 W
Environmental & Physical
Operating temperature: -30°C to 60°C (-22°F to 140°F)
Operating humidity: up to 95% (non-condensing)
Camera dimensions: 5.4 × 4.9 in
IP67 environmental protection
Frequently Asked Questions
What is the maximum resolution supported by this camera?
The Hikvision DS-2CD2347G2-LU supports a maximum resolution of 4 MP (2688 × 1520).
Does this camera support color video in low light?
Yes. The camera uses ColorVu technology with dual illumination using infrared and white light.
Is this camera suitable for outdoor use?
Yes. The camera features an IP67-rated housing for outdoor operation.
