Hisense 86DM66D 86" 4K UHD DIGITAL SIGNAGE DISPLAY - 86DM66D

SKU: 86DM66D

Regular price $3,484.99 USD
Regular price Sale price $3,484.99 USD
Sale Sold out

 Out of stock

Want to know when this is back in stock?

View full details

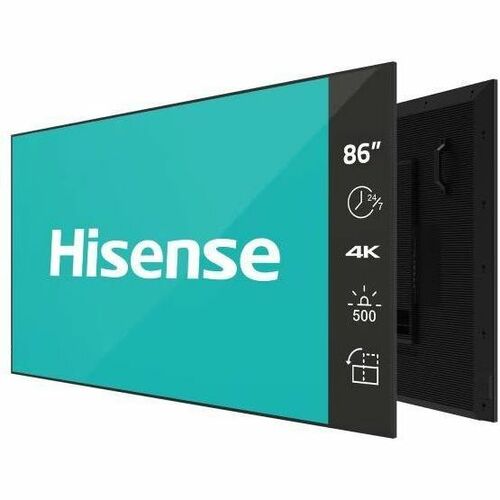

Hisense 86DM66D 86" 4K UHD DIGITAL SIGNAGE DISPLAY - 86DM66D

Key Features

  • Cortex A55 processor offers maximum productivity in a timely efficient manner
  • Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
  • Direct LED backlighting technology enabled for a bright and sharp display
  • Engages your customers and makes their viewing experience breathtaking with its 2160p content
  • Experience luminescent visual images with LCD display
  • Features a 4k Ultra HD 3840 x 2160 resolution

Product Overview

Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by conecting a series of displays to a single video output.

Narrow Bezel

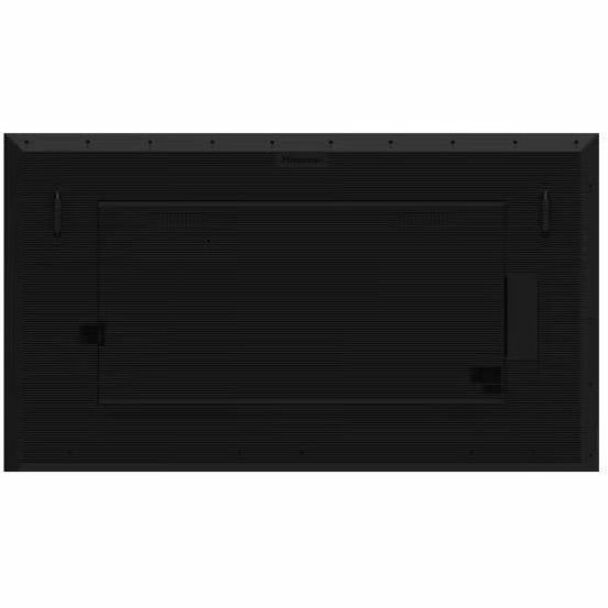

With a narrow bezel and symmetrical design, the display can be easily integrated into any environment. All terminals face outwards, ensuring the display hangs flush against the wall which saves space and facilitates installation.

Clean Cable Solution

The integrated cable holder hides cables and keeps the back of the display tidy and uncluttered. This reduces visual distractions that can get in the way of your viewing experience.

Wireless Screen Sharing

Everthing you need for screen sharing solutions. ScreenShare is a in house built-in screen sharing application that enables the screen sharing wirelessly and seemlessly from anywhere and from any devices.

Mobile Device Management

VisionInfo is a cloud-based device managemet software that offers end-to-end device management and control through all devices. It is a powerful, effective and easy to use tool to control your devices at anytime from anywhere.

Android 11

Android 11 works to keep your data safe and secure. With Android 11, you have more control over what information apps can and can't access. Devices that work better together, enhance your messaging, audio and multitasking experiences.

Anti-glare Coating

All DM Series displays offer higher haze panels that help reduce reflections without adversley affecting the image quality. Anti-glare coatings can also improve the perceived contrast of the display

Smart Power

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption, ENERGY STAR-certified, the display helps you protect the environment and save costs.

Conformal Coating

Electronic components are completely protected from the environmental factors like moisture, dust, salt, chemicals, temperature changes and mechanical abrasion.

General Information

  • Manufacturer: Hisense Company Limited
  • Manufacturer Part Number: 86DM66D
  • Brand Name: Hisense
  • Product Series: DM
  • Product Model: 86DM66D
  • Product Name: 86DM66D 86" 4K UHD DIGITAL SIGNAGE DISPLAY
  • Product Type: Digital Signage Display

Technical Information

  • Bezel Width (Top): 0.41"
  • Bezel Width (Bottom): 0.43"
  • Bezel Width (Left): 0.41"
  • Bezel Width (Right): 0.41"
  • Ingress Protection (IP) Rating: IP5X
  • Panel Technology: Advanced Super Dimension Switch ( ADS )
  • Operation Hours: 24 Hours/7 Days

Processor & Chipset

  • Processor Type: Cortex A55
  • Processor Core: Quad-core (4 Core)

Memory

  • Standard Memory: 3 GB
  • Memory Technology: DDR4 SDRAM

Display & Graphics

  • Number of Screens: 1
  • Viewable Screen Size: 86"
  • Display Screen Type: LCD
  • Response Time: 8 ms
  • Display Resolution: 3840 x 2160
  • Orientation: Landscape/Portrait
  • Backlight Technology: Direct LED
  • Graphics Controller Model: Mali-G52

Video

  • Scan Format: 2160p
  • Brightness: 500 Nit
  • Color Gamut: 72% NTSC

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Bluetooth: Yes

Interfaces/Ports

  • USB: Yes
  • HDMI: Yes
  • DisplayPort: Yes
  • Serial: Yes
  • Number of USB 2.0 Ports: 1
  • Number of USB 3.0 Ports: 1
  • Number of HDMI Inputs: 2
  • Number of HDMI Outputs: 1
  • Number of DisplayPorts: 1
  • RS-232C Input: Yes
  • RS-232C Output: Yes
  • Number of Audio Line Out: 1

Software

  • Operating System: Android 11

Power Description

  • Input Voltage:
    • 120 V AC
    • 230 V AC

Physical Characteristics

  • Bezel Color: Black
  • VESA Mount Standard: 600 x 400
  • Height: 43.1"
  • Width: 75.9"
  • Depth: 2.5"
  • Weight (Approximate): 84.22 lb

Environmental Conditions

  • Minimum Operating Temperature: 32°F (0°C)
  • Maximum Operating Temperature: 104°F (40°C)
  • Minimum Operating Humidity: 10%
  • Maximum Operating Humidity: 80%

Miscellaneous

  • Package Contents:
    • 86DM66D 86" 4K UHD DIGITAL SIGNAGE DISPLAY
    • Quick Setup Guide
    • Warranty Card
    • Power Cord
    • Remote Controller
    • Batteries
    • RS232(in) Gender

  • Application/Usage:
    • Business
    • Outdoor
    • Transportation
    • Museum
    • Stadium
    • Retail
    • Grocery Store
    • Hotel
    • Restaurant
    • Corporate

  • Energy Star: Yes
  • Environmentally Friendly: Yes
  • Environmental Certification: China Environmental United Certification Center (CEC)
  • Energy Efficiency Certification: ENERGY STAR 8.0
  • Energy Efficiency Compliance: Energy-related Products Directive (ErP)
