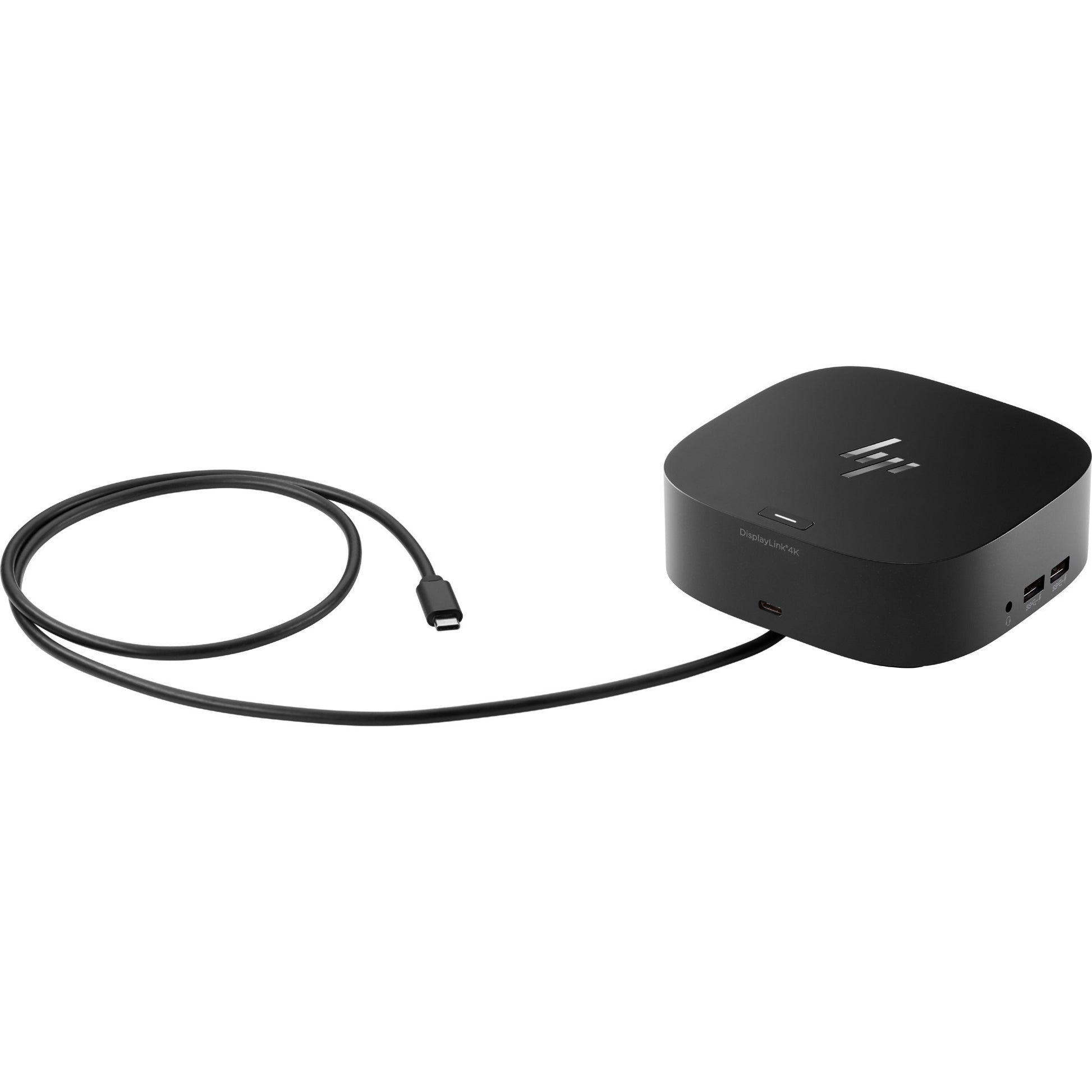

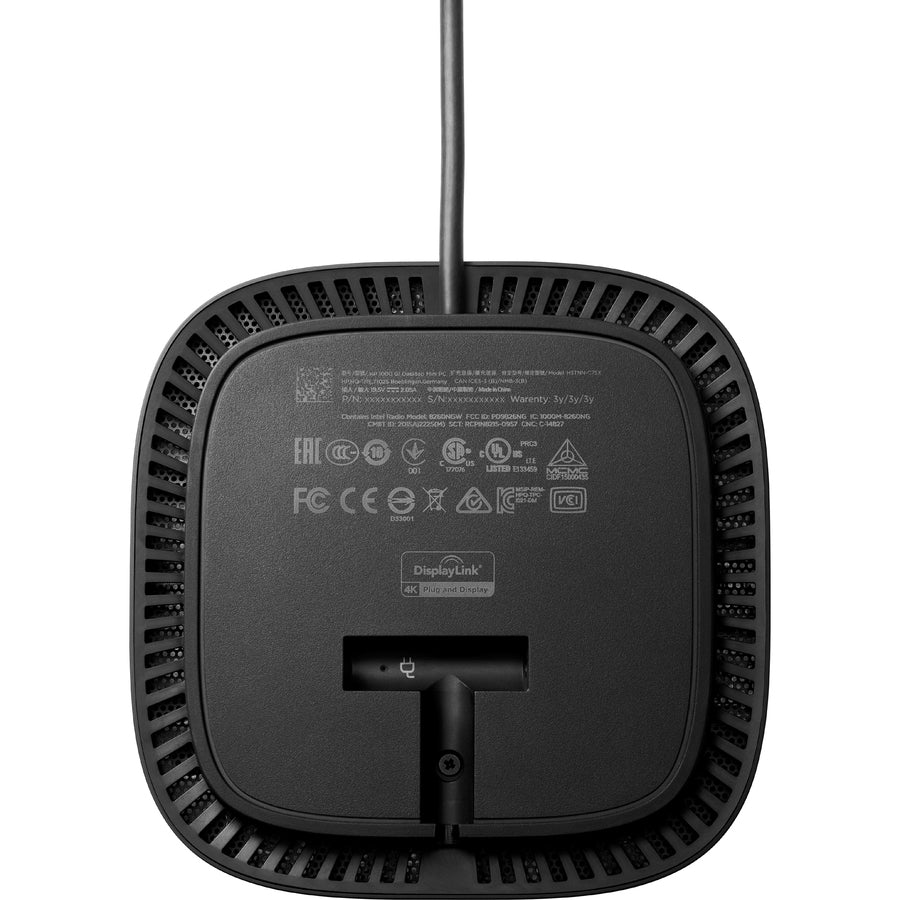

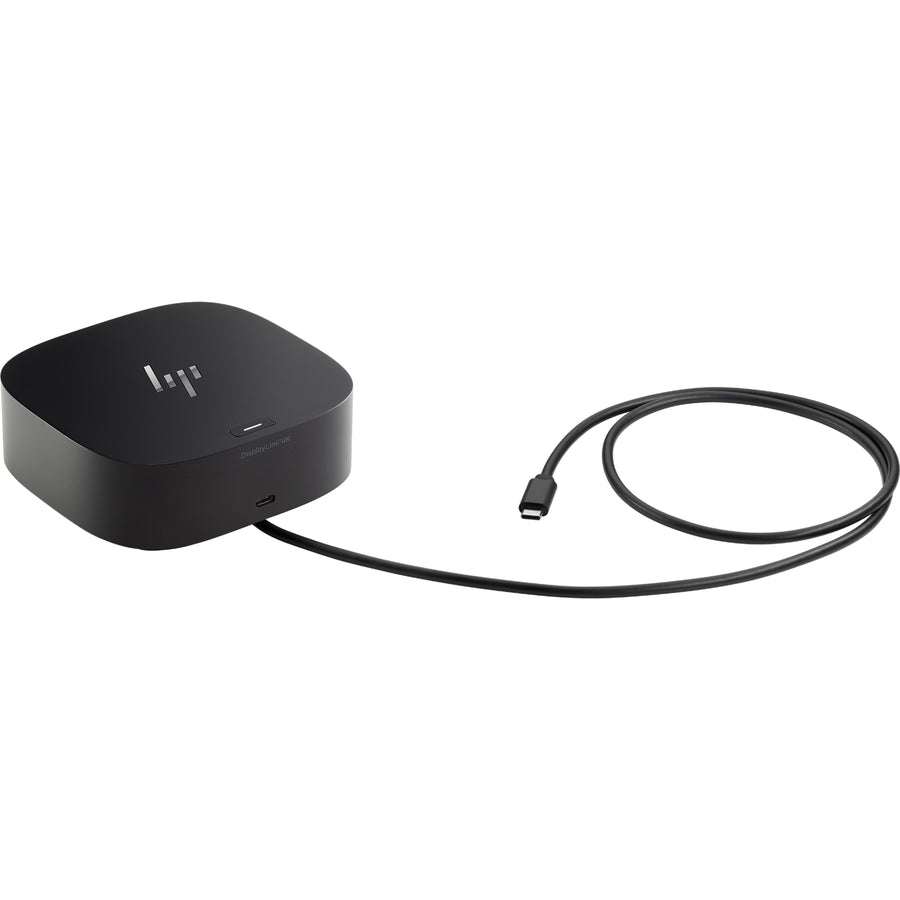

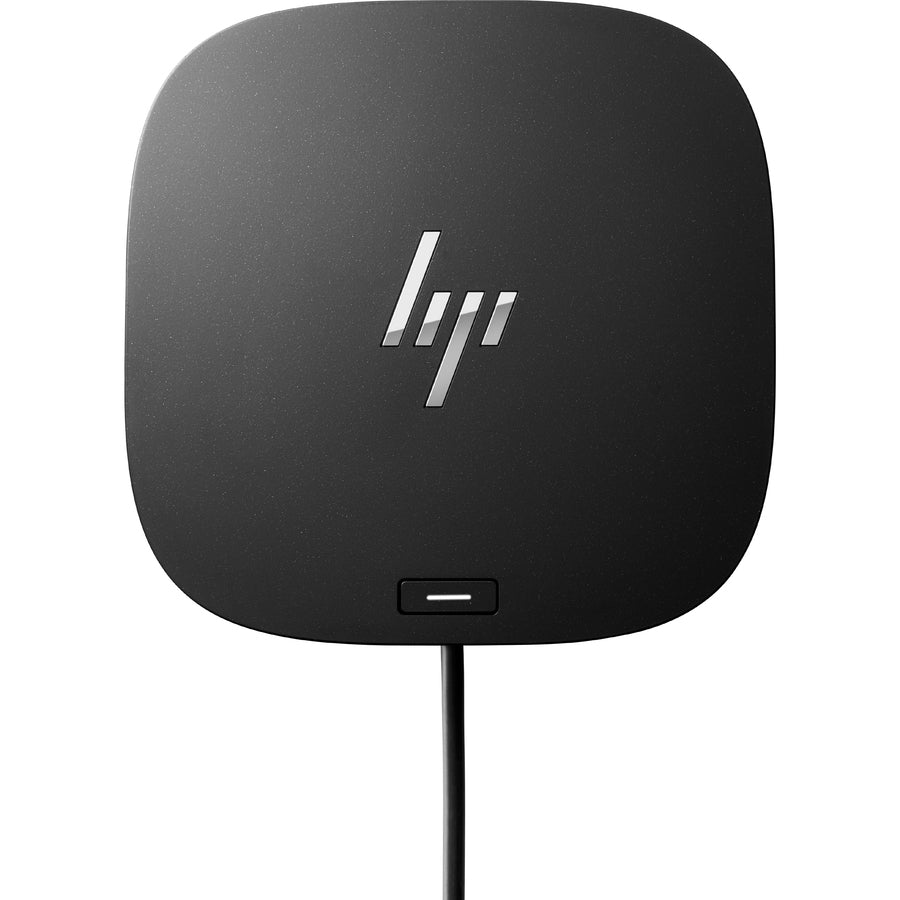

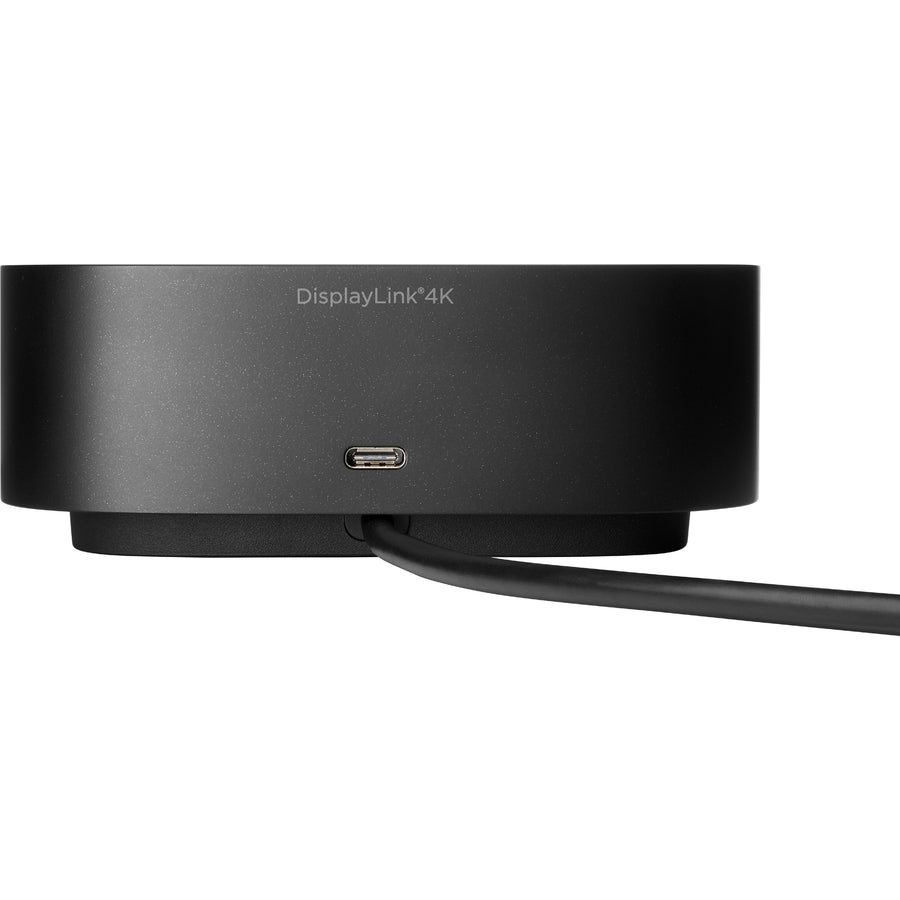

HP USB-C/A Universal Dock G2 - 5TW13AA#ABA
Key Features
- 6 USB ports allows quick transmission of data at a higher rate for your convenience
- Docking Station provides a trouble-free charging solution with reliable, feasible connectivity for your notebook
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Product Overview
Universal docking for legacy and current notebooksGet to work fast with one cable from your USB-A- and USB-C™-enabled notebooks to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with notebooks from HP, Apple®, Dell, Lenovo, and more.
Future-proof your fleet
Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-,USB-C™-, and Thunderbolt™-enabled notebooks.
Single-cable solution
Add your accessories and up to three 4K displays to the dock. Then simply connect it to your notebook through a single USB-C™ cable to access your devices and charge your PC.
Backward compatibility
Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays. Use the optional HP 4.5 mm and USB-C Dock Adapter G2 for legacy device barrel charging.
Easily manage your commercial HP fleet
Help IT secure and remotely manage your deployed commercial HP notebooks and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
Small footprint
Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
Electronic asset management for your docks
Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.
We test so you can rest.
Rigorous testing helps assure dock compatibility across HP notebooks and Apple®, Dell, and Lenovo notebooks with USB-C™ charging ports.
General Information
- Manufacturer: HP Inc.
- Manufacturer Part Number: 5TW13AA#ABA
- Brand Name: HP
- Product Name: USB-C/A Universal Dock G2
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 3
- Device Supported: Notebook

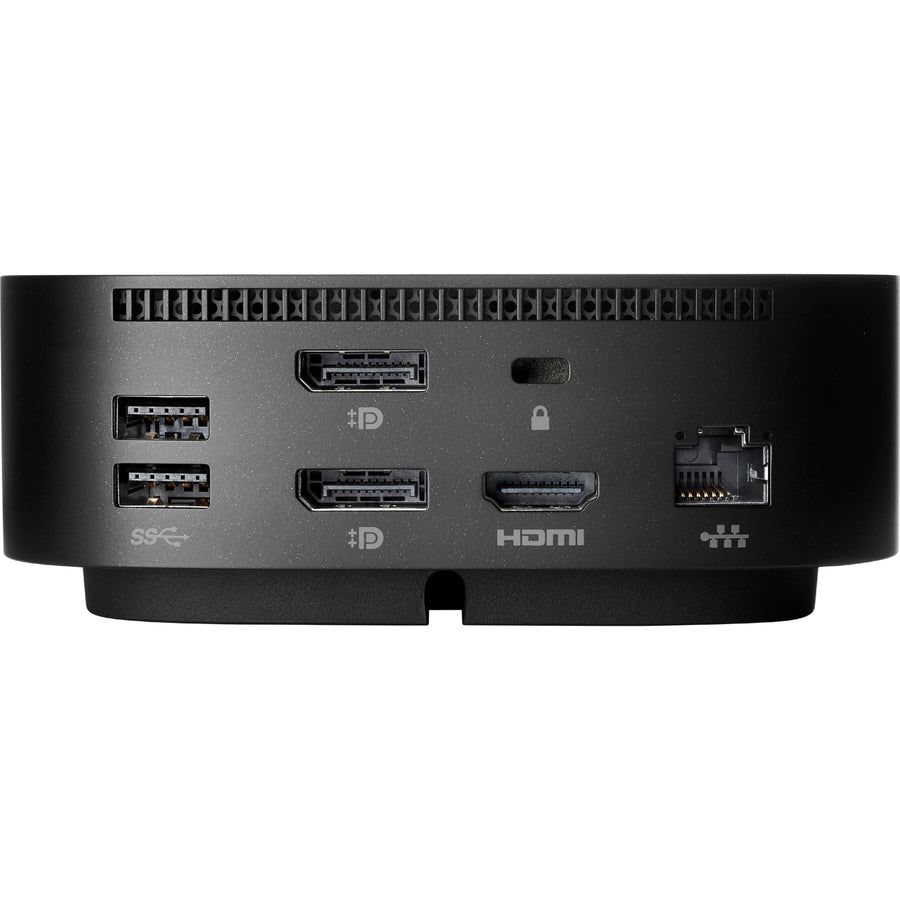

Interfaces/Ports
- Host Interface:
- USB Type C
- USB Type A
- Total Number of USB Ports: 6
- Number of USB 3.0 Ports: 4
- USB Type-C: Yes
- USB Type-C Detail: One USB-C port with data and power out (15W)
- Network (RJ-45): Yes
- Number of DisplayPort Outputs: 2
- DisplayPort: Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color: Black
- Height: 1.77"
- Width: 4.80"
- Depth: 4.80"
- Weight (Approximate): 1.53 lb
Miscellaneous
- Package Contents:
- USB-C/A Universal Dock G2
- USB-A Adapter
- Kensington Security Slot: Yes
- Compatibility:
Compatible Brands:
- HP
- Apple
- Dell
- Lenovo
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 1 Year
