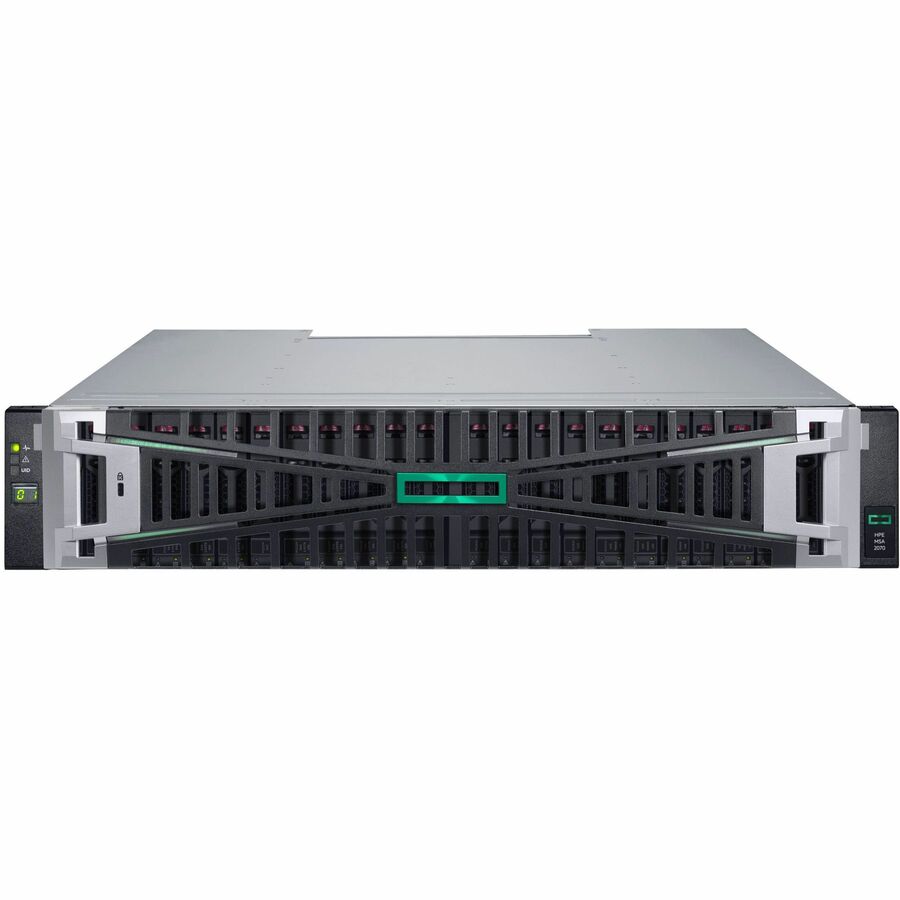

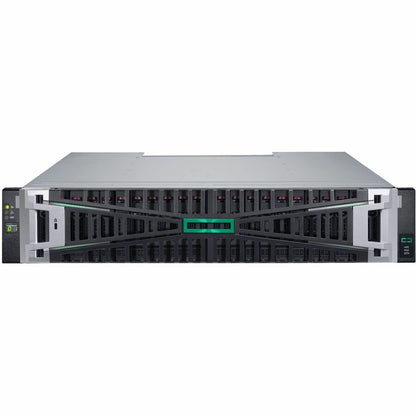

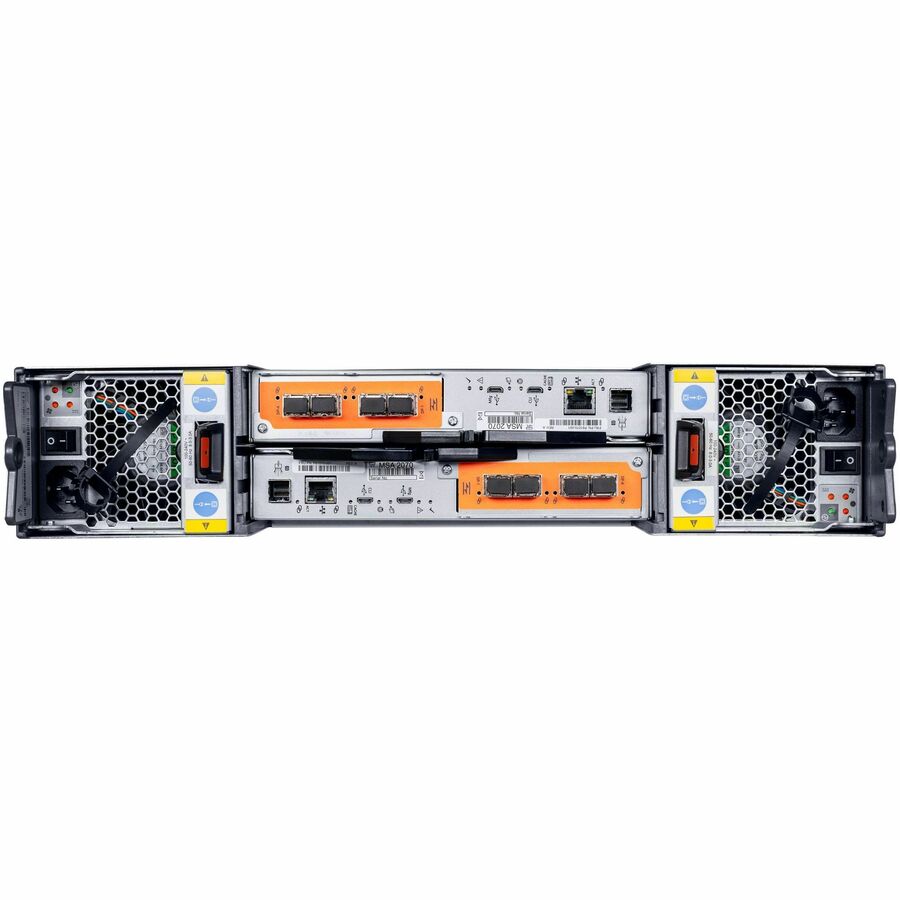

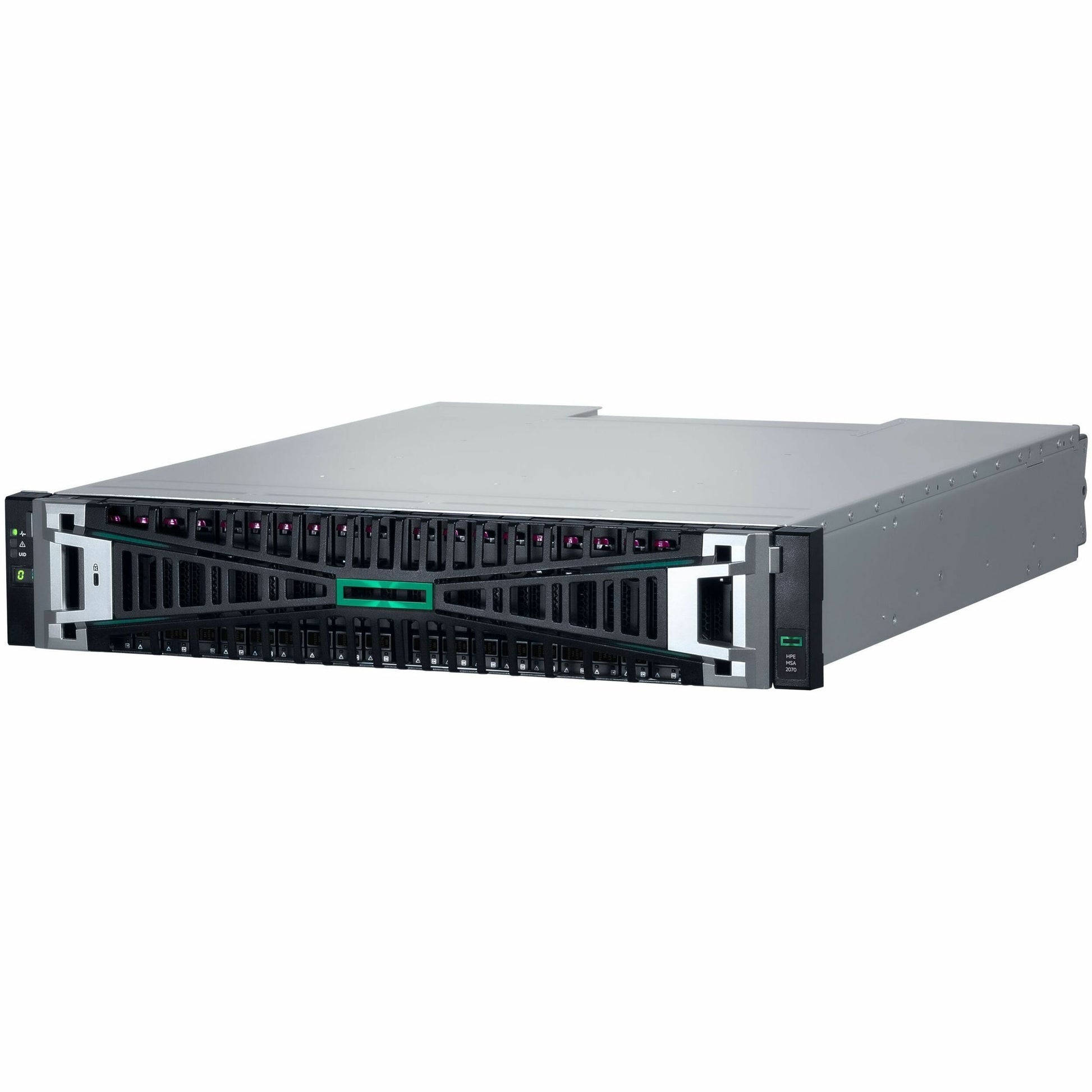

HPE MSA 2070 SAN Storage System - P76572-B25
Key Features
- Holds up to 24 HDDs to let you expand limitlessly
- Rack-mountable san storage system allows easy and convenient usage without any trouble
- RAID technology - data reliability, fault tolerance and improved overall performance
- SAN Storage System offers maximum storage efficiency and convenience
- Through RAID levels (0, 1, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
Product Overview
Looking for simple, high-performance, and low-cost shared storage that delivers application acceleration across all your server workloads? HPE MSA Storage has been the leading shared storage solution for HPE ProLiant servers for almost three decades. With over 600,000 storage arrays sold, MSA continues to deliver on its promise of simple, fast, and affordable storage for SMB customers. The HPE MSA Gen7 Storage Array sets a new standard for entry-level shared storage by providing an affordable path to high-performance storage without compromising on the simplicity and reliability that its customers depend on. The MSA Gen7 array portfolio delivers up to 2X more system performance while supporting user scalability beyond 7 PB per array with new high-capacity media options. New Gen7 innovations supporting online system and media firmware updates, as well as simpler and faster access to the HPE MSA Health Check tool, reduce the complexity and time required for routine system maintenance.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: P76572-B25
- Brand Name: HPE
- Product Model: MSA 2070
- Product Name: MSA 2070 SAN Storage System
- Product Type: SAN Storage System
Storage
- Number of Hard Drives Supported: 24
- Number of Solid State Drive Supported: 24
- Number of Solid State Drive Installed: 12
- Total Solid State Drive Capacity Installed: 23.04 TB
- Solid State Drive Configuration: 12 x 1.92TB
- Clustering Supported: Yes
I/O Expansions
- Number of Total Expansion Bays: 24
- Number of 2.5" Bays: 24
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP
Controllers
- Number of Controllers: 2
- Controller Type: 16Gb/s Fibre Channel
- RAID Supported: Yes
- RAID Levels: 0, 1, 5, 6, 10
Interfaces/Ports
- Fibre Channel: Yes
Management & Protocols
- Protocols:
- FCP
- SNMP
- SSH
- SMTP
- FTP
- SFTP
- HTTP
- HTTPS
- Telnet
Power Description
- Number of Power Supplies Installed: 2
- Plug/Connector Type: C14
- Maximum Power Supply Wattage: 580 W
- Redundant Power Supply: Yes
Physical Characteristics
- Height: 3.5"
- Width: 19"
- Depth: 26.4"
- Form Factor: Rack-mountable
- Rack Height: 2U
Miscellaneous
- Package Contents:
- MSA 2070 SAN Storage System
- 2 x 1.5m PDU Cords (IEC C14)
- 1 x Rack-mount Kit
- Energy Star: Yes
- Country of Origin: Mexico
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 6
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
MSA Storage Systems carry a 3-year limited warranty, parts-only exchange, normal business hours, with next business day response.
