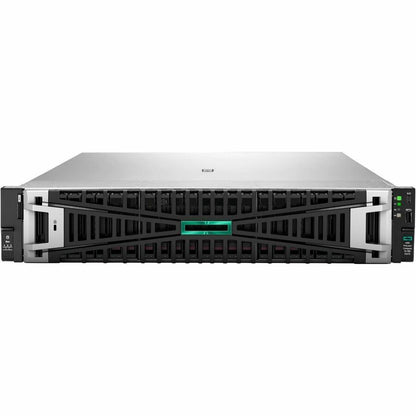

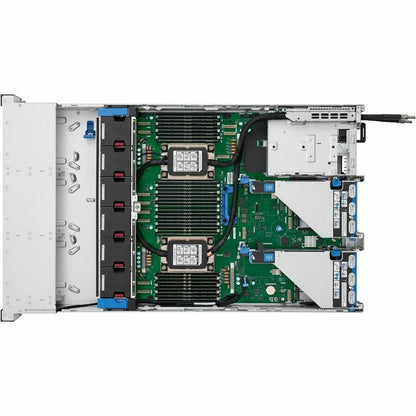

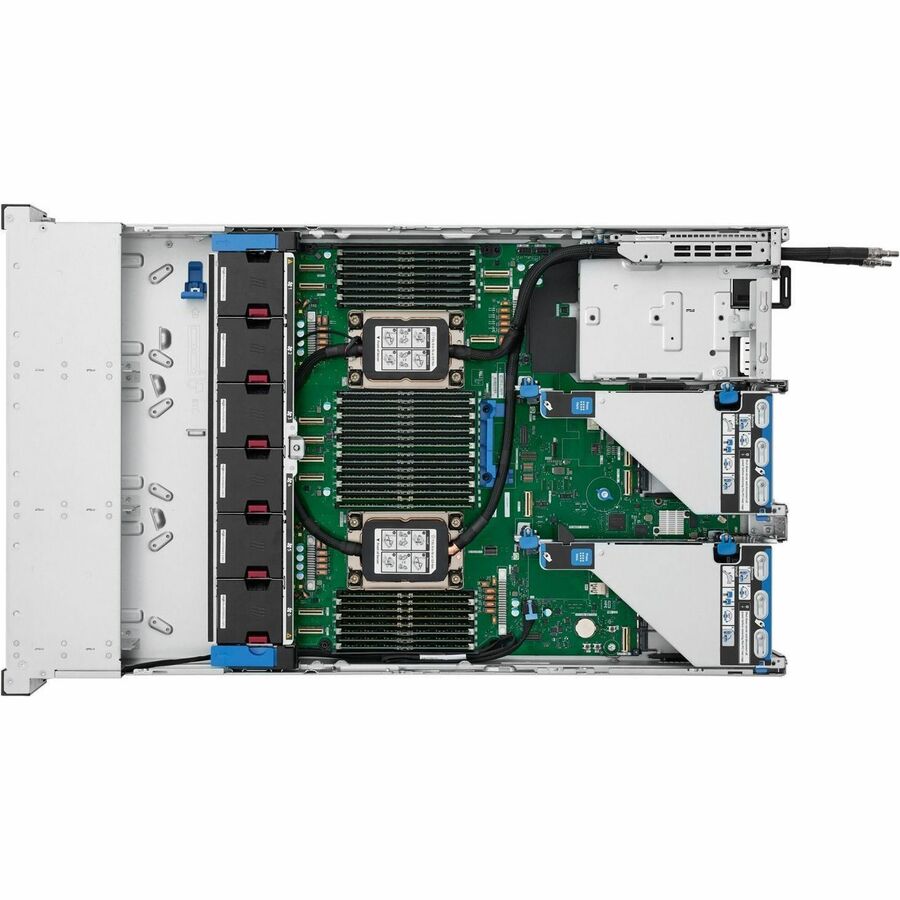

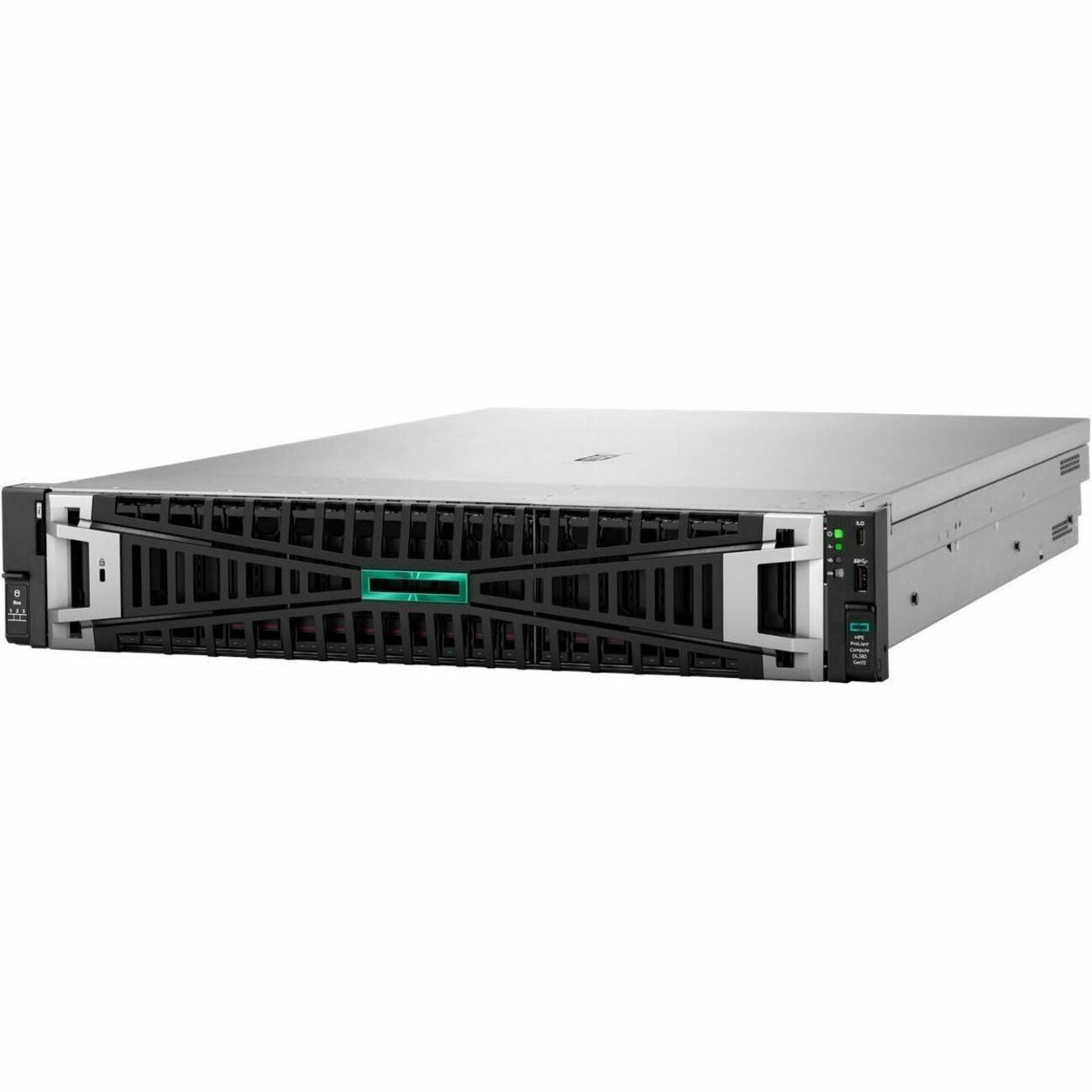

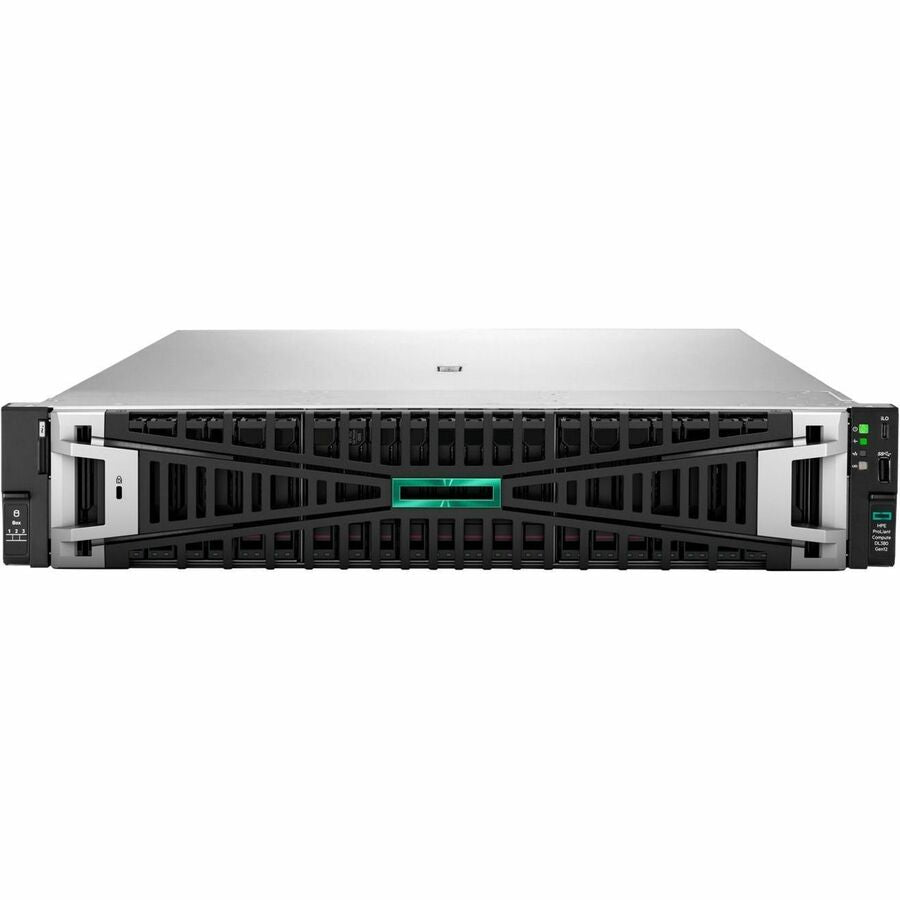

HPE ProLiant Compute DL380 Gen12 2U Rack Server - 1 x Intel Xeon 6515P 2.30 GHz - 128 GB RAM - 1.88 TB SSD - (2 x 960GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS, NVMe Controller - P90004-005
Key Features
- 1.88 TB SSD offers generous storage with faster speeds than HDDs, perfect for large files, digital content, and quick access
- 1000 W power supply unit (PSU) fulfills system power needs, ensuring smooth operation under heavy workloads
- 2 processors supported for faster processing and improved access to data, optimizing performance under heavy loads
- 4 Network (RJ-45) Ports allow Ethernet cables to transmit data and power simultaneously, reducing cabling complexity
- Gigabit Ethernet port offers ultra-fast network speeds, supporting modern workloads and reducing bottlenecks in data flow
- Intel Xeon 2.30 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
- Rack form factor delivers added reliability and structural integrity, supporting consistent performance in enterprise setups
- RAID enhances reliability and speed through RAID levels (0, 1, 5, 6, 10, 50, 60), balancing data protection with optimized performance
- With 128 GB memory, run as many programs as needed
Product Overview
The HPE ProLiant Compute DL380 Gen12 is a robust and versatile server designed to handle demanding workloads in today's dynamic IT environments.
Known for its exceptional performance, the DL380 is a 2U rack server that supports up to two Intel® Xeon® 6 processors, each with up to 144 cores per socket. It features a memory capacity of up to 8 TB, as well as high-speed PCIe Gen5 and flexible I/O for accelerator options such as GPUs. Its 2U form factor provides a balance of density and expandability, offering ample room for future growth with support for a wide range of storage options.
Overview | HPE ProLiant Compute DL380 Gen12
The HPE ProLiant Compute DL380 Gen12 is built with a focus on reliability, security, and ease of management. The HPE ProLiant Compute DL380 Gen12 comes equipped with advanced features such as silicon root of trust technology to safeguard your critical data against cyber threats. It offers a comprehensive suite of management tools, including HPE Compute Ops Management and HPE iLO 7, which provide remote management capabilities, enabling IT administrators to manage and troubleshoot the server from anywhere, thereby reducing downtime and operational costs. Whether you are a small business looking to scale, or a large enterprise managing complex workloads in the data center, the HPE ProLiant Compute DL380 Gen12 delivers unparalleled performance, flexibility, and resilience to support your business-critical applications and drive your IT initiatives forward.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: P90004-005
- Brand Name: HPE
- Product Line: ProLiant Compute
- Product Series: DL380 Gen12
- Product Name: ProLiant Compute DL380 G12 Server
- Product Type: Server
Processor
- Number of Processors Supported: 2
- Number of Processors Installed: 1
- Processor Manufacturer: Intel
- Processor Type: Xeon
- Processor Model: 6515P
- Processor Core: Hexadeca-core (16 Core)
- Processor Speed: 2.30 GHz
- Cache: 72 MB
Chipset
- Chipset Manufacturer: Intel
Memory
- Standard Memory: 128 GB
- Maximum Memory Supported: 8 TB
- Memory Technology: DDR5 SDRAM
- Total Number of Memory Slots: 32
- Number of Occupied Memory Slots: 4
- Error Checking: ECC
- Signal Processing: Registered (Buffered)
Storage
- Number of Solid State Drives: 2
- Total Solid State Drive Capacity: 1.88 TB
- Solid State Drive Interface: Serial ATA/600
Controllers
- Controller Type:
- Serial ATA/600
- 12Gb/s SAS
- NVMe
- Controller Model: MR408i-o Gen11
- RAID Supported: Yes
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
I/O Expansions
- Number of Total Expansion Bays: 8
- Number of Internal 2.5" Bays: 8
- Number of SFF Bays: 8
- Hot Swappable Bays: Yes
- Total Number of Expansion Slots: 8
- PCI Express Details: Up to 8 PCIe Gen5 slots (up to 6 x16 & up to 2 x8)
- Riser Card: Default primary riser slots 1, 2 & 3 (x8 x16 x8 bus width)
Display & Graphics
- Graphics Memory Capacity: 16 MB
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Total Number of USB Ports: 5
- Number of USB 3.0 Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 4
- VGA: Yes
- Remote Management: Yes
- Remote Management Controller: HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 2
- Maximum Power Supply Wattage: 1000 W
- Redundant Power Supply: Yes
- Hot Swappable Power Supply: Yes
Miscellaneous
- Package Contents:
- ProLiant Compute DL380 G12 Server
- Easy Install Rail 3 Kit
- Security Features:
- Secure Boot and Secure Start enable for enhanced security
- Embedded UEFI Shell
- Operating system specific functionality
- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- Support for > 2.2 TB (using GPT) boot drives
- PXE boot support for IPv6 networks
- USB 3.0 Stack
- Workload Profiles for simple performance optimization
- TPM (Trusted Platform Module)
- Energy Star: Yes
- Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
- Form Factor: Rack
- Rack Height: 2U
- Height: 3.4"
- Width: 17.6"
- Depth: 28.6"
- Weight (Approximate): 72.75 lb
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response.
