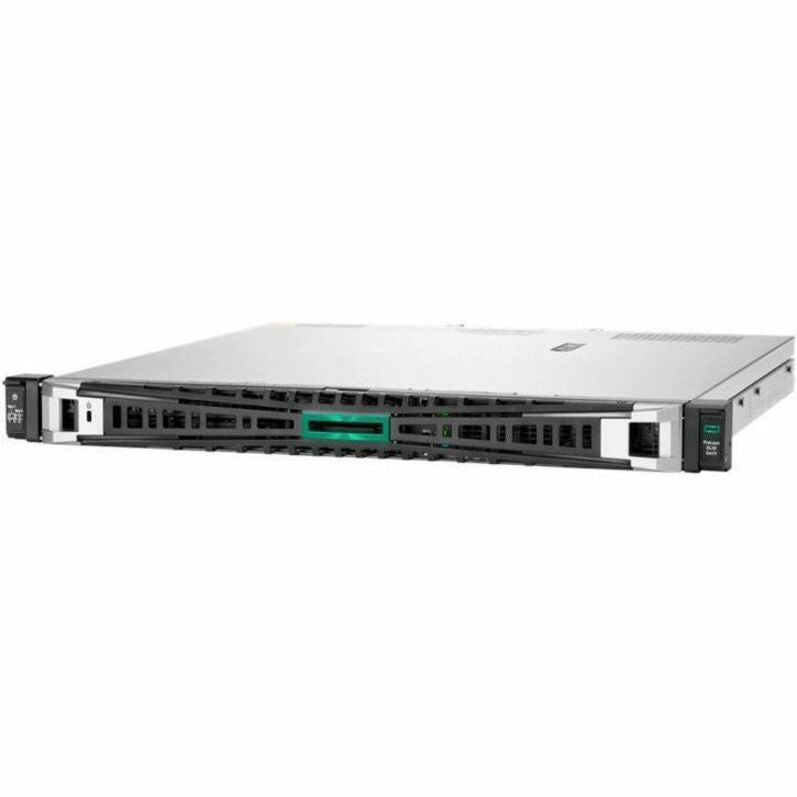

HPE ProLiant DL20 G11 1U Rack Server - 1 x Intel Xeon 6325P 3.50 GHz - 16 GB RAM - 2 TB HDD - (2 x 1TB) HDD Configuration - Serial ATA/600 Controller - P83279-005
Key Features
- 1 processors supported for optimal performance and maximum reliability
- 10 USB ports allows quick transmission of data at a higher rate for your convenience
- 2 TB HDD provides space to accommodate your critical data
- 3.50 GHz processor speed ensures optimal performance with fast and dependable results
- 4 Network (RJ-45) Ports conveniently allows Ethernet cables to transmit data and power instantaneously using a single network cable
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.50 GHz processor
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- Quad-core (4 Core) processor core helps server process data in a dependable and timely manner with maximum productivity
- With 16 GB memory, improve system performance to execute complex applications
- With DDR5 SDRAM memory technology get efficient data transfer rate and enhanced computer's performance
Product Overview
HPE ProLiant DL20 Gen11
The dense and compact HPE ProLiant DL20 Gen11 server powered by Intel® Xeon® E and Pentium® Processors provides a unique blend of enterprise class capabilities & value. It offers mobility, easy deployment and outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 6.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: P83279-005
- Brand Name: HPE
- Product Line: ProLiant
- Product Series: DL20 G11
- Product Name: ProLiant DL20 G11 Server
- Product Type: Server
Processor
- Number of Processors Supported: 1
- Number of Processors Installed: 1
- Processor Manufacturer: Intel
- Processor Type: Xeon
- Processor Model: 6325P
- Processor Core: Quad-core (4 Core)
- Processor Speed: 3.50 GHz
Chipset
- Chipset Manufacturer: Intel
- Chipset Model: C262
Memory
- Standard Memory: 16 GB
- Maximum Memory Supported: 128 GB
- Memory Technology: DDR5 SDRAM
- Total Number of Memory Slots: 4
- Number of Occupied Memory Slots: 1
- Error Checking: ECC
- Signal Processing: Unregistered (Unbuffered)
Storage
- Number of Hard Drives: 2
- Total Hard Drive Capacity: 2 TB
- Hard Drive Interface: Serial ATA/600
- Hard Drive RPM: 7200
Controllers
- Controller Type: Serial ATA/600
- Controller Model: Intel VROC
I/O Expansions
- Number of Total Expansion Bays: 3
- Number of External 5.25" Bays: 1
- Number of 3.5" Bays: 2
- Number of LFF Bays: 2
- Hot Swappable Bays: Yes
- Total Number of Expansion Slots: 3
- PCI Express Details: 1x PCIe 5.0 CEM slot, 1 Internal OCP Storage Controller slot, 1 External OCP 3.0 Network Controller slot
Display & Graphics
- Graphics Controller Manufacturer: Matrox
- Graphics Controller Model: G200
- Graphics Memory Capacity: 16 MB
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Total Number of USB Ports: 10
- Number of USB 2.0 Ports: 1
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 4
- VGA: Yes
- Remote Management: Yes
- Remote Management Controller: iLO Management (standard), Intelligent Provisioning (standard) iLO Advanced (optional)
- DisplayPort: Yes
Operating System
- Operating System Supported:
- Windows Server
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
- Ubuntu
Power Description
- Input Voltage:
- 120 V AC
- 130 V AC
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 1
- Plug/Connector Type: C13/C14
- Maximum Power Supply Wattage: 290 W
- Hot Swappable Power Supply: Yes
Miscellaneous
- Package Contents:
- ProLiant DL20 G11 Server
- 6-foot IEC C-13/C-14 jumper cord
- Security Features:
- UEFI Secure Boot and Secure Start support.
- Immutable Silicon Root of Trust
- FIPS 140-2 validation
- Common Criteria certification
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- iLO Security Modes
- Granular control over iLO interfaces
- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication.
- Tamper-free updates - components digitally signed and verified.
- Secure Recovery - recover critical firmware to known good state on detection of compromised FW.
- Ability to rollback firmware
- Secure erase of NAND
- TPM (Trusted Platform Module) 2.0
- Bezel Locking Kit
- Chassis Intrusion detection option
- Energy Star: Yes
- Energy Efficiency Certification: ENERGY STAR 4.0
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
- Form Factor: Rack
- Rack Height: 1U
- Height: 1.7"
- Width: 17.1"
- Depth: 15"
- Weight (Approximate): 26.46 lb
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response
