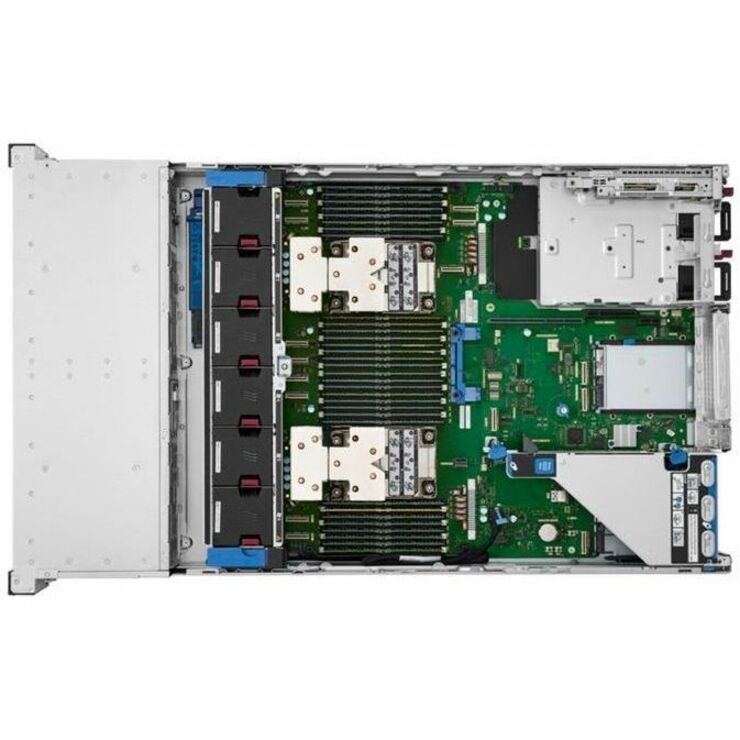

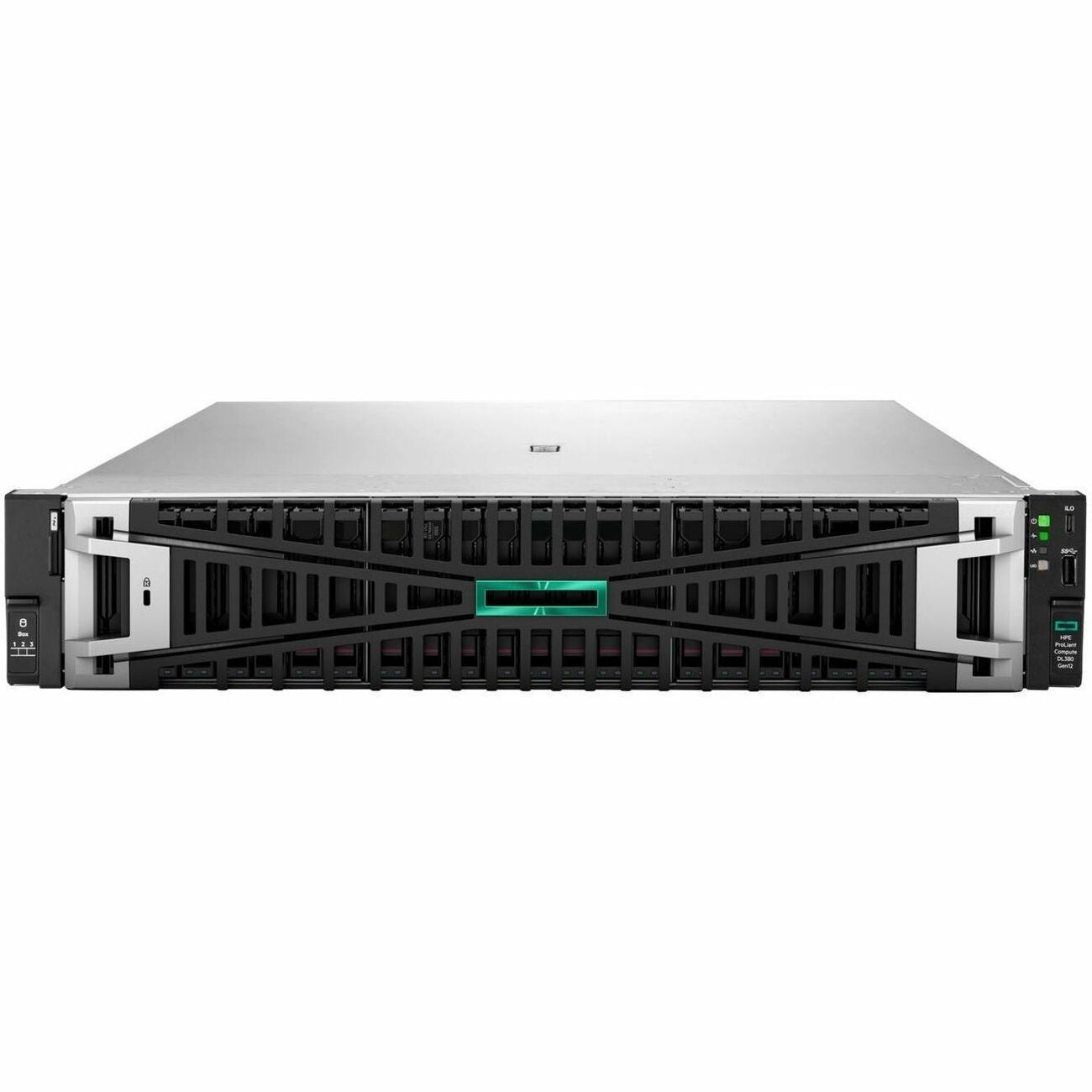

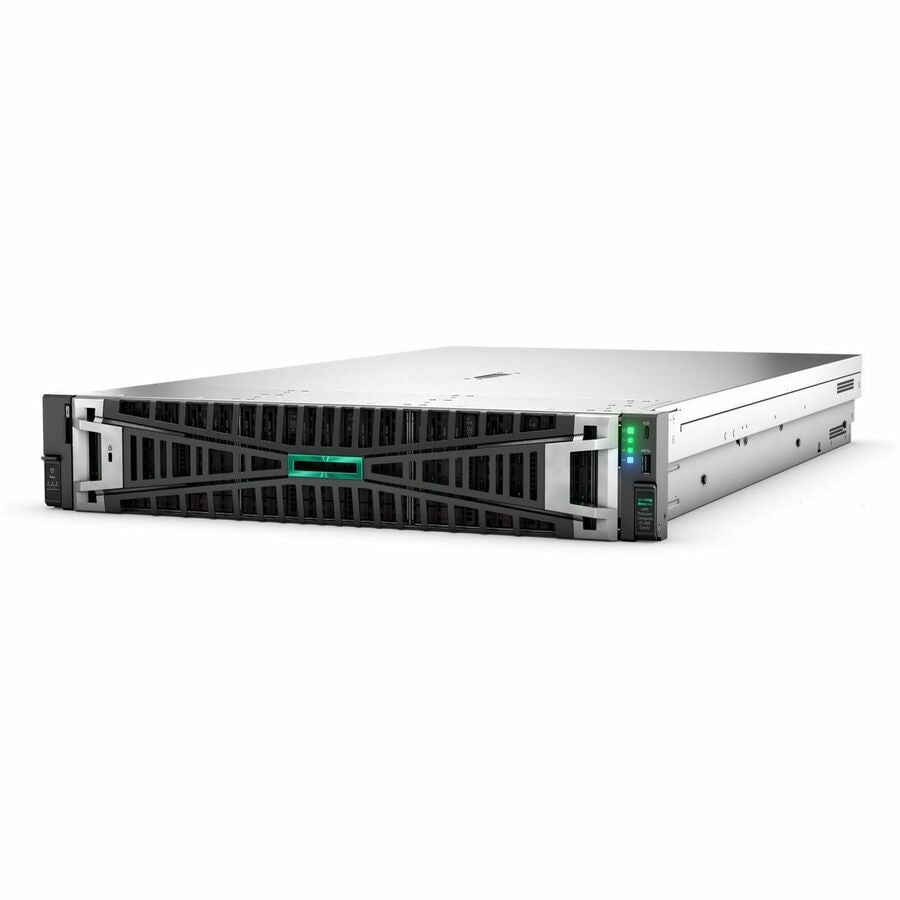

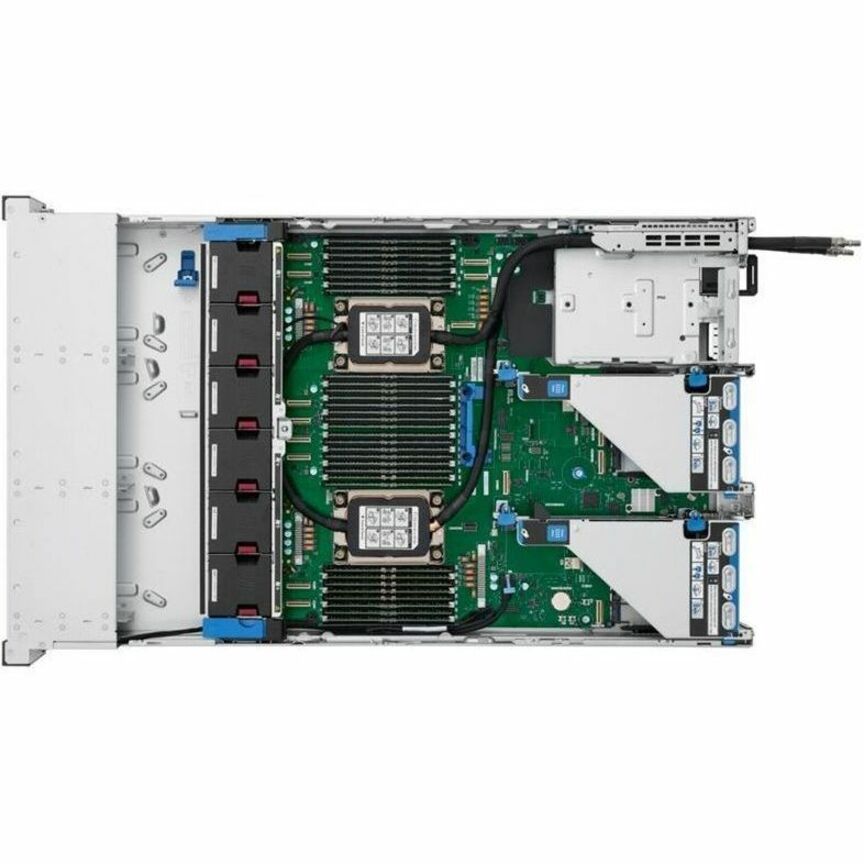

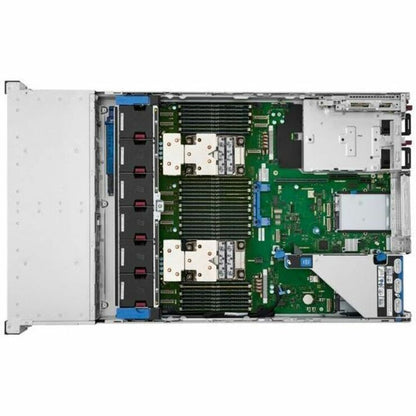

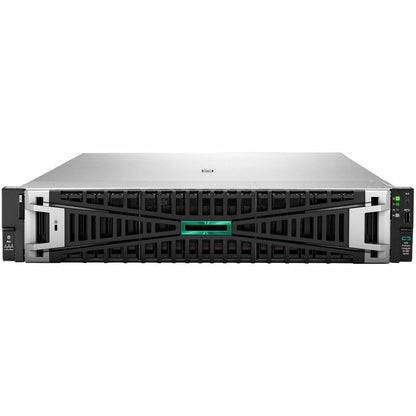

HPE ProLiant DL380 Gen12 2U Rack Server - 1 x Intel Xeon 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS, NVMe Controller - P89243-005
Key Features
- 2 processors supported for enhanced system performance, ensuring scalability and reliability for enterprise workloads
- 2 x 800 W power supply unit (PSU) meets system power demands for stable and uninterrupted operations
- 4 Network (RJ-45) Ports eliminate the need for additional wiring, streamlining deployment and reducing installation costs
- 960 GB SSD provides room for essential documents, favorite songs, movies, and pictures, ensuring smooth entertainment and work
- Gigabit Ethernet enables high-capacity data transfer, improving overall performance for virtualization and data-intensive applications
- Intel Xeon 2.20 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
- Rack form factor offers easy deployment and streamlined usage, enhancing operational efficiency in server environments
- RAID ensures data reliability, fault tolerance, and improved performance for critical workloads in enterprise environments
- The DDR5 SDRAM memory technology ensures smooth data
Product Overview
The HPE ProLiant Compute DL380 Gen12 is built with a focus on reliability, security, and ease of management. The HPE ProLiant Compute DL380 Gen12 comes equipped with advanced features such as silicon root of trust technology to safeguard your critical data against cyber threats. It offers a comprehensive suite of management tools, including HPE Compute Ops Management and HPE iLO 7, which provide remote management capabilities, enabling IT administrators to manage and troubleshoot the server from anywhere, thereby reducing downtime and operational costs. Whether you are a small business looking to scale, or a large enterprise managing complex workloads in the data center, the HPE ProLiant Compute DL380 Gen12 delivers unparalleled performance, flexibility, and resilience to support your business-critical applications and drive your IT initiatives forward.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: P89243-005
- Brand Name: HPE
- Product Line: ProLiant
- Product Series: DL380 Gen12
- Product Name: ProLiant DL380 G12 Server
- Product Type: Server
Processor
- Number of Processors Supported: 2
- Number of Processors Installed: 1
- Processor Manufacturer: Intel
- Processor Type: Xeon
- Processor Model: 6505P
- Processor Core: Dodeca-core (12 Core)
- Processor Speed: 2.20 GHz
- Cache: 48 MB
Chipset
- Chipset Manufacturer: Intel
Memory
- Standard Memory: 64 GB
- Maximum Memory Supported: 8 TB
- Memory Technology: DDR5 SDRAM
- Total Number of Memory Slots: 32
- Number of Occupied Memory Slots: 2
- Error Checking: ECC
- Signal Processing: Registered (Buffered)
Storage
- Number of Solid State Drives: 2
- Total Solid State Drive Capacity: 960 GB
- Solid State Drive Interface: Serial ATA/600
Controllers
- Controller Type:
- Serial ATA/600
- 12Gb/s SAS
- NVMe
- Controller Model: MR408i-o
- RAID Supported: Yes
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
I/O Expansions
- Number of Total Expansion Bays: 8
- Number of Internal 2.5" Bays: 8
- Number of SFF Bays: 8
- Hot Swappable Bays: Yes
- Total Number of Expansion Slots: 3
- PCI Express Details: 3 x PCIe Gen5 x8,x16,x8
Display & Graphics
- Graphics Memory Capacity: 16 MB
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Total Number of USB Ports: 5
- Number of USB 3.0 Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 4
- VGA: Yes
- Remote Management: Yes
- Remote Management Controller: HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available)
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 2
- Maximum Power Supply Wattage: 800 W
- Redundant Power Supply: Yes
- Hot Swappable Power Supply: Yes
Miscellaneous
- Package Contents:
- ProLiant DL380 G12 Server
- ProLiant DL3XX Gen11 Easy Install Rail 3 Kit
- 1x Bezel Lock Kit
- 1x ProLiant DL3XX Gen11 Intrusion Cable Kit
- 1x Gen11 2U Bezel Kit
- Security Features:
- Secure Boot and Secure Start enable for enhanced security
- TPM 2.0 Support
- Platform Trust Technology (PTT) can be enabled.
- HTTP/HTTPs Boot support as a PXE alternative
- Energy Star: Yes
- Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
- Form Factor: Rack
- Rack Height: 2U
- Height: 3.4"
- Width: 17.6"
- Depth: 28.6"
- Weight (Approximate): 72.75 lb
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response.
