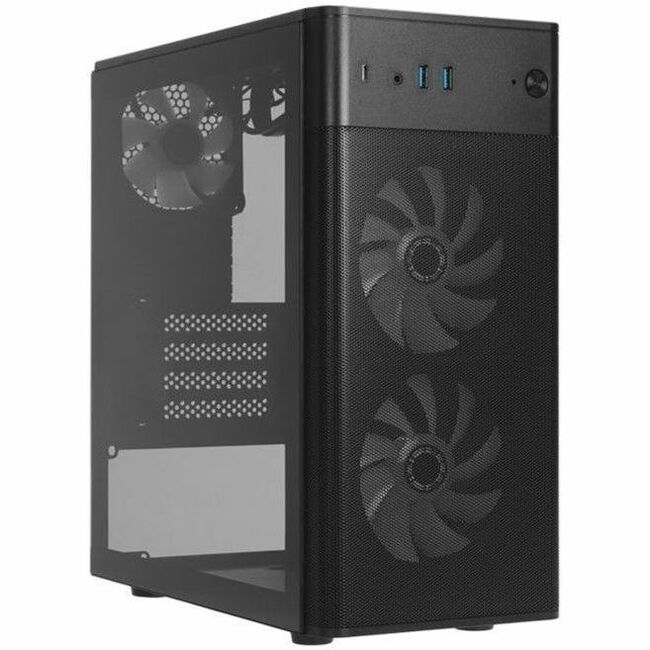

In Win CT Series 17.1L Small Form Factor Micro-ATX Mini Tower Chassis - CT725.CQ450C
Key Features
- Small tower design to offer handy configuration and quick upgrades. Saves time and maintenance cost.
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Product Overview
High Compatibility
The CT Mod Edition (CTM) supports both air and liquid cooling solutions. Offering versatile cooling options to effectively guide airflow and dissipate heat, making it ideal for multipurpose system builds.
GPU Support
Featuring four full-height PCI-E slots, it supports GPUs up to 260mm with front fans or 240mm with an AIO cooler, offering diverse system configurations.
Dual Thermal Solutions

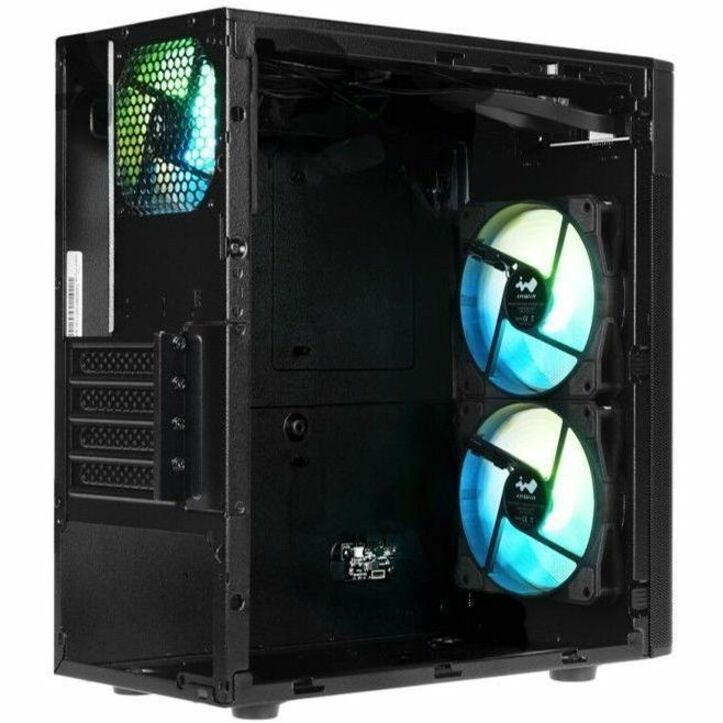

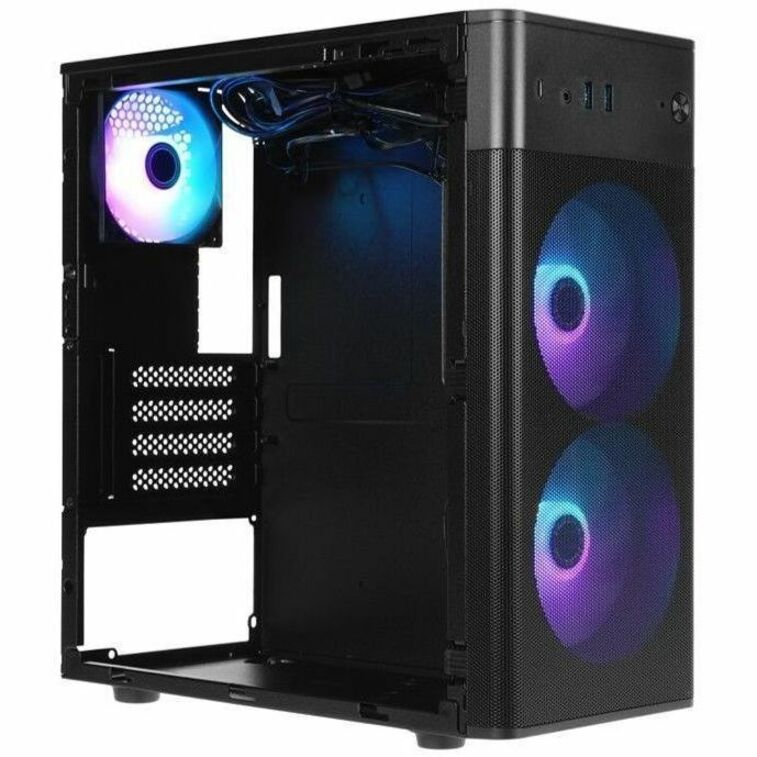

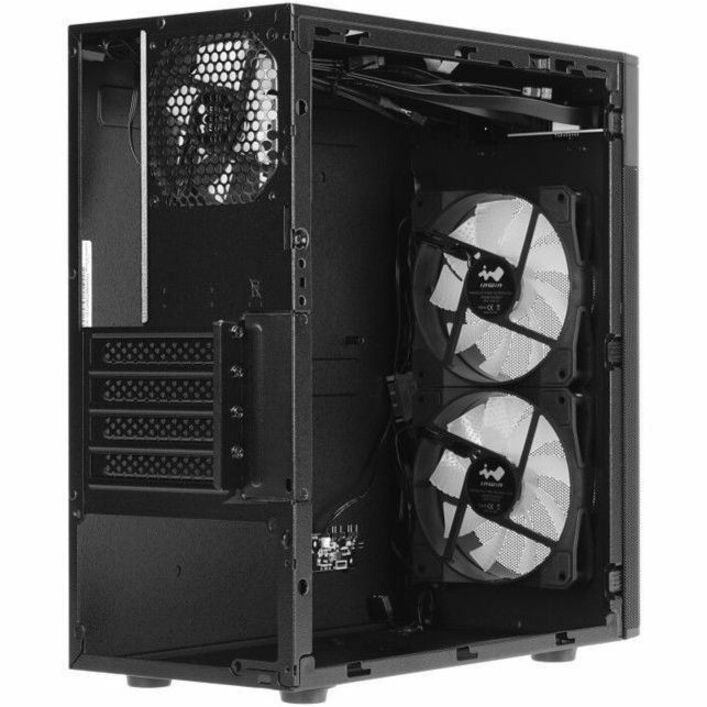

Features two 120 mm front fans and one 92 mm rear fan, with support for up to a 240mm AIO cooler, enhancing cooling performance with either air or liquid cooling solutions.
providing higher flexibility and scalability in system configuration.
Upgraded Airflow Optimization
Integrating the mesh panel with air ducts guides airflow, greatly optimizes airflow and achieves excellent thermal dissipation.

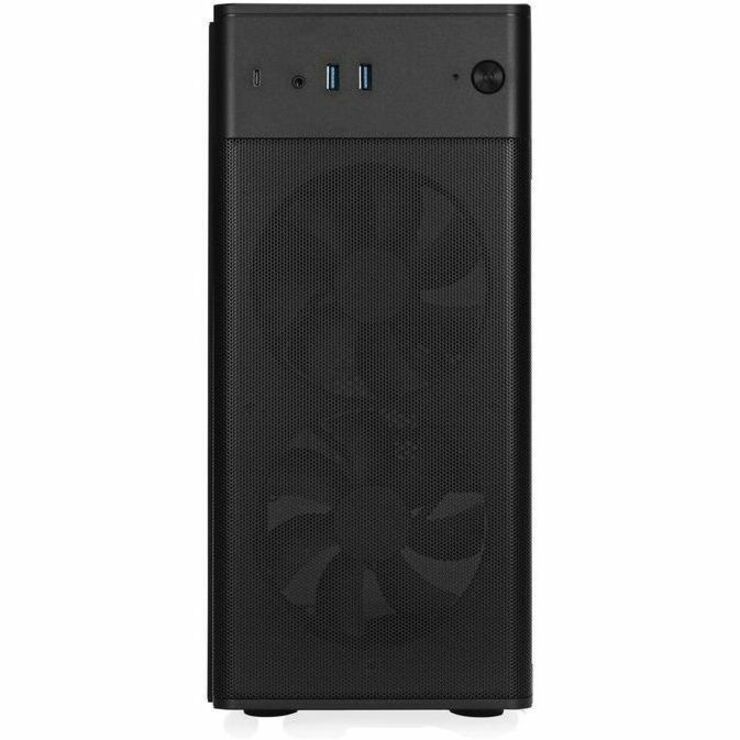

Easy Access Front I/O Optional CTM-A Edition

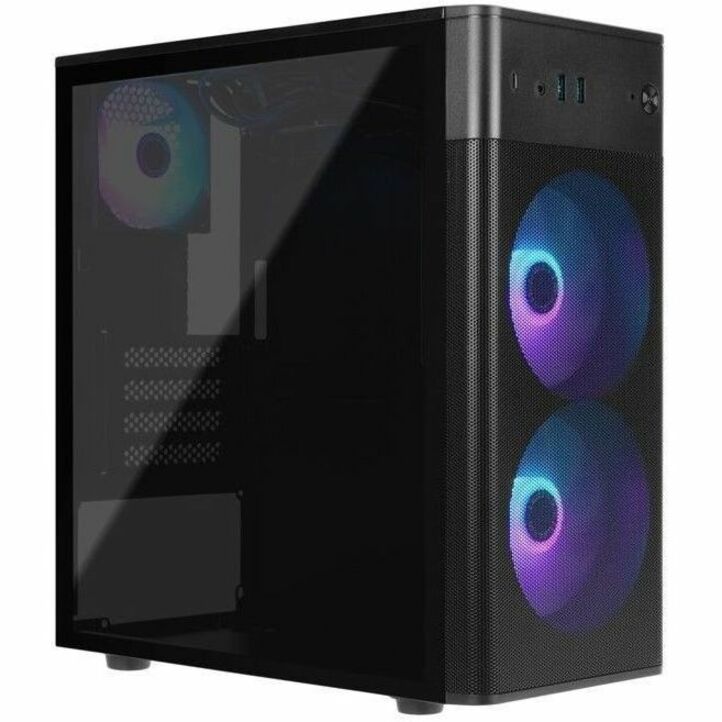

The CTM-A (ARGB) Edition includes ARGB fans that can be easily controlled via an ARGB controller/button. Its blackened interior maintains a cleaner appearance and conceals cables.
General Information
- Manufacturer: In Win Development, Inc
- Manufacturer Part Number: CT725.CQ450C
- Brand Name: In Win
- Product Series: CT
- Product Model: CT725
- Product Name: CT Series 17.1L Small Form Factor Micro-ATX Mini Tower Chassis
- Package Type: Retail
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- Micro ATX
- Mini ITX
- Number of Fans Supported: 3
- Fan Size Supported:
- 3.62"
- 4.72"
- Features:
- Compact
- ARGB Fan
- Key Lock
- Padlock Loop
- Reset Button
- ARGB Control Button
- Dust Filter
- Window Panel: Yes

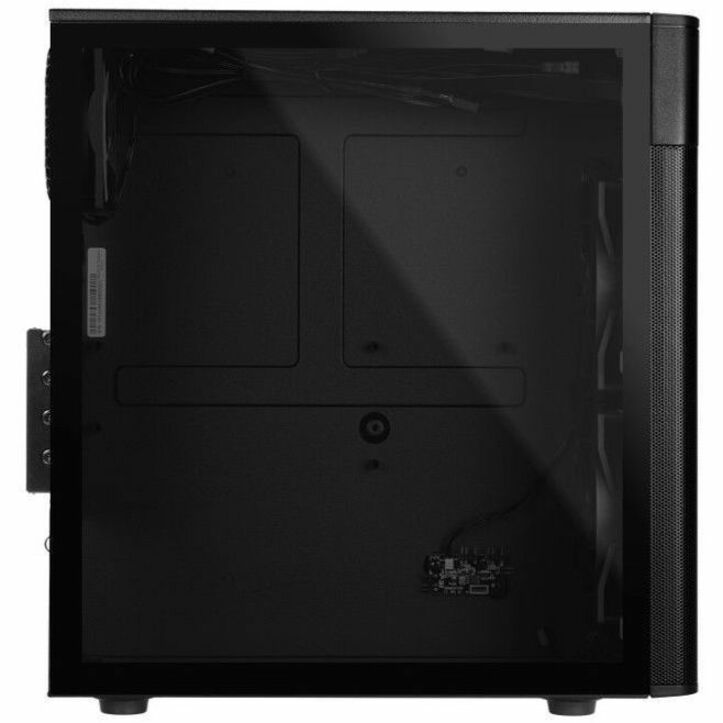

- Window Panel Location: Side Panel
Bays
- Number of Internal 2.5" Bays: 1
- Number of Total Expansion Bays: 1
I/O Expansions

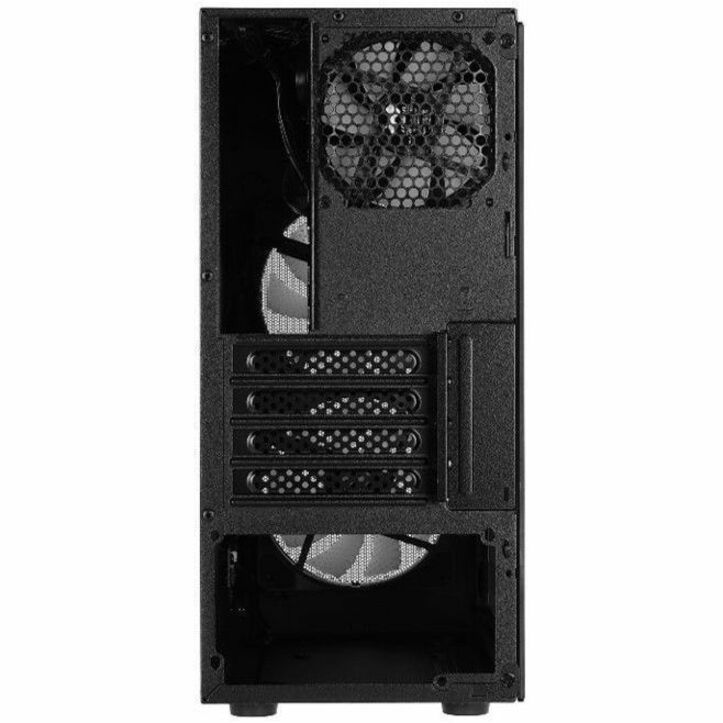

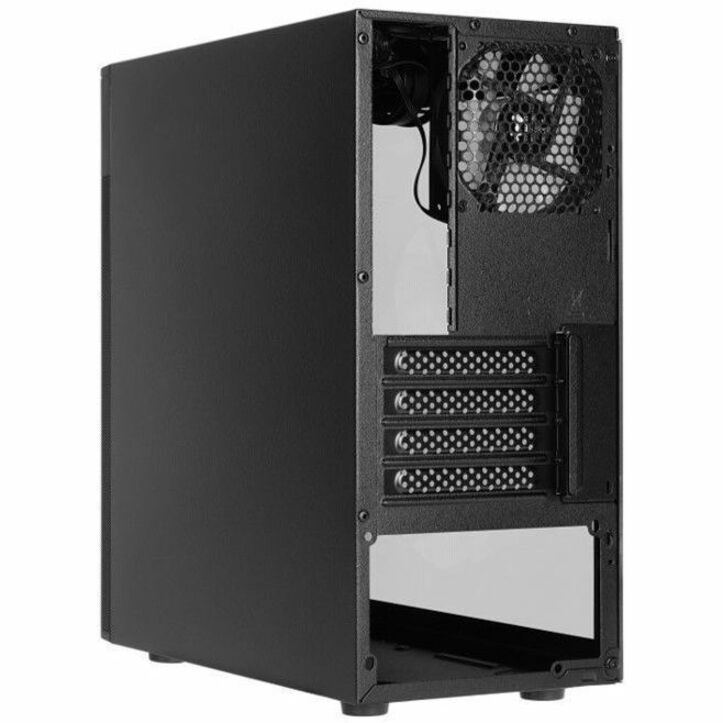

- Total Number of Expansion Slots: 4
Interfaces/Ports
- Total Number of USB Ports: 3
- USB Port Details:
- 2 x USB 3.0
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
- Microphone: Yes
- Headphone/Microphone Combo Port: Yes
Power Description
- Power Supply Installed: Yes
- Power Supply Wattage: 450 W
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Tempered Glass
- Mesh
- Cooler Type: Fan/Liquid Cooler
- Form Factor: Small Tower
- Maximum CPU Cooler Height: 5.31"
- Maximum PSU Length: 5.51"
- Maximum GPU Length: 10.24"
- Height: 14.2"
- Width: 6.3"
- Depth: 13.6"
Miscellaneous
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
