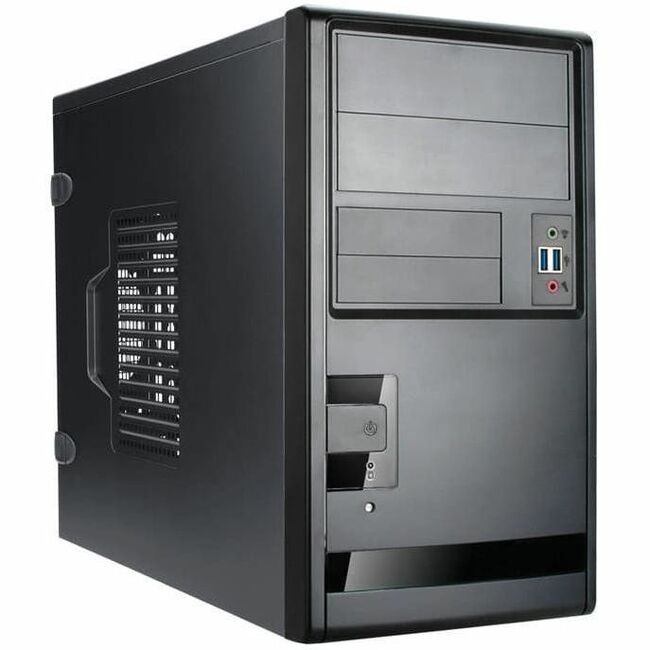

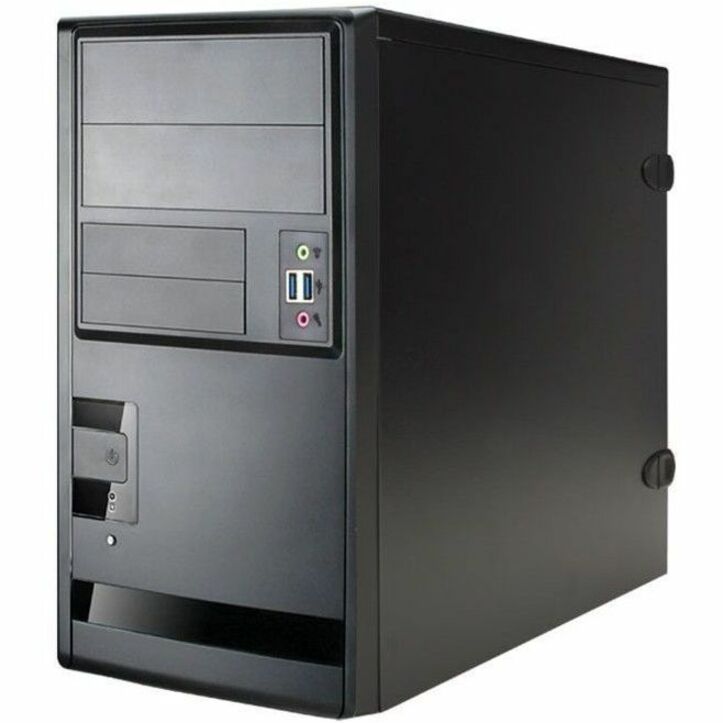

In Win EM Series Micro-ATX Mini Tower Chassis - EM013.CQ450TS3

Key Features

• Handy configuration mini-tower offers quick upgrades and saves time and maintenance cost
• Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box

Product Overview

TAC 2.0 Thermal Solution

Qualified for TAC 2.0, a mass ventilation hole side panel design strengthens thermal efficiency and cools down the entire system.

Optional Detachable HDD Cage

for better install and service.

Extra Vent at Rear Panel

Optional 90mm or 120mm auxiliary cooling fan can be installed at rear panel for better system cooling. (Optional fan is not included)

Optional Tool-Free Side Panels, ODD Bays and FDD Bays

for easy removal and installation

Stamped Motherboard Support

Easy MB installation. No MB standoff required.

Tool-Free

• Optional Tool-Free 5.25" Drive Bays
• Optional Tool-Free 3.5" Drive Bays
• Optional Tool-Free Side Panels

Internal Drive Bays

• Internal 3.5" Drive Bays x 1
• Internal 2.5" x 1
• Optional Detachable HDD Cage for Extra 3.5" x 2 or 3.5" x 1 + 2.5" x 1

Excellent Thermal Solution

• 3.5" to 2.5" HDD/SSD Bracket Supports x 2
• Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)
• Key Lock Side Panel The side panel is a theft deterrent key lock set for safeguarding your chassis equipment from unauthorized access
