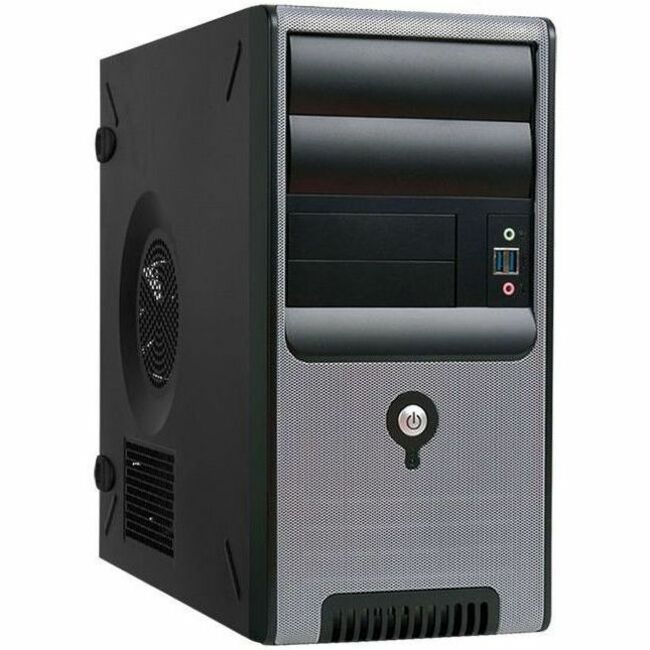

In Win Z Series Micro-ATX Mini Tower Chassis - Z583.CQ450TB3
Key Features
- Best Performed SECC Japanese Steel Metal
- Excellent Thermal Solution
- Tool-Free Installation and Easy Maintenance
Product Overview
Tool-Free Installation and Easy Maintenance
Tool-free front panel, drive bays and I/O slots.

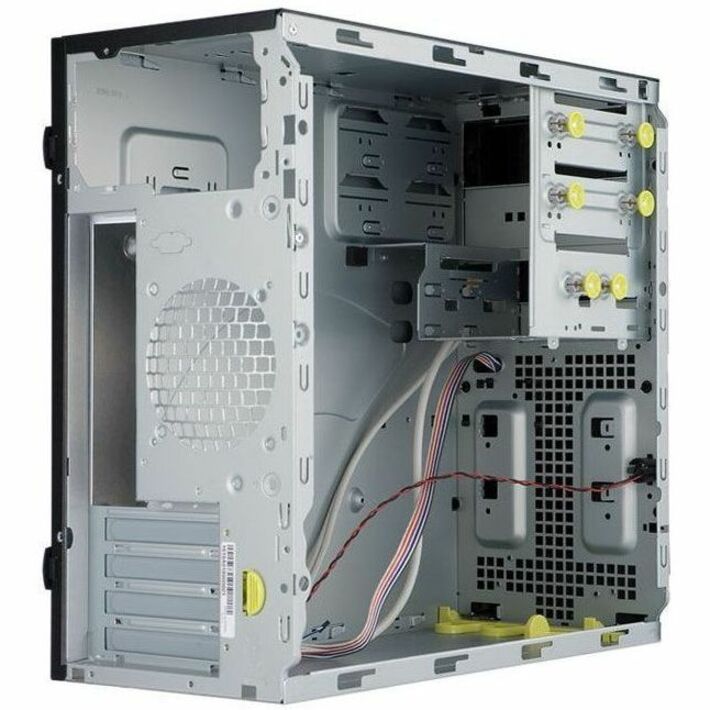

Configured 6 Drive Bays
5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.
Side Panel Clips
The patented tool free installation side panel clips.
Folded Edge
No sharp edges or debris for safe installation
Stamped Motherboard Support

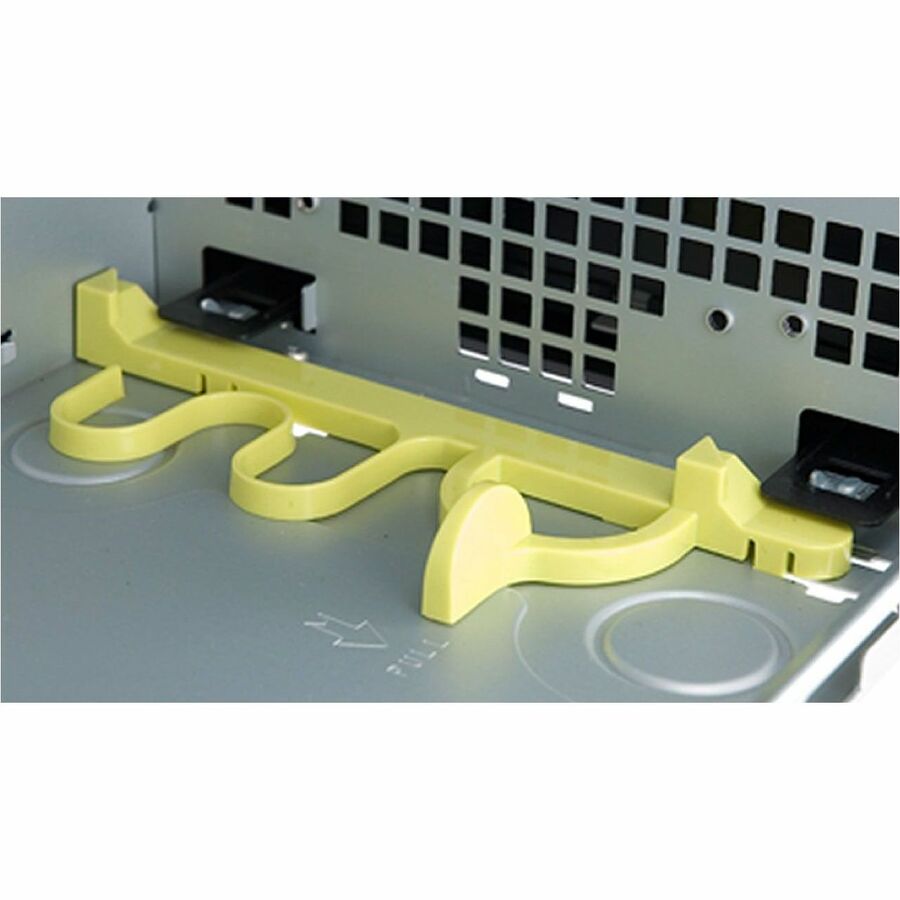

Easy MB installation. No MB standoff required.
Tool-Free
- Screwless Front Panel
- Screwless Side Panels
- Screwless 5.25" Drive Bays
- Screwless 3.5" Drive Bays

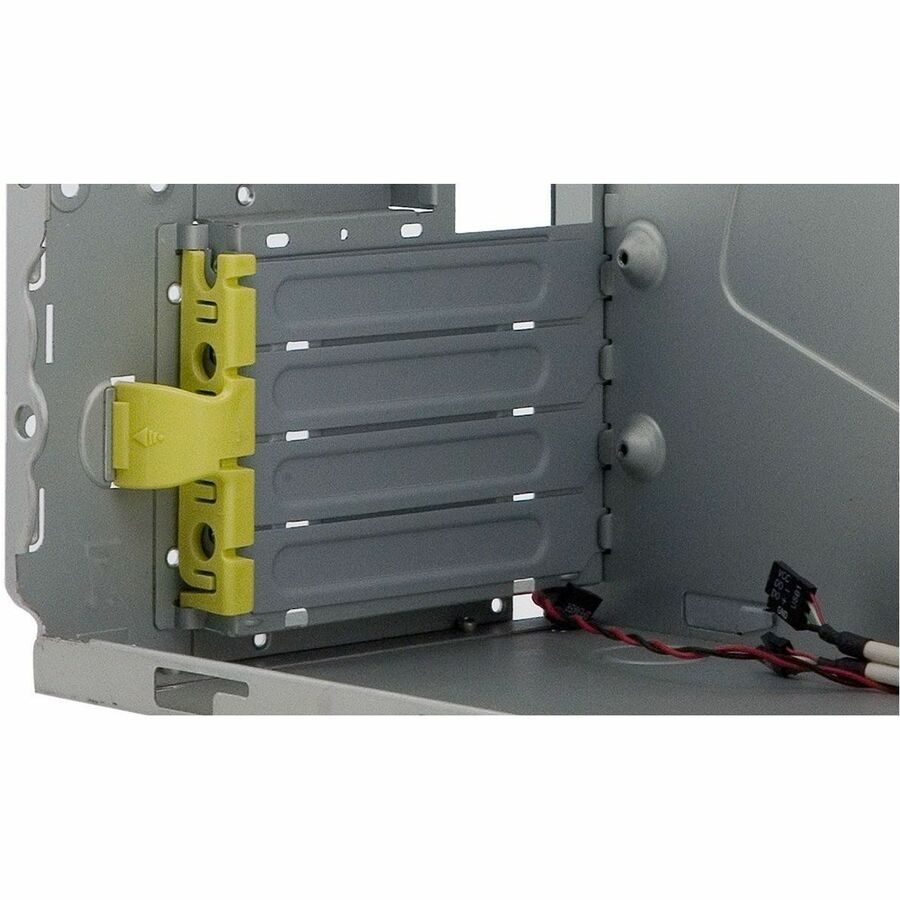

- Screwless PCI-E Expansion Slots
3.5"/2.5" Drive Bays
- 3.5" Drive Bays x 3
- Internal 2.5" x 1
Excellent Thermal Solution
- Intel Certified TAC 2.0

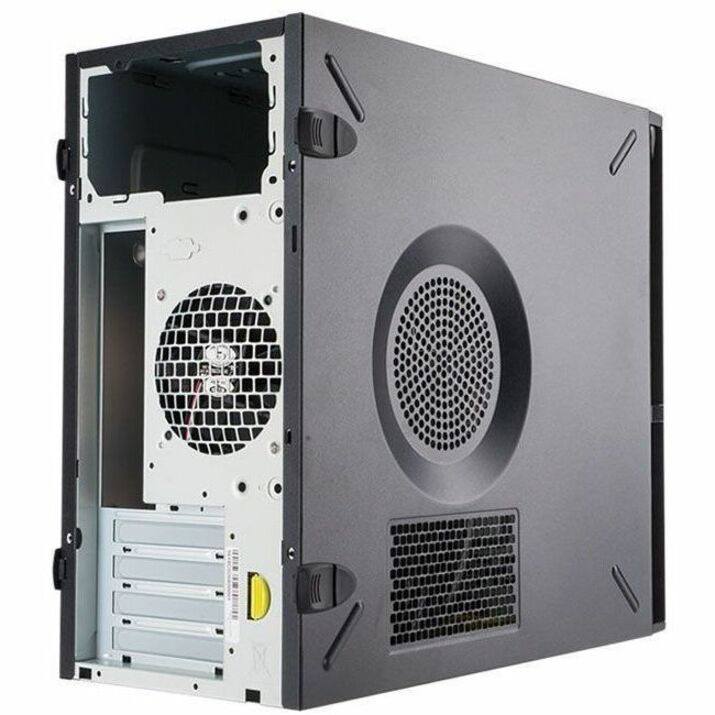

- Qualified for TAC 2.0,a mass ventilation hole side panel design that strengthens thermal efficiency and cools down the entire system.

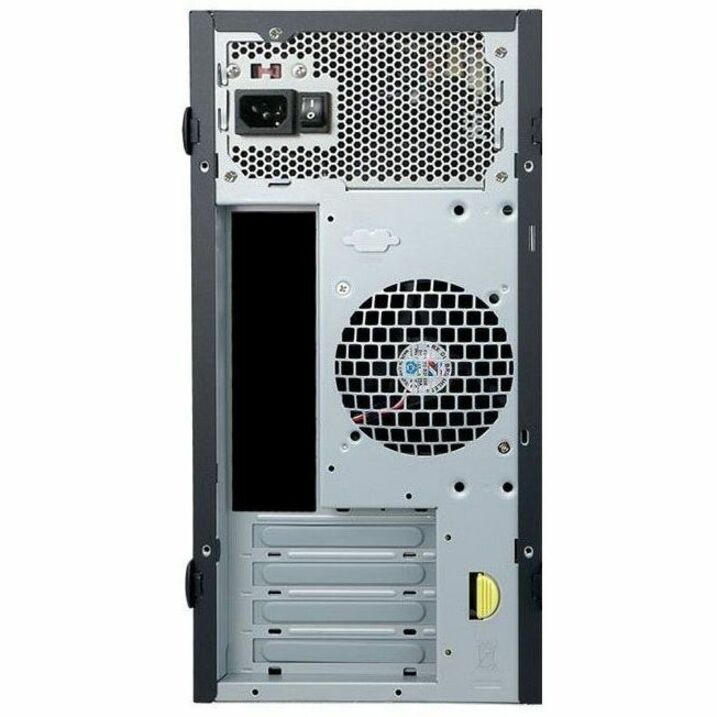

- 80mm or 90mm Rear Fan (Optional)

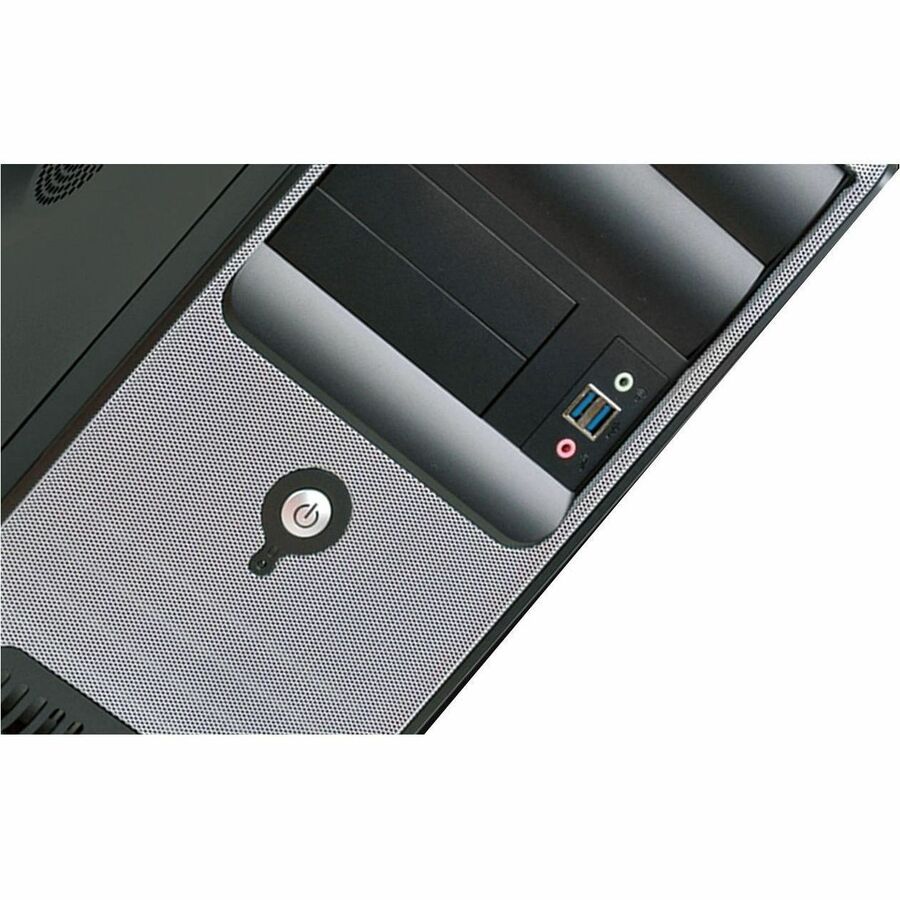

Front Ports
- USB 3.0 x 2
- HD Audio
Optional
- eSATA
- Chassis Intrusion Switch
- 3.5" to 2.5" HDD / SSD Bracket Supports 2.5"x 2
- Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)
General Information
- Manufacturer: In Win Development, Inc
- Manufacturer Part Number: Z583.CQ450TB3
- Brand Name: In Win
- Product Series: Z
- Product Model: Z583
- Product Name: Z Series Micro-ATX Mini Tower Chassis
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- Micro ATX
- Mini ITX
- Number of Fans Supported: 1
- Fan Size Supported: 2.36"
- Features:
- Padlock Cover
- Kensington Lock
Bays
- Number of External 5.25" Bays: 2
- Number of External 3.5" Bays: 2
- Number of Internal 3.5" Bays: 1
- Number of Internal 2.5" Bays: 1
I/O Expansions
- Total Number of Expansion Slots: 4
Interfaces/Ports
- Total Number of USB Ports: 2
- USB Port Details: 2 x USB 3.0
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
Physical Characteristics
- Product Material:
- SECC
- Steel
- Metal
- Cooler Type: Fan Cooler
- Form Factor: Mini-tower
- Maximum CPU Cooler Height: 5.87"
- Maximum GPU Length: 13.23"
- Height: 14.2"
- Width: 7.4"
- Depth: 16.2"
Miscellaneous
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
