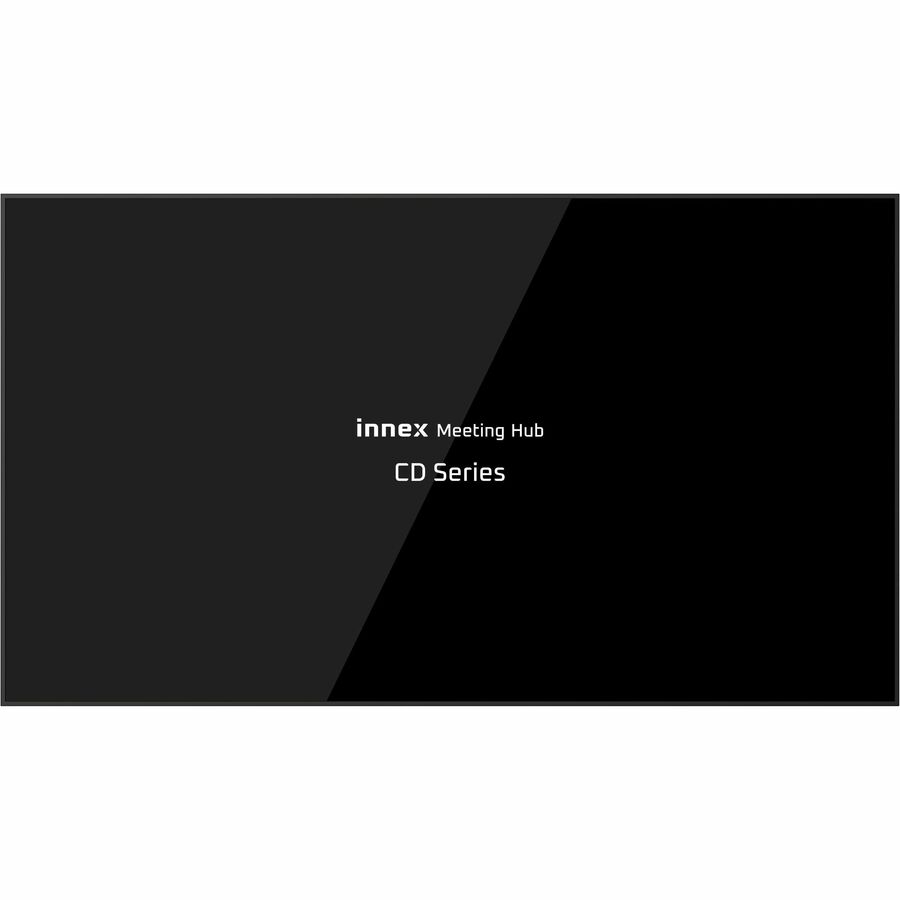

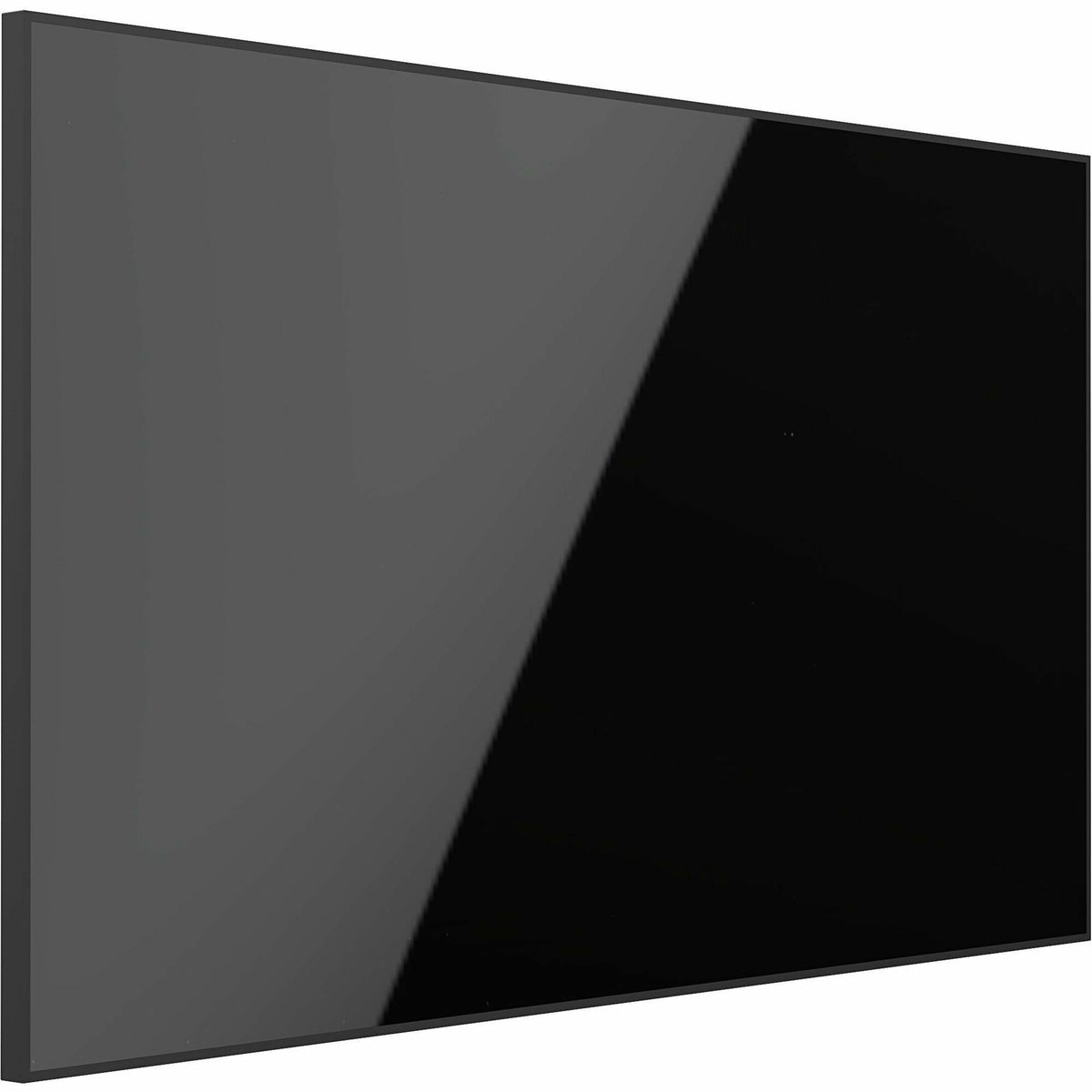

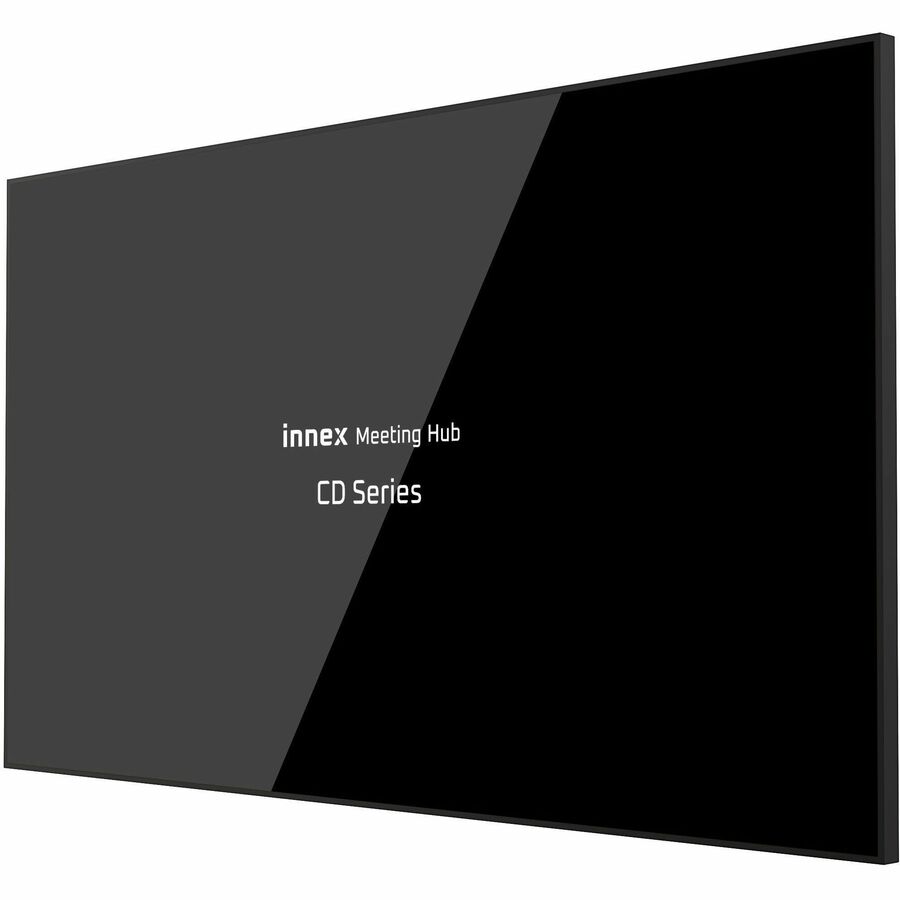

Innex CD65 65in 4K UHD Commercial Display Digital Signage 500 Nits Brightness 24/7 Operation - CD65-DGTLSGN
Key Features
- 24/7 Durability: Engineered for continuous 24/7 operation to provide dependable digital display performance in high-demand use cases.
- Audio & Connectivity: Equipped with 10Wx2 speakers, one HDMI port, USB 3.0, an RJ45 port for Ethernet, and an included dual-band Wi-Fi module.
- Content Management Software: Includes Digital Signage Software that allows users to quickly set up a secure cloud server. Authorized users can access displays remotely to push efficient and safe content updates from anywhere.
- Flexible Orientation: Supports both portrait and landscape configurations, easily switching between orientations to fit specific environmental needs.
- High-Quality Visuals: Delivers 4K UHD resolution with a 60Hz refresh rate and a 178° wide viewing angle. The panel features 500 nits of brightness and a 25% haze anti-glare coating.

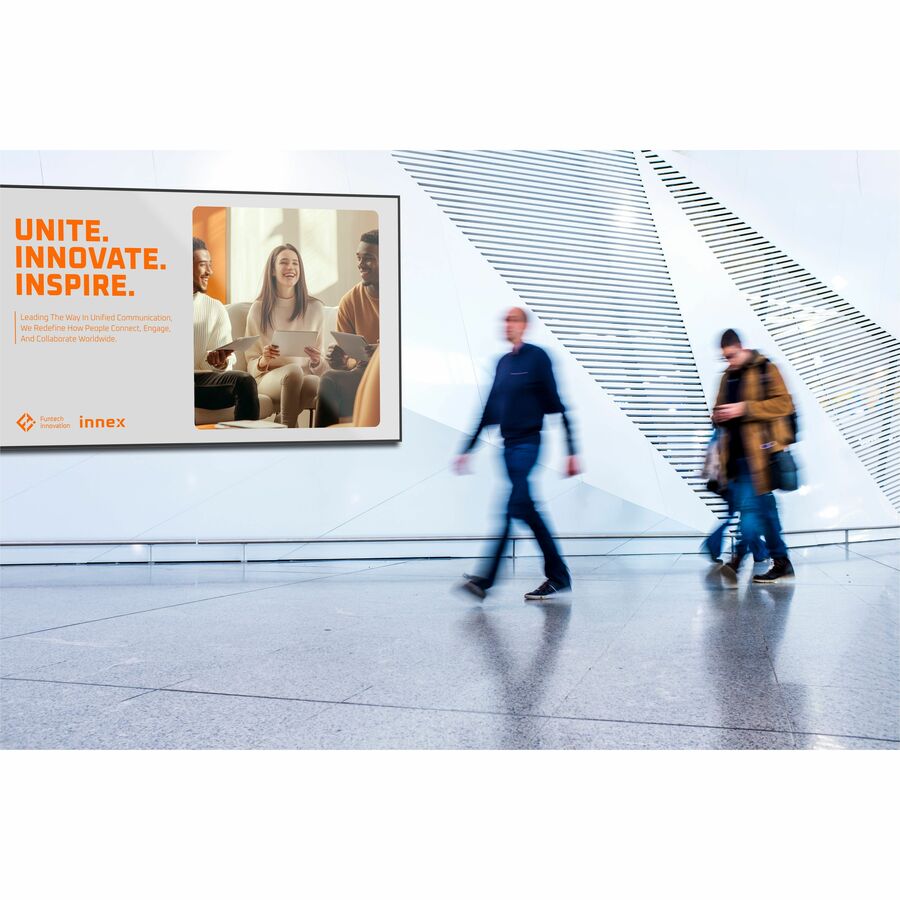

- Multi-Purpose Versatility: Serves as a dynamic digital signage monitor and a 4K meeting room display. Designed for versatile deployment across corporate offices, retail environments
Product Overview
Brilliance in Every Pixel!
The Innex CD Series delivers stunning 4K resolution, a 178° wide viewing angle, and versatile display options in sizes from 43" to 86". Perfect for meeting rooms, classrooms, and retail spaces, it offers 24/7 durability and both landscape and portrait modes. With cloud control, managing content and displays is simple, allowing seamless updates and synchronization from anywhere for enhanced efficiency.
A High Reliability Display | 4K Quality
The CD Series offers exceptional 4K quality, ensuring that every image is presented with stunning clarity and precision. With 60Hz refresh rate and a 178° viewing angle, the display provides the best visual quality and readability for all types of content.
25% HAZE Anti-Reflection
With 25% haze anti-reflection, glare is reduced and clarity is preserved-even under bright lights or sunlight.
Non-stop Operation
Designed for 24/7 operation, the CD Series is built to handle continuous, high-demand environments. Its durability ensures reliable performance around the clock, ideal for businesses needing dependable digital displays.

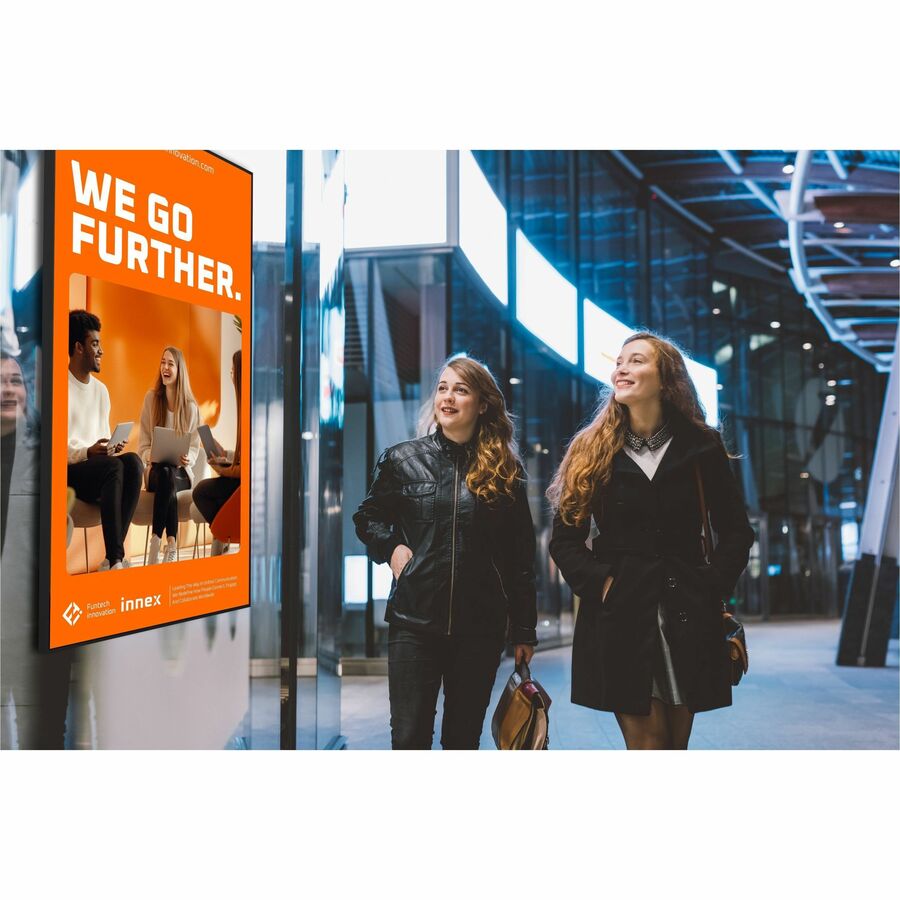

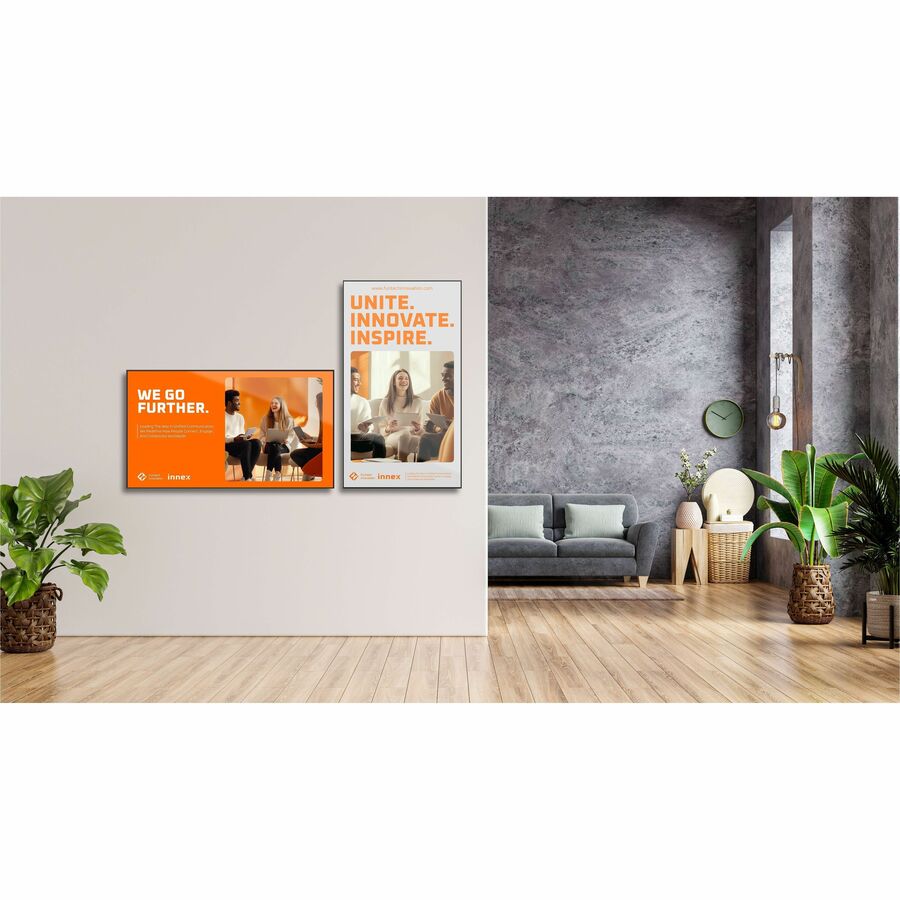

Portrait & Landscape Flexibility
The CD Series offers versatile portrait and landscape flexibility, easily switching between orientations to fit any content or environment.
Ultra Narrow Bezel Video Walls
The Innex CD Series features ultra-thin bezels for seamless multi-display tiling. This near-continuous video wall maximizes visual impact, keeping your content the absolute focus.
Wide Viewing Angle
The CD Series features a wide viewing angle of 178° , offering optimal usability, experience, and viewing comfort.
Easy & Secure Content Delivery
The Digital Signage Software makes content management easy and secure. With user-friendly configuration options, you can quickly set up a secure cloud server for sharing and controlling digital signage content. Authorized users can access displays remotely, ensuring that content updates are efficient and safe, no matter where you are.
General Information
- Manufacturer: Fun Technology Innovation Inc
- Manufacturer Part Number: CD65-DGTLSGN
- Brand Name: Innex
- Product Series: CD
- Product Model: CD65
- Product Name: CD65 Digital Signage Display
- Packaged Quantity: 1
- Product Type: Digital Signage Display
Technical Information
- Video Wall Compatible: Yes
- Bezel Width: 0.27"
- Operation Hours: 24 Hours/7 Days
Processor & Chipset
- Processor Manufacturer: ARM
- Processor Type: Cortex A55
Memory
- Standard Memory: 2 GB
- Memory Technology: DDR4 SDRAM
Display & Graphics
- Number of Screens: 1
- Viewable Screen Size: 65"
- Screen Size Class: 65"
- Display Screen Type: LCD
- Response Time: 6.50 ms
- Display Resolution: 3840 x 2160
- Orientation: Landscape/Portrait
- Backlight Technology: Direct LED
- Aspect Ratio: 16:9
- Maximum LED Life: 3.4 Year
Video
- Scan Format: 2160p
- Dynamic Contrast Ratio: 5,000:1
- Brightness: 500 Nit
Network & Communication
- Ethernet: Yes
- Wireless LAN: Yes
Interfaces/Ports
- USB: Yes
- HDMI: Yes
- Number of USB 3.0 Ports: 1
- Number of HDMI Inputs: 1
- Number of Network (RJ-45) Ports: 1
- Number of Audio Line Out: 1
Software
- Operating System: Android 11
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics

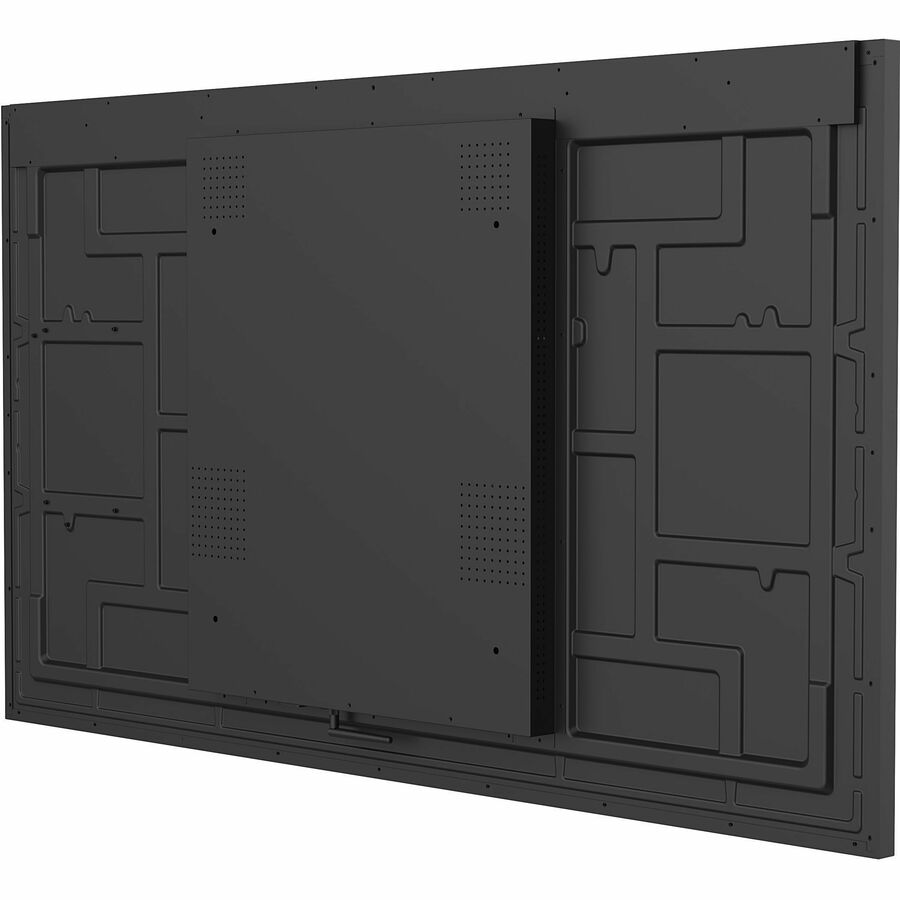

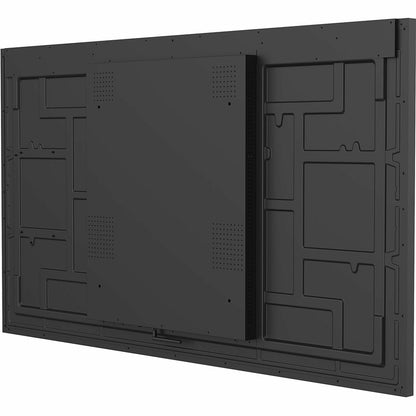

- VESA Mount Compatible: Yes
- VESA Mount Standard: 400 x 400
- Mount Type: Wall Mountable
- Mount Surface: Wall
- Height: 32.5"
- Width: 57.1"

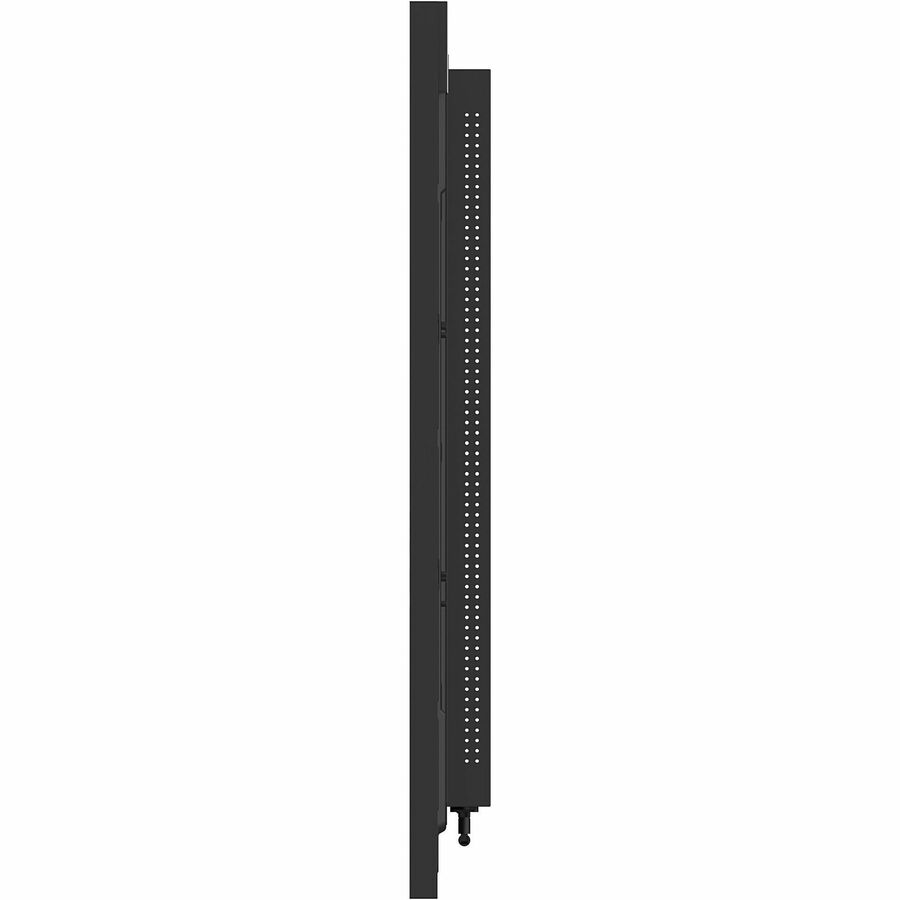

- Depth: 2.6"
- Weight (Approximate): 48.50 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 113°F (45°C)
- Minimum Storage Temperature: 14°F (-10°C)
- Maximum Storage Temperature: 131°F (55°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 20%
- Maximum Storage Humidity: 90%
Miscellaneous
- Package Contents:
- CD65 Digital Signage Display
- 1 x 1.5m (4.92ft) HDMI Cable
- 1 x 3m (9.84ft) EU Power Cable
- 1 x 3m (9.84ft) UK Power Cable
- 1 x Remote Control
- 1 x Warranty Card
- 1 x Safety Documents
- 1 x Wi-Fi Dongle
- 1 x Wall Bracket
- Application/Usage:
- Commercial
- Meeting Room
- Classroom
- Retail
- Corporate
- Office
- Education
- Public Space
- Business
- Indoor
- Indoor/Outdoor: Indoor
Warranty
- Limited Warranty: 3 Year
