Overview

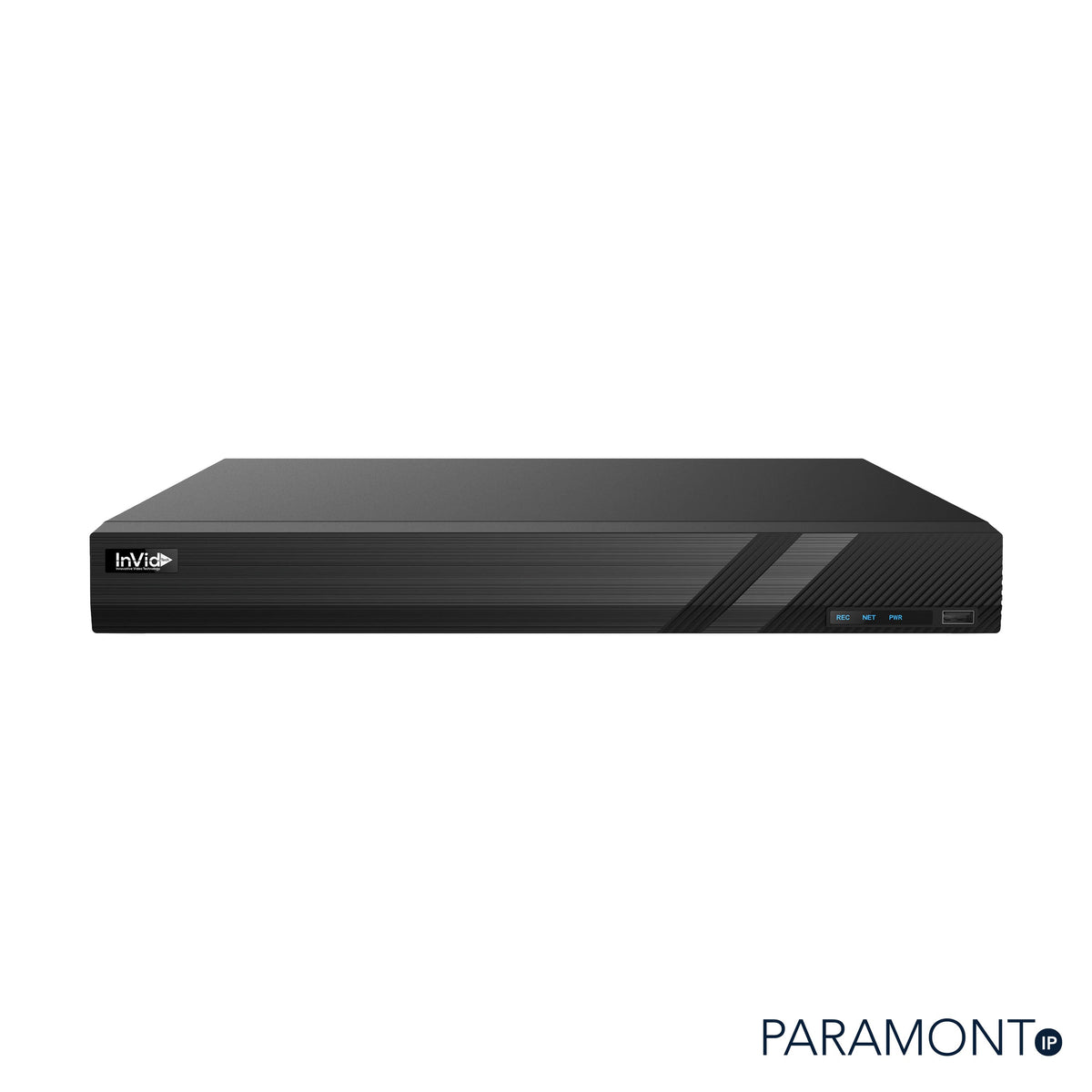

Product: PN1A-16X16-2NH2 16 Channel NVR with 16 Plug and Play PoE Ports
Part Number: PN1A-16X16-2NH2
Type: 16 Channel Network Video Recorder, 4K
Brand: InVid Tech (Paramont Series)
Operating System: Embedded Linux
Compliance: NDAA Compliant
Video
Network Input: 16CH IPC input
Network Input Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF
Output: HDMI x 1: 3840x2160 / 1920x1080 / 1280x1024 / 1024x768. VGA: 1920x1080 / 1280x1024 / 1024x768
Screen Display Mode: 1/4/6/8/9/13/16
Compression: H.265S / H.265+ / H.265 / H.264
Audio
Network Input: 16CH IPC audio input
Local Input: RCA x 1 (two-way audio)
Local Output: RCA x 1
Compression: G.711 (U/A)
Record and Playback
Record Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF
Frame Rate: NTSC 30fps, PAL 25fps
Simultaneous Playback: Max. 16CH
Search: Time slice, time, event, tag, smart search
Smart Search: Highlighted color displays the camera record over a given period, with different colors for different record events
Playback Functions: Play, pause, fast forward, fast rewind, digital zoom
Decoding Capability: 1x 8MP at 30fps; 6x 1080P at 30fps
Alarm
Mode: Manual, sensor, motion, exception, smart events
Input: Supports IPC alarm input
Output: Supports IPC alarm output
Triggering: Record, snap, preset, email
Network
Interface: RJ45 x 1 (10/100/1000Mbps)
Protocol: TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPS, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
Incoming and Outgoing Bandwidth: 160 / 160 Mbps. When the AI function of the IPC is enabled, the actual incoming bandwidth (max bitrate) is more than the value set in the NVR
Client Connection: Max. 64 users
AI and Analytics
Face Detection (AI by IPC): 16CH (NH-AI models)
Face Detection (AI by Device, ONVIF): 2CH at 2MP
Face Match: Not supported. This unit does NOT support facial recognition
Human and Vehicle Classification (AI by IPC): Up to 16CH
Human and Vehicle Classification (AI by Device): 2CH
Human and Vehicle Attribute Analysis: Yes (AI by IPC)
Plate Recognition (AI by IPC): Up to 16CH
Fisheye: Supports fisheye dewarping via web client and mobile app
Statistical Graph: Bar graph
Statistical Mode: Statistics by day, week, month, quarter, and custom time period
Storage and Backup
HDD Interface: SATA 3.0 x 2, up to 26TB
Local Backup: USB, USB to HDD (1TB max)
Network Backup: Yes
Ports and PoE
USB: USB 2.0 x 2
Remote Controller: Included
PoE Ports: 100M RJ45 x 16
PoE Standards: IEEE 802.3af/at
PoE Output Power: Less than or equal to 150W
Power and Environment
Power Supply: DC 48V / 3.75A
Consumption: Less than or equal to 10W (without HDD)
Dimensions (W x D x H): 15 x 10.6 x 1.8 in (380 x 268 x 45 mm)
Working Environment: 14 F to 122 F (-10 C to 50 C), 10% to 90% humidity
Certifications: CE, FCC, ETL 5025761
Environmental Protection: Complies with EU RoHS, REACH and WEEE
Mobile and Software
Mobile OS: iOS, Android
Software: Free iOS and Android apps, free central management software (CMS), free Mac client
