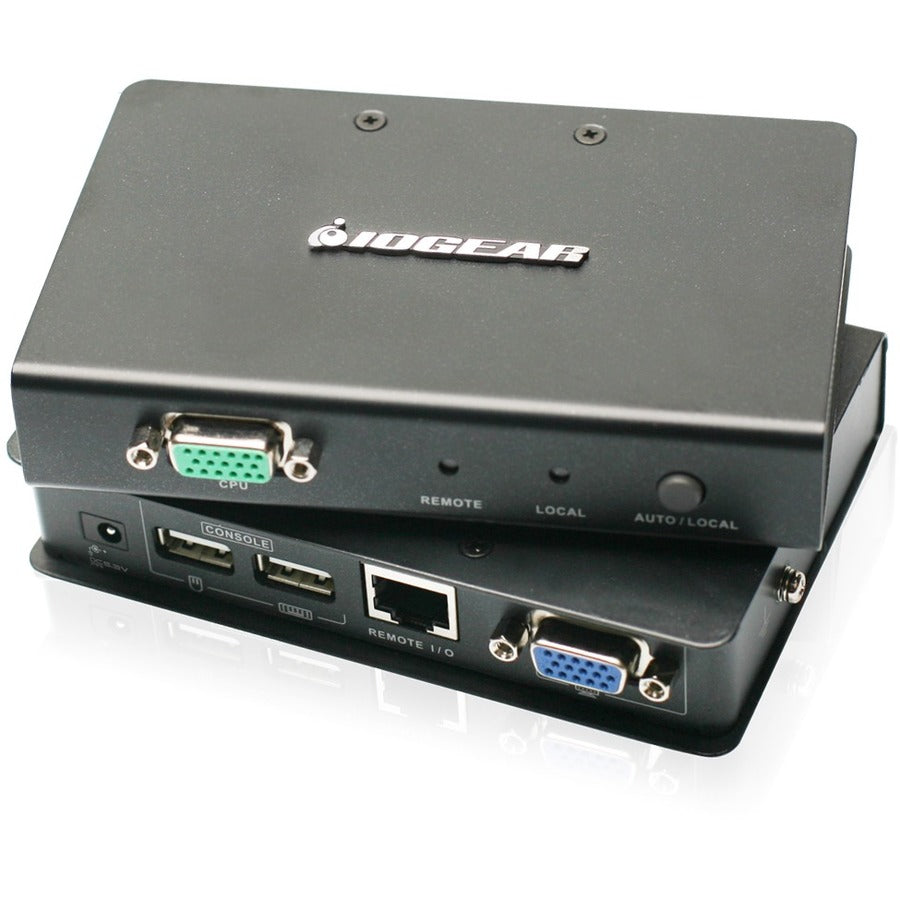

IOGEAR GCE500U KVM Cosole/Extender - GCE500U
Key Features
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Built-in 8KV ESD protection and 2KV surge protection
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Dual Console Operation - Control your system from either the local or remote console
- Easy To Operate - Push button selection between local and remote console
- Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
- Maximum video resolution up to:1920 x 1200 @ 60Hz (100 ft. - 30m),1600 x 1200 @ 60HZ (330 ft. - 100m),1280 x 1024 @ 60Hz (500 ft. - 150m)
- Plug-N-Play - No need for any software driver installation
- Rack Mountable (rack mount kit included)
- USB over-current detection and prevention
Product Overview
The Iogear's GCE500U KVM Cosole/Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via Cat5e/6 cable up to 500 feet away. This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter.
General Information
- Manufacturer: IOGEAR, Inc
- Manufacturer Part Number: GCE500U
- Brand Name: IOGEAR
- Product Model: GCE500U
- Product Name: GCE500U KVM Cosole/Extender
- Packaged Quantity: 1
- Product Type: KVM Console/Extender
Technical Information
- Connectivity Technology: Wired
- KVM Technology: Analog
- Number of Computers Supported: 1
- Number of Local Users Supported: 1
- Number of Remote Users Supported: 1
- Maximum Operating Distance: 500 ft
Video
- Graphic Mode: WUXGA
- Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
- Network (RJ-45): Yes
- USB: Yes
- VGA: Yes
- Proprietary Interface: Yes
- Number of VGA Ports: 2
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 4
Power Description
- Input Voltage: 5.3 V DC
Physical Characteristics
- Form Factor: Rack-mountable
Miscellaneous
- Package Contents:
- GCE500U KVM Cosole/Extender
- 2 x Rack Mount Kit
- 1 x USB KVM Cable
- 2 x Grounding Wire
- 2 x Power Adapter
- 1 x Installation Guide
- 1 x Warranty Card
- Environmentally Friendly: Yes
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
