IOGEAR GCL1800 Rackmount LCD - GCL1800
Key Features
- 1280 x 1024 resolution on 19" rack mount LCD provides a sharp video display
- Adjustable depth to fit different sizes of racks
- Built-in USB 1.1 port for external mouse
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Easy to operate - intuitive LCD OSD (on screen display) and hotkeys
- Integrated KVM console featuring a 17" TFT LCD active matrix monitor , keyboard and touchpad
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Rack mountable in a 19" (1U) system rack
- Support special keys on Mac and Sun keyboards
- USB or PS/2 keyboard and mouse
Product Overview

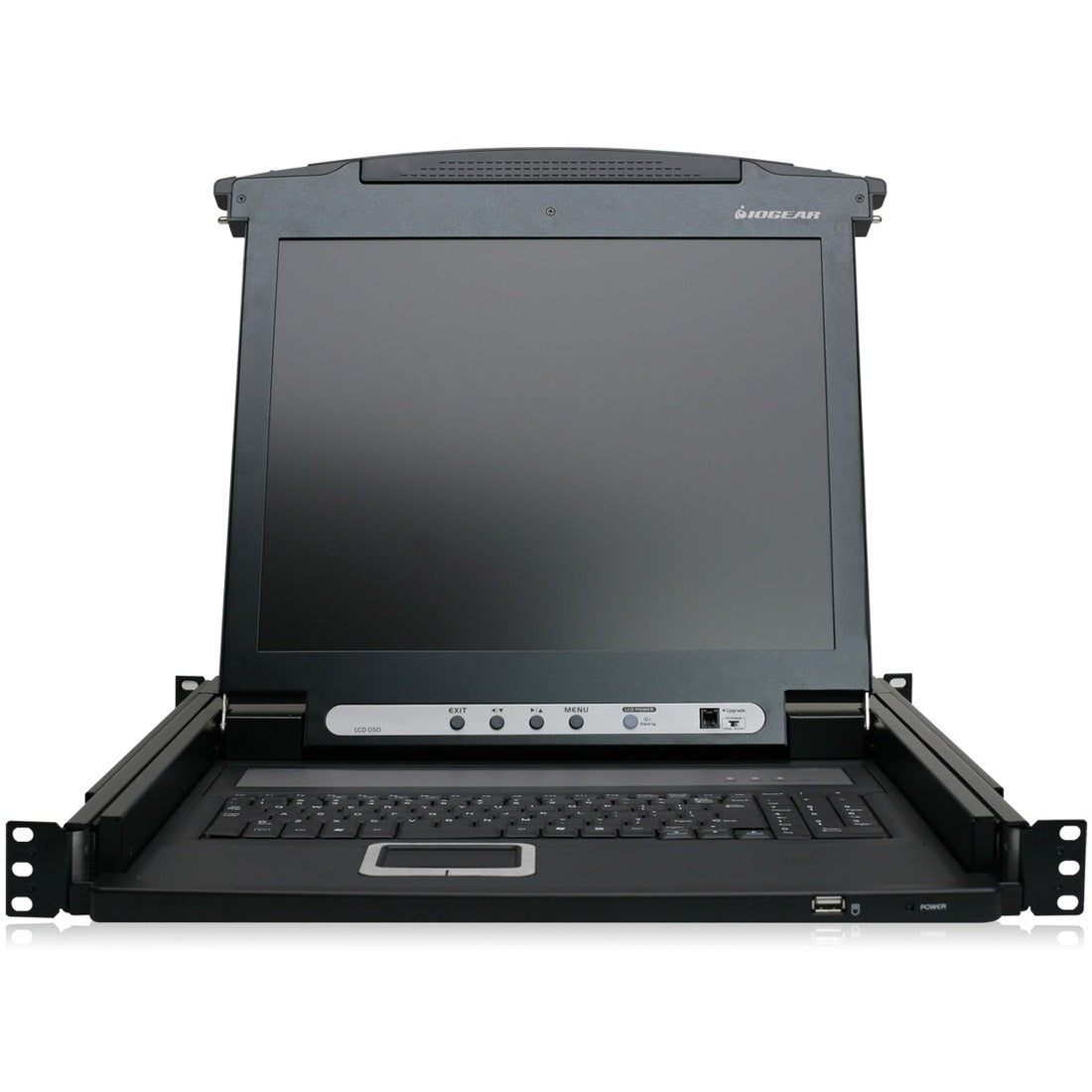

IOGEAR's new GCL1800 Rackmount LCD offers a space saving, streamlined approach to IT environments by integrating a keyboard, 17" TFT LCD active matrix monitor, and touchpad in one unit. The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.
General Information
- Manufacturer: IOGEAR, Inc
- Manufacturer Part Number: GCL1800
- Brand Name: IOGEAR
- Product Model: GCL1800
- Product Name: GCL1800 Rackmount LCD
- Product Type: LCD Rack Console
Technical Information
- KVM Switch: No
- Number of Computers Supported: 1
- Daisy Chain: Yes
- Device Type: LCD Rack Console
Display & Graphics
- Screen Size: 17"
- Display Screen Type: LCD
- Screen Mode: SXGA
- Screen Resolution: 1280 x 1024
Input Devices
- Pointing Device Type: TouchPad
Interfaces/Ports
- PS/2 Port: Yes
- USB: Yes
- Number of PS/2 Ports: 2
- Number of USB Ports: 3
Physical Characteristics
- Height: 1.8"
- Width: 19"
- Depth: 21"
- Weight (Approximate): 25.94 lb
Miscellaneous
- Package Contents:
- GCL1800 Rackmount LCD
- 1 x USB KVM Cable
- 1 x Firmware Upgrade Cable
- 1 x Rack Mount Kit
- 1 x Grounding Wire
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Warranty Card
- Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
