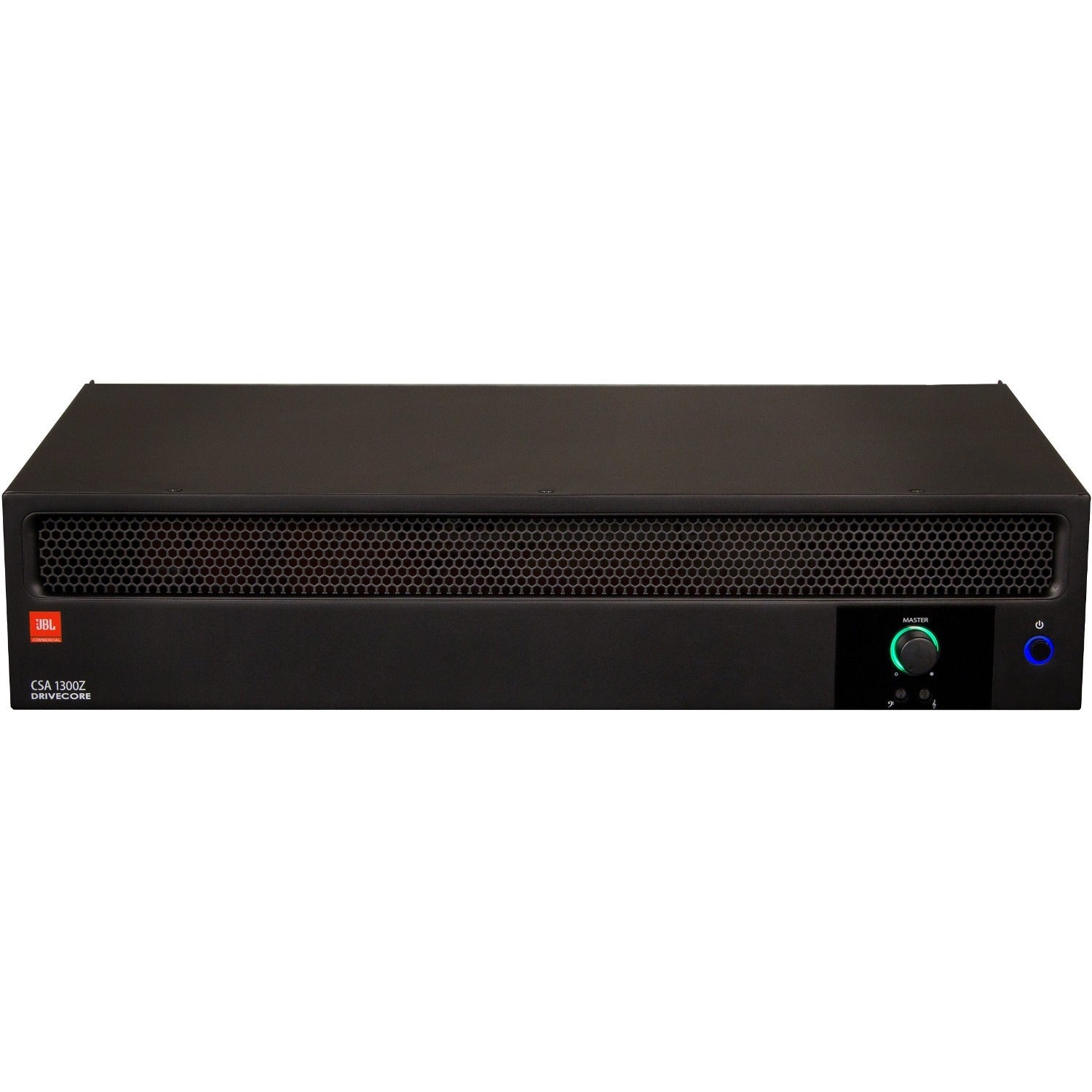

JBL Commercial Commercial 1300Z Amplifier - 300 W RMS - 1 Channel - NCSA1300Z-0-US
Key Features
- 1 or 2 channels X 300W output
- Built-in 70V and 100V
- Energy-efficient amplifier
- Sleek industrial look with illuminated rings making knobs easy to see and use
- Sleep mode disable function
- Space-saving 2 RU design
- Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
Product Overview
By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.
The efficient performance of Crown's DriveCore™ Technology continues to set new standards in commercial power amplifier technology.
Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.
Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls.
And with HARMAN's GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.
General Information
- Manufacturer: Harman International Industries, Inc
- Manufacturer Part Number: NCSA1300Z-0-US
- Brand Name: JBL Commercial
- Product Line: Commercial
- Product Series: CSA
- Product Model: 1300Z
- Product Name: Commercial CSA 1300Z Amplifier
- Product Type: Amplifier
Technical Information
- Minimum Frequency Response: 20 Hz
- Maximum Frequency Response: 20 kHz
- Total Harmonic Distortion (THD): 0.5%
- Impedance: 8 Ohm
Audio
- Audio Channels: 1
- RMS Output Power: 300 W
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- Number of Analog Audio Inputs: 2
Power Description
- Operating Power Consumption: 130 W
Physical Characteristics
- Height: 3.5"
- Width: 17"
- Depth: 10.8"
- Weight (Approximate): 13.10 lb
Miscellaneous
- Package Contents:
- Commercial CSA 1300Z Amplifier
- 1 x Rack mounting kit
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
