Kanto Mounting Arm for TV, OLED TV - R400
Key Features
- 400x400 VESA Support: 400×400 VESA patterns are supported with provided extensions. Using these only increases the profile to 0.3"
- Clean Cabling: Metal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess.
- Contractor Friendly: A foldable, in-wall template for new construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed.

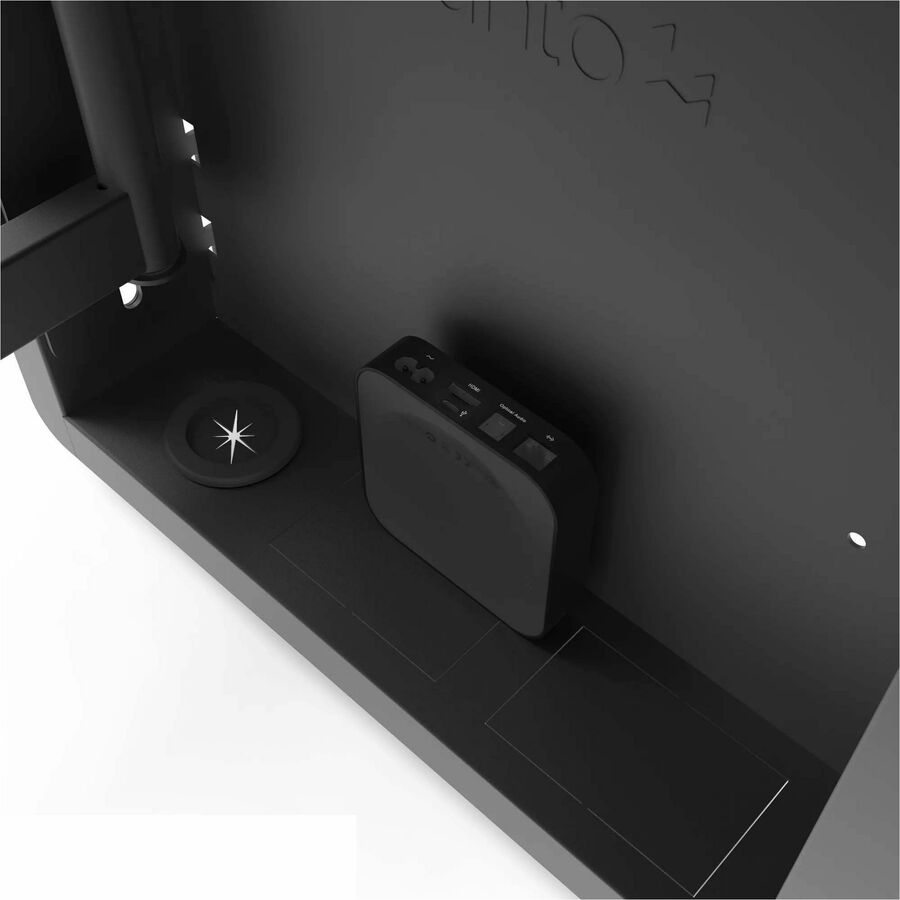

- Out of Sight: The recessed box is deep enough to store streaming boxes and other small AV accessories behind the TV for a clean, modern setup.

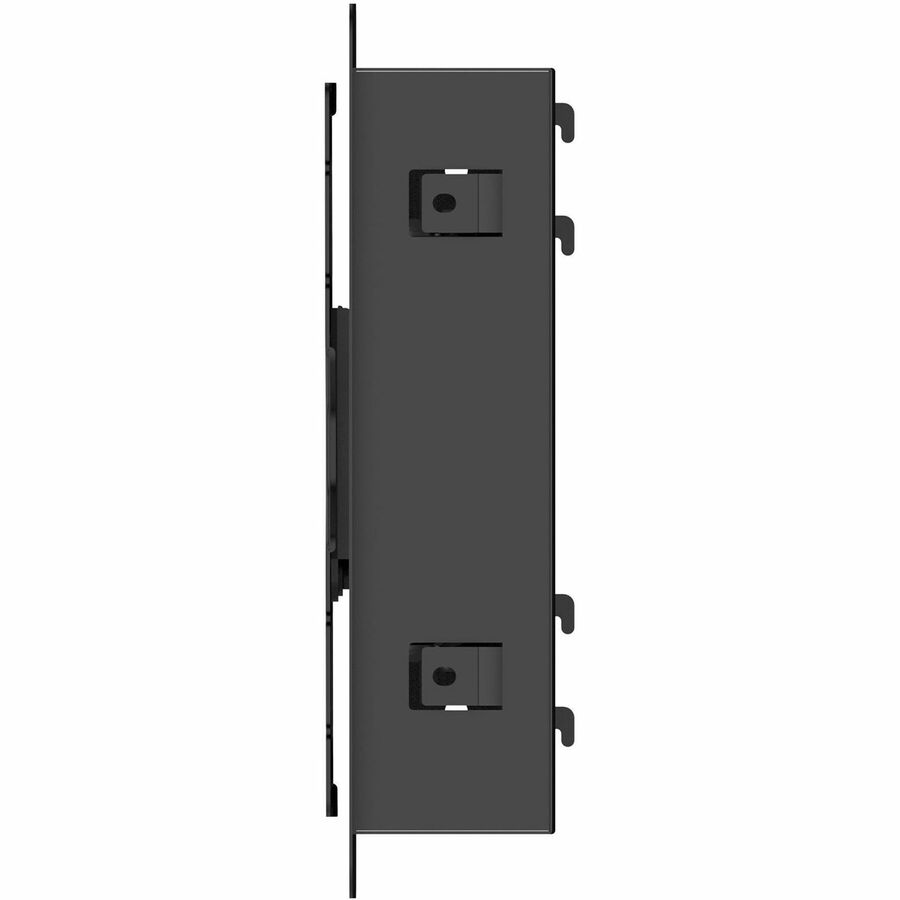

- PERFECTLY FLUSH:R400 is a true zero gap TV mount that allows TVs with a VESA pattern of 300×300 or less to sit directly against the wall for a completely flush look.

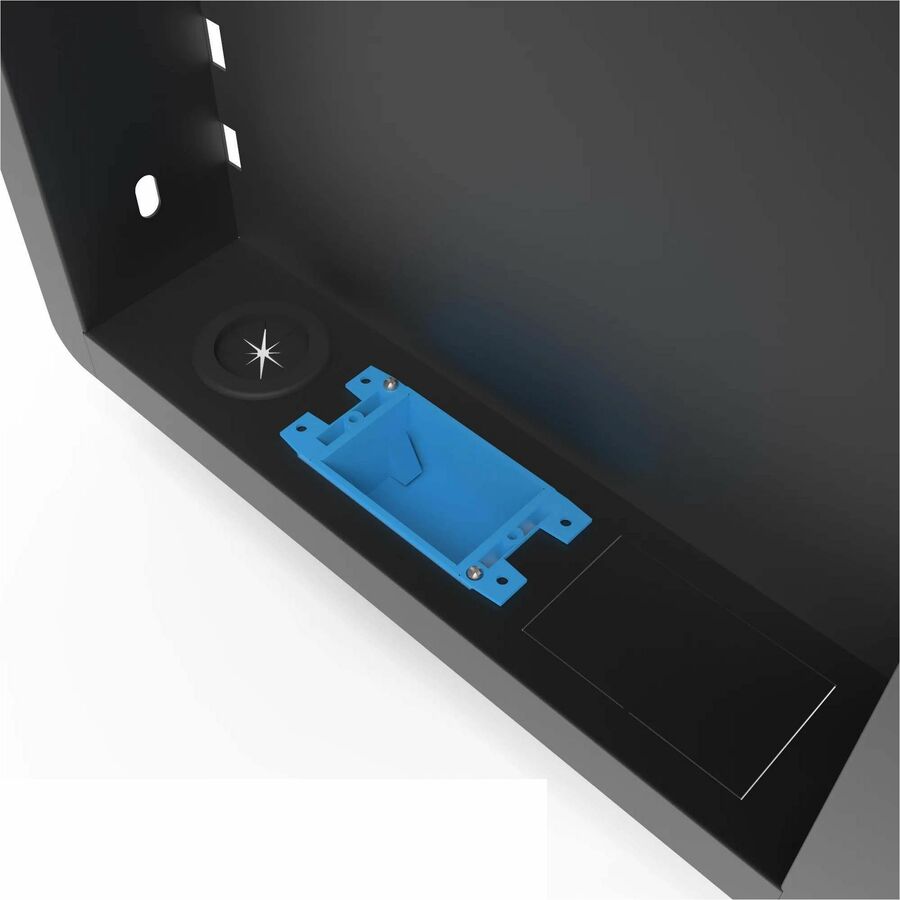

- Power Where You Want: Metal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall.
Product Overview

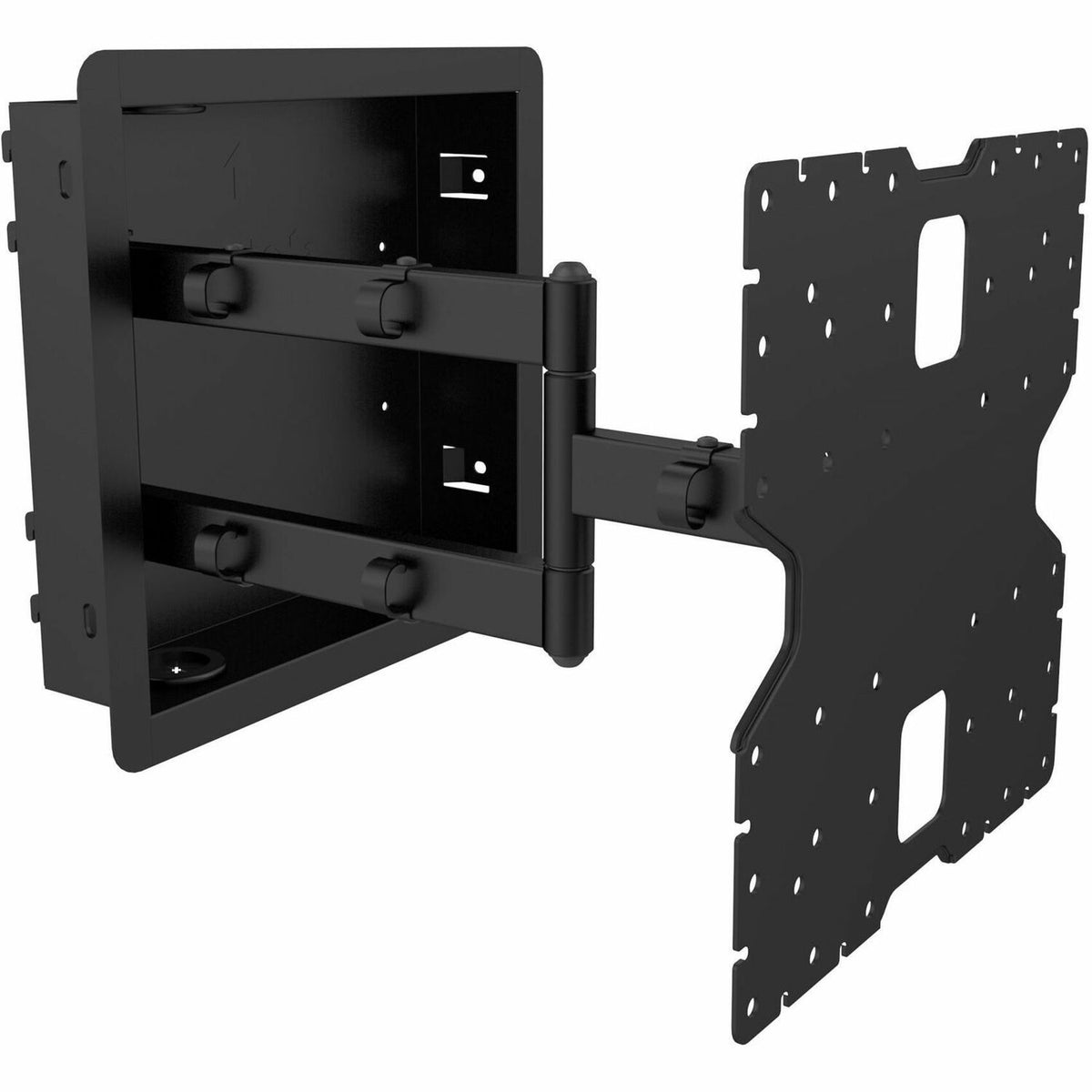

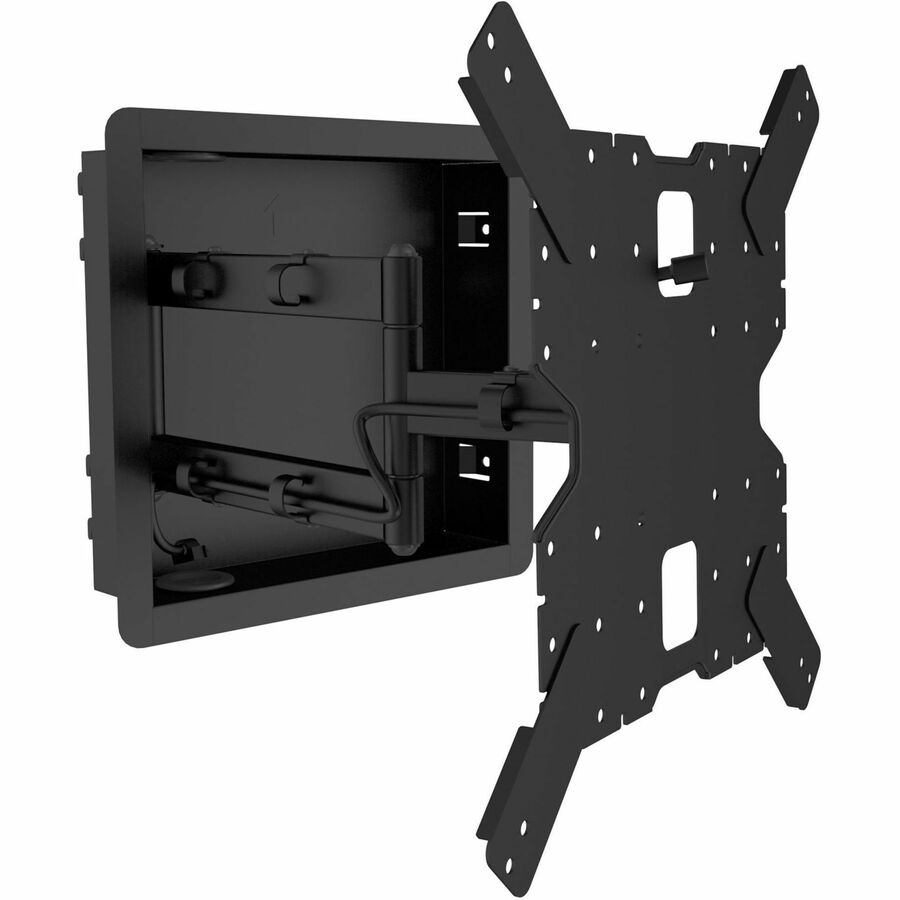

R400 is a mount made for Pro's featuring a true no gap installation that allows your TV to sit perfectly flush against your wall for the ultimate low-profile look. Thin TVs like OLED appear to float like a picture frame with no visible hardware. With a recessed box that sits in-between studs, you can store streaming boxes and other small electronic accessories out of sight. Metal knockouts allow you to easily run a power outlet into the box, while rubber grommets handle all other cabling for a completely in-wall, wire-free experience. Durable metal cable management clips on the articulating arms take care of messy cables when the TV is pulled out to its full 18" of extension.
General Information
- Manufacturer: Kanto
- Manufacturer Part Number: R400
- Brand Name: Kanto
- Product Series: Pro
- Product Name: Recessed In-Wall TV Mount
- Product Type: Mounting Arm
Product Information
- Device Supported:
- TV
- OLED TV
- Maximum Load Capacity: 80 lb
- Minimum Screen Size Supported: 35"
- Maximum Screen Size Supported: 65"
- Features:
- Grommet
- Handle
- Durable
- Cable Management
- Foldable
- Tilt
- Full Motion
- Swivel
- Articulating Arm
- Mount Profile: Recessed
- Minimum Tilt Angle: -2°
- Maximum Tilt Angle: 9°
- Maximum Swivel Angle: 90°
Physical Characteristics
- Product Material: Metal
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 100 x 100
- 400 x 400
- 300 x 300
- Form Factor: Wall Mountable
- Weight (Approximate): 23.10 lb
Miscellaneous
- Package Contents:
- Recessed In-Wall TV Mount
- Drywall Template
- In-Wall Template
- Hardware
- Manual(s)
- Application/Usage: Stud
Warranty
- Limited Warranty: 10 Year
