Kensington SD5600T Docking Station - K34009NA

Key Features

• 7 USB ports allows powerful and efficient transfer of data with maximum productivity
• Charging capability provides a quicker, worry-free charging experience
• Desktop form factor for your docking station provides better focus with maximum productivity
• Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
• Monitor device supported for better reliance and optimal performance
• Plug & Play feature for maximum usage efficiency and convenience
• Power Adapter power source type for your docking station provides optimal performance with maximum usability
• The HDMI supports digital audio/video output to a wide assortment of HD gadgets
• USB Type C host interface allows quick transmission of data at a higher rate for your convenience
• Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency

Product Overview

Universal compatibility

Perfect for hot-desking and mixed deployment environments, the universally compatible SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS. Now compatible with Thunderbolt 4 laptops at Thunderbolt 3 features.

Thunderbolt 3 technology

Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included 0.8m (2.6 ft.) Thunderbolt 3 cable, for a quick and powerful plug and play experience.

Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices

Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 30Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST).

100W Power Delivery

Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro.

Productive desktop setup

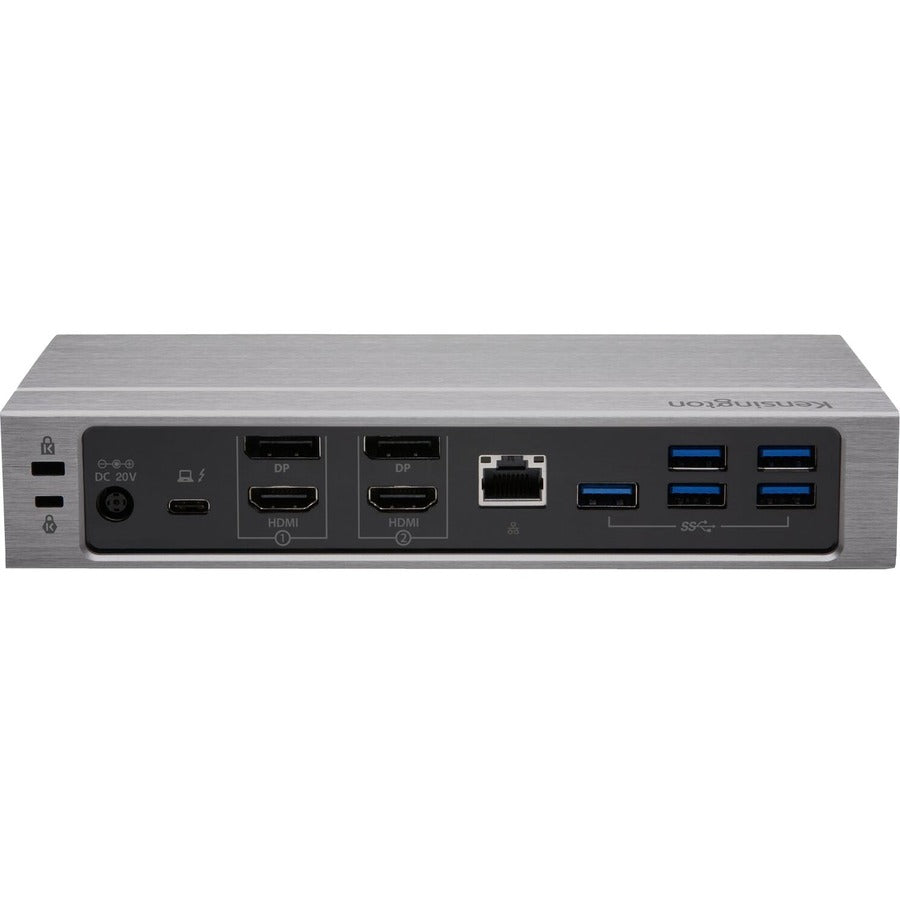

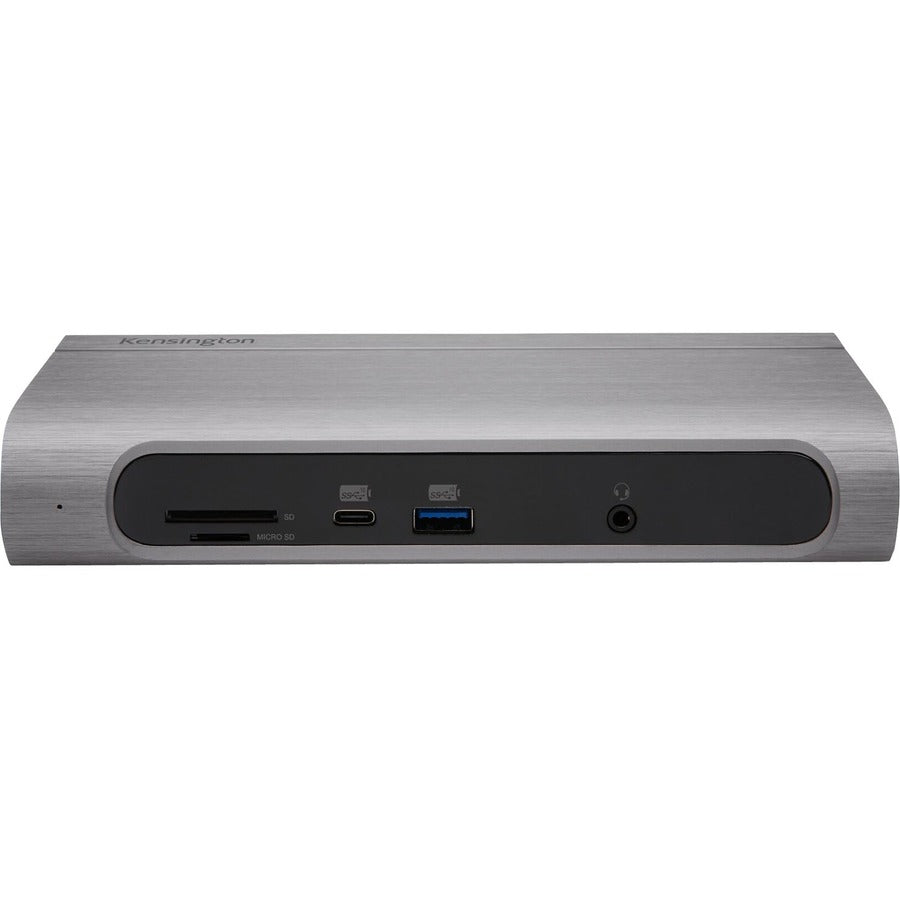

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.

Flexible mounting options

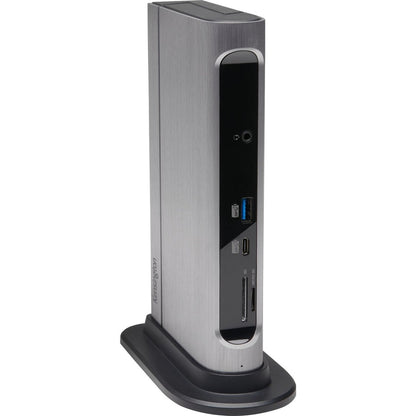

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).

Built-in SD and Micro SD card readers

UHS II SD 4.0 card readers enable ultra-fast file transfer.

Free Kensington DockWorks™ software and three-year warranty

For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you're covered by Kensington.

The SD5600T Thunderbolt™ 3 and USB-C™ Dual 4K Hybrid Docking Station - 100W PD - Win/Mac is the ultimate docking station for maximum productivity and compatibility. Features include universal compatibility, the flexibility to select between HDMI 2.0 and DP 1.2, horizontal or vertical placement options, built-in SD and Micro SD card readers, seven USB ports (two with charging), one Gigabit Ethernet port and one audio combo jack. Three-year warranty.

• Best for: Thunderbolt 3, Thunderbolt 4 and USB-C Laptops and Monitors that support up to 4K
• Connection Technology: Thunderbolt 3 & USB-C (Thunderbolt 4 laptops supported at Thunderbolt 3 features)
• Power Delivery: Supports USB-C PD 3.0 (100W of laptop charging)
• Compatibility: Windows 10 and macOS X 10.14 or later
• No. of monitors supported: 2
• Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2
• Apple M1 - While this docking station will work with the M1 MacBook, only a single video output is supported. For multi-monitor support on your M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (e.g.: SD4700P, SD4750P, SD4780P or SD4900P) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974)
