Kensington SD5910T Docking Station - K35233NA
Key Features
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- 5 GB/s maximum data transfer rate for fast, dependable data transfer with added productivity
- Charging capability provides a quicker, worry-free charging experience
- Desktop form factor for your docking station offers a simpler, easier exhibit design for better dependability
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
- LED Power Indicator feature for better reliance and usability
- Memory Card Reader device supported for better reliance and optimal performance
- Power Supply power source type for your docking station provides maximum energy feasibility and added surveillance productivity
- Thunderbolt 4 host interface allows quick transmission of data at a higher rate for your convenience
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Product Overview
More screens, more speed, and more power for more setups.
IT professionals working in mixed technology environments often struggle to find docking solutions that maximize the capabilities of different laptops and operating systems. For those seeking a high-speed dock that can support up to four external displays, the SD5910T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station that can unlock the full potential of premium laptops. Ideal for Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices running Windows and ChromeOS, the SD5910T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology delivers more screens, more speed, and more power for more setups-so everyone can be more productive and focused.
- Up to Quad 4K Video via HDMI®, DP, and Thunderbolt™
- Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices
- Windows (10 or later) and ChromeOS (114 or later)
- Data transfer speeds up to 40Gbps
- Daisy chain support
- Intel VT-d DMA protection
- Up to 100W charging (96W certified)
- Productive 16-in-1 design
- Composed of 100% post-consumer recycled (PCR) aluminum*

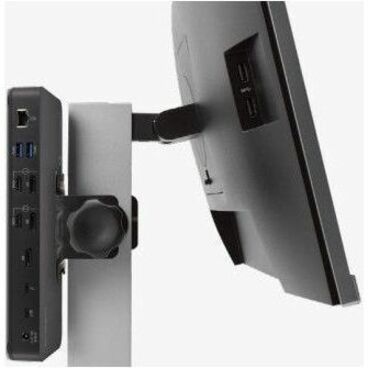

- Zero-footprint mounting option
- Security cable lock slots
- 3-Year limited warranty
General Information
- Manufacturer: Kensington Computer Products Group
- Manufacturer Part Number: K35233NA
- Brand Name: Kensington
- Product Model: SD5910T
- Product Name: SD5910T Docking Station
- Packaged Quantity: 1
- Package Type: Retail
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 4
- Supported Resolutions:
- 3840 x 2160
- 7680 x 4320
- Screen Mode Supported:
- 4K @ 60Hz
- 8K @ 60Hz
- 4K
- Memory Card Reader: Yes
- Memory Card Supported:
- SD
- microSD
- Device Supported:
- Memory Card Reader
- Notebook
- Smartwatch
- Tablet
- Desktop PC
- Solid State Drive
- Smartphone
- Monitor
Network & Communication
- Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
- Host Interface: Thunderbolt 4
- Total Number of USB Ports: 4
- Number of USB 3.2 Gen 1 Type-A Ports: 2
- Number of USB 3.2 Gen 2 Type-A Ports: 1
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C® 3.2 Gen2, 10Gbps (up to 5V/3A, 15W)
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 3
- DisplayPort: Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 2
- HDMI: Yes
- Thunderbolt: Yes
- Thunderbolt Ports Quantity: 3
- Number of Thunderbolt 4 Ports: 3
- USB Power Delivery: 100W
Software
- Operating System Supported:
- Windows 11
- ChromeOS 114
Power Description
- Maximum Power Supply Wattage: 149.10 W
Physical Characteristics
- Product Color: Black
- Form Factor: Desktop
- Height: 8.86"
- Width: 3.35"
- Depth: 0.87"
- Weight (Approximate): 1.32 lb
Miscellaneous
- Package Contents:
- SD5910T Docking Station
- 1 x 1M (3.28ft) Thunderbolt 4 Certified Passive Cable
- 1 x 149.1W Power Supply Unit
- 1 x Power Cord (varied by different SKU)
- 1 x Quick Installation Guide
- 1 x Compliance Sheet
- 1 x Warranty Card
- 1 x Welcome Card
- Kensington Security Slot: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Energy Efficiency Compliance: Energy-related Products Directive (ErP)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: 3 Year
