Lenovo Docking Station - 40B00135US
Key Features
- Data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
- Enables Intel® AMT™ over Thunderbolt with select Intel vPro® PCs
- Silent firmware upgrades
- Supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support
Product Overview
OVERVIEW
Enterprise-Grade Universal Thunderbolt™ 4 Docking Experience: ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment. Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps. The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
Top Features
The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
For Enterprise Deployments, including Enterprise Firmware tools, click the following:
- Lenovo Docks Deployment Guide
- Enterprise Deployment Solutions
General Information
- Manufacturer: Lenovo Group Limited
- Manufacturer Part Number: 40B00135US
- Brand Name: Lenovo
- Product Name: Docking Station
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 4
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported: 4K
- Device Supported:
- Monitor
- Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

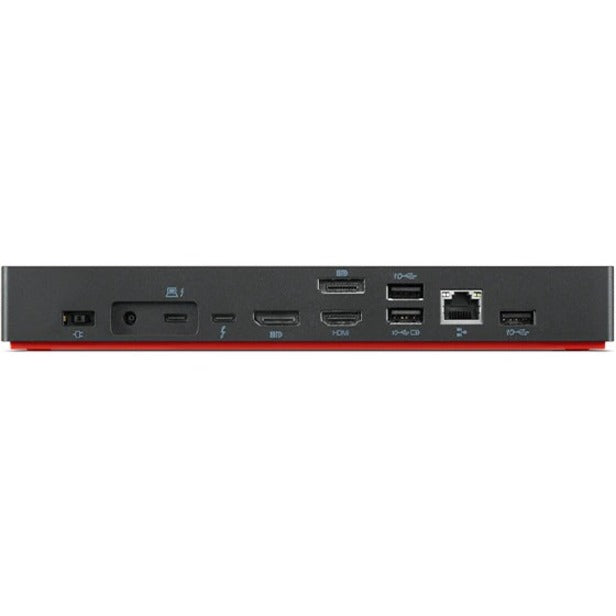

Interfaces/Ports
- Host Interface: USB Type C
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPort Outputs: 2
- DisplayPort: Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
- Thunderbolt: Yes
Software
- Operating System Supported: Windows
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Height: 1.18"
- Depth: 3.15"
- Weight (Approximate): 15.87 oz
Miscellaneous

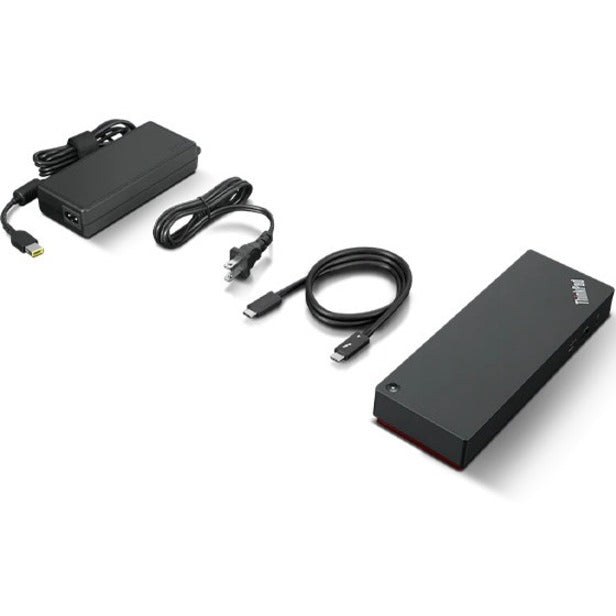

- Package Contents:
- Docking Station
- 135W AC Power Adapter
- Power Cord
- Setup Poster & Warranty Poster
- Standard TBT 4 Cable
- Compatibility: Lenovo ThinkPad Notebook
Warranty
- Limited Warranty: 3 Year
