ThinkCentre M90q Gen 5 Tiny Desktop with Intel Core i5-14500 14-Core Processor, Intel vPro, 16GB DDR5-4800 Memory, 512GB NVMe SSD, USB-C Gen 2x2 at 20Gbps, WiFi 6E, and Windows 11 Pro
The Lenovo ThinkCentre M90q Gen 5 (12TH000EUS) is a premium Lenovo ThinkCentre tiny desktop that delivers a full-power 14-core/20-thread Intel Core i5-14500 processor, Intel vPro enterprise management, and USB-C Gen 2x2 at 20Gbps within a 1-liter chassis measuring 1.4 by 7 by 7.2 inches and weighing 2.76 pounds, providing desktop-class performance without the T-suffix power limitations of standard Tiny configurations running Windows 11 Pro. The Intel Q670 chipset with vPro delivers hardware-level remote management, KVM control, and out-of-band provisioning for enterprise IT fleet administration, and the system ships with 16GB DDR5-4800 memory, a 512GB PCIe NVMe SSD, Intel UHD Graphics 770, Gigabit Ethernet, WiFi 6E, Bluetooth, and seven USB ports with no legacy USB 2.0 connections.
The i5-14500 operates at full 65W desktop TDP with a 135W adapter, delivering sustained multi-core performance that matches tower desktop processors in the compact Tiny form factor. The USB-C Gen 2x2 port at 20Gbps doubles the transfer speed of standard USB 3.2 Gen 2 connections for high-speed external storage and docking station connectivity, and the four additional USB 3.2 Gen 2 ports at 10Gbps ensure every peripheral connection runs at high speed.
Where the ThinkCentre M90q Gen 5 Fits

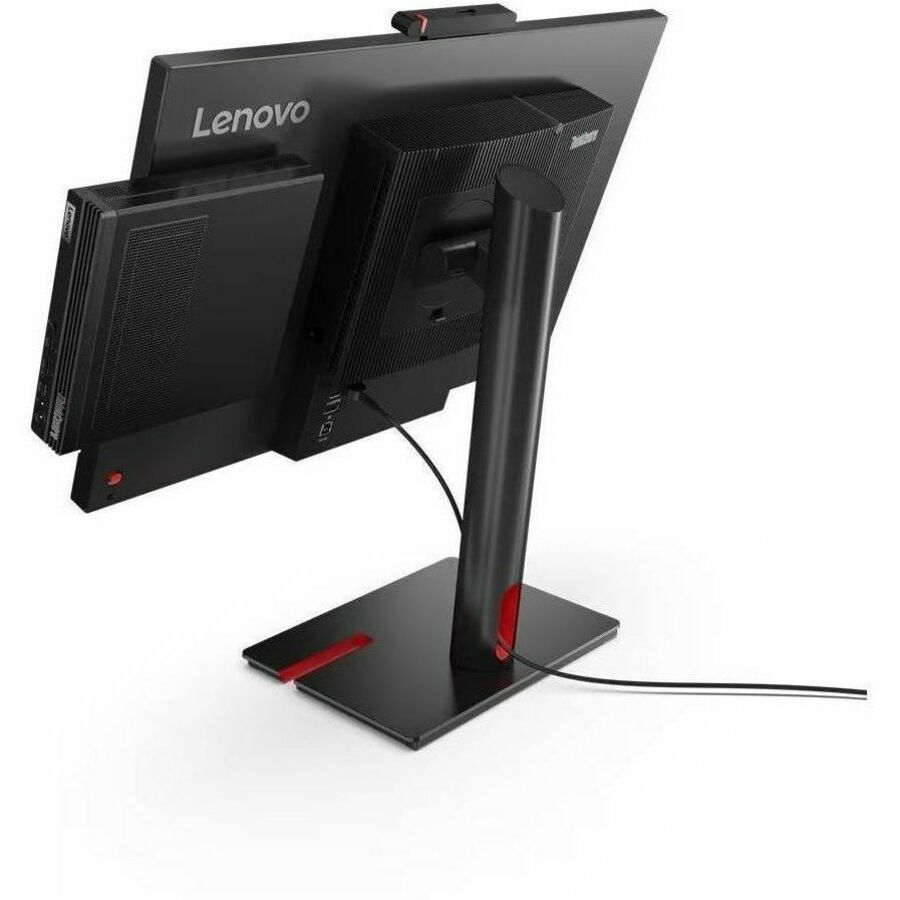

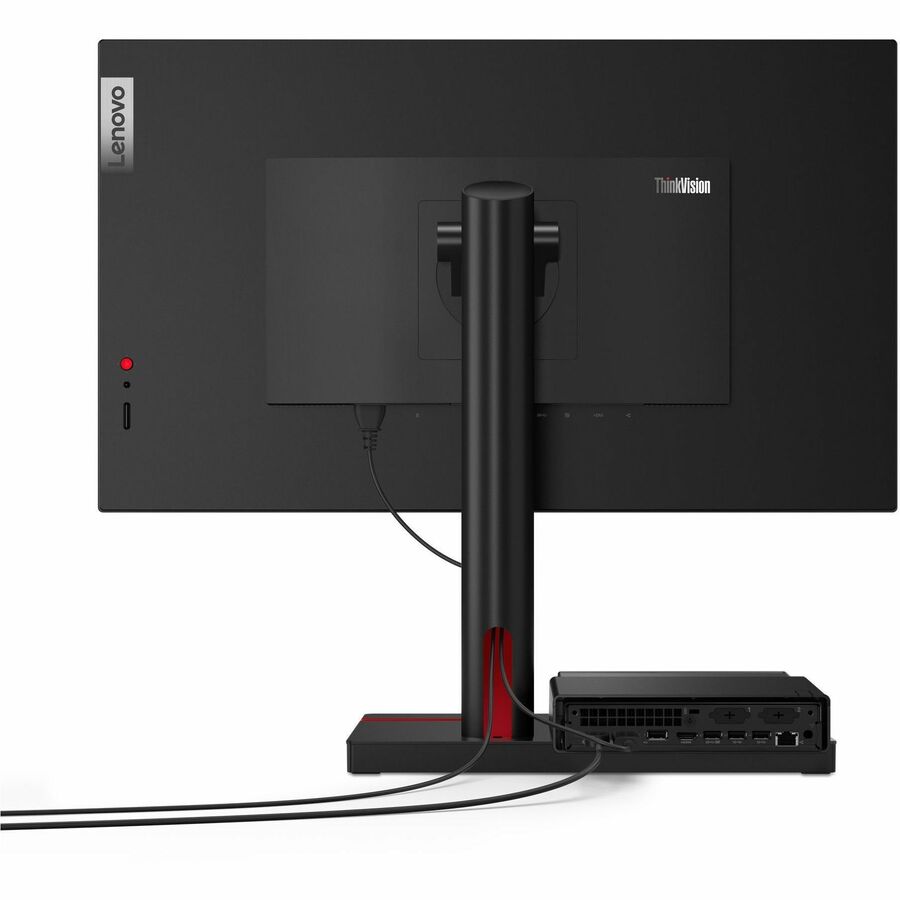

- Performance-critical workstations where the full-power i5-14500 at 65W TDP delivers sustained 14-core/20-thread processing for data analysis, development environments, and multi-application enterprise workflows that throttle on T-suffix processors, within a 2.76-pound chassis that VESA-mounts behind monitors
- Enterprise IT deployments requiring premium management where Intel vPro with Q670 chipset provides hardware-level remote provisioning, KVM control, and Active Management Technology for zero-touch fleet management across distributed locations, with the 3-year onsite warranty reducing total cost of ownership
- High-throughput peripheral environments where USB-C Gen 2x2 at 20Gbps and four USB 3.2 Gen 2 ports at 10Gbps deliver maximum transfer speeds for external NVMe drives, docking stations, and high-bandwidth peripherals without USB 2.0 bottlenecks
What the ThinkCentre M90q Gen 5 Delivers
- Intel Core i5-14500 at 2.6/5.0 GHz with vPro: Fourteen cores and twenty threads at full 65W desktop TDP for sustained multi-core performance. Intel vPro with Q670 chipset for hardware-level remote management and enterprise security.
- 16GB DDR5-4800 with 512GB NVMe: DDR5 memory at 4800MHz for responsive multitasking across demanding workloads. 512GB PCIe NVMe 4.0 SSD for fast boot and application loading.
- Intel UHD Graphics 770 with USB-C Gen 2x2: Shared DDR5 graphics supporting multi-display output. USB-C Gen 2x2 at 20Gbps for high-speed docking and external storage connectivity.
- WiFi 6E, Gigabit Ethernet, and 7 USB ports: Dual-band WiFi 6E (802.11ax) and Bluetooth alongside wired Gigabit Ethernet. Seven USB ports including USB-C Gen 2x2 at 20Gbps, four USB 3.2 Gen 2, and two USB 3.2 Gen 1.
