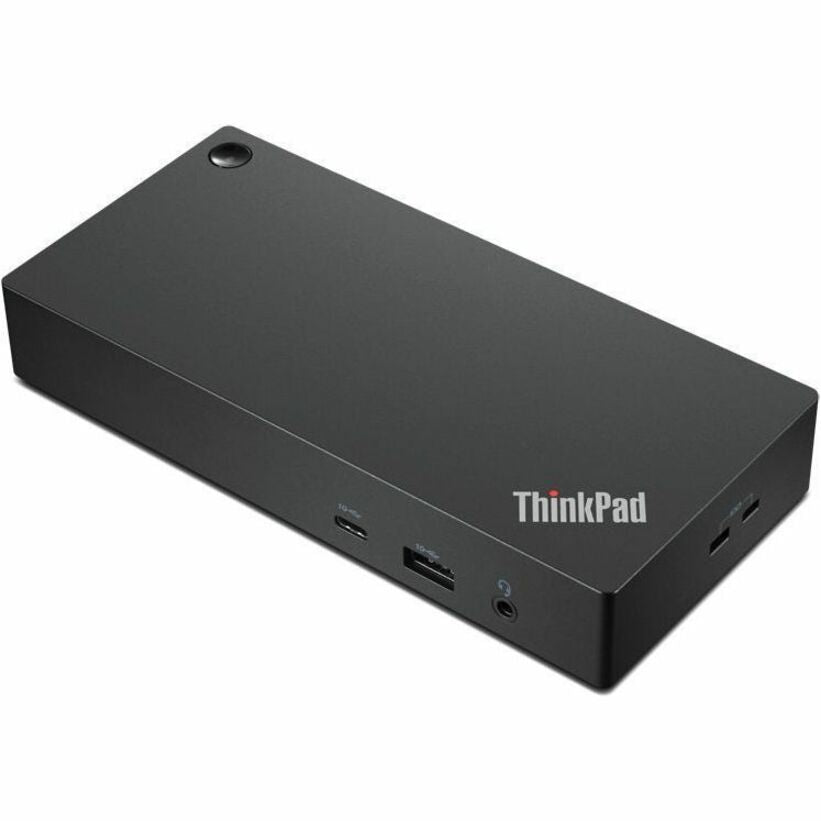

Lenovo ThinkPad Docking Station - 40AY0135US
Key Features
- Entire Fleet. One Manager: The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support traditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream
- One Cable. No Hassle: With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk
- One Dock. No Limits: Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it
Product Overview
The ThinkPad Universal USB-C Dock is a welcome innovation docking solution that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100 W to notebooks, automated firmware updates and next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any PC that supports industry standards of USB-C connectivity
General Information
- Manufacturer: Lenovo Group Limited
- Manufacturer Part Number: 40AY0135US
- Brand Name: Lenovo
- Product Line: ThinkPad
- Product Name: ThinkPad Docking Station
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 3
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported:
- 4K @ 60Hz
- 4K UHD
- Management Features:
- PXE Boot
- Wake-on-LAN
- MAC Address Pass-through
- Device Supported:
- Desktop PC
- Notebook
- Monitor
Network & Communication
- Ethernet Technology: Gigabit Ethernet

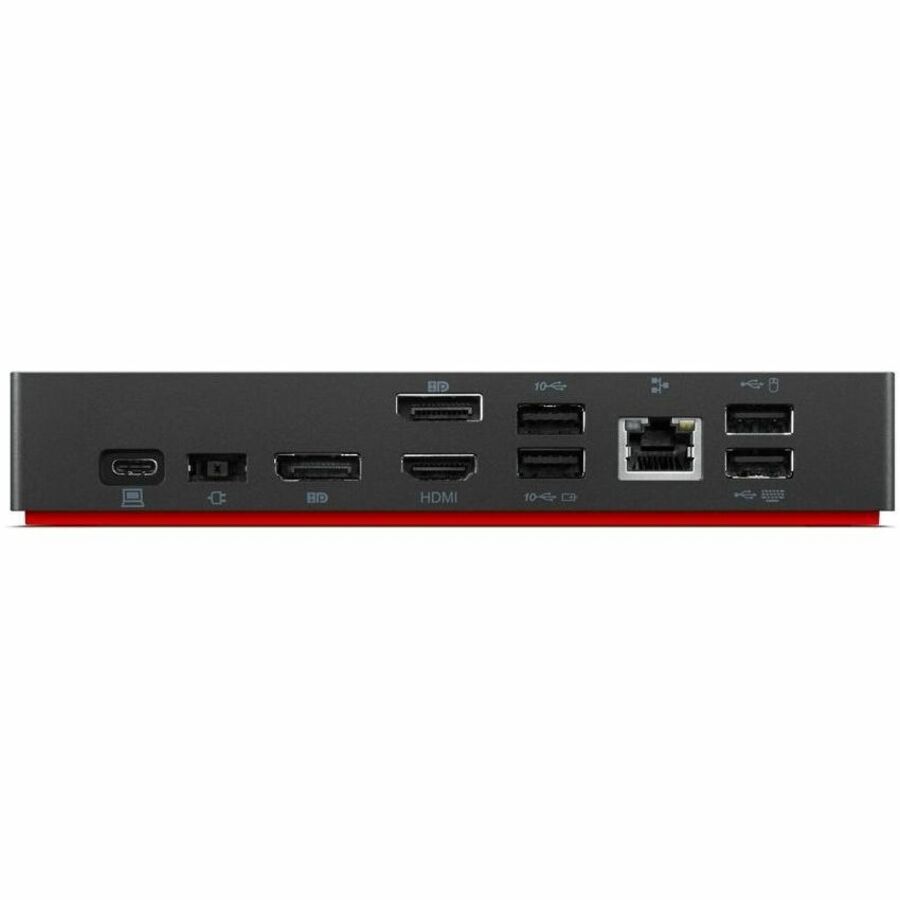

Interfaces/Ports
- Host Interface: USB Type C
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Gen 2 Type-A Ports: 3
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C 3.2 Gen 2
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 1
- HDMI: Yes
- USB Power Delivery: 100W
Power Description
- Maximum Power Supply Wattage: 135 W
Physical Characteristics
- Product Color: Black
- Form Factor: Desktop
- Height: 1.21"
- Depth: 3.15"
- Weight (Approximate): 13.69 oz
Miscellaneous

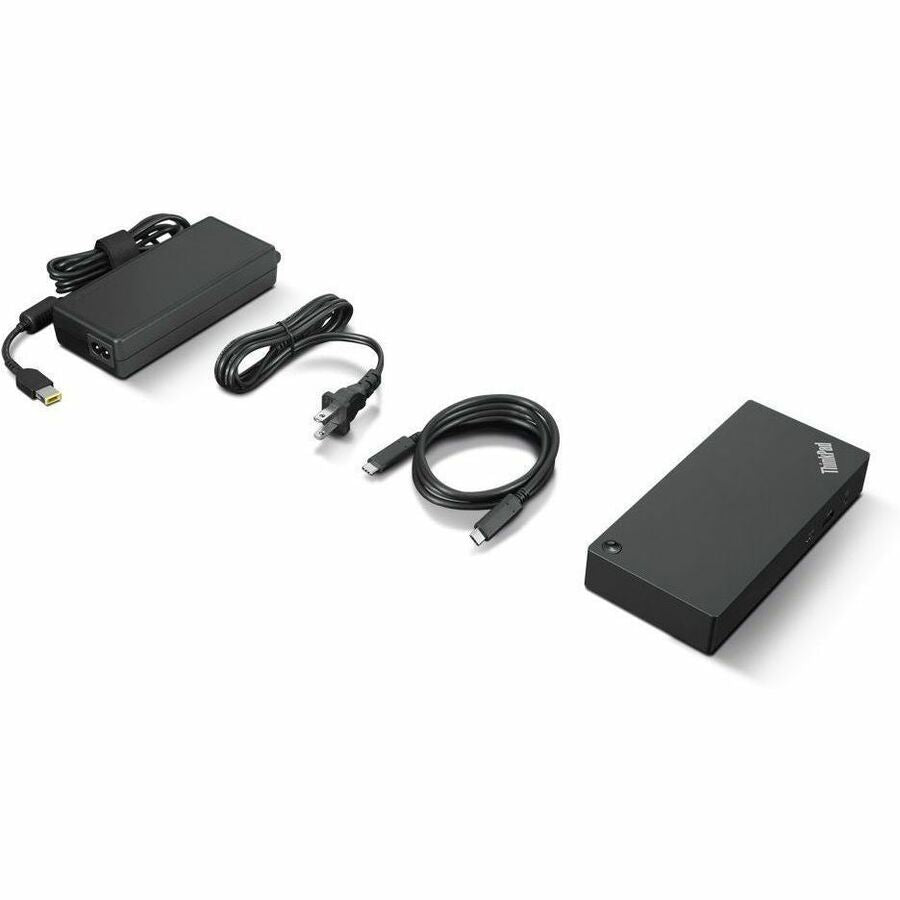

- Package Contents:
- ThinkPad Docking Station
- 135W Power Adapter
Warranty
- Limited Warranty: 3 Year
