Lenovo ThinkPad Hybrid USB-C - 40AF0135US
Key Features
- 6 USB ports allows quick transmission of data at a higher rate for your convenience
- AC power source type for your docking station provides maximum energy feasibility and added surveillance productivity
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Notebook device supported for your convenience and better usability
- USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Product Overview

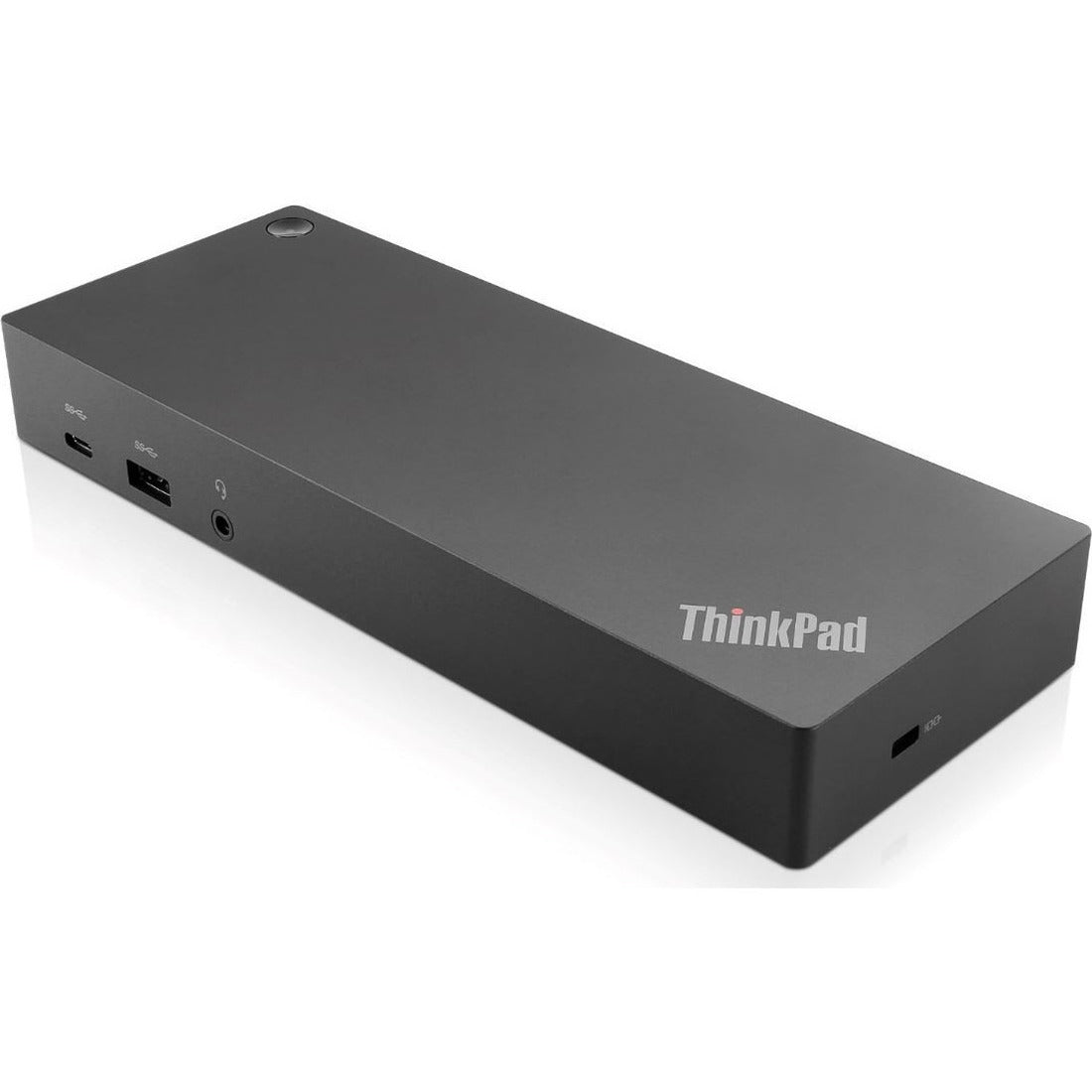

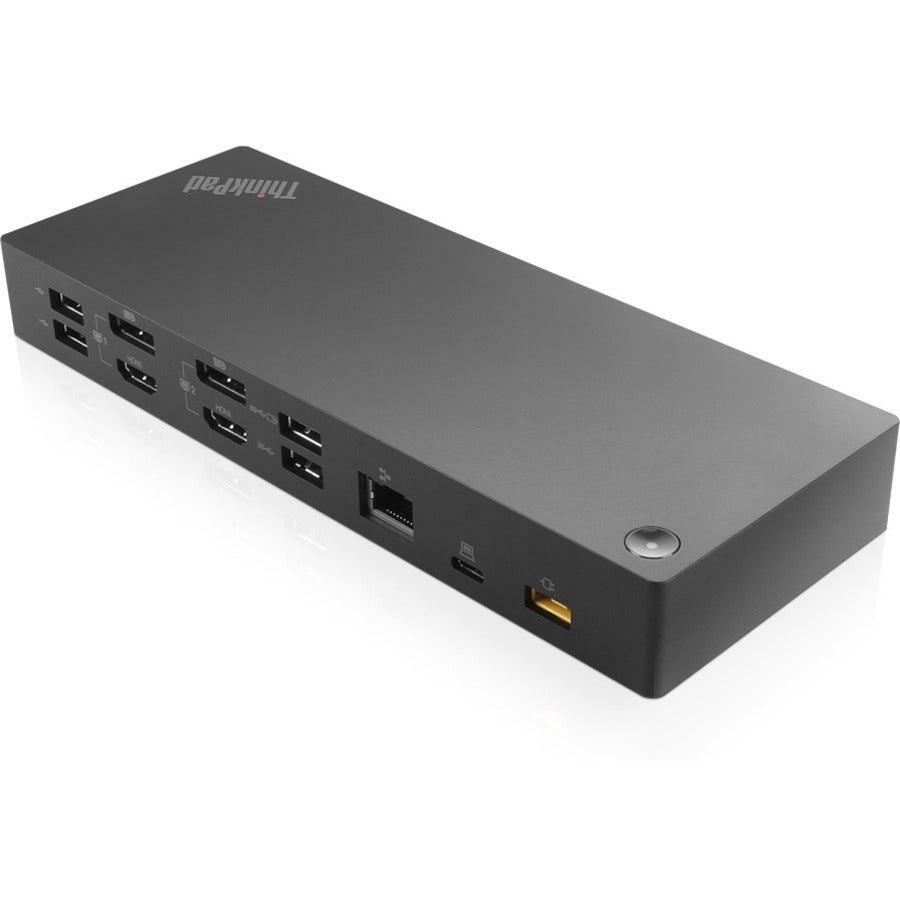

The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability, like PXE boot and MAC address pass-through, the ThinkPad Hybrid USB-C with USB-A docking station offers three high-speed USB 3.1 ports and includes a USB-C to USB-A adapter to provide port replication to non-Lenovo or USB-C laptop computers. This ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging for ThinkPad notebooks.Key Details
- Enterprise-class capabilities with PXE boot, Wake-On-Lan, and MAC address pass-through
- Supports ThinkPad RapidCharge
- Connects with up to dual UHD 4K display with DP and HDMI ports
- Delivers up to 10Gbps data transfer speed on 3 x USB 3.1 ports
General Information
- Manufacturer: Lenovo Group Limited
- Manufacturer Part Number: 40AF0135US
- Brand Name: Lenovo
- Product Line: ThinkPad
- Product Model: 40AF
- Product Name: ThinkPad Hybrid USB-C
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions:
- 3840 x 2160
- 5120 x 2880
- Screen Mode Supported:
- 4K
- UHD
- Device Supported:
- Notebook
- Tablet
Network & Communication
- Ethernet Technology: Gigabit Ethernet

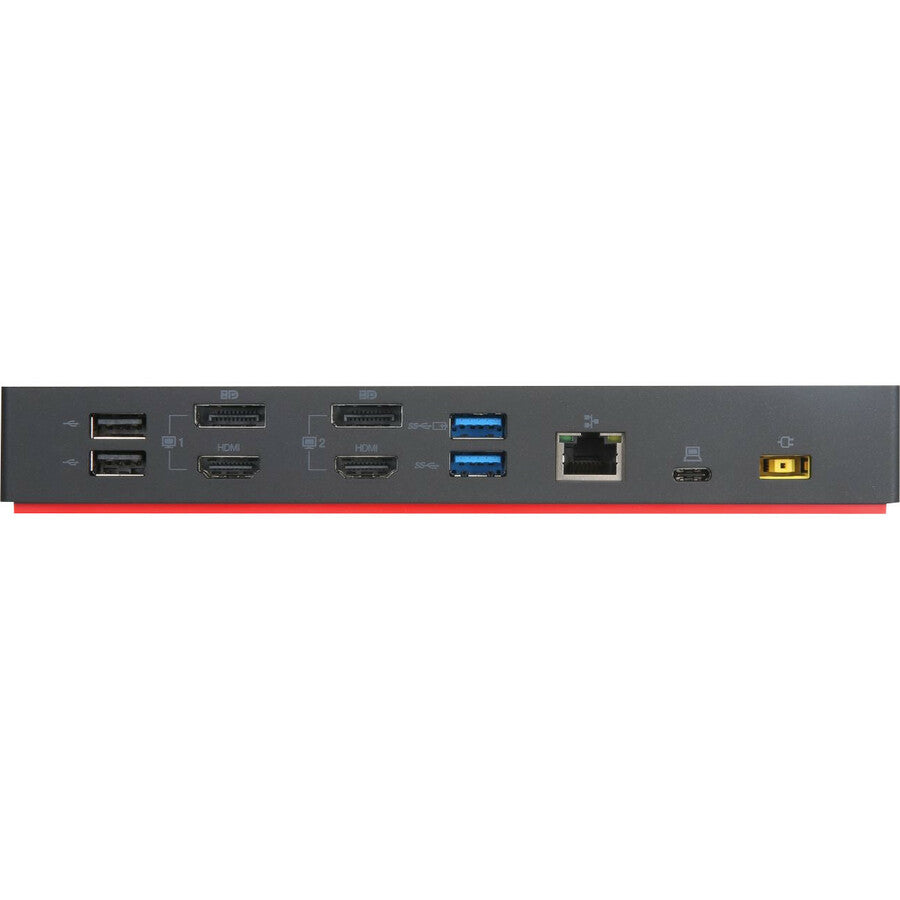

Interfaces/Ports
- Host Interface: USB Type C
- Audio Line Out: Yes
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Gen 1 Type-A Ports: 3
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C (Data, 5V/3A power)
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- DisplayPort Version: 1.2
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 2
- HDMI: Yes
Software
- Operating System Supported:
- Windows 7
- Windows 10
- Windows 11
Power Description
- Maximum Power Supply Wattage: 135 W
Physical Characteristics
- Product Color: Black
- Height: 1.18"
- Width: 8.27"
- Depth: 3.15"
- Weight (Approximate): 1.06 lb
Miscellaneous

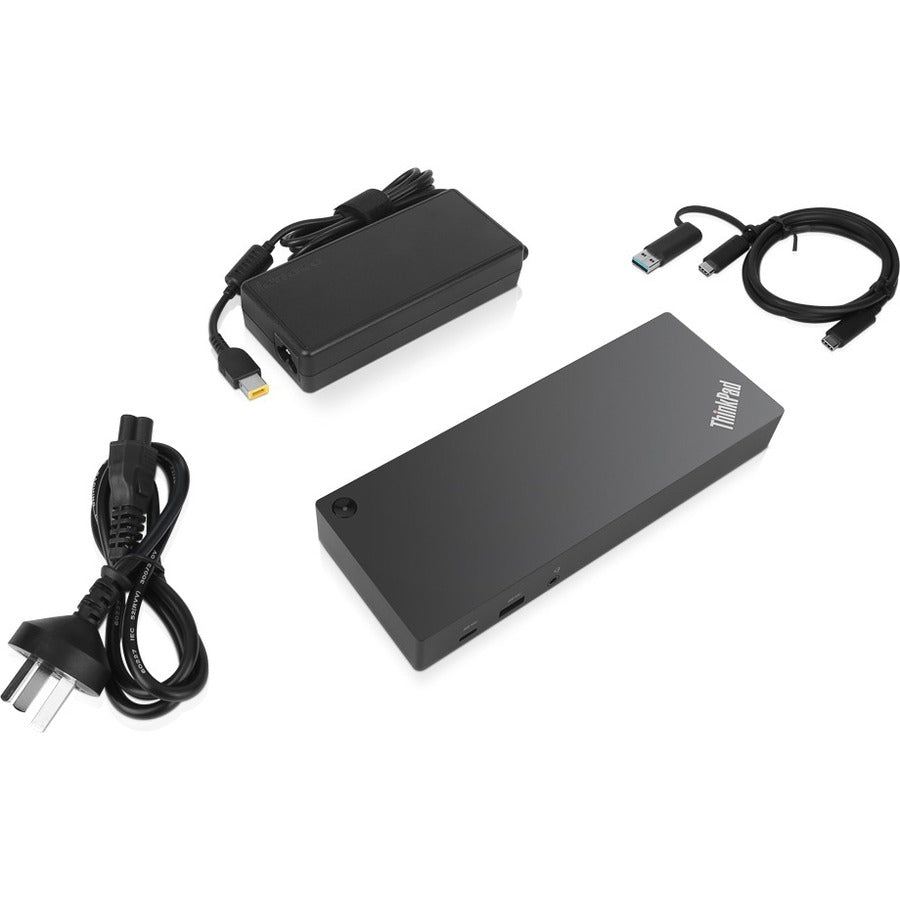

- Package Contents:
- ThinkPad Hybrid USB-C with USB-A Dock

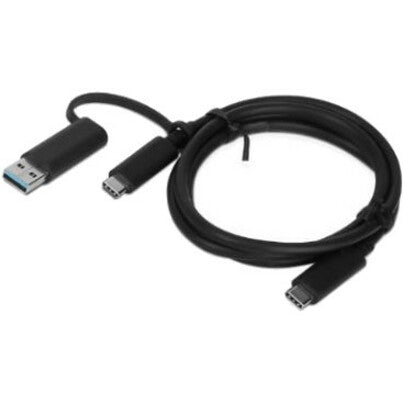

- USB-C cable (with USB-C to USB-A Dongle)
- ThinkPad 135W AC Adapter (Slim Tip)
- Power Cord
- Poster
- Compatibility:
Lenovo Products:
- E580
- E480
- E470
- L580
- L480
- L470
- L380
- L380 Yoga
- Tablet 10
- Miix 520-12IKB
- T580
- T570
- T480
- T480s
- T470
- T470s
- T460
- ThinkPad 25
- X1 Carbon Gen 6
- X1 Carbon Gen 5
- X1 Yoga Gen 3
- X1 Yoga Gen 2
- X1 Tablet Gen 3
- X1 Tablet Gen 2
- 13 Gen 3 Windows
- X280
- X270
- X260
- Environmentally Friendly: Yes
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
