Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock - 40B10135US
Key Features
- Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a connected PC, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity
- One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4, and 10 Gbps via USB-A, and power delivery up to 100W, you can expand the potential of your workspace with ease
- Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility in a Multi-OS environment
Product Overview
A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.
Features include:
- One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4,
and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can drastically expand the potential of your workspace with ease. - Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
- Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity.
General Information
- Manufacturer: Lenovo Group Limited
- Manufacturer Part Number: 40B10135US
- Brand Name: Lenovo
- Product Name: ThinkPad Universal Thunderbolt 4 Smart Dock
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 4
- Supported Resolutions:
- 3840 x 2160
- 7680 x 4320
- Screen Mode Supported:
- 4K
- 8K
- Device Supported:
- Notebook
- Desktop PC
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface:
- USB Type C
- Thunderbolt 4
- Total Number of USB Ports: 5
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPort Outputs: 2
- DisplayPort: Yes
- DisplayPort Version: 1.4
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 1
- Number of HDMI Outputs: 1
- HDMI: Yes
- Thunderbolt: Yes
- Thunderbolt Ports Quantity: 2
Software
- Operating System Supported: Windows
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color:
- Black
- Red
- Height: 1.18"
- Depth: 3.15"
- Weight (Approximate): 1.01 lb
Miscellaneous

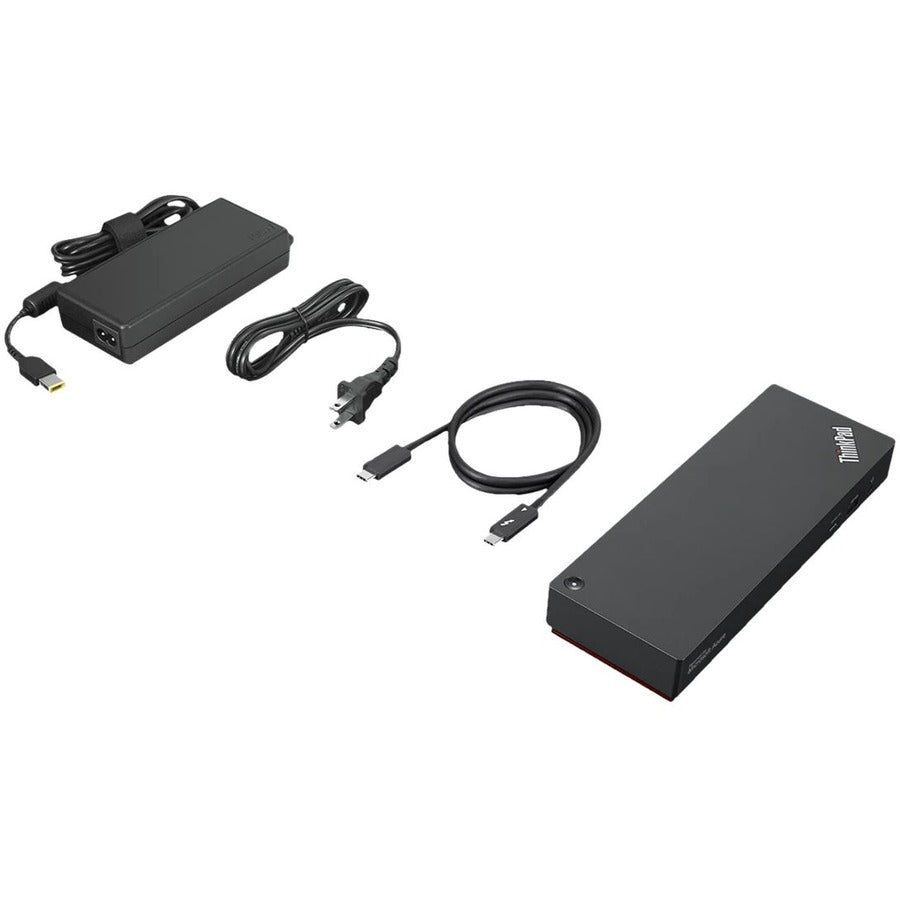

- Package Contents:
- ThinkPad Universal Thunderbolt 4 Smart Dock
- 135W Adapter
- 1 x Power Cable
- Standard Thunderbolt Cable
- Compatibility:
Lenovo ThinkPad Notebook
Warranty
- Limited Warranty: 3 Year
