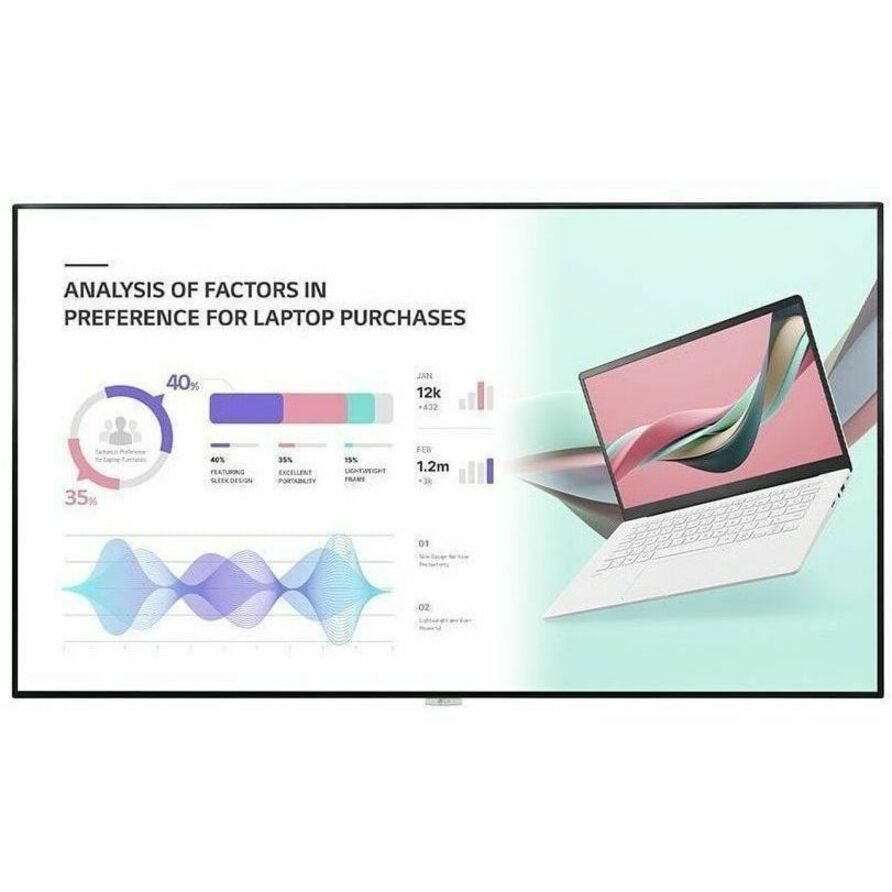

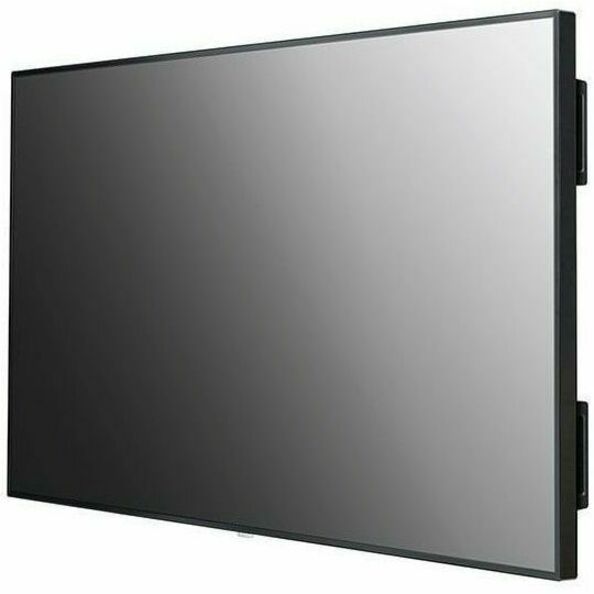

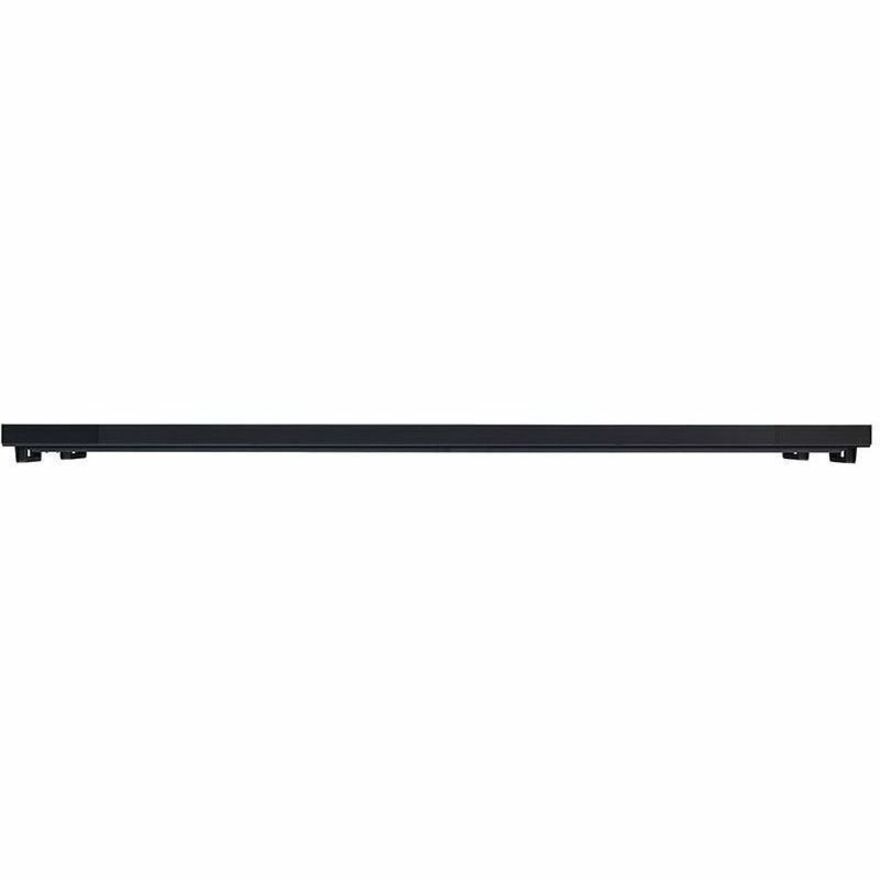

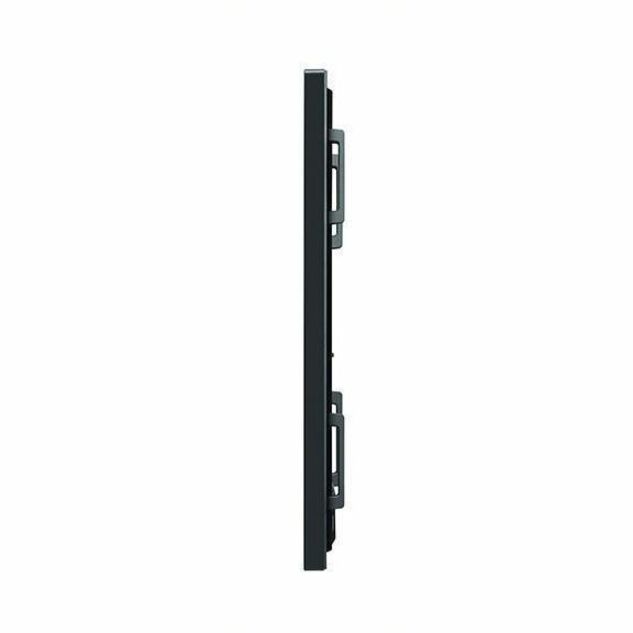

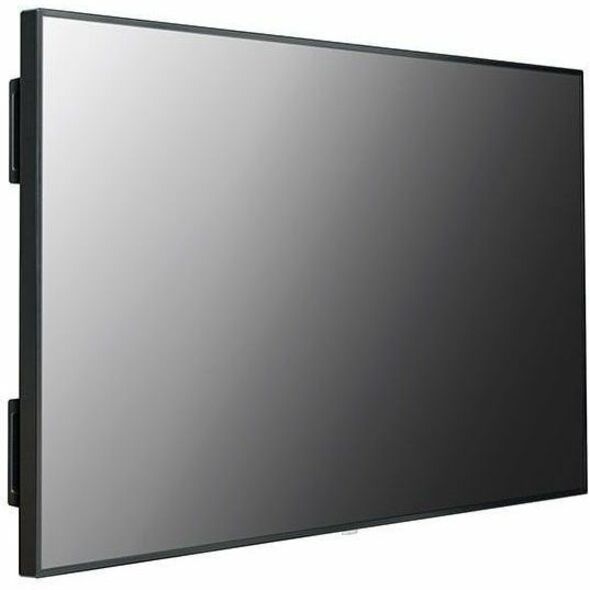

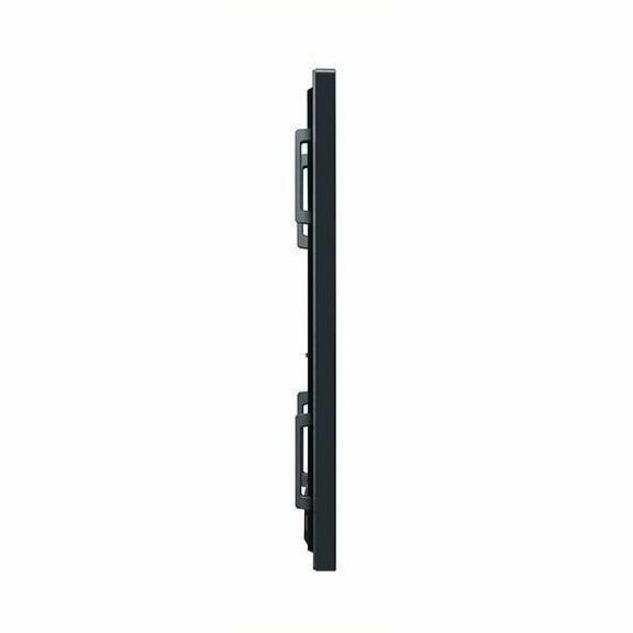

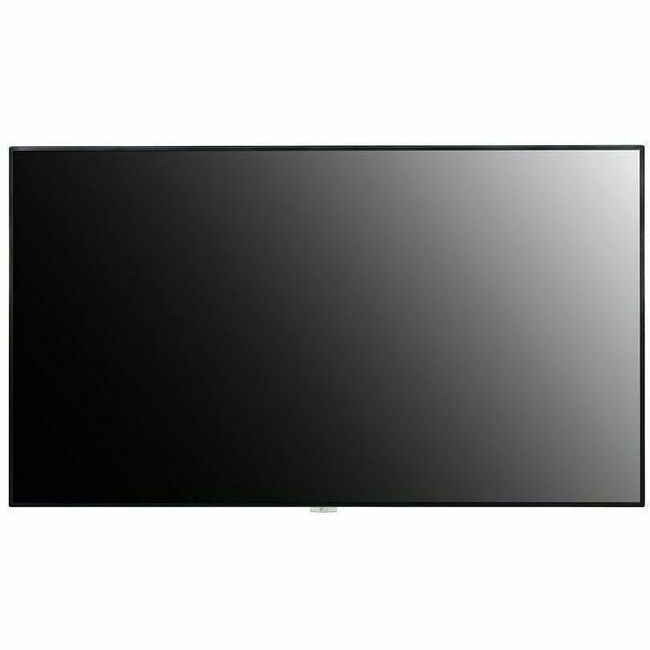

LG 98" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating - 98UH5J-H
Key Features
- 500 nits brightness & 28% (Haze) surface treatment lets your message been seen
- Certified Crestron Connected® and Cisco Certified
- ENERGY STAR® Certified
- Lasts up to 50,000 hours and can be on 24/7
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
Product Overview
New High Haze UHD Standard Signage | Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
General Information
- Manufacturer: LG Electronics
- Manufacturer Part Number: 98UH5JH
- Brand Name: LG
- Product Model: 98UH5J-H
- Product Name: 98" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating
- Product Type: Digital Signage Display
Technical Information
- Panel Technology: In-plane Switching (IPS) Technology
- Operation Hours: 24 Hours/7 Days
- Maximum Heat Generation: 2233.6 kJ
- On Screen Display (OSD) Languages:
- Arabic
- Chinese
- Czech
- Danish
- Dutch
- English
- Finnish
- French
- German
- Greek
- Italian
- Japanese
- Korean
- Norwegian
- Brazilian Portuguese
- Portuguese (Europe)
- Russian
- Simplified Chinese
- Spanish
- Swedish
- Turkish
Display & Graphics
- Viewable Screen Size: 98"
- Multi-touch Screen: No
- Response Time: 8 ms
- Display Resolution: 3840 x 2160
- Orientation: Landscape/Portrait
- Aspect Ratio: 16:9
- Maximum LED Life: 5.7 Year
Audio
- Speakers: No
Video
- Native Contrast Ratio: 1,200:1
- Dynamic Contrast Ratio: 100,000,0:1
- Brightness: 500 Nit
- Color Gamut: 95% BT.709
Network & Communication
- Wireless LAN: Yes
- Bluetooth: No
Interfaces/Ports
- HDMI: Yes
- Audio Line Out: Yes
- Number of USB 2.0 Ports: 1
- Number of HDMI Inputs: 3
- Number of HDMI Outputs: 1
- DisplayPort Output: No
- RS-232C Input: Yes
- RS-232C Output: Yes
- Number of Network (RJ-45) Ports: 1
- Number of Audio Line Out: 1
Software
- Operating System: webOS 6.0
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Off-Mode Power Consumption: 500 mW
Physical Characteristics
- Bezel Color: Black
- VESA Mount Standard: 800 x 400
- Height: 49.1"
- Width: 86.3"
- Depth: 3.4"
- Weight (Approximate): 145.50 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Operating Humidity: 10%
- Maximum Operating Humidity: 80%
Miscellaneous
- Package Contents:
- Remote Controller (include battery 2ea)
- Power Cord
- QSG
- Regulation Book
- Phone to RS232C Gender
- EYE Bolt
- Energy Star: No
- Environmentally Friendly: Yes
- Environmental Certification: ErP
- Energy Efficiency Compliance: Energy-related Products Directive (ErP)
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
