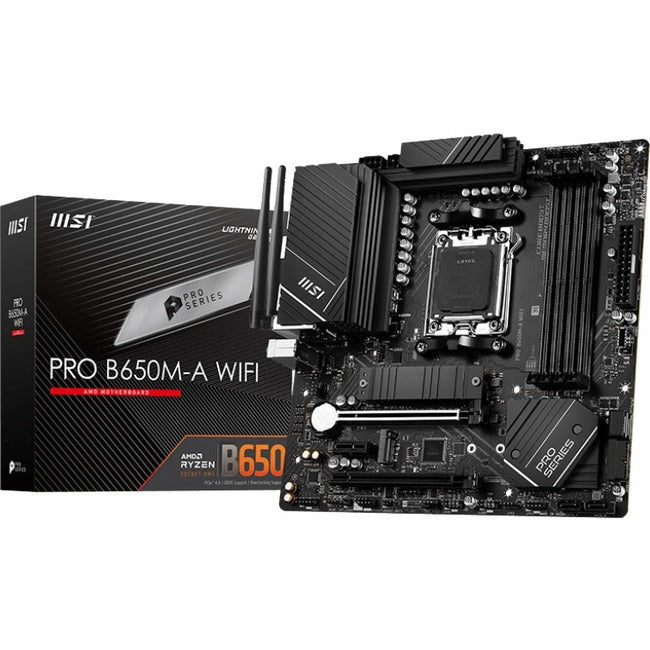

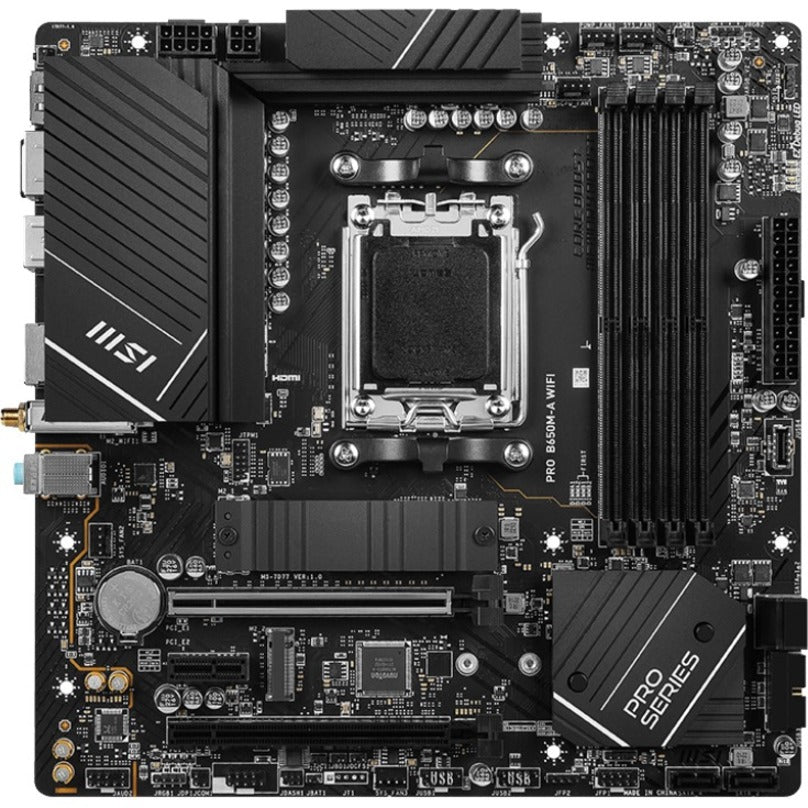

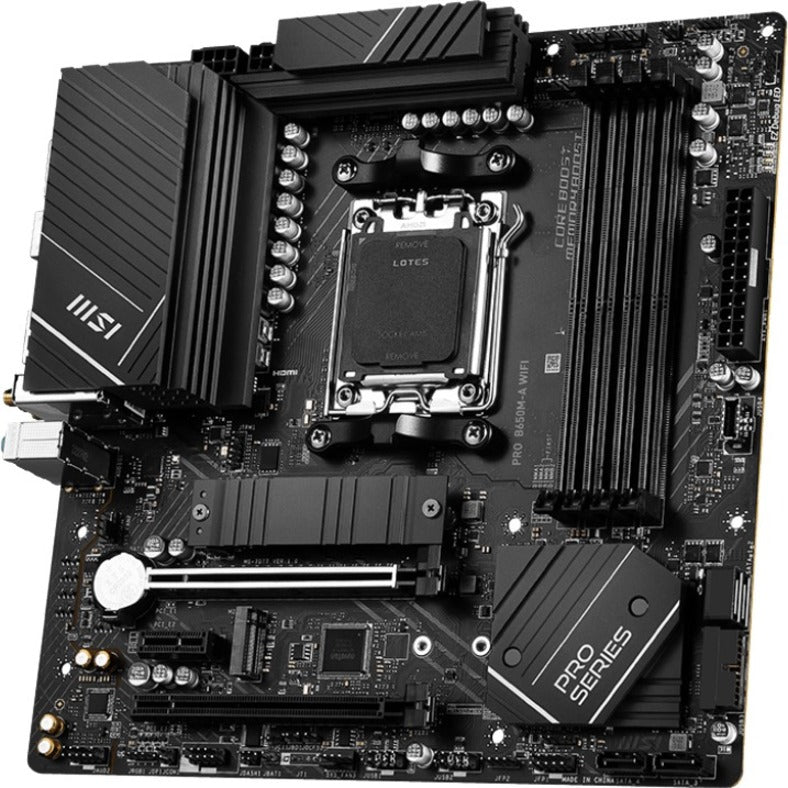

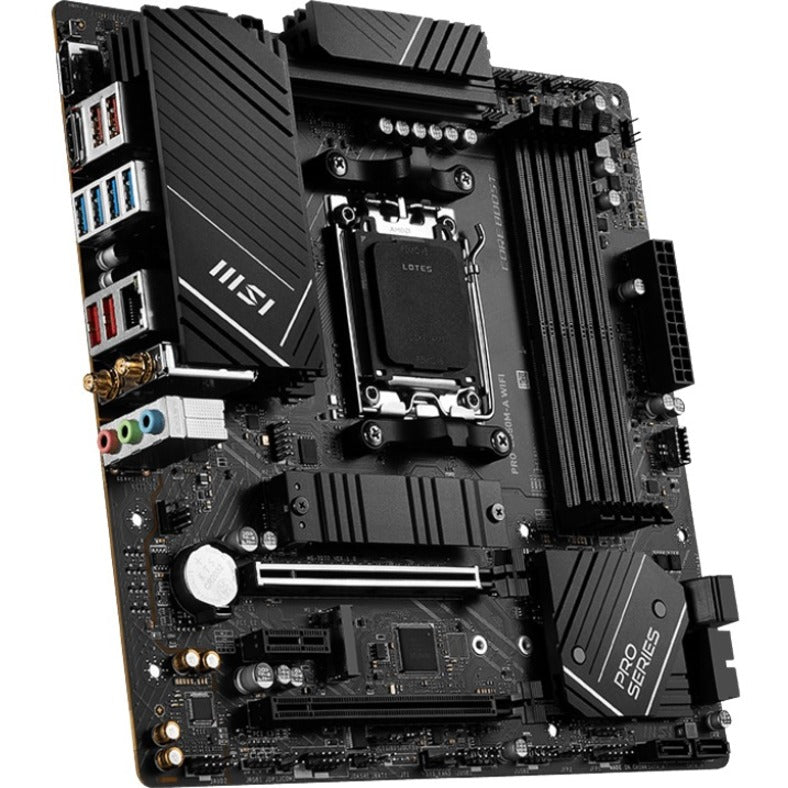

MSI B650M-A WIFI Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - B650MAWIFI
Key Features
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- EZ Debug LED: Easiest way to troubleshoot.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Product Overview
PRO B650M-A WIFI
PRO B650M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: B650MAWIFI
- Brand Name: MSI
- Product Series: PRO
- Product Model: B650M-A WIFI
- Product Name: PRO B650M-A WIFI Desktop Motherboard
- Product Type: Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B650
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 5
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- UDIMM
- DIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- 4000 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.3
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

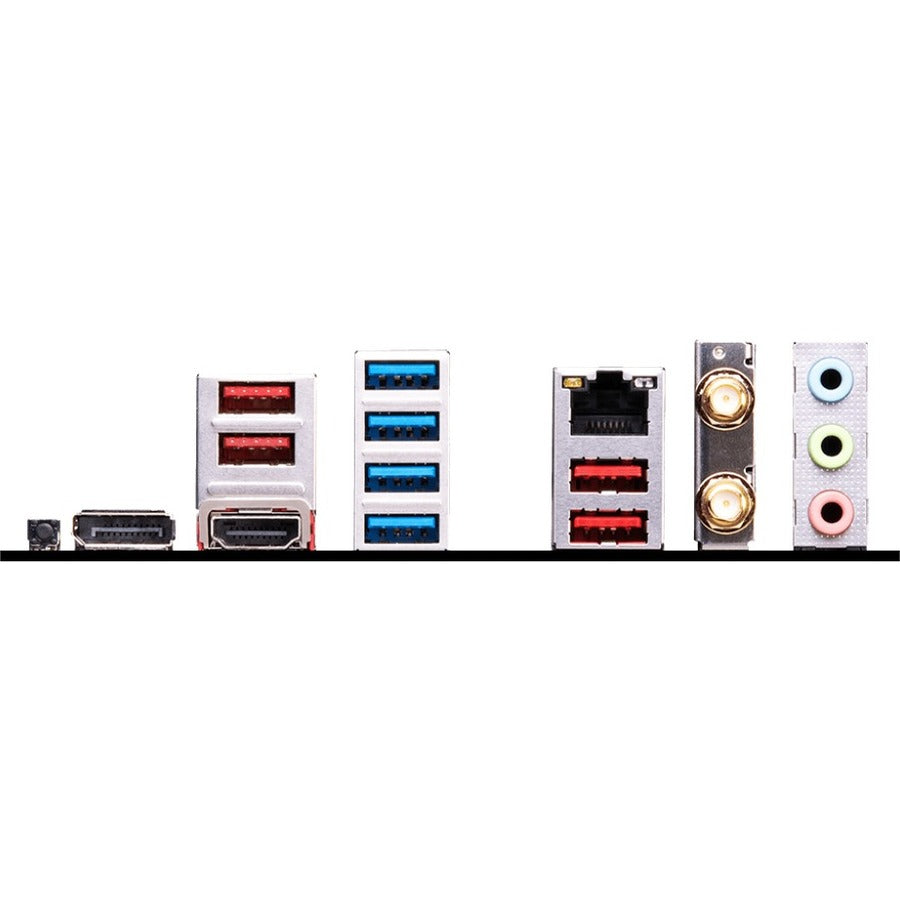

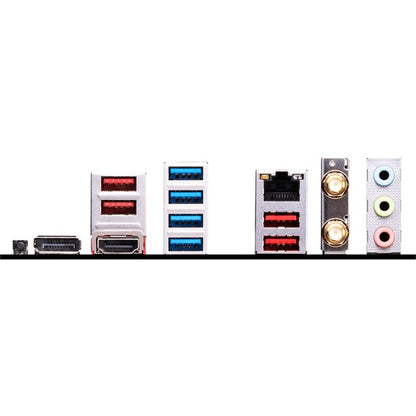

Interfaces/Ports
- Total Number of USB Ports: 8
- Number of USB 3.2 Gen 1 Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 4
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
- Number of Onboard USB 3.2 Ports: 3
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- PRO B650M-A WIFI Desktop Motherboard
- European Union Regulatory Notice
- Quick Installation Guide
- 2 x M.2 Screw / Standoff Sets
- Wi-Fi Antenna
- SATA Cable
- I/O Shiled
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
