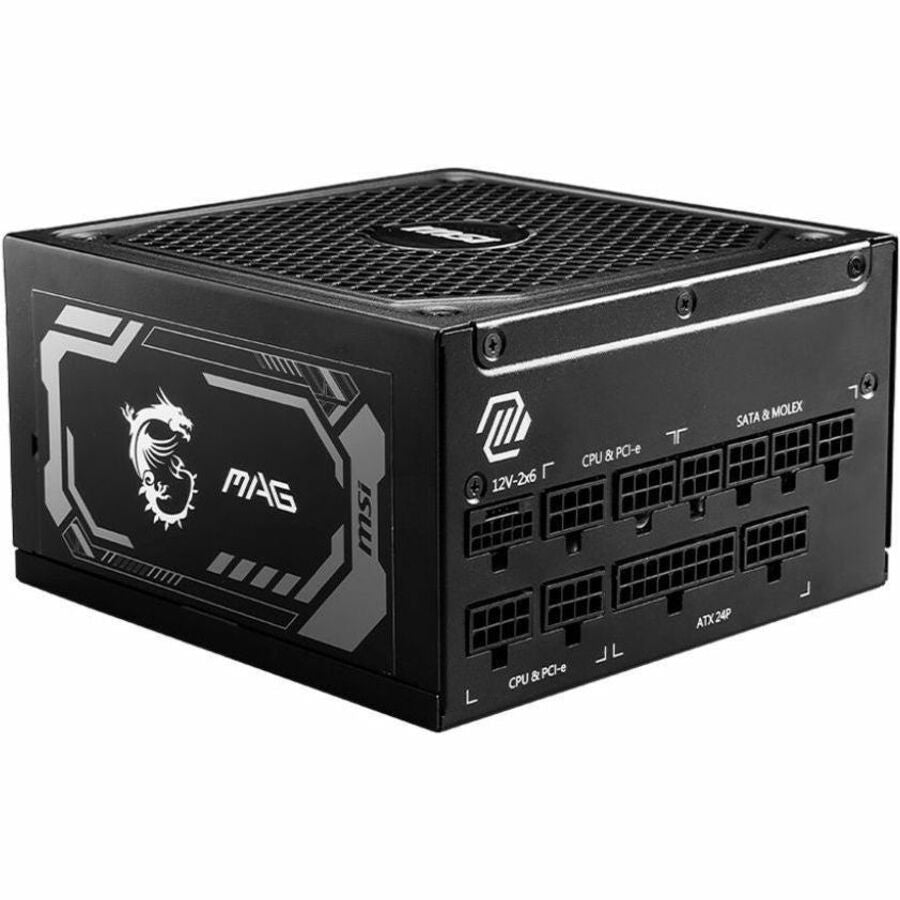

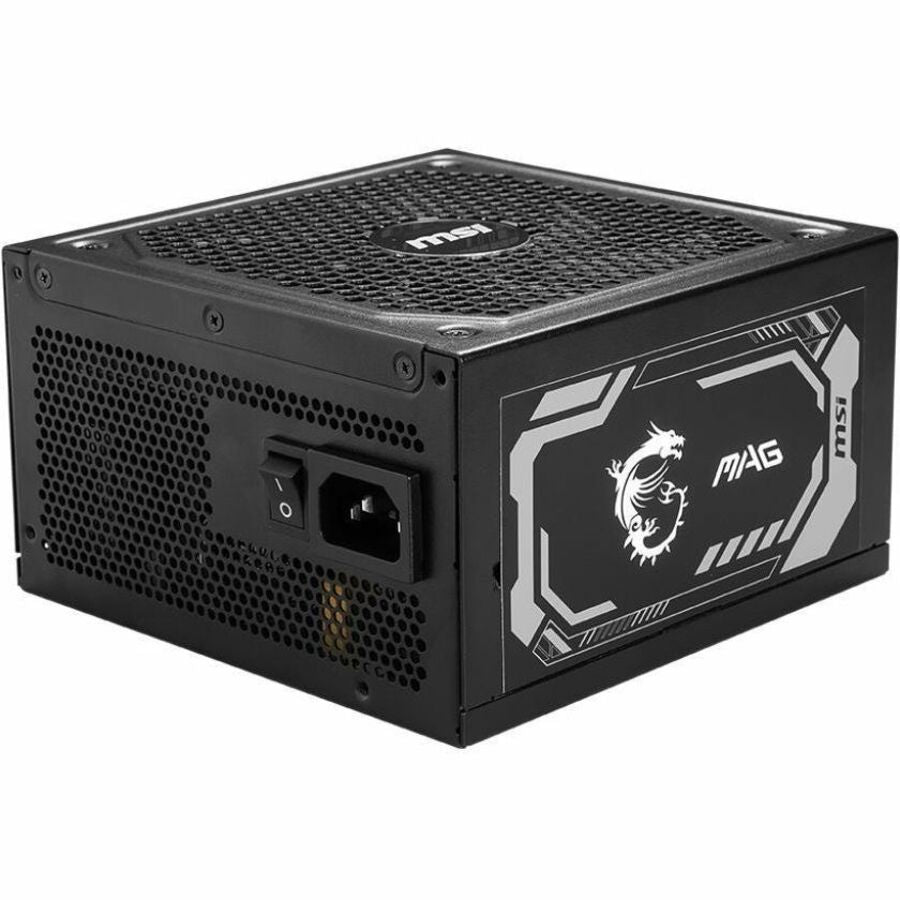

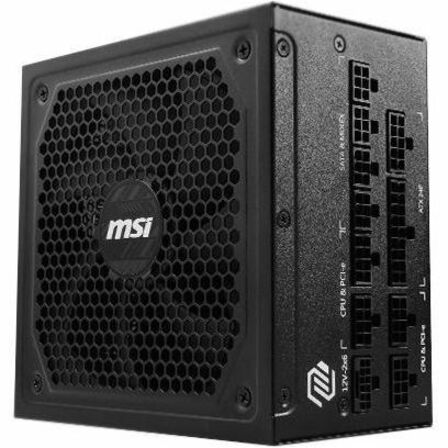

MSI MAG 1000W Power Supply - MAGA1000GLPCIE5
Key Features
- 135 mm fluid dynamic bearing fan
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Fully modular design, flat cables
- LLC full bridge topology with DC-to-DC module design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP
- Supports NVIDIA® GeForce RTX™ 40 series graphics cards
Product Overview
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.1 READY
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

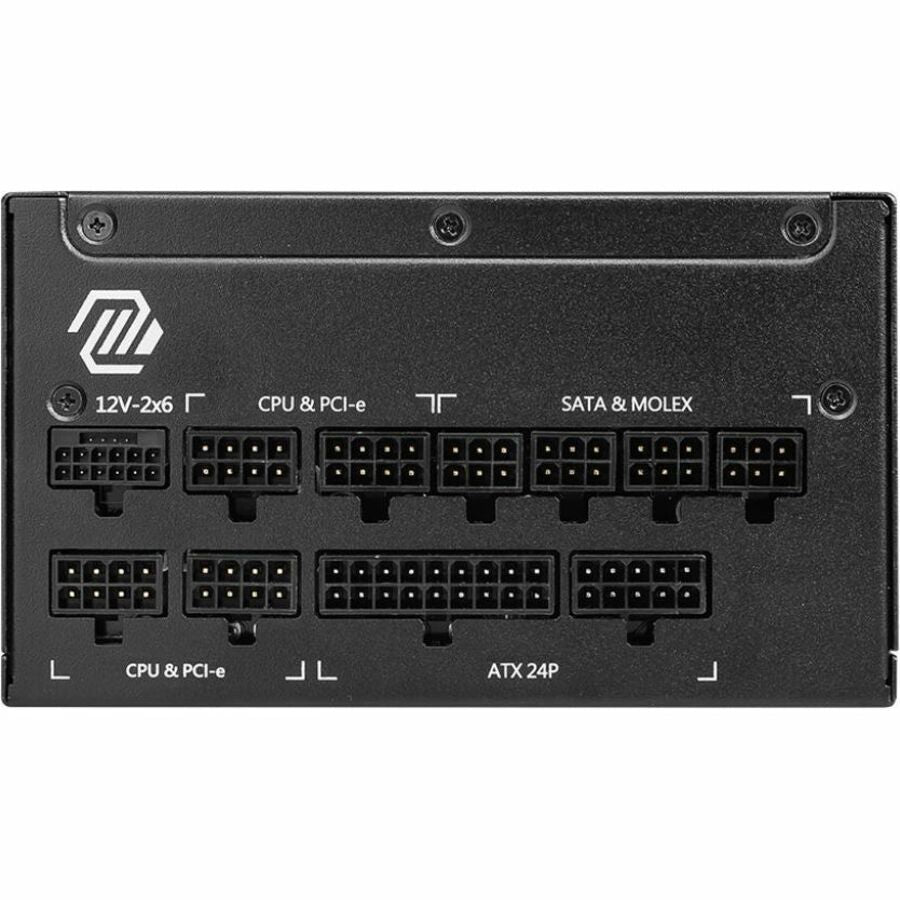

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

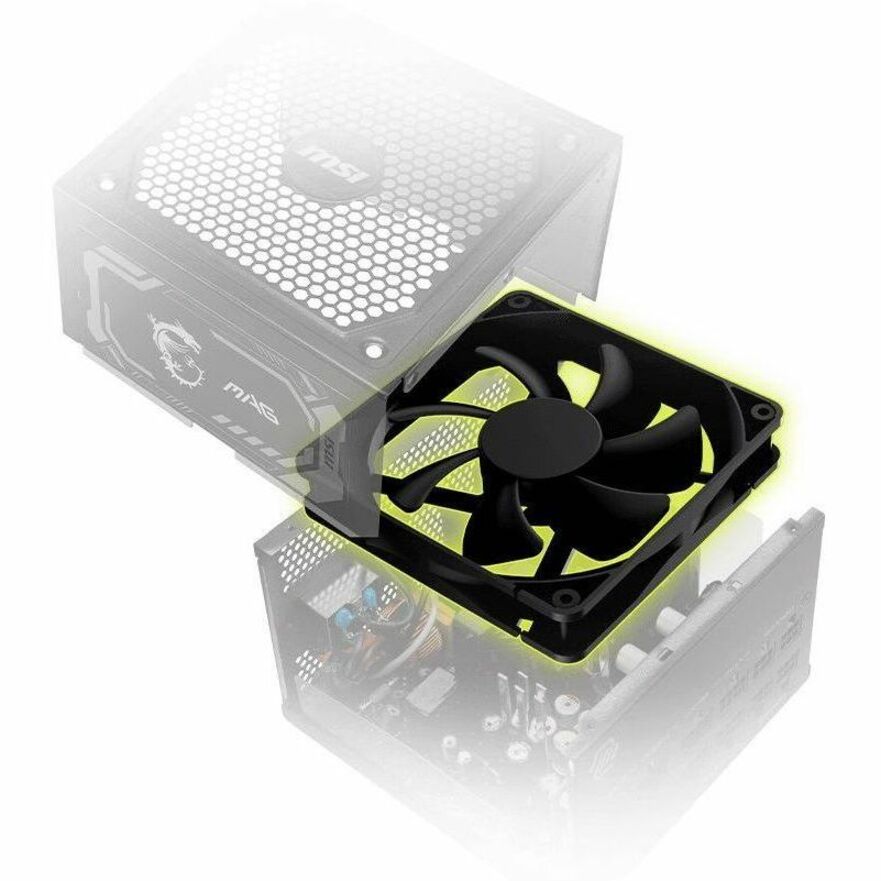

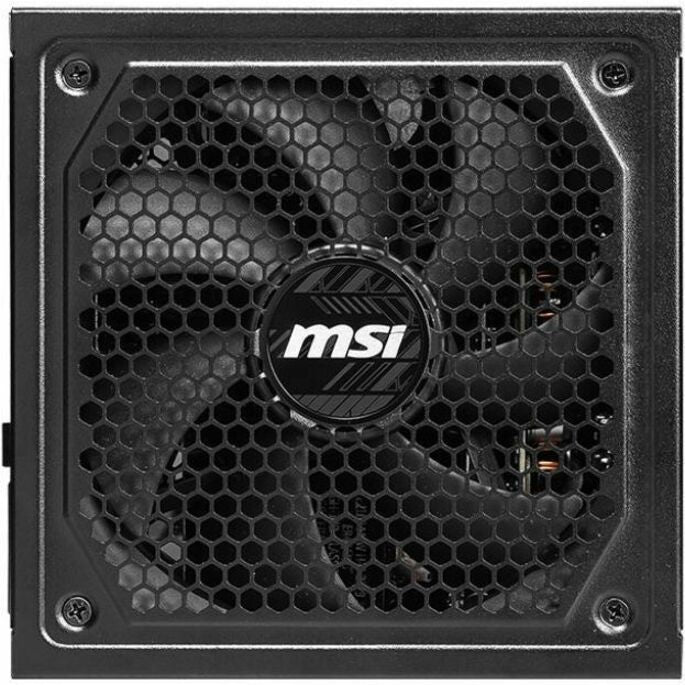

FLUID DYNAMIC BEARING
The power supply's fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.
FULL BRIDGE LLC + SR + DC/DC
A full-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGA1000GLPCIE5
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 1000W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Fluid Dynamic Bearing
- Protection Type:
- Over Current
- Over Temperature
- Over Voltage
- Over Power
- Short Circuit
- Under Voltage
- Modular: Yes
- NVIDIA SLI Supported: Yes
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 22 A
- 3.3 V DC @ 22 A
- -12 V DC @ 0.3 A
- 5 V DC @ 3 A
- 12 V DC @ 83.3 A
- Output Current:
- 22 A
- 300 mA
- 3 A
- 83.30 A
- Output Power: 1000 W
Physical Characteristics
- Form Factor: Internal
- Height: 5.9"
- Width: 5.9"
- Depth: 3.4"
Miscellaneous
- Package Contents:
- MAG 1000W Power Supply
- Cable Pack
- Environmentally Friendly: Yes
- Energy Efficiency Certification: 80 Plus Gold
Warranty
- Limited Warranty: 10 Year
