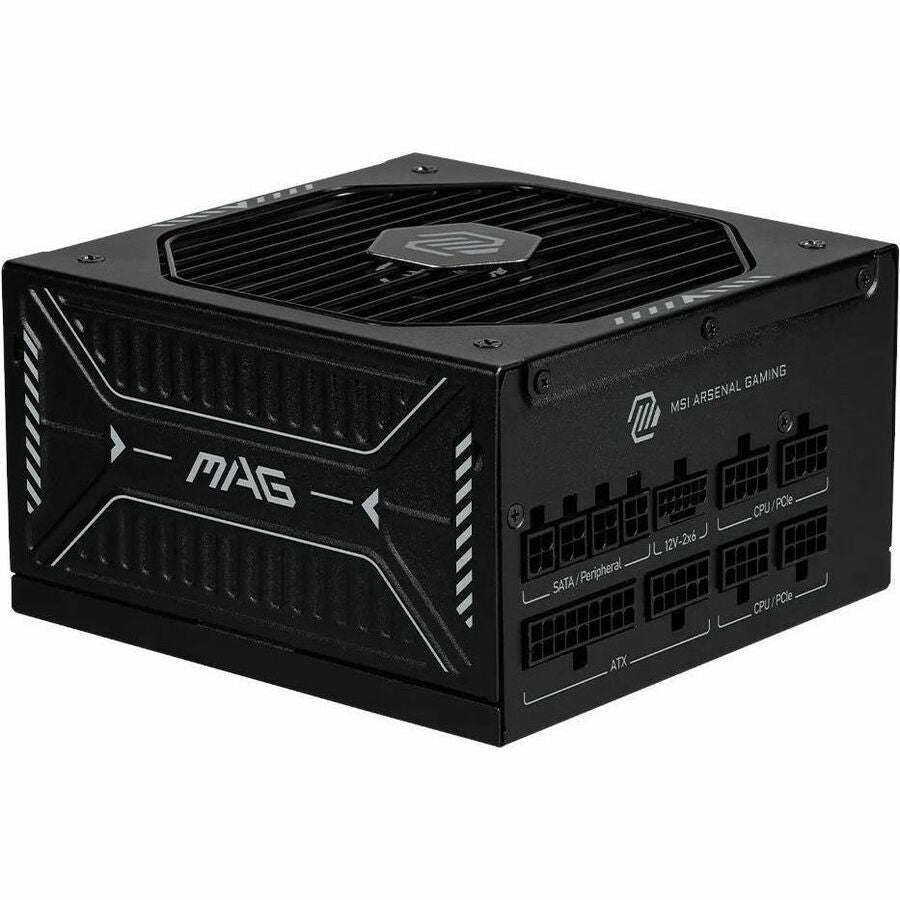

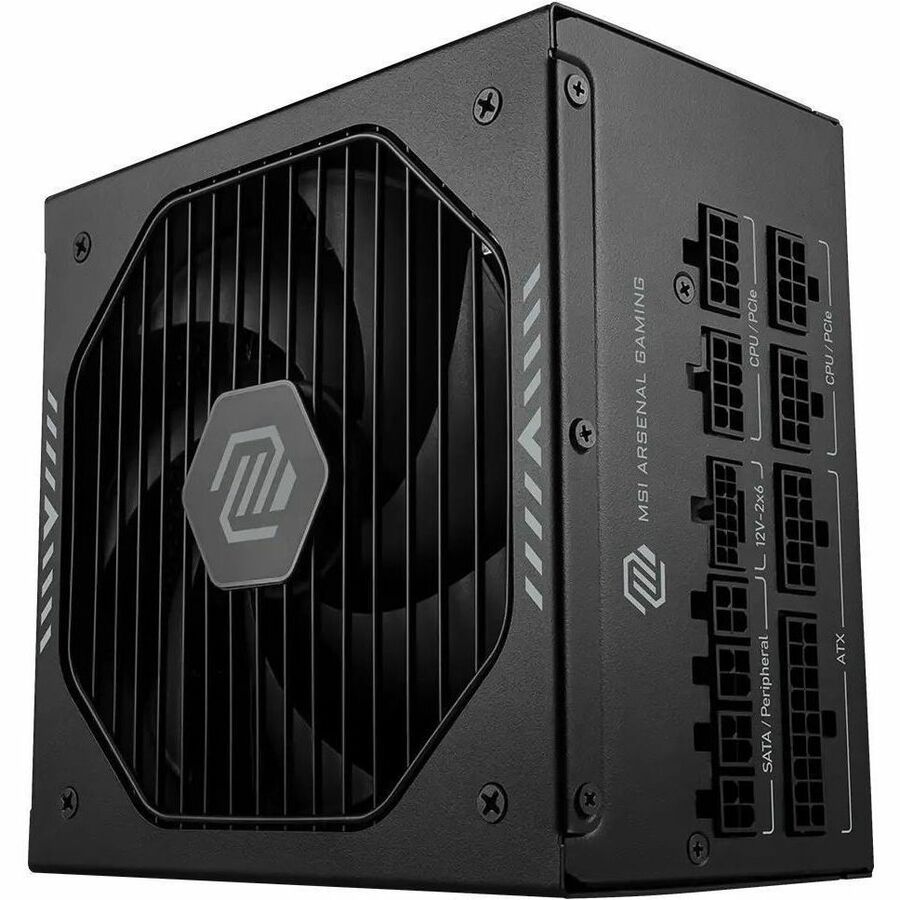

MSI MAG 1000W Power Supply - MAGA1000GLSPCIE5
Key Features
- 80 PLUS Gold certified
- Dual-color 12V-2x6 cable

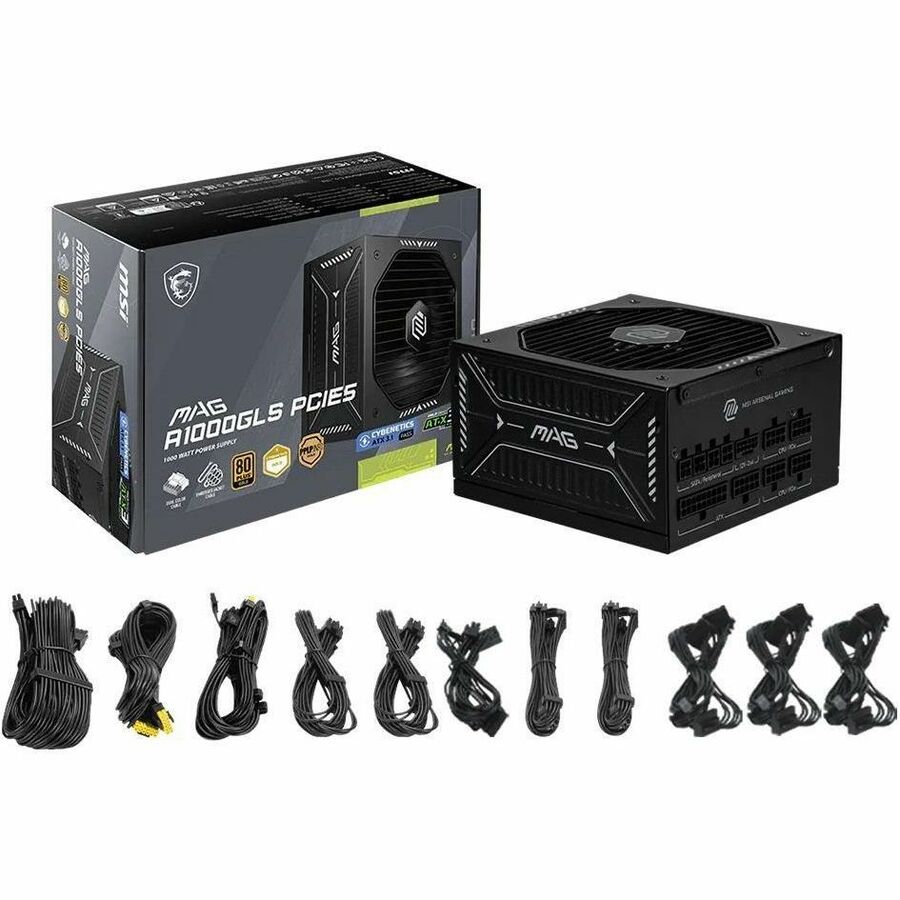

- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/OPP/ SCP/ OVP/ UVP/ SIP/ NLO
- Main 105oC capacitor
- Native 12V-2x6 connector
- Optimized the sound level
- Supports Nvidia GeForce RTXTM 50 series graphics cards
Product Overview
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA's 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
- NATIVE 12V-2x6 CONNECTOR
- 220% TOTAL POWER EXCURSION
- 80 PLUS GOLD
- DUAL COLOR 12V-2x6 CABLE
- 7 YEAR WARRANTY
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
PERFORMANCE | Midnight Sound Level
This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGA1000GLSPCIE5
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 1000W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active

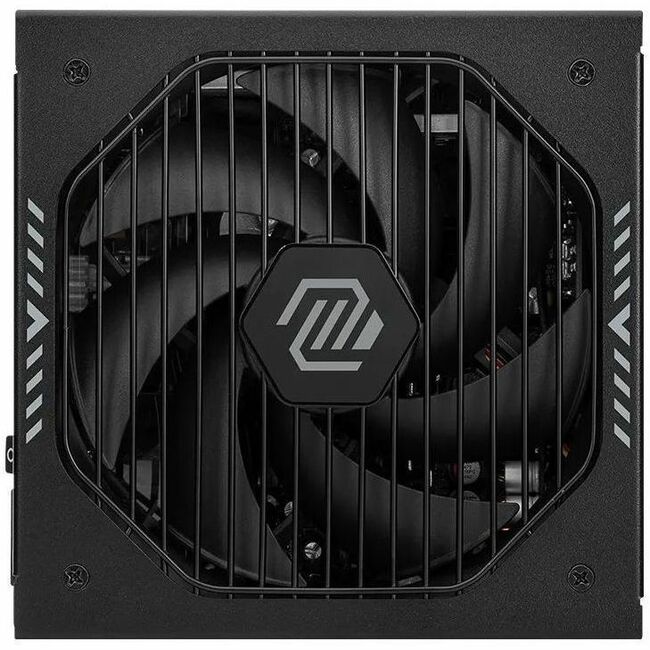

- Number of Fans: 1
- Fan Bearing Type: Fluid Dynamic Bearing
- Fan Diameter: 135 mm
- Protection Type:
- Over Current
- Over Temperature
- Over Power
- Short Circuit
- Over Voltage
- Under Voltage
- Surge & Inrush Protection
- No Load
- Modular: Yes
- Modular Type: Fully Modular
- Features:
- On/Off Switch
- Low Noise
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 20 A
- 3.3 V DC @ 20 A
- 12 V DC @ 83.3 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Current:
- 20 A
- 83.30 A
- 300 mA
- 3 A
- Output Power: 1000 W

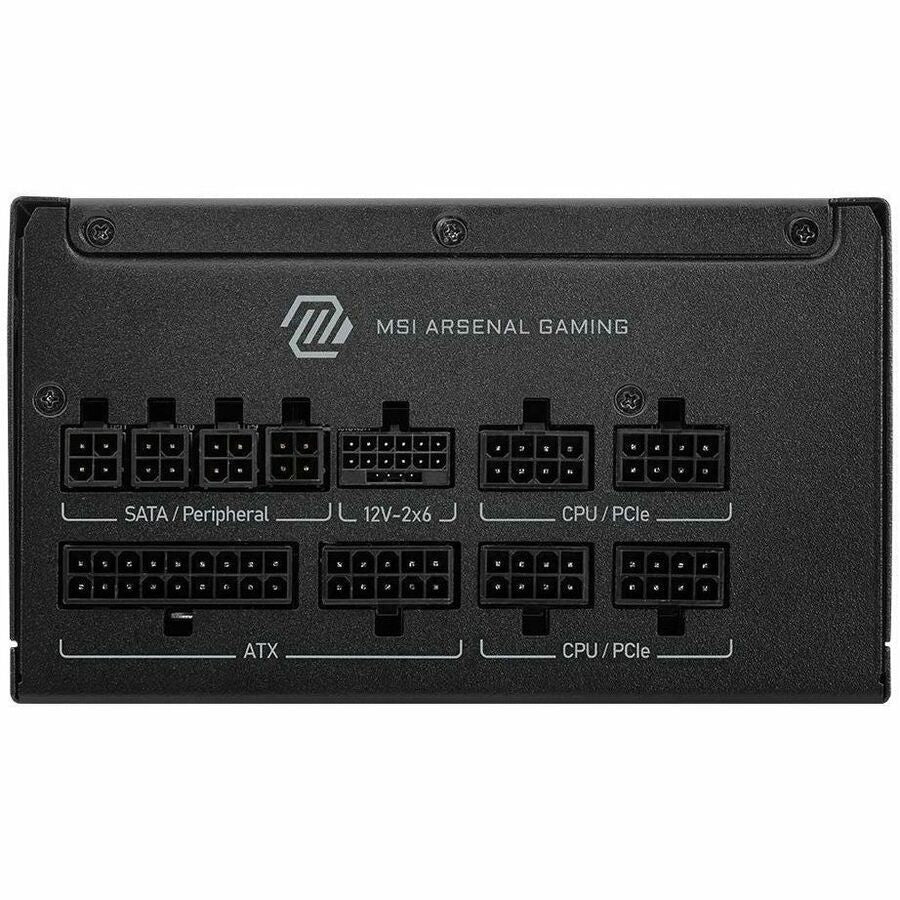

Interfaces/Ports
- Number of SATA Power Connectors: 11
- PCI Express Connector: Yes
- PCI Express Version: 5.1
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 2
- Number of 4-pin Molex Power Connectors: 4
Physical Characteristics
- Form Factor: Internal
- Height: 3.4"
- Width: 5.9"
- Depth: 5.9"
- Weight (Approximate): 7.54 lb
Miscellaneous
- Energy Efficiency Certification: 80 Plus Gold
Warranty
- Limited Warranty: 7 Year
