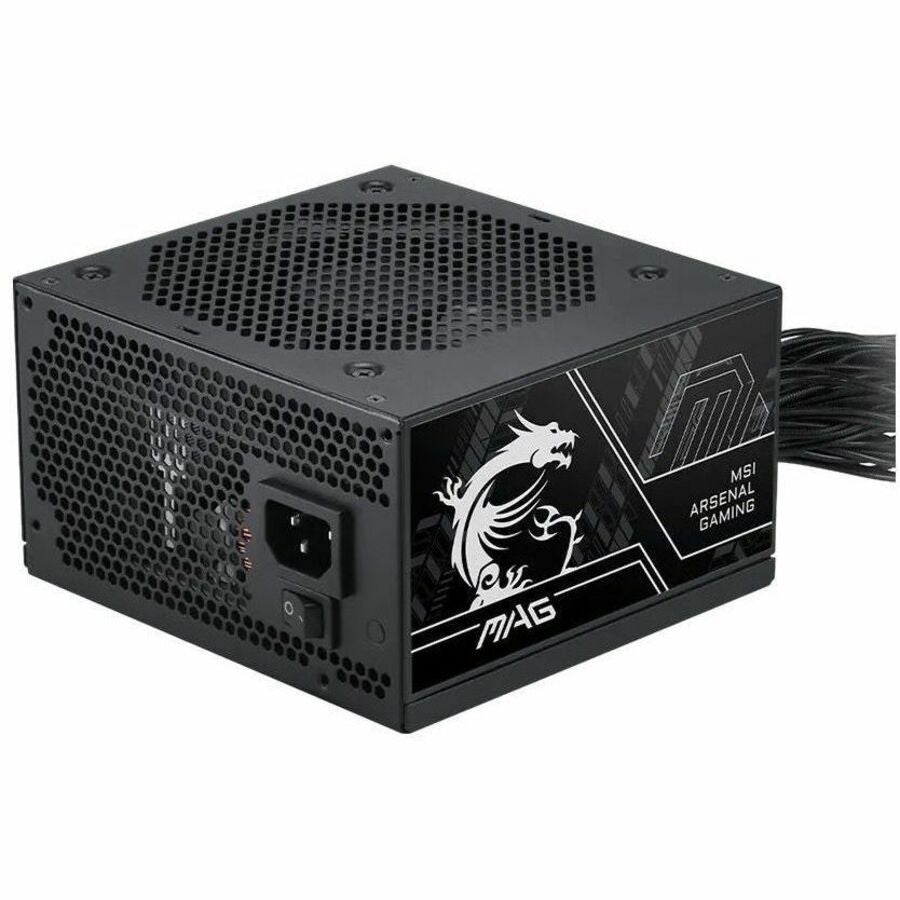

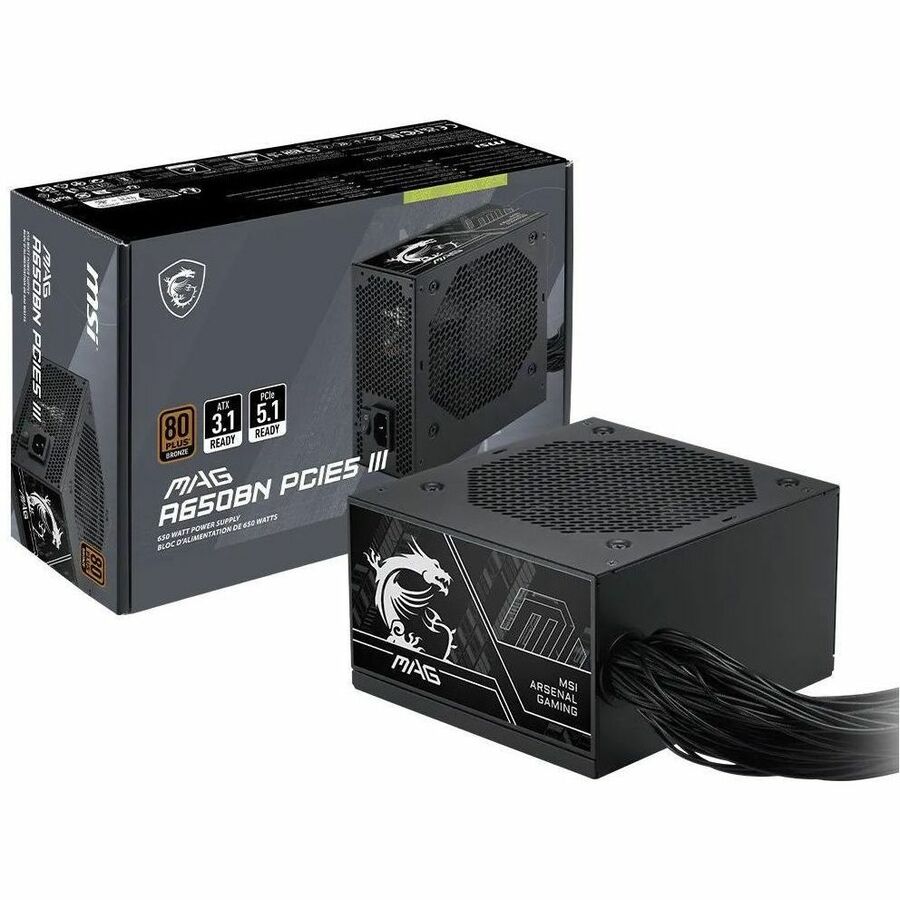

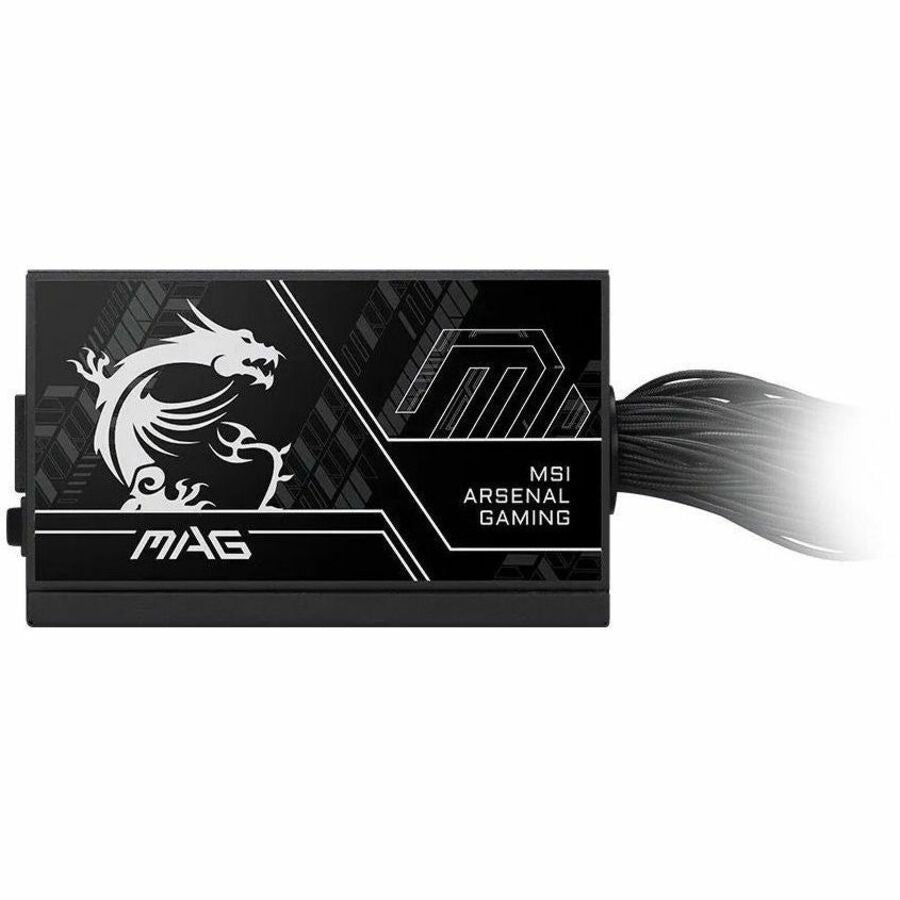

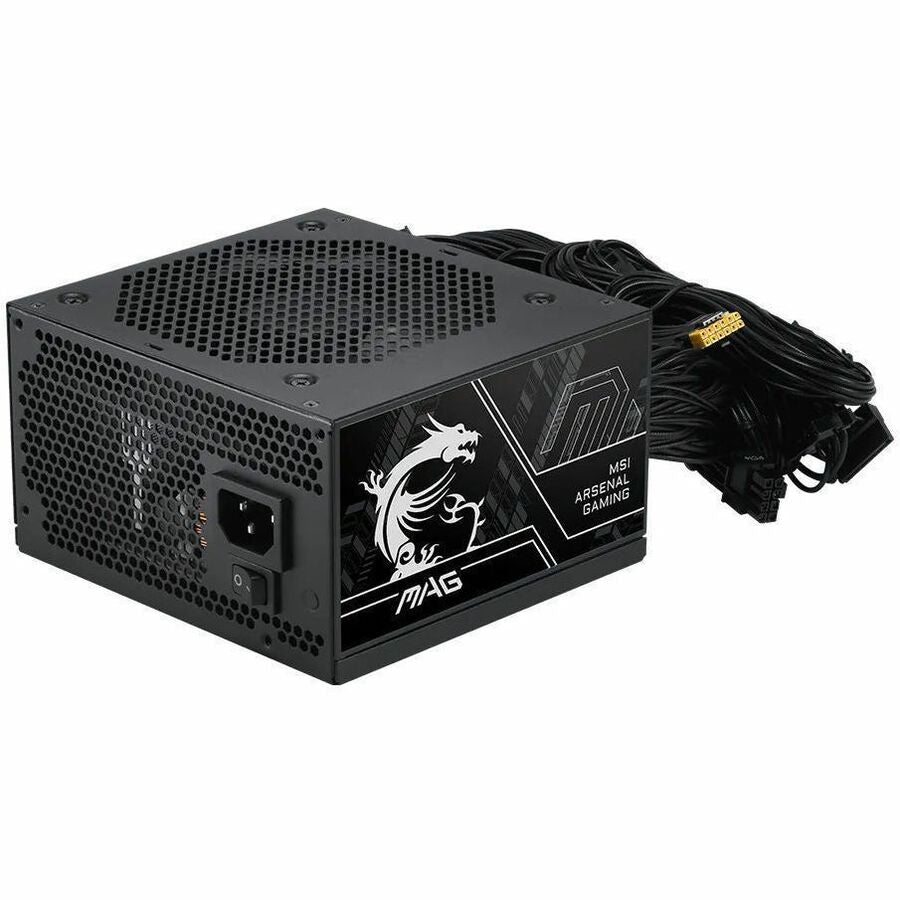

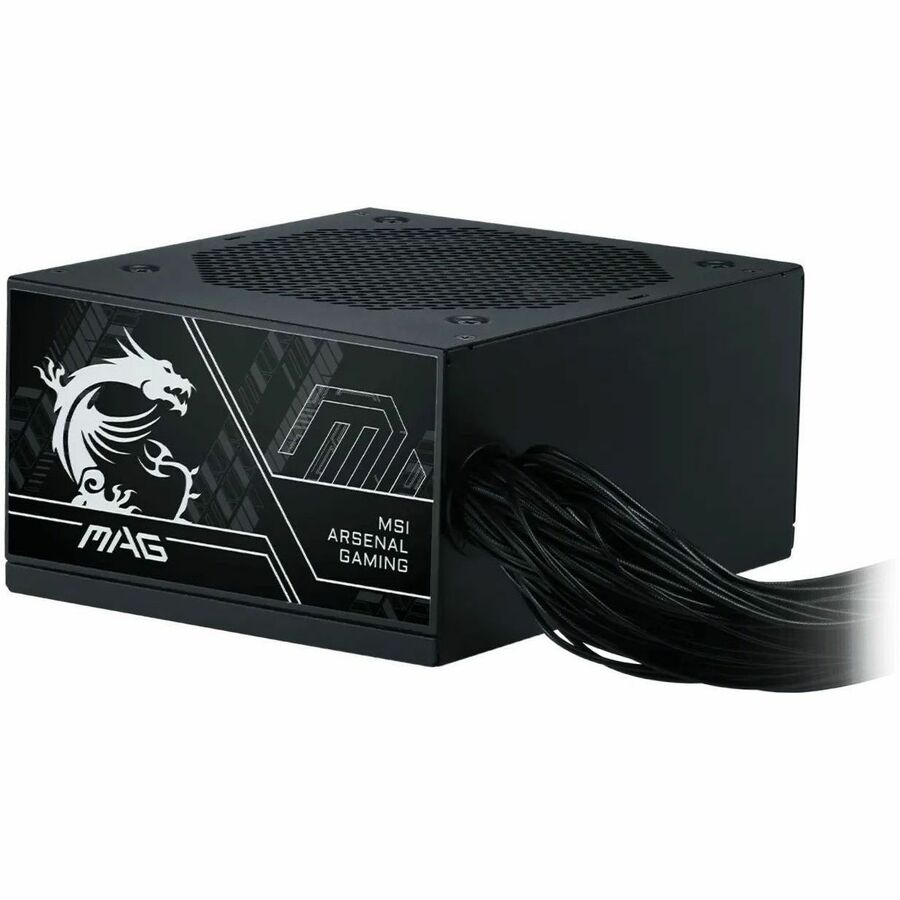

MSI MAG 650W Power Supply - MAGA650BNPCIE5III
Key Features

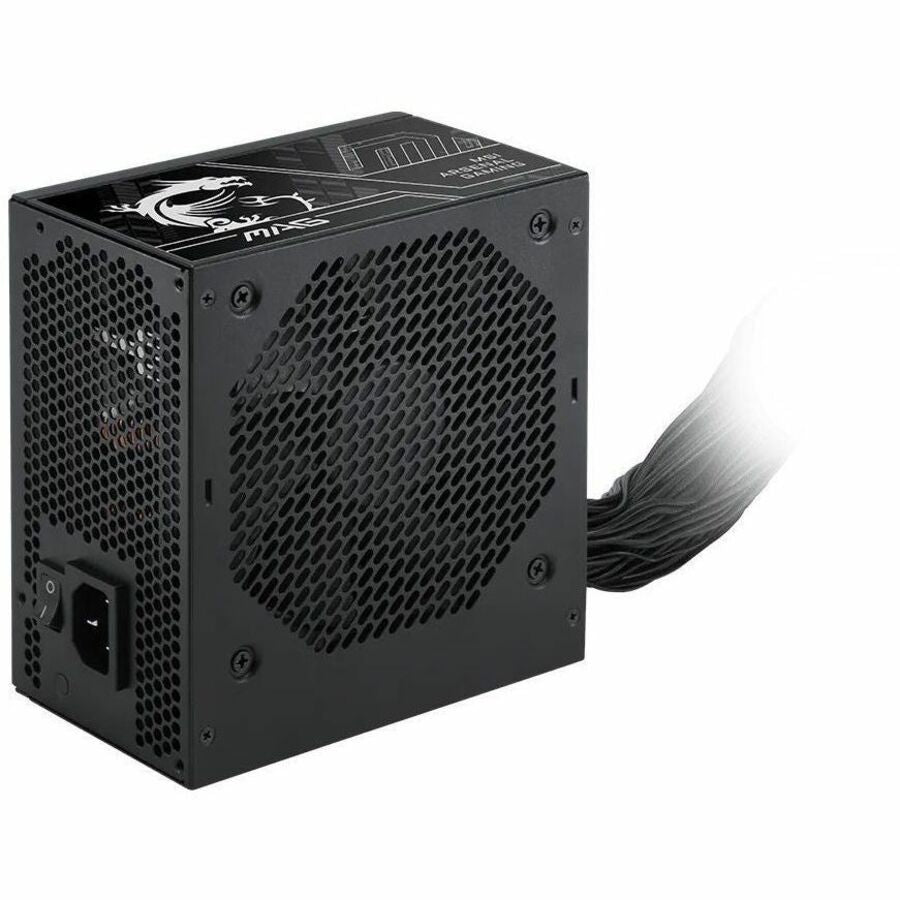

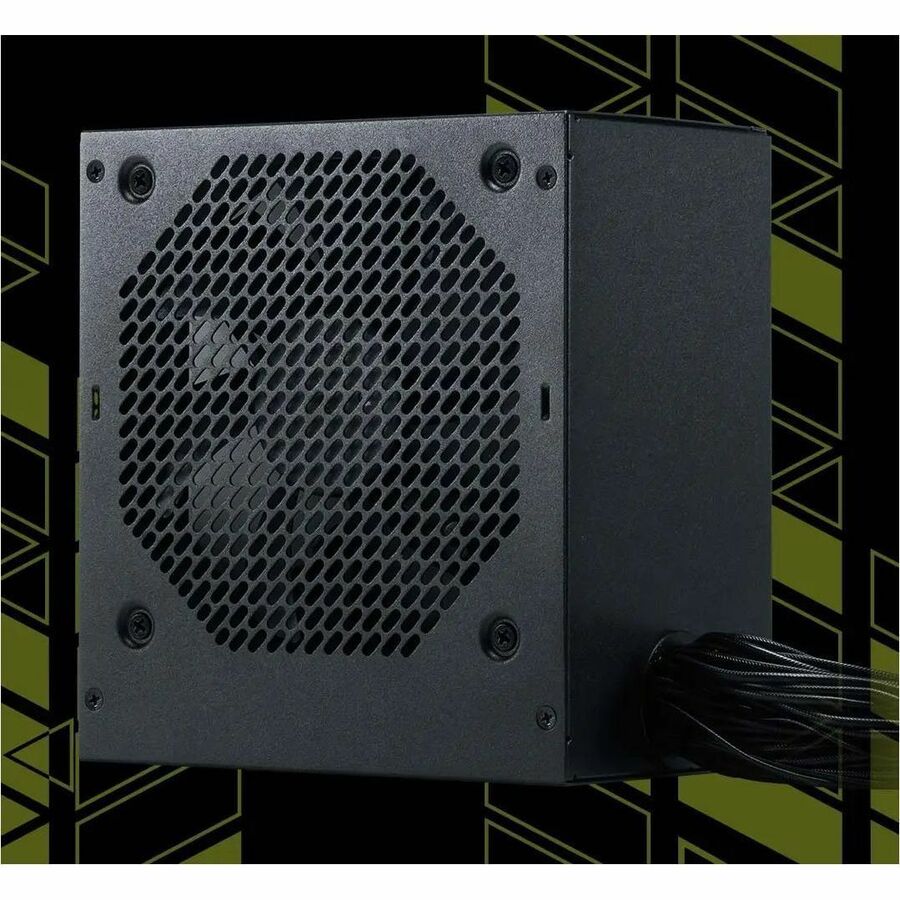

- 120mm Fan
- 80 PLUS Bronze
- Active PFC Design
- ATX 3.1 Ready
- DC to DC power Design
- Dual-color 12V-2x6 Cable
- Industrial level protection with OVP, OCP, SCP, OPP, UVP
- PCIe 5.1 Ready (300W)
Product Overview
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
ATX 3.1 READY
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Embossed Jacket Modular Cable
Using premium materials to enhance the cable's flexibility and bendability, the sleek matt black design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.
Dual-color 12V-2x6 cable
The 12V-2x6 cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
- 8+8 power connector
- 8+4 power connector
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.
Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
Connectors
This non-modular power supply equipped with black flat cables, making cable management.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGA650BNPCIE5III
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 650W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 85%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Hydraulic Bearing
- Fan Diameter: 120 mm
- Protection Type:
- Over Current
- Over Voltage
- Over Power
- Short Circuit
- Under Voltage
- Modular: No
- Features:
- Heat Dissipation
- Low Noise
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 15 A
- 3.3 V DC @ 15 A
- 5 V SB @ 2.5 A
- 12 V DC @ 54 A
- Output Current:
- 15 A
- 54 A
- 2.50 A
- Output Power: 650 W
Interfaces/Ports
- Number of SATA Power Connectors: 3
- PCI Express Connector: Yes
- PCI Express Version: 5.1
- Number of (6+2 pin) PCI Express Power Connectors: 2
- Number of (4+4 pin) CPU Power Connectors: 1
- Number of 4-pin Molex Power Connectors: 2
Physical Characteristics
- Form Factor: Internal
- Height: 3.4"
- Width: 5.9"
- Depth: 5.5"
Miscellaneous
- Energy Efficiency Certification: 80 Plus Bronze
Warranty
- Limited Warranty: 5 Year
